Toro OEM 114-3781 Bearing Spacer Fits Select Toro Power Clear and Quick Clear Snowblower Models.

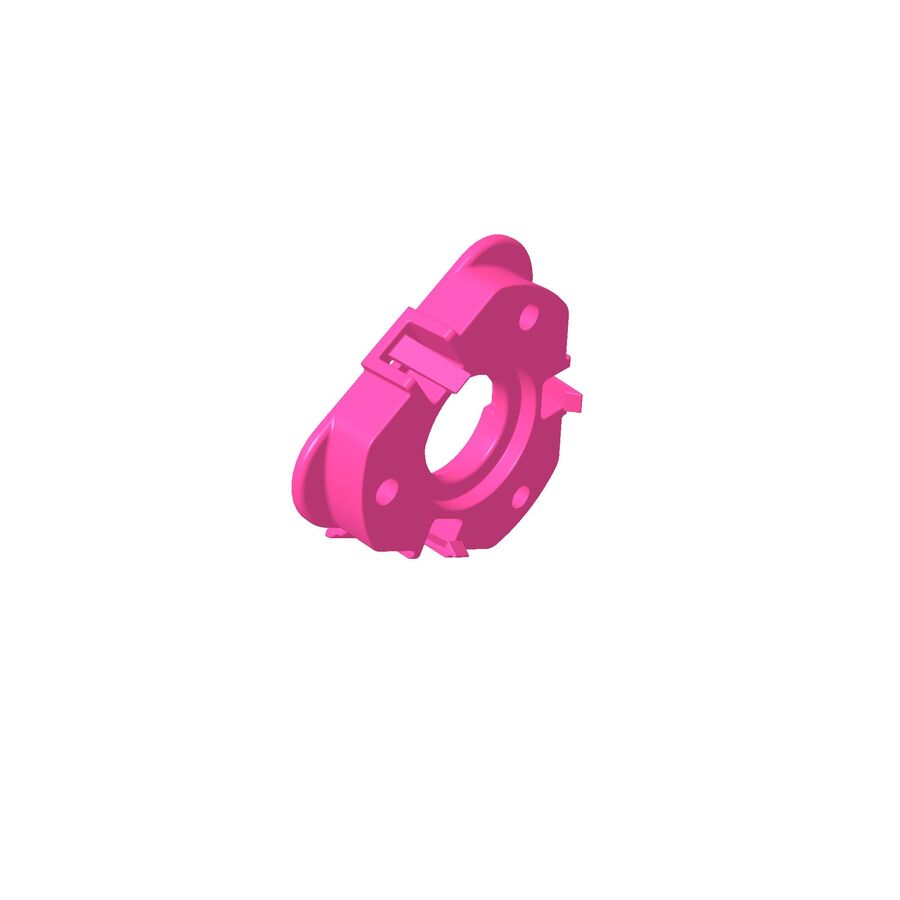

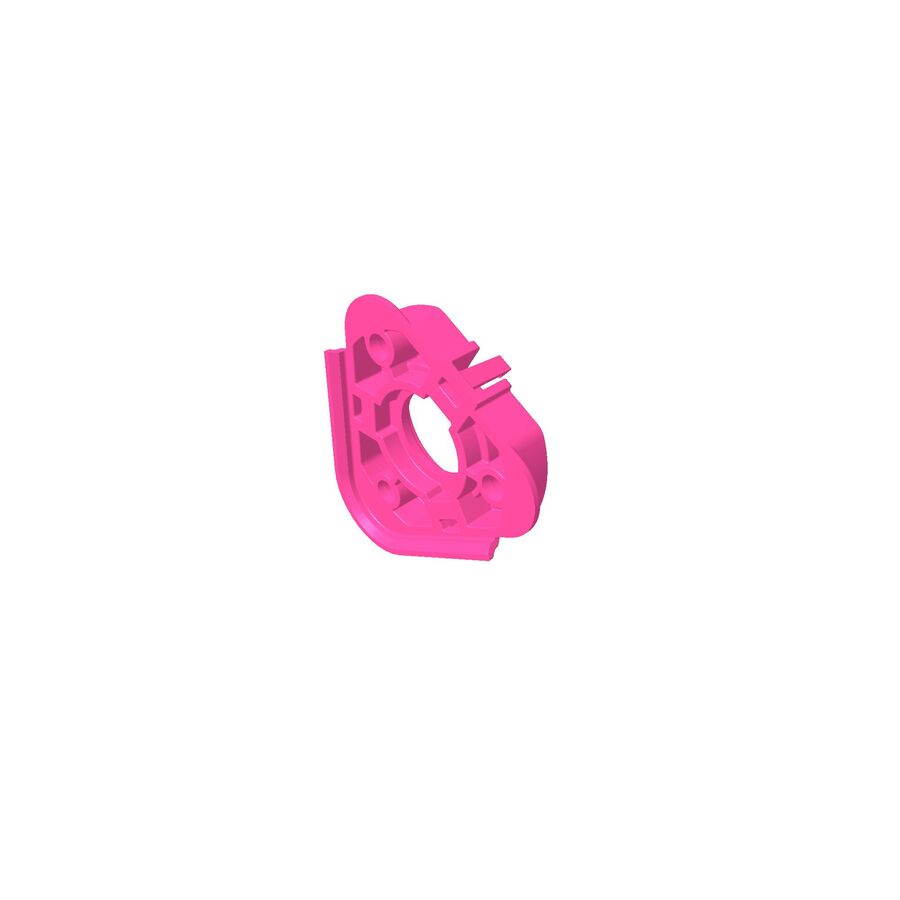

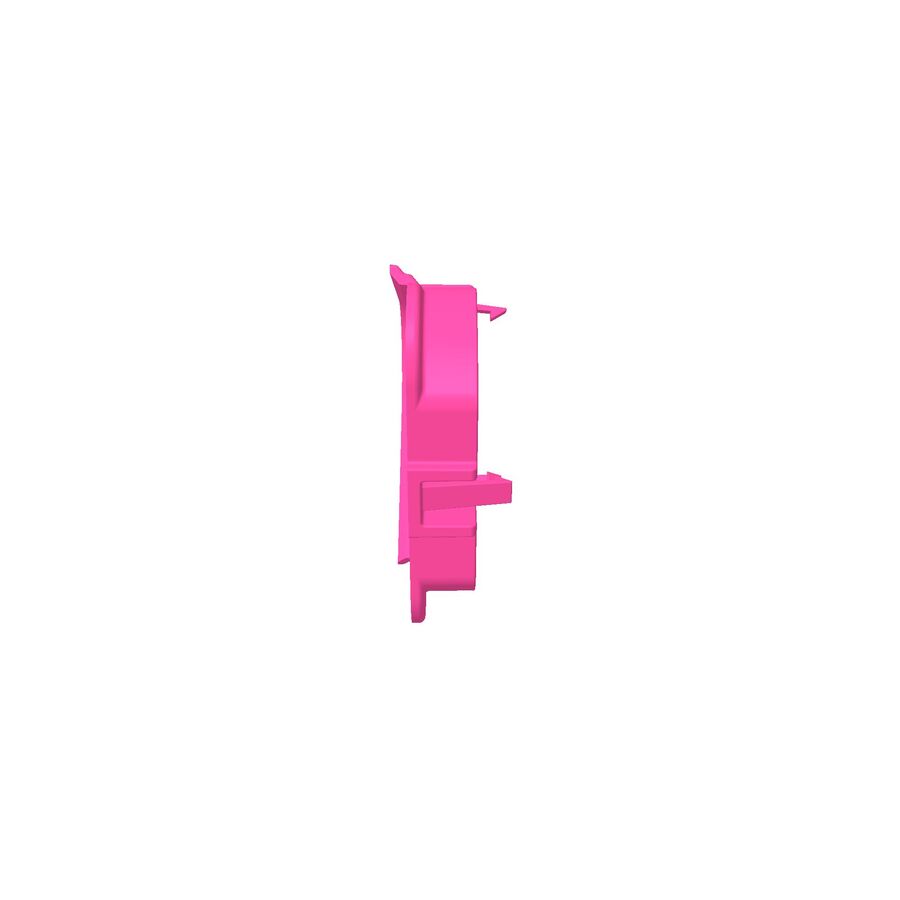

Please refer to the Images above and Model Fit Chart below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 114-3781, 114 3781, 1143781
• PRODUCT TYPE: Bearing Spacer
• SIZE: N/A
• NOTES & DETAILS: TORO OEM  114-3781 IS COMMINLY USED -

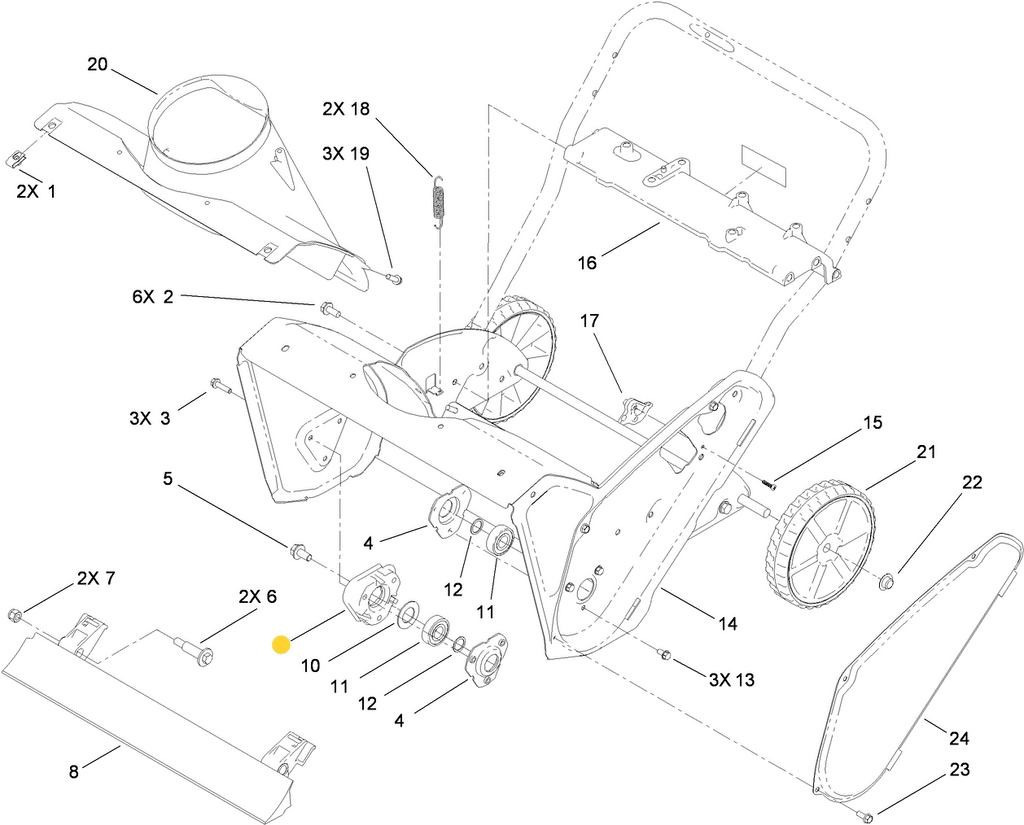

1. Snowblower Auger Usage - Commonly Used in Select Power Clear and Quick Clear Models That Contain a slightly different design of Auger Housing allowing it to use a consistent part list as other Power Clear Models. Toro Designed an Auger Bearing Spacer that Enables the Auger Bearing Flange and Auger Shaft Bolt to Insert into. Auger Bearing Spacer 114-3781 is Assembled on the Inside Right-Hand side of the Auger Housing as you stand Behind the Snowblower in the Operator Control Station - For A Better Understanding Review the Diagram in the Images Above.

• COMMON SERIES APPLICATIONS: Toro Select Power Clear and Quick Clear Snow Blower Models

• MODEL FIT CHART:

34001, 34002, 38451, 38452, 38453, 38454, 38458, 38459, 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38741, 38742, 38743, 38744, 38751, 38752, 38753, 38754, 38755, 38756, 38757, 39921, 39921T, 39922T

• ASSOCIATED PARTS & FASTNER CHART:

1. 32144-86 - Washer Head Thread Forming Bolt - Threads into the Auger Bearing Flange that Retains the Roller Bearings - Installed on the Outside of the Auger Housing Retaining the Bearing Flange and Components to the Auger Housing.
2. 110-9353 - Rubber Washer - Inserts Between the Bearing Spacer and the Bearing Allowing a Littler More Protection against the Roller Bearing Seal.
3. 52-7280 - Thrust Washer - Commonly Used to Space Auger Bearings away from the Bearing Flange and is Installed Inside the Bearing Flange - Sized to Correct Dimensions to leave The Bearing Roller to Rotate when the Bearing is Positioned against 52-7280
4. 38-7820 - Auger Shaft Roller Bearing - Enables the Auger Shaft to Insert Into it and Tighten allowing it to Rotate with Roller Bearing Assembly - Retained by Using the 136-7134 Bearing Flange.
5. 136-7134 - Bearing Flange - Used to Retain the 38-7820 Auger Shaft Bearing to the Bearing Spacer and/or the Auger Housing.
6. 110-9380 - Washer Head Thread Bolt - Retains the Auger Shaft to the Bearing and Bearing Assembly as well as Eliminating any side-to-side Play - Flange on the Bolt Head is Made to Correct Speciation to Allow it to Tighten Against the inner Bearings Inner Ring or Race without Hindering its Rotation.
