Description

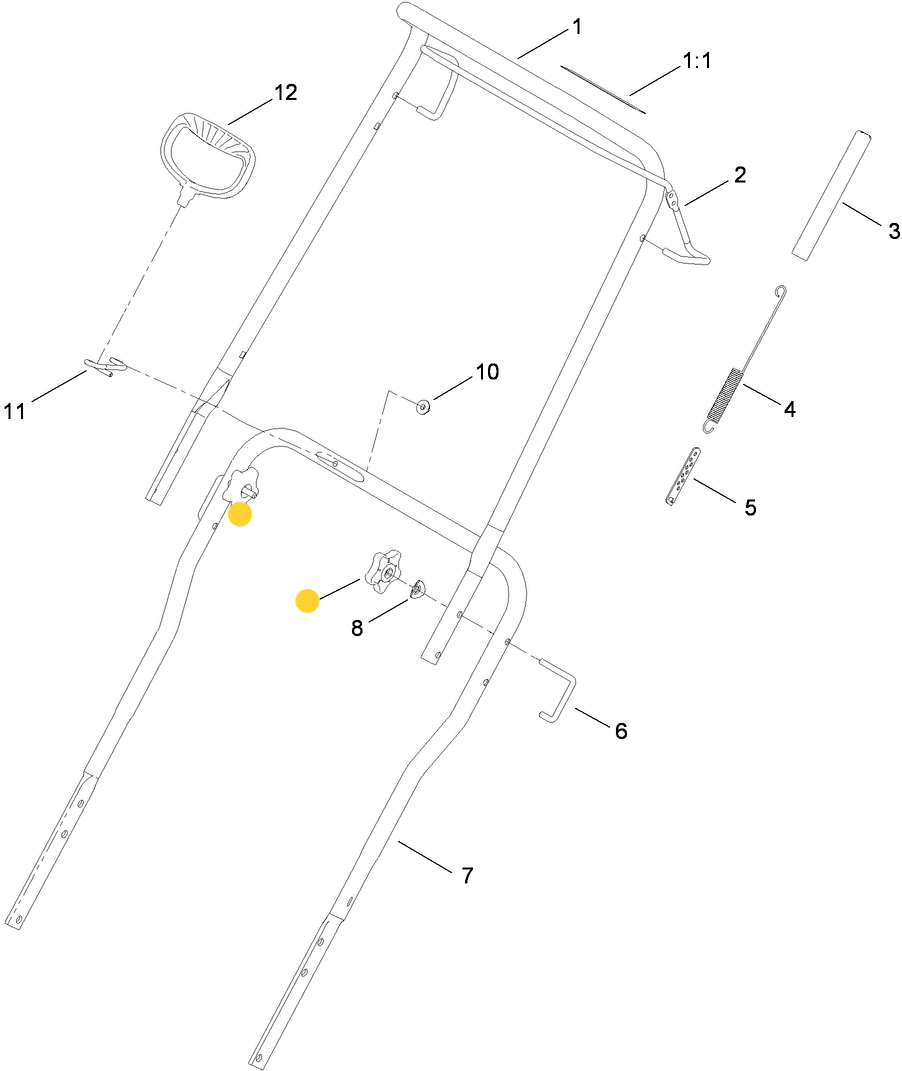

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 114-3779, 114 3779, 1143779

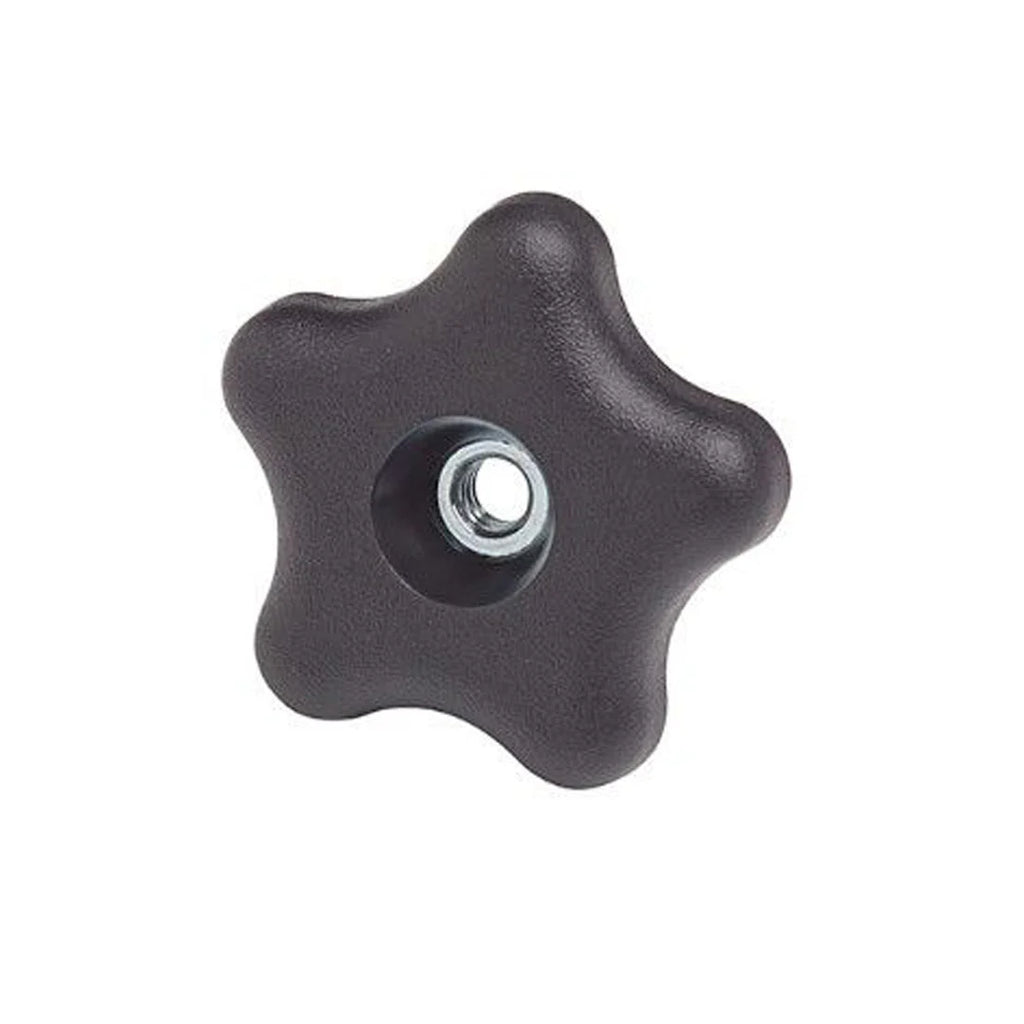

- PRODUCT TYPE: Handle Knob/Nut
- SIZE: 5/16 - 18 Common Thread Pattern
- NOTES & DETAILS: Toro OEM 114-3779 IS COMMINLY USED - As a Fastner for a Two-Part Handle Assembly and Enables the Handle to be Easily Folded Down or Taken Apart
- COMMON SERIES APPLICATIONS: Toro Power Clear & Quick Clear Snow Blower Models - Toro Recycler Walk-Behind Mower Model 20357 Only.
- MODEL FIT CHART:
20357, 34001, 34002, 38451, 38452, 38453, 38454, 38458, 38459, 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577, 38578, 38585, 38586, 38588, 38589, 38741, 38742, 38743, 38744, 38752, 38753, 38756, 38757, 39921
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 114-3779 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 136-7130 - HANDLE LOCK BOLT/FASTNER (Retains and Locks Two-Piece Handle Assemblies from Coming Apart or Folding) x2 Per Handle Assembly *Select Models & Personal Preference
- 92-2260 - CARRIAGE BOLT (Retains and Locks Two-Piece Handle Assemblies from Coming Apart or Folding) x4 Per Handle Assembly *Select Models & Personal Preferences
- 107-3844 - CONTOUR WASHER (Shaped to contour the Handle and is Used Between the Handle and the Fastners to Protect the Handle and Support the Fastners) x1 Per Handle Lock Bolt/Fastner
