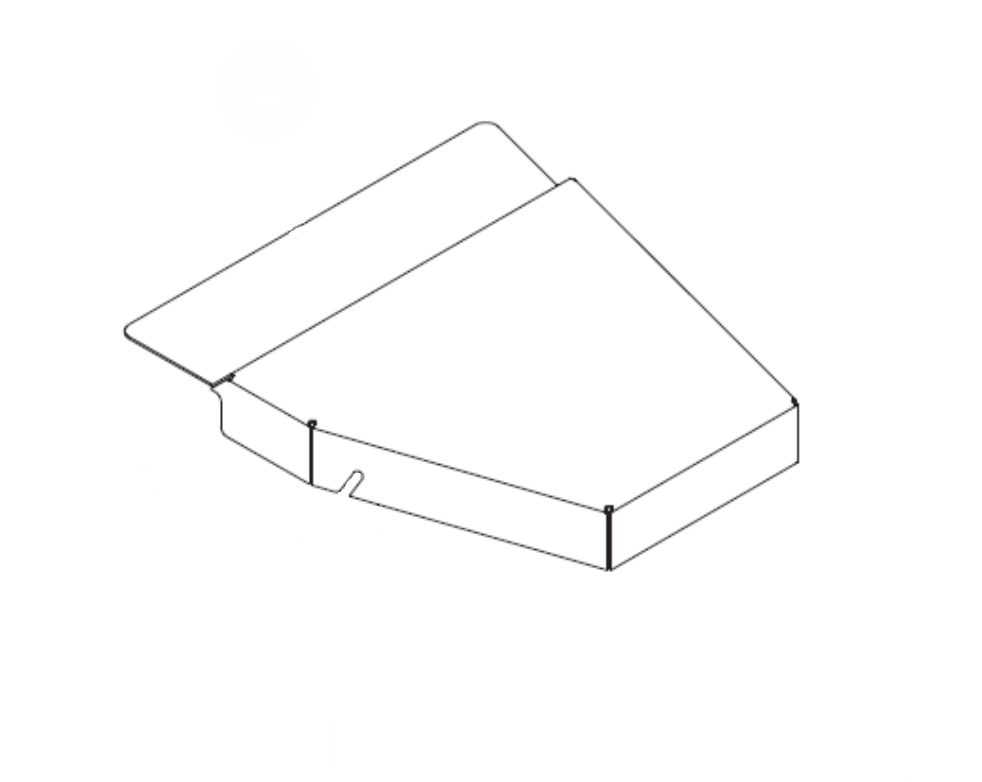

Hustler OEM 112936 Left Side Pulley Cover
Trust Hustler OEM Replacement Left-Side (Left to Right is as you sit on the Operators Seat) or Cutting-Edge Side 112936 Pulley and Belt Sheild to Properly Fit and Covers those Mower Deck Belts and Pulleys, Keeping the Operator Safe from Rotating Pulleys and Belts. Hustler OEM 112936 Pulley Cover is Also Designed to Protect your Mower Deck’s Belt System by Shielding Pulleys and Mower Deck Belts from Debris Preserving Proper Operation and Extending the life of your Mower Deck Components. The easy to remove 112936 Guard design allows easy access to cleaning your Mower Deck.
⚠️ Before You Order – Verify Fitment
Pulley covers can vary by Mower Deck Size, Position (Left to Right is as you sit on the Operators Seat), and Model/Series. Please confirm your exact Model Number is listed in the Model Fit Chart Below before ordering.
Not sure? Contact us with your Hustler Model and Serial Number and we’ll help verify fitment.
What This Part Does
- Maintains safe mower operation by covering rotating components - Protecting operator from rotating mower deck pulleys and belts
- Protects deck pulleys and belts from debris and damage
- Helps extend belt life and reduce premature wear
- Genuine Hustler OEM replacement for proper fit and durability
Part Details & Specifications
- Brand: Hustler
- Part Number: 112936
- Part Type: Pulley Cover / Belt Guard
- Deck Size: 72 inch
- Deck Type: VX4
- Position: Mower Deck Cutting-Edge Side or Left-Side of the Mower Deck as you sit on the Operators Seat
- Material: Steel/Metal (Painted Yellow)
Required Fasteners & Associated Parts
These parts are commonly serviced at the same time:
- 792002 - Rubber Knob (5/16 x 3/4 - 18 or 0.3125 x 0.75 -18). * Retains 112936 Pulley Cover to the Mower Deck.
- 601069 - U-CLIP Nut (5/16 - 18) * Insert over the Weldment Flange and Enables 792002 Knob to Insert through both the U-clip Hole and Mower Deck Weldment Hole to Retain the Pulley Cover to the Mower Deck.
- 112935 - Right-Side Pulley Cover or Discharge-Edge Pulley Cover * Used in Conjunction with 112936 for the Same Purpose on the Opposing Side of the Mower Deck - Right Side or Discharge-Edge Side of the Mower Deck.
Model Fit Chart
Super Z (2011 - 2017 72" Side Discharge)
929950, 931048, 932046, 932137, 932988, 934273, 934281, 935049, 935056US
Super Z Hyper Drive (2013 - 2017 72" Side Discharge)
932152, 933002, 934349, 934356, 934695, 934950, 934968
Diesel Z (2017 & Earlier 72" Side Discharge)
Models are Currently Not Listed
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
