Description

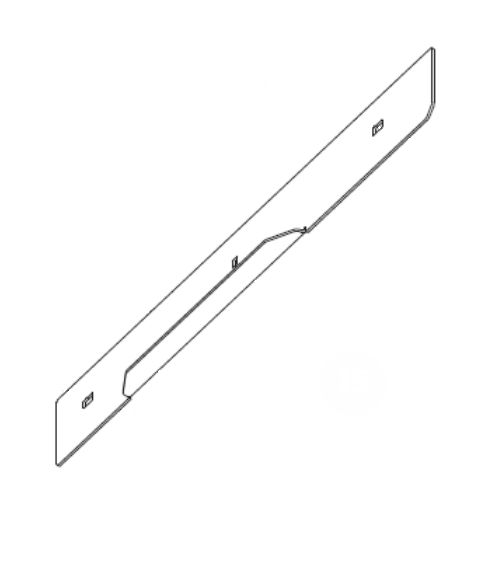

Hustler OEM 112931 Right Side Adjuster Baffle
Hustler OEM 112931 Replaceable Right Side Adjuster Baffle OR Discharge-Side Baffle is Part of a Two-Piece Baffle System that Bolt to the Front Right-Side of the Mower Deck Shell (Left to Right as you Sit on the Operators Seat). This Mower Deck Baffle is used on Select 72-inch VX4 Mower Decks and is Critical in Managing Airflow inside the Mower Deck for Proper Mowing Discharge and Performance.
⚠️ Before You Order – Verify Fitment
This part is a front right-side adjuster baffle or discharge side baffle (Left to Right is as you sit on the Operators Seat) for select 72" VX4 decks. Deck width, deck series, and side location matters. This is not the same as the left-side baffle or baffles used on other deck sizes. Please confirm your exact Model Number is listed in the Model Fit Chart Below before ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
What This Part Does
- Helps regulate airflow inside the mower deck
- Supports proper cut quality and grass discharge performance
- Designed for right side as part of a Two-Piece Baffle System (As You Sit on the Operators Seat) application on select 72" VX4 decks
Part Details & Specifications
- Brand: Hustler
- Part Number: 112931
- Deck Size: 72 inch
- Deck Type: VX4
- Position: Mower Deck Discharge Side or Front Right Side of the Mower Deck as you sit on the Operators Seat
- Material: Steel/Metal

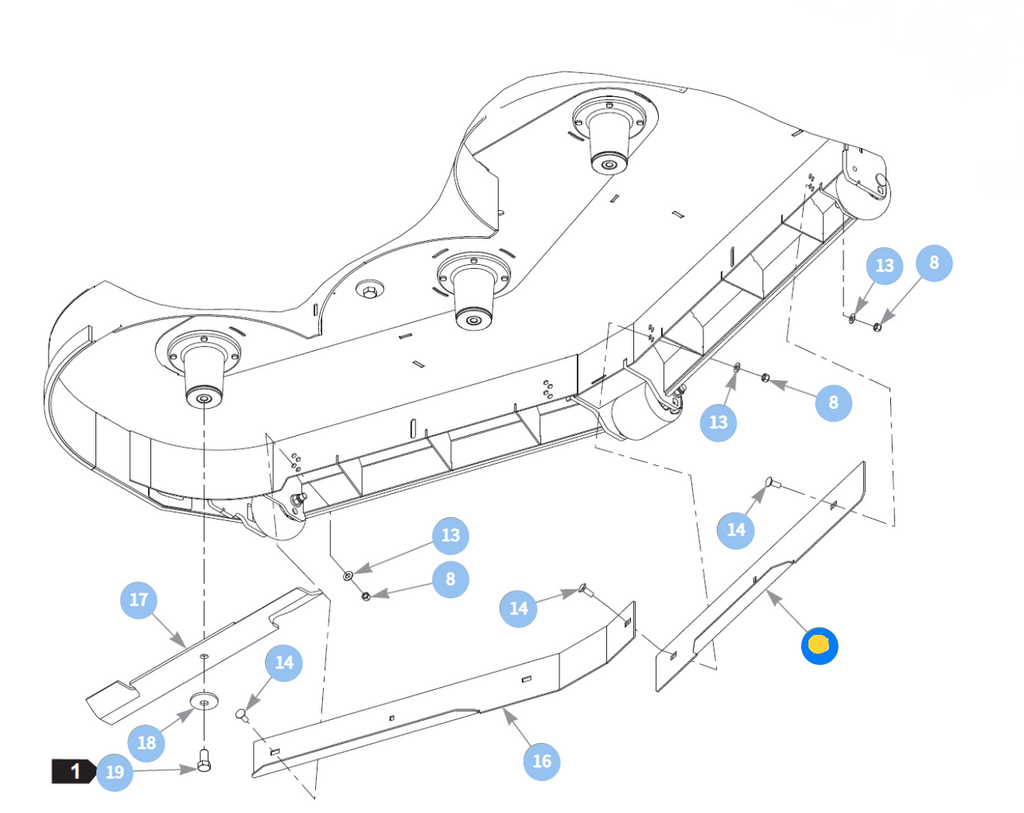

Required Fasteners & Associated Parts
These parts are commonly serviced at the same time:
- 025395 - Carriage Bolts (3/8 x 1.00 - 16 or .375 x 1.00 -16). * Retains 112931 Baffle to the Inside of the Mower Deck Shell - Bolt Insert from Inside the Baffle Towards the Outside of the Mower Deck.
- 604515 - Nylon Locking Flange Nut (3/8 - 16 or 375 - 16). * Used Between the Mower Skirting to Retain the 112931 Baffle.
- 112932 - Left-Side Baffle or Cutting Edge-Side Baffle * Used in Conjunction with 112931 Baffle - Part of the Two-Piece Baffle System.
Model Fit Chart
Super Z (2011 - 2017 72" Side Discharge)
929950, 931048, 932046, 932137, 932988, 934273, 934281, 935049, 935056US
Super Z Hyper Drive (2013 - 2017 72" Side Discharge)
932152, 933002, 934349, 934356, 934695, 934950, 934968
Diesel Z (2017 & Earlier 72" Side Discharge)
Models are Currently Not Listed
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
