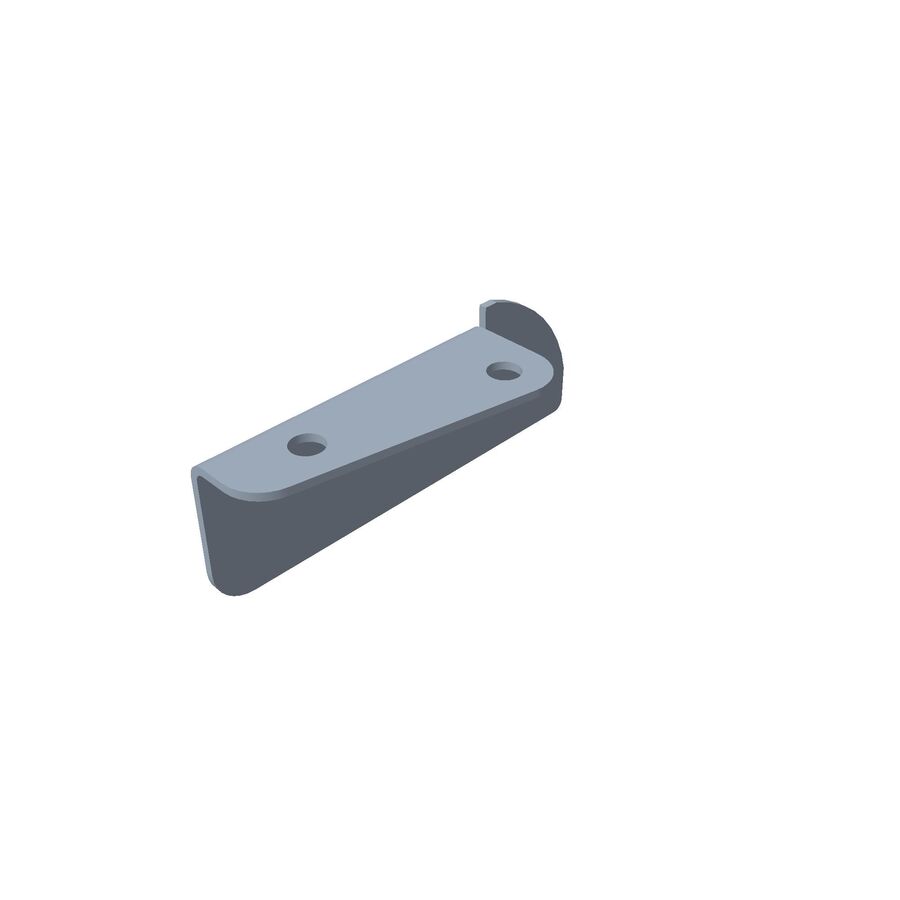

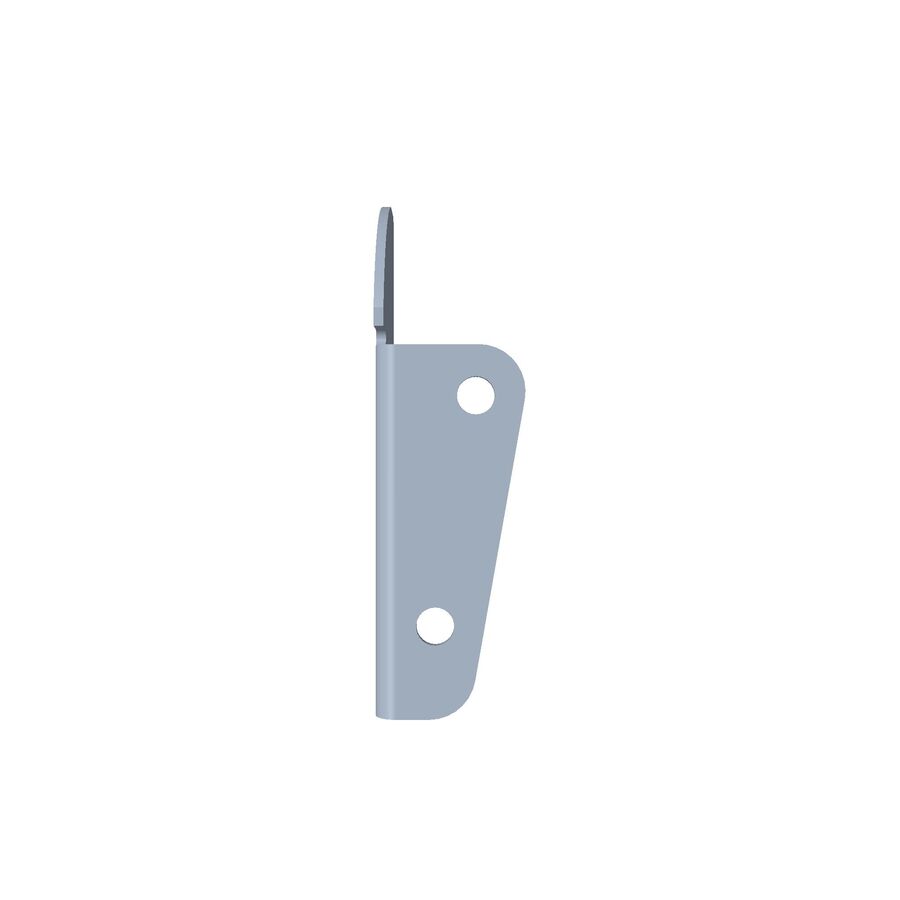

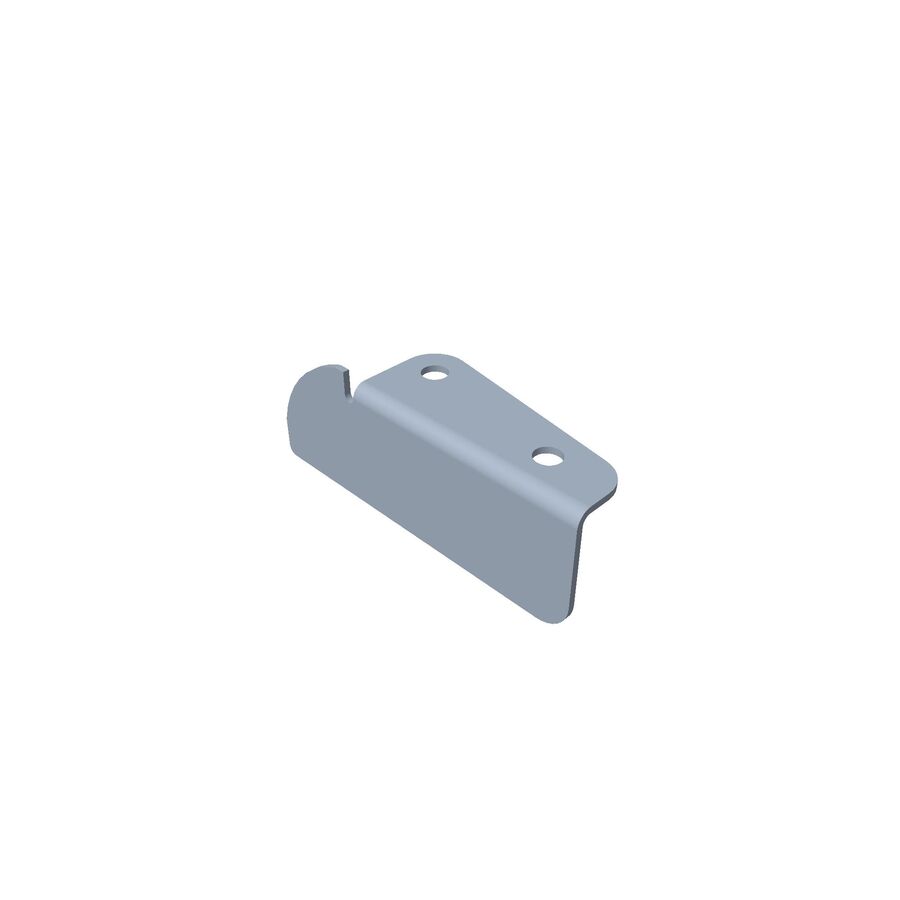

Toro OEM 112-3983-03 Discharge Baffle Fits Select Late Timecutter ZS, SS, SW Models - TITAN ZX Model 74840 Only.

Toro OEM 112 3983 03 Discharge Baffle is used under or inside the Mower Deck by the Discharge Opening. Toro 112 3983 03 Discharge Baffle is used for the Purpose of Redirecting or Interrupting Air Flow and Grass, Stemming Circular Air Flow Toward the Discharge Opening. Toro OEM 112-3983-03 is Designed to fit Select Late 42", 50", 54", Timecutter ZS, SS, SW Models - Late 50" Titan ZX Model 74840 only - Vac and Collection System Kits. *Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS FOR PART NUMBER 112-3983-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 112-4026 - MOWER DECK DISCHARGE CHUTE PIVOT ROD (*42" Models Only) - (Discharge Chute Pivot Pin Threads insert through the Mower Deck and Discharge Baffle Enabling the Discharge Baffle to be Tightened in place with a Nut on the Bottom Side) x1 Per Mower Deck
2. 112-3950 - MOWER DECK DISCHARGE CHUTE PIVOT ROD (*50 & 54* Models Only) - (Discharge Chute Pivot Pin Threads insert through the Mower Deck and Discharge Baffle Enabling the Discharge Baffle to be Tightened in place with a Nut on the Bottom Side) x1 Per Mower Deck
3. 104-8300 or 121-4600 - NYLON LOCK NUT (Retains the Mower Deck Discharge Baffle, Discharge Chute Pivot Pin and Discharge Chute to the Mower Deck) x1 Per Discharge Chute Pivot Pin and Discharge Baffle - *Interchangeable Part Numbers Both Nuts Have the Same Thread size for Both Part Numbers







Specification

Product Number:	112398303
Brand:	Toro
Length:	5.600 IN (14.224 CM)
Width:	2.100 IN (5.334 CM)
Height:	1.560 IN (3.962 CM)
Weight:	0.440 LB (0.200 KG)





Model Fit:



TIMECUTTER



TIMECUTTER 42” SS Series – Model Numbers – (* Model Numbers 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74720, 74721, 74722, 74723, 74725)

TIMECUTTER 42” SW Series – Model Numbers – (* Model Numbers 74675, 74784, 74785)

TIMECUTTER 42” ZS Series – Model Numbers – (* Model Numbers 74386, 74389, 74655, 74656, 74657)



TIMECUTTER 50” SS Series – Model Numbers – (* Model Numbers 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732)

TIMECUTTER 50” SW Series – Model Numbers – (* Model Numbers 74793, 74680, 74790)

TIMECUTTER 50” ZS Series – Model Numbers – (* Model Numbers 74387, 74660, 74661, 74688)



TIMECUTTER 54” SS Series – Model Numbers – (* Model Numbers 74740, 74741)

TIMECUTTER 54” SW Series – Model Numbers – (* Model Numbers 74793)



TITAN



50” Titan ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 50” Early Models - (* Model Numbers 74840)



VAC & COLLECTION SYSTEM



VAC & COLLECTION SYSTEM MODELS/PART NUMBERS – (* Model Numbers 79324, 99324, 715464006, 117-5310)
