Description

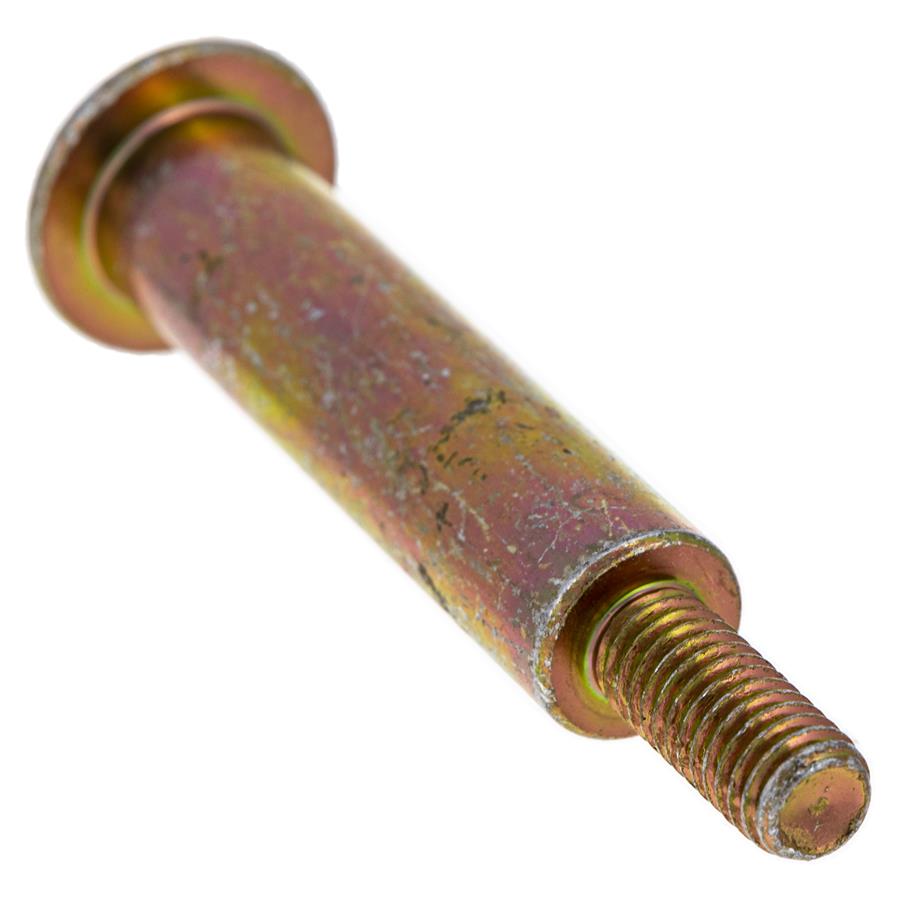

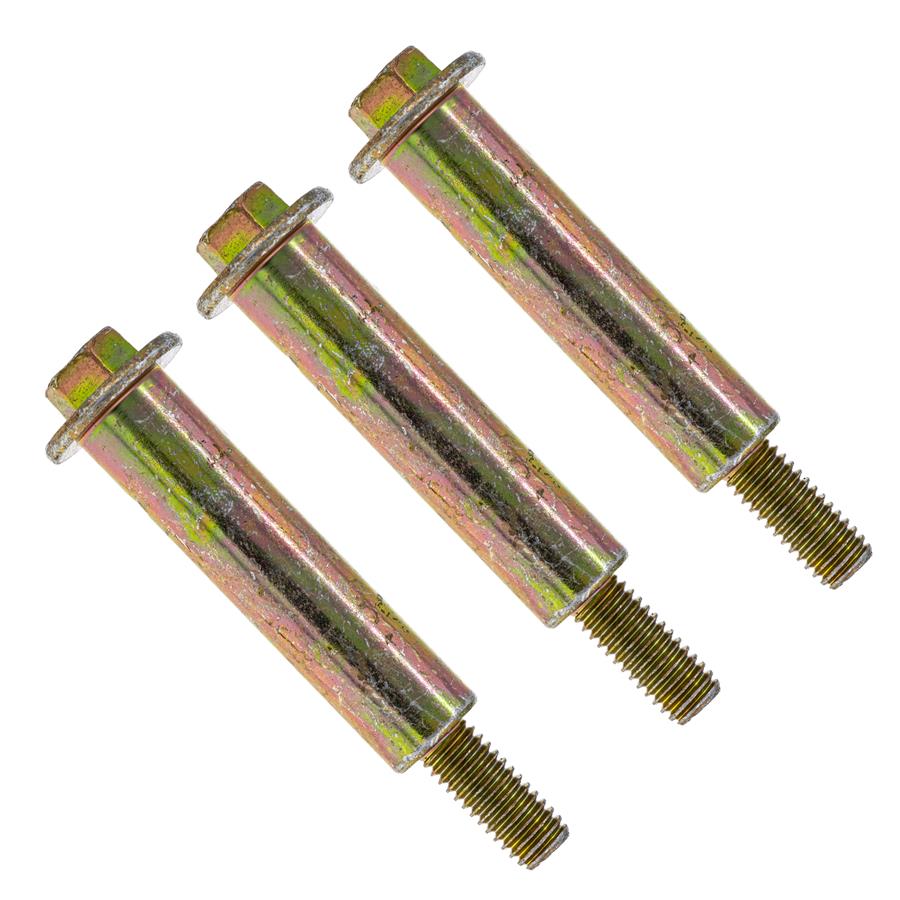

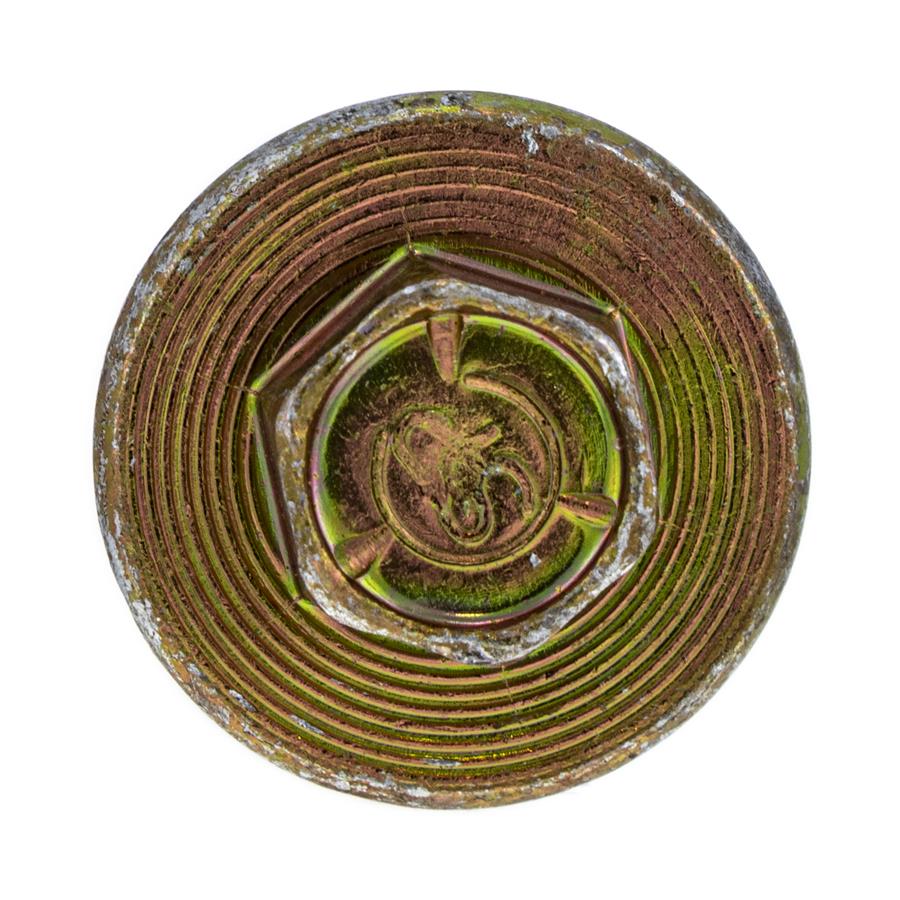

- TYPE: TORO OEM Hex Head Flange, Shoulder Bolt
- SIZE: Standard 3/8 Thread Pattern
- APPLICATIONS: Commonly used in Application such as Anti-Scalp Rollers, Mower Deck Tensioner Arm Assembly, Belt Hook/Mower Deck Belt Guide

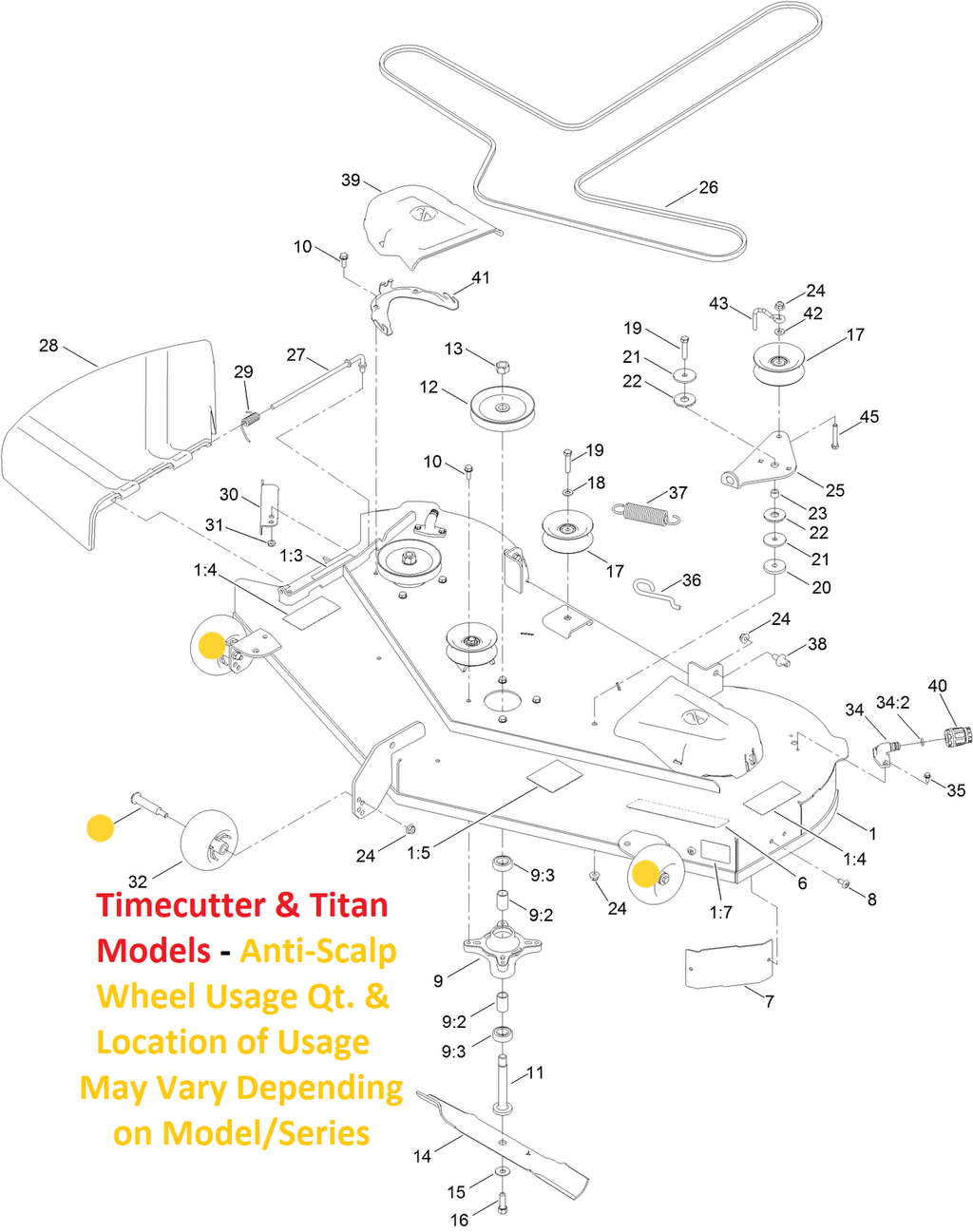

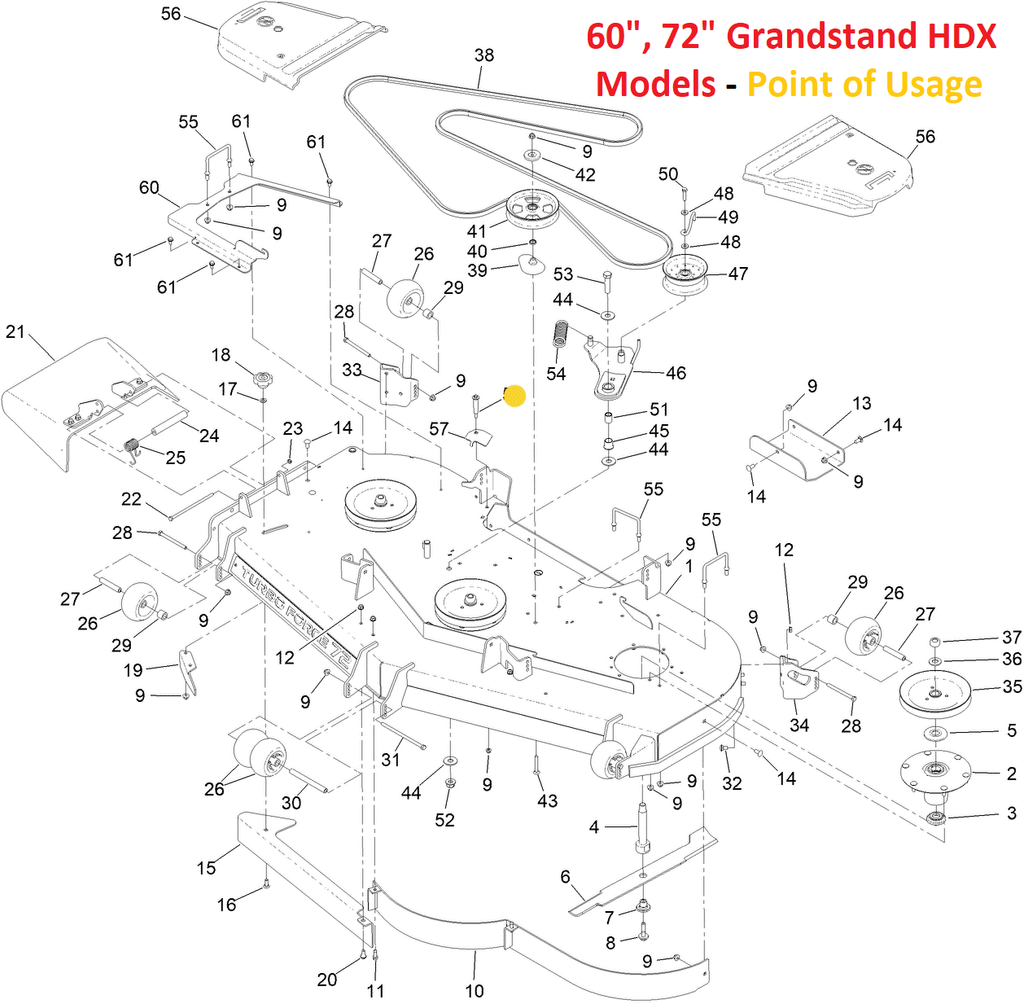

- COMMON SERIES APPLICATIONS: Early/Late/Current Timecutter Z, ZS, ZX, MX, SS, SW, SWX, 4200, 5000, Standard, My-Ride Models (Anti-Scalp Roller) - Current 60" & 72" Grandstand HDX Models (Mower Deck Belt Guide/Spring Hook) - Early TITAN Z, ZX, MX Models (Anti-Scalp Rollers) - Early MZ, XLS, G4000 Models (Anti-Scalp Roller) - GroundMaster Models (Mower Deck Tensioner Arm Assembly) - Field Pro Models (Idler Tensioner Assembly).
*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.
ASSOCIATED ANTI-SCALP WHEEL PARTS FOR PART NUMBER 112-3977 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 1-603299 - ANTI-SCALP WHEEL (Small Wheels Fastened to the Mower Deck and Aids in Helping the Mower Deck to Float Across Uneven Terrain, Helping to Eliminate Scalping) x? Quantity Varies Depending on Model/Series
- 104-8301 - FLANGE LOCK NUT (Retains Shoulder Bolt and Anti-Scalp Wheel to Mower Deck) x1 Per Anti-Scalp Wheel
Specification
|
Product Number: |
1123977 |
|
Brand: |
Toro |
|
Length: |
3.800 IN (9.652 CM) |
|
Width: |
1.000 IN (2.540 CM) |
|
Height: |
1.000 IN (2.540 CM) |
|
Weight: |
0.284 LB (0.129 KG) |
Model Fit:
TIMECUTTER
TIMECUTTER 34” MX Series – Model Numbers – (* Model Numbers 74750)
TIMECUTTER 34” (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)
TIMECUTTER 42” SS Series – Model Numbers – (* Model Numbers 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726)
TIMECUTTER 42” SW Series – Model Numbers – (* Model Numbers 74675, 74676, 74784, 74785, 74788)
TIMECUTTER 42” SWX Series – Model Numbers – (* Model Numbers 74787)
TIMECUTTER 42” Z Series – Model Numbers – (* Model Numbers 74360, 74363, 74380, 74381, 74365, 74366)
TIMECUTTER 42” ZS Series – Model Numbers – (* Model Numbers 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667)
TIMECUTTER 42” MX Series – Model Numbers – (* Model Numbers 74640, 74642, 74760, 74765, 74766)
TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 75740)
TIMECUTTER 42” (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)
TIMECUTTER 42” (My-Ride) Series – Model Numbers – (* Model Numbers 75743, 75745, 75747)
TIMECUTTER 44” ZX Series – Model Numbers – (* Model Numbers 74406, 74603)
TIMECUTTER 50” Z Series – Model Numbers – (* Model Numbers 74370, 74372, 74374, 74375, 74391, 74399, 74373, 74376, 74398)
TIMECUTTER 50” ZS Series – Model Numbers – (* Model Numbers 74387, 74660, 74661, 74395)
TIMECUTTER 50” MX Series – Model Numbers – (* Model Numbers 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774)
TIMECUTTER 50” SS Series – Model Numbers – (* Model Numbers 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732)
TIMECUTTER 50” SW Series – Model Numbers – (* Model Numbers 74793, 74680, 74790)
TIMECUTTER 50” SWX Series – Model Numbers – (* Model Numbers 74797, 74798, 74795)
TIMECUTTER 50” 5000 Series – Model Numbers – (* Model Numbers 75751)
TIMECUTTER 50” (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)
TIMECUTTER 50” (My-Ride) Series – Model Numbers – (* Model Numbers 75755, 75759)
TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)
TIMECUTTER MAX 50” (My-Ride) Series – Model Numbers – (* Model Numbers 77502)
TIMECUTTER 52” ZX Series – Model Numbers – (* Model Numbers 74407, 74806)
TIMECUTTER 54” SS Series – Model Numbers – (* Model Numbers 74740, 74741)
TIMECUTTER 54” SW Series – Model Numbers – (* Model Numbers 74793)
TIMECUTTER 54” (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)
TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)
TIMECUTTER MAX 54” (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)
TIMECUTTER 60” (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)
TIMECUTTER 60” (My-Ride) Series – Model Numbers – (* Model Numbers 75763)
TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – (* Model Numbers 77601, 77604)
TIMECUTTER MAX 60” (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)
TITAN
48” Titan Z, ZX, MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74812, 74813, 74816, 74830, 74841, 74845, 74871, 74920
50” Titan Z, ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 50” Early Models - (* Model Numbers 74820, 74840
52” Titan Z Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 52” Early Models Only - (* Model Numbers 74814, 74815, 74818
54” Titan ZX, MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74822, 74832, 74842, 74872, 74912, 74914, 74924
60” Titan ZX, MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models Only - (* Model Numbers 74823, 74824, 74833, 74843, 74873
GRANDSTAND HDX
60” GRANDSTAND – (HDX) – (* Model Numbers 72510, 72514)
72” GRANDSTAND – (HDX) – (* Model Numbers 72517)
GROUNDMASTER
GROUNDMASTER – (* Model Numbers 31900, 31901, 31902, 31903, 31907, 31909, 31970, 31971, 31972, 31973, 31974, 31975
FIELD PRO
FIELD PRO MODELS – (MODEL NUMBERS 08839)
MISC. MODELS – G4000, MZ, XLS
G4000 Series - Model Numbers - (* Model Numbers 94360, 94370, 94372, 94375, 94818, 725058046, 725058056, 725058066, 725058076, 725058086)
MZ Riding Mower Models - Model Numbers - (* Model Numbers 94806, 725058016, 725058046, 725058056, 725058066
XLS Riding Tractor Models - Model Numbers - (* Model Numbers 71255)
