Toro OEM 112-3950 Discharge Chute Pivot Rod Fits Early Toro 50" Timecutter SS, SW, ZS, Z, Models - 54" Timecutter SS Models - 50" TITAN ZX Models (Stamped Mower Deck Models).

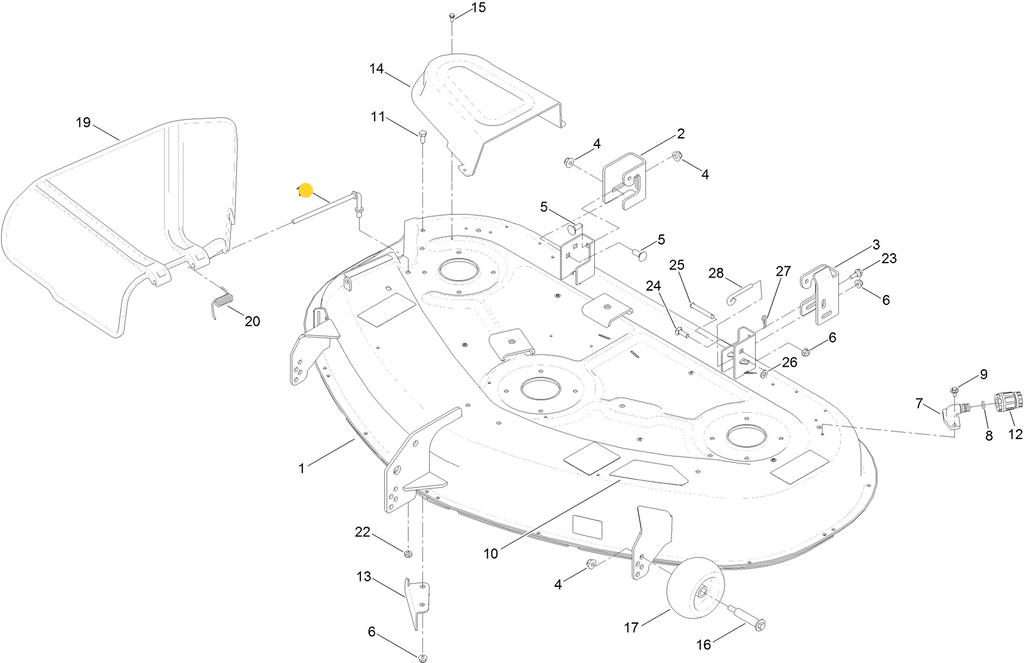

Toro OEM 112 3950 Discharge Chute Pivot Pin is Designed for Toro Discharge Chute. 112 3950 is the Rod that allows You to Fasten your Discharge Chute, Retain the Torsion Spring that Keeps Constant Downward Pressure - as well as do what it Sounds like it should (Allow you to Pivot Your Discharge Chut Up and Down). 112-3950 is Factory Designed and Made to Fit Toro Early 50" Timecutter SS, SW, Z, ZS Models - Early 54" Timecutter SS Models - Early 50" TITAN ZX Models - G4000 Models. For an Accurate Model/Series Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Click on the Part Numbers in the Part Referencing Links to be redirected.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 112-3950 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 110-6694 - TORSION SPRING (Attaches over Pivot Rod)
2. 108-7895 - DISCHARGE CHUTE (Review Part Number Model Fit Chart to Ensure Correct Fit)
3. 121-4600 - LOCKING NUT (Retains Pivot Pin)







Specification

Product Number:	1123950
Brand:	Toro
Length:	7.000 IN (17.780 CM)
Width:	2.500 IN (6.350 CM)
Height:	0.600 IN (1.524 CM)
Weight:	0.230 LB (0.104 KG)





Model Fit:



TIMECUTTER 50” Z Series – Model Numbers – 74370, 74372, 74391, 74399, 74374, 74375, 74373, 74376, 74398



TIMECUTTER 50” ZS Series – Model Numbers – 74660, 74661, 74387



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74793, 74680, 74790



TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TITAN 50” ZX Series – Model Numbers - 74820, 74840



G4000 Series – 94360, 94370, 94372, 94375, 725058056, 725058066, 725058086
