Description

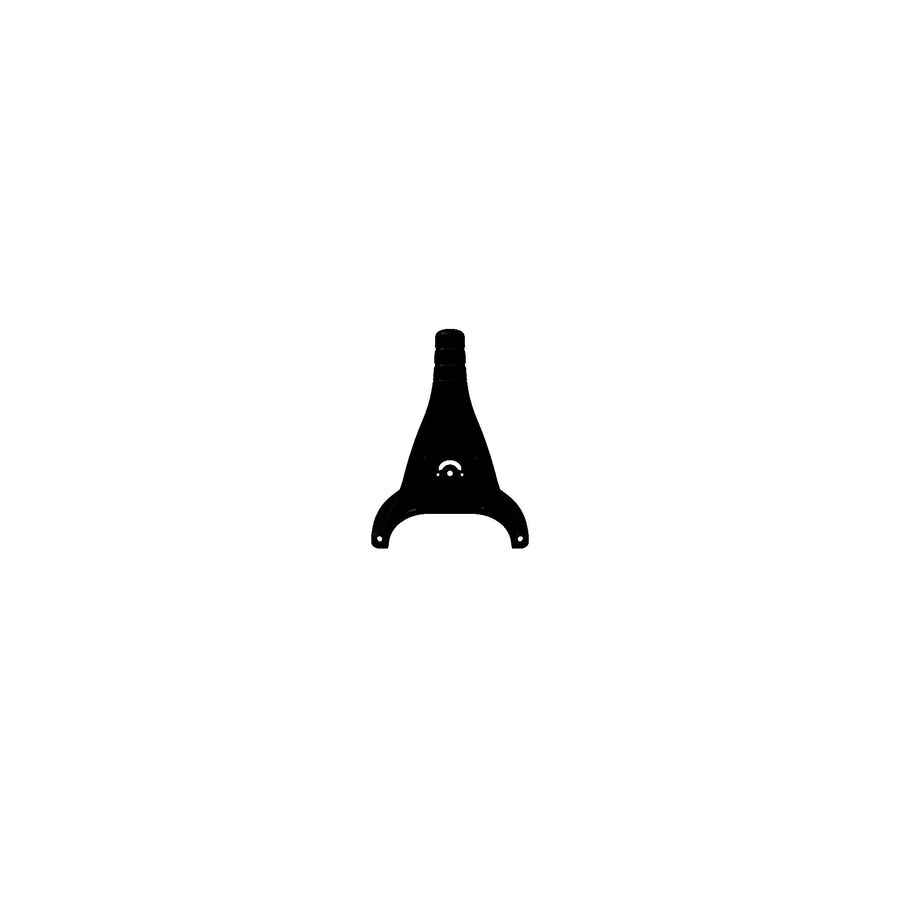

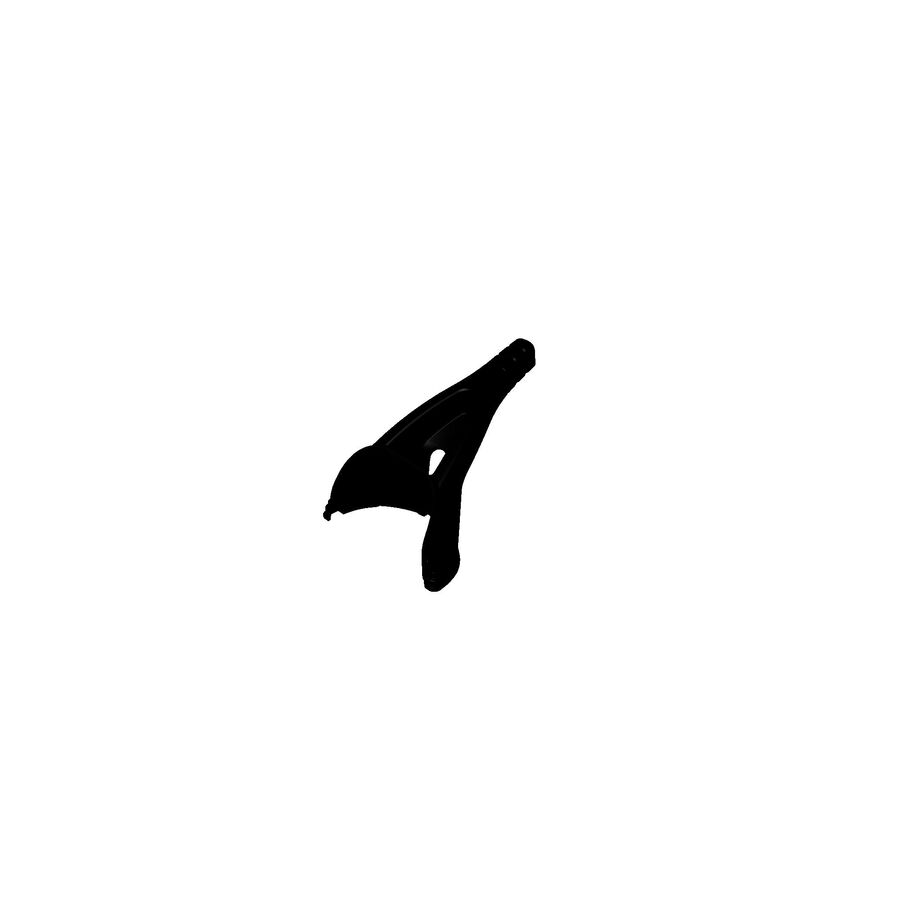

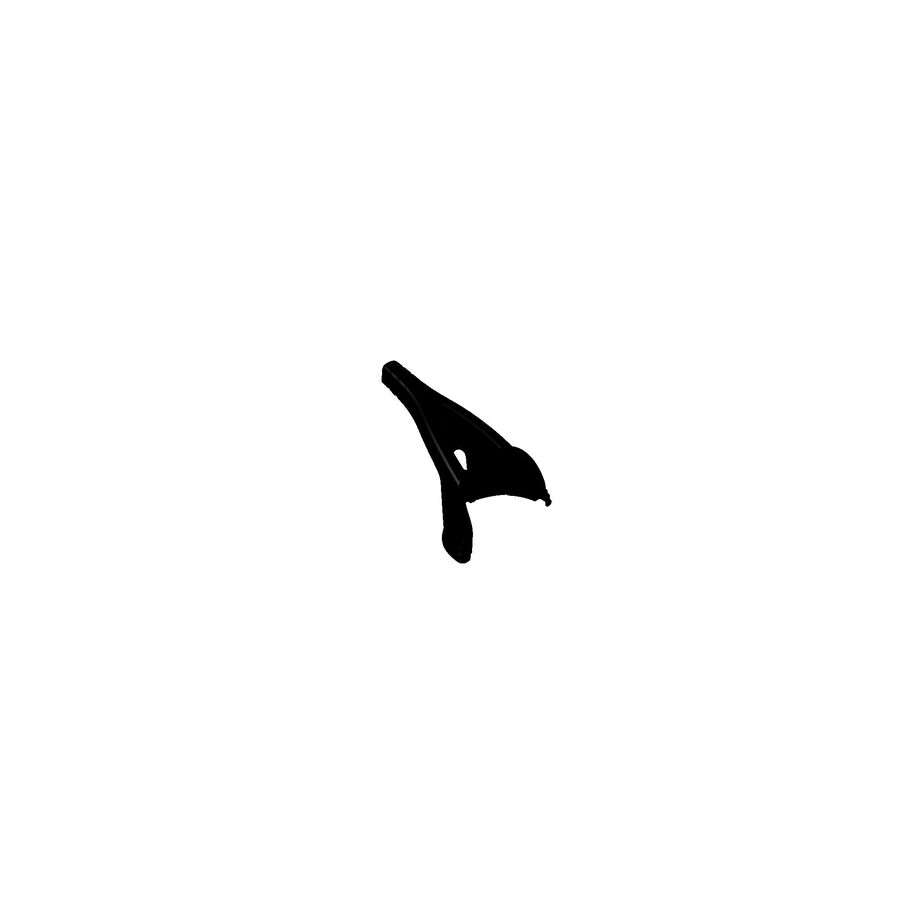

Toro OEM 110-9366 Chute Control Handle
Restore smooth and precise chute rotation on your Toro snowblower with this genuine Toro OEM 110-9366 Chute Handle. This handle is part of the chute control system and allows the operator to easily adjust the discharge direction while clearing snow. 110-9366 Fastens to the Lower Side of the Discharge Chute and Chute Detent Ring and Enable the Operator to Manually Adjust the Discharge Chute from Left to Right. Manufactured to Toro’s specifications, this OEM handle ensures proper fit, durability, and reliable operation in cold-weather conditions.
- OEM Part Number: 110-9366, 110 9366, 1109366
- Part Name: Handle – Chute Control
- Function: Allows operator to rotate and position the discharge chute
- Genuine OEM: Correct fit and performance on Select Toro Quick Clear (Only Model 38571, 38575), Power Clear & E-Power Clear single-stage snow throwers.
Fits These Toro Models (By Family)
Verify your model number (and serial range when applicable) from the machine tag before ordering.
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38571, 38575)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38453, 38454, 38474, 38475, 38581, 38582, 38752, 38753, 38754, 38755)
E POWER CLEAR Series – Model Numbers – (* Model Numbers 39921, 39921T, 39922T)

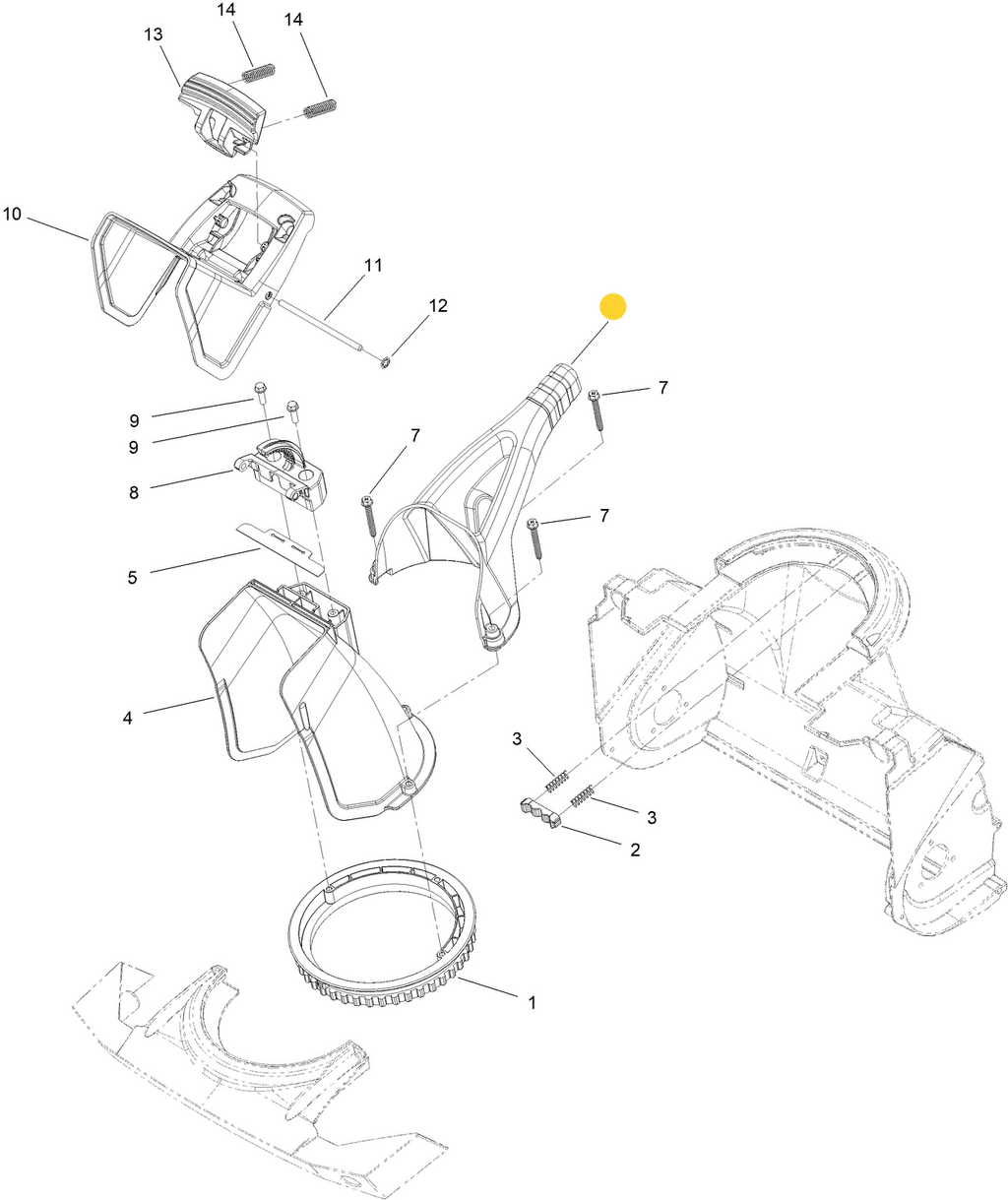

Associated Parts & Hardware
If Removal of the Discharge Chute or Replacement of any Lower Chute Components refer to the Install Directions for Removal and Installation for The Correct Discharge Chute or Detent Ring Associated to the Model Number on your Unit.
- 108-4922 – Chute Handle (Fastens to the Discharge Chute and Detent Chute Ring and Enable the Operator to Manually Adjust the Discharge Chute from Left to Right)
- 114-3751 – Plastite Washer Head Screw (Retains the Chute Handle, Discharge Chute, Chute Ring Seal and the Detent Chute Ring to Each other)
- 114-3772 – Chute Ring Seal (Assembled Between the Detent Chute Ring and the Discharge Chute, Above the Upper Rin Retainer and Eliminates Snow Build Up in the Mechanical Components of the Discharge Chute) * Select Models Only - Review Model Fit Chart Associated to each Model Number
- 108-4922 – Detent Chute Ring (Assembled Between two Retaining Chute Retainers, Contains Gear for the QZE Features, Retain the Discharge Chute Via 114-3751 Fasteners and is Able to Rotate)
-
108-4939 – Discharge Chute (Replace if Screw Hole is Damaged or Chute is Crack or Broken)
Need Help Verifying Fit?
Send us your Toro model number and serial number and we’ll confirm the correct part before you order.
