Description
Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.
- PRODUCT NUMBER AND VARIATIONS: 110-6793, 110 6793, 1106793

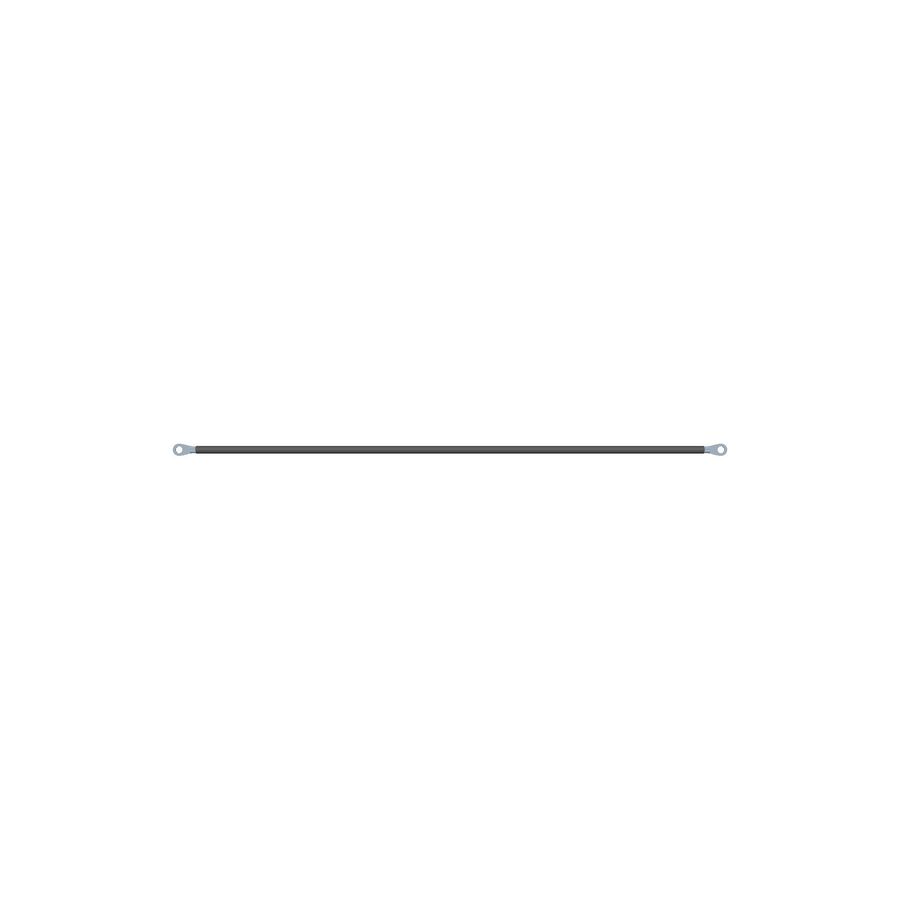

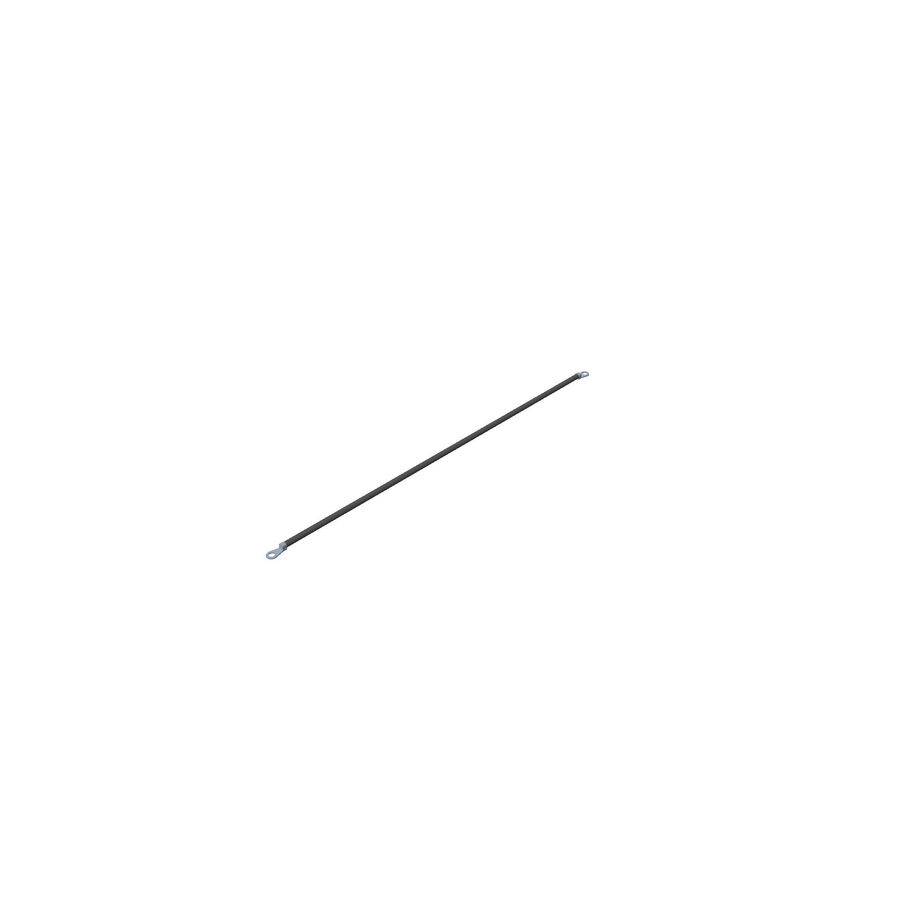

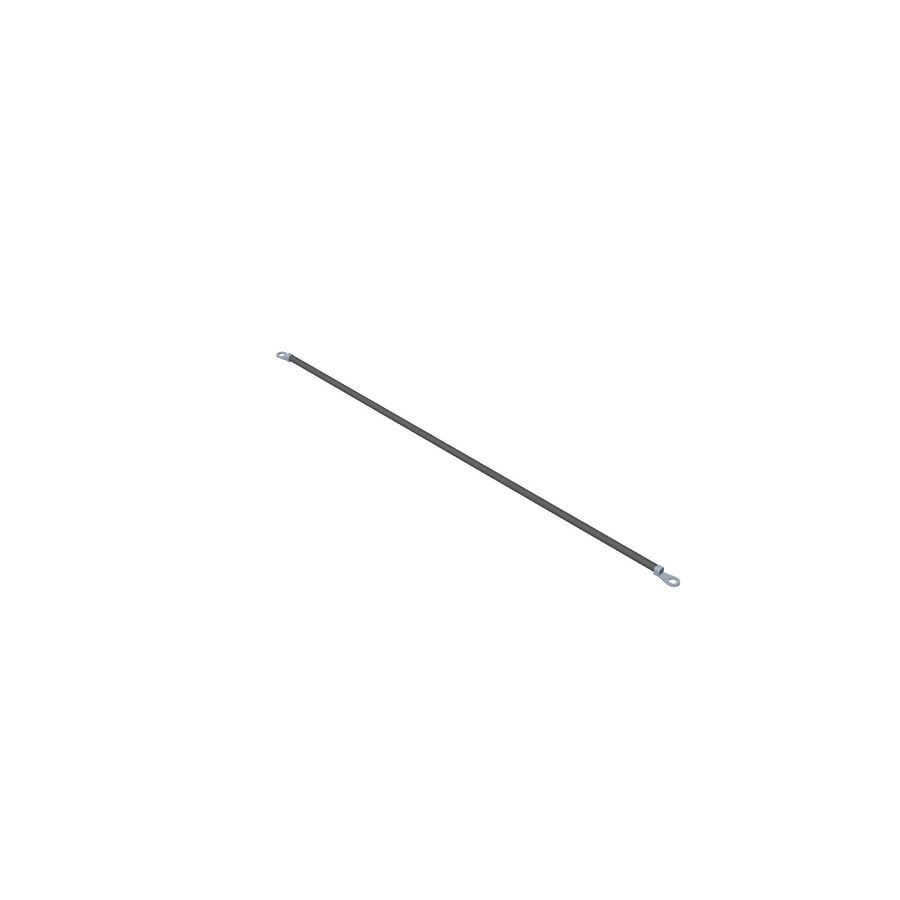

- PRODUCT TYPE: TORO OEM BLACK/NEGATIVE BATTERY CABLE

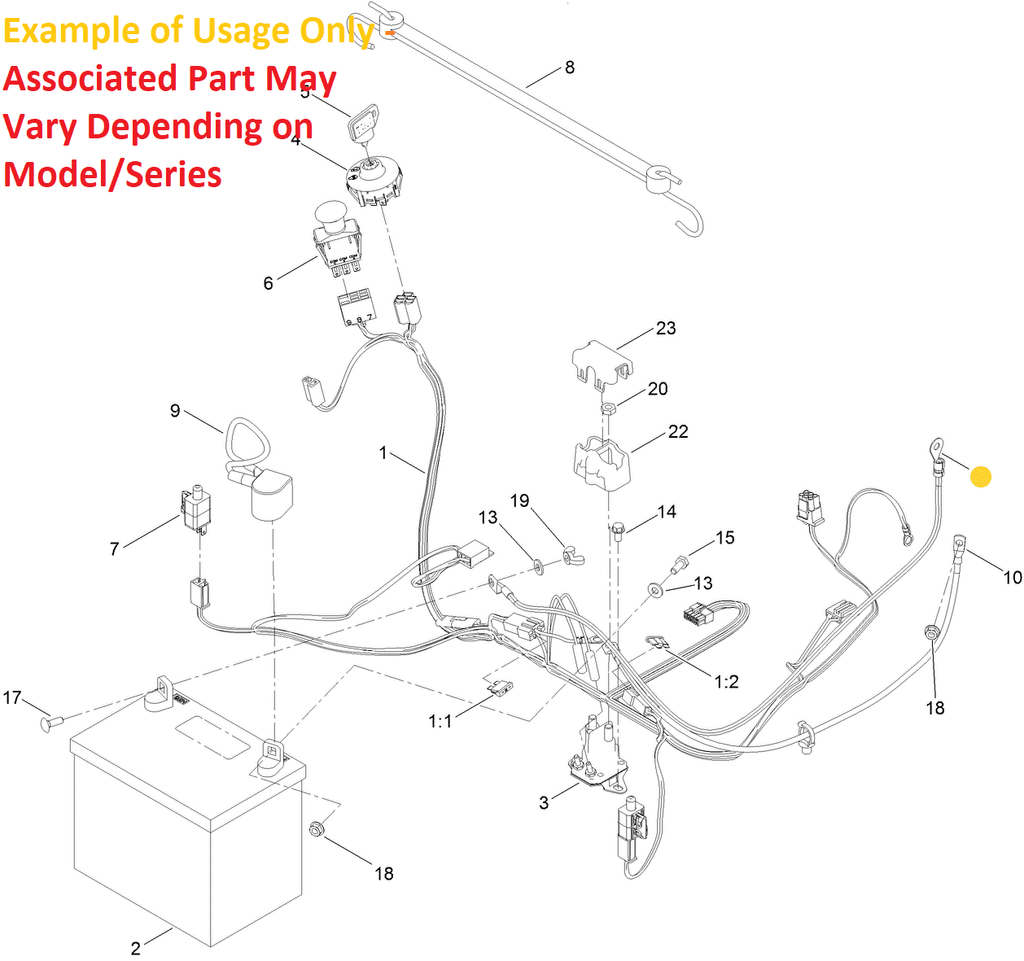

- NOTES & DETAILS: Toro OEM 110-6793 Black Negative Battery Cable is Primarily Used Between the Battery and the Engine (Most Commonly Fasten to the Engine Starter Mounting Bolt's) or Mower Framing. 110 6793 Serves the Purpose of Grounding the Engine and Other Mower Components to The Negative Battery Current Enabling the Closing and Opening of Electrical Circuits as Requested by the Ignition Switch, Electrical Solenoid and Other Components. 110 6793 Also Contains the Correct Size Battery Wire End Eyelets Needed for the Require Fasteners.
- SIZE: 24 in.
- COMMON SERIES APPLICATIONS: Select Late 42" Timecutter Z, ZS, MX, 4200, My-Ride, Standard Models - Select Late 50" Timecuter Z, MX, Standard, My-Ride Models - Select Late 54" Timecutter My-Ride Models - Select Late 60" Timecutter Standard Models.
- ASSOCIATED PARTS CHART:
BATTERY
* TORO Uses a Different Bolt System However We here @ Hilly Ridge Would Recommend the Following Hardware to Ensure a Stronger Grounding Connection and to Eliminate Potential Frustrations. Battery Fasteners Only List Due To Variation on Engine Options - Most Ground Source are Connected directly to the Engine Starter Assembly or The Engine Fastner Bolts to Find Starter Assembly Fastners Look Under the Engine Individual Engine Make and Model.
- 137-3041 - HEX HEAD BOLT (Retains Battery Cable End or Eyelet to the Battery Post) x1 Per Positive Battery Eyelet or Post
- 119-8952 - FLAT WASHER (Eliminates the Head of the Hex Head Bolt from being drawn in to the softer Battery Post and Supports the Battery Post Bolt) x1 Per Positive Battery Post Bolt
- 139-2575 - FLANGE NUT (Retains Battery Cable End or Eyelet to the Battery Post) x1 Per Positive Battery Post
- MODEL FIT CHART:
TIMECUTTER
TIMECUTTER 42” Z Series – Model Numbers – 74360, 74380, 74363, 74381, 74365, 74366
TIMECUTTER 42” ZS Series – Model Numbers – 74685, 74687
TIMECUTTER 42” MX Series – Model Numbers – 74690
TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 75740
TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744
TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745
TIMECUTTER 50” Z Series (MOWER DECK) – Model Numbers – 74370, 74372, 74391, 74399, 74374, 74375, 74373, 74376, 74398
TIMECUTTER 50” MX Series – Model Numbers – 74694
TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753
TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759
TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75757
TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760
G4000 Series (MOWER DECK)– Model Numbers - 94360, 94370, 94372, 94375, 725058046, 725058056, 725058066, 725058086
