Description

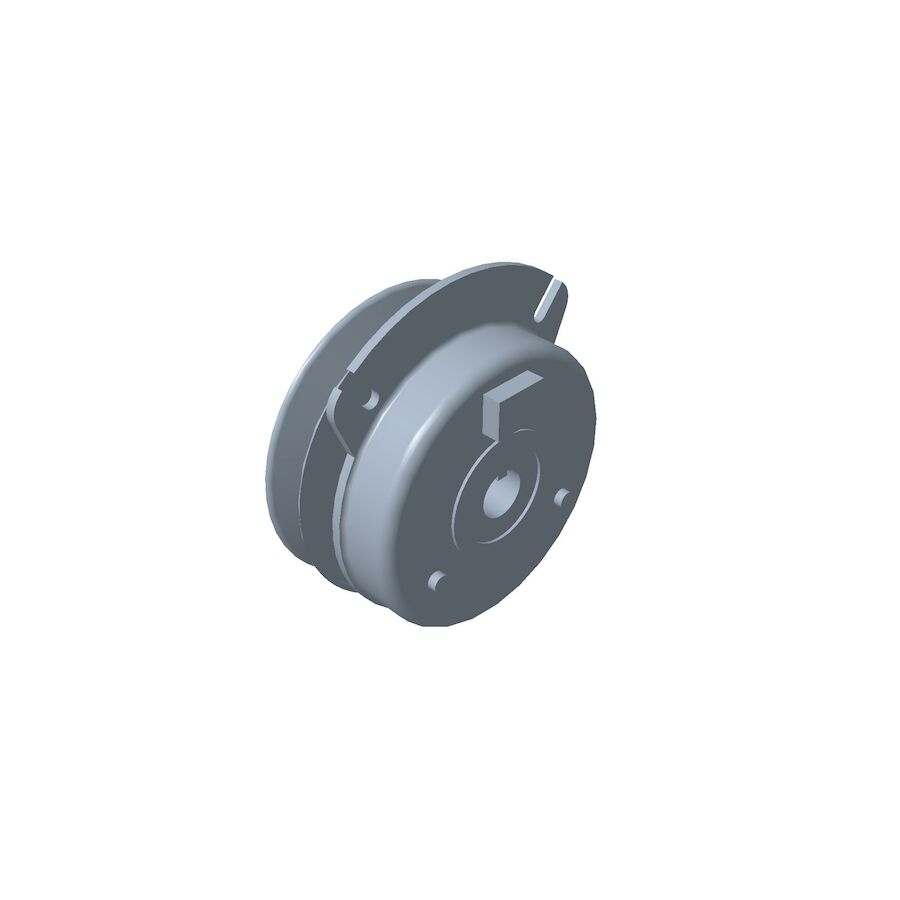

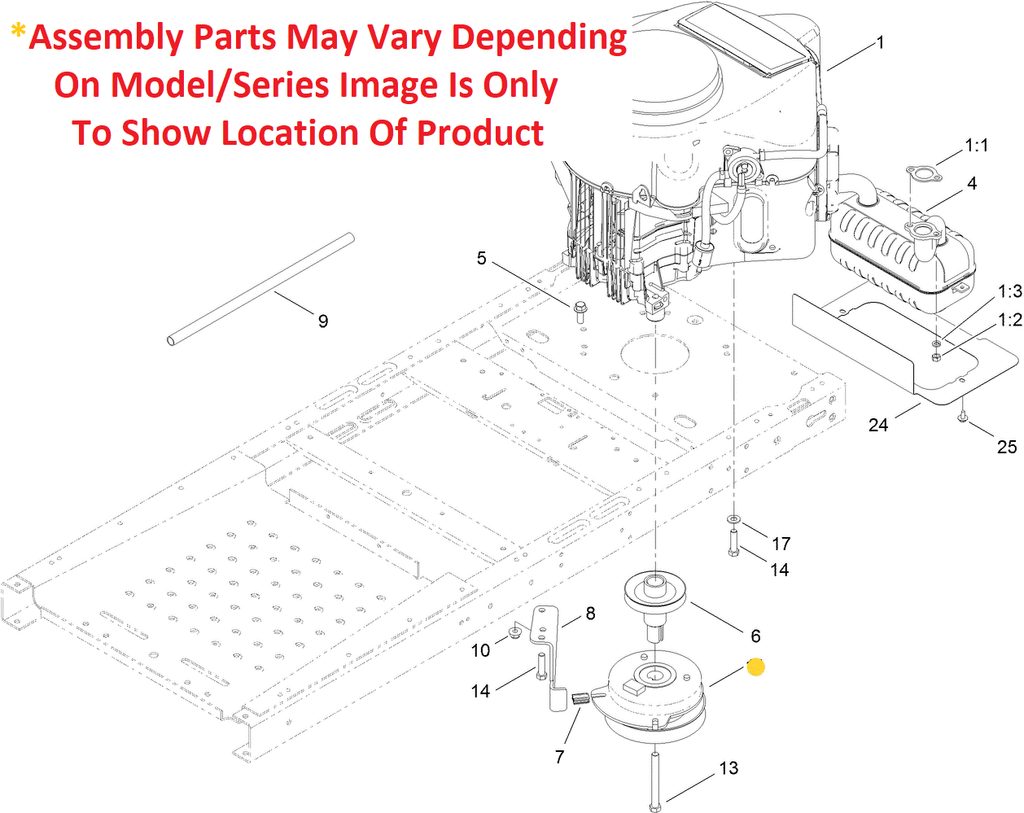

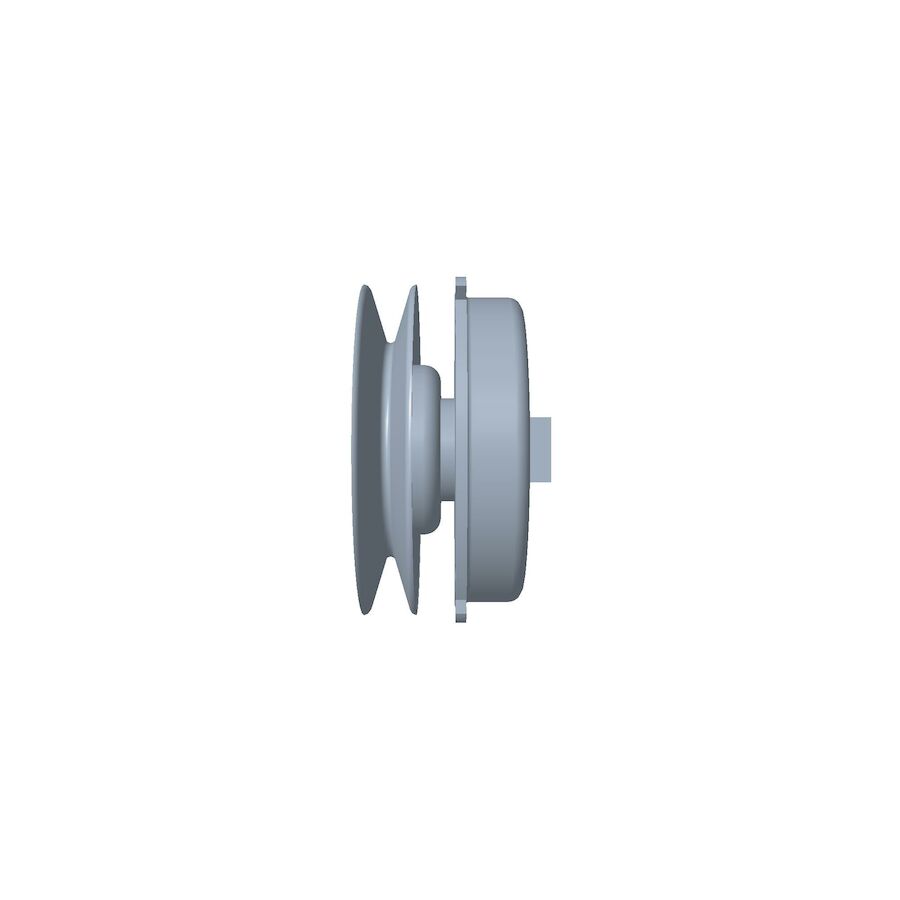

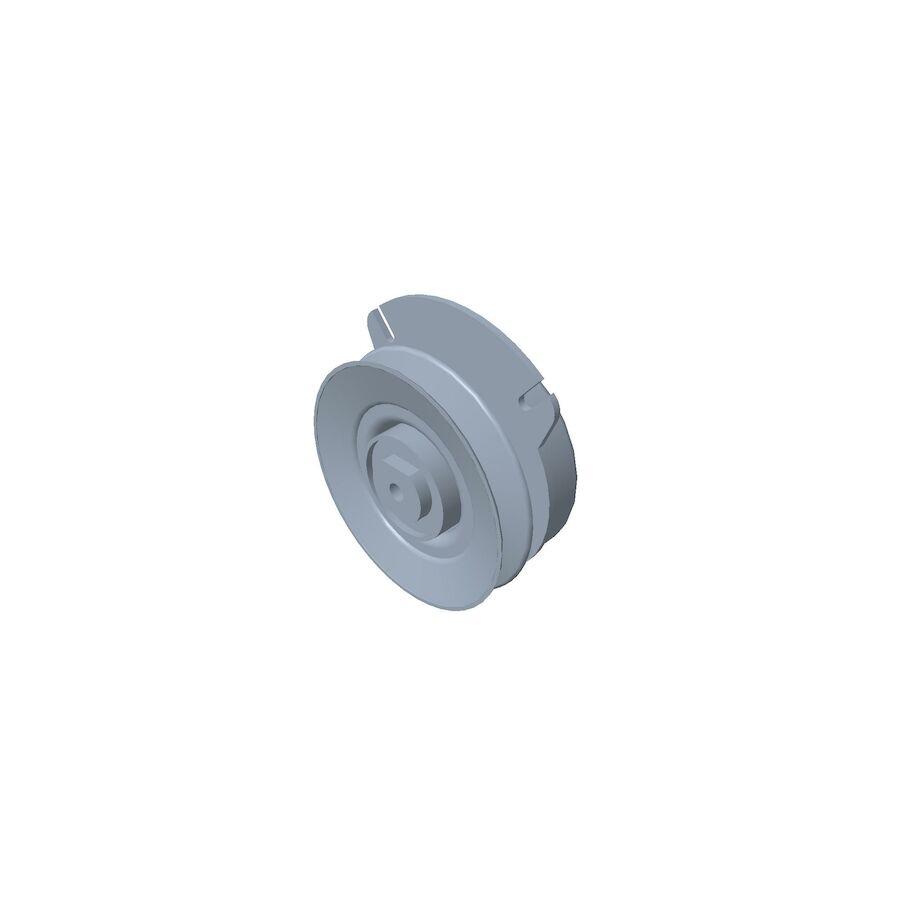

Toro OEM 110 6766 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro 110 6766 PTO Clutch is Designed for Toro Early 50" Timecutter Z, ZS, SS Models - Early 48", 50", 52" TITAN Z and ZX Models - Early Timecutter G4000 Models. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 110-6766 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT
TIMECUTTER Z & G4000 SERIES ONLY
- 3212-11 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
-
112-4033 - PTO CLUTCH ISOLATOR - (Slides Over Retaining Lip on PTO Clutch and Over PTO Clutch Stop/Arbor Bracket) x1 Per PTO Clutch - *USED WITH PTO CLUTCH ARBOR STOP BRACKET 110-6896
- 110-6896 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch - * SHOULD WORK ON MOST MODELS ALTHOUGH NOT A GARRANTEED FIT ALL MODELS
TIMECUTTER ZS & SS SERIES ONLY
- 3212-17 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
- 120-2217 - PTO CLUTCH ISOLATOR - (Slides Over Retaining Lip on PTO Clutch and Over PTO Clutch Stop/Arbor Bracket) x1 Per PTO Clutch
- 137-7000 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch
TITAN Z & ZX SERIES ONLY
- 3212-11 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
- 1-603610 - PTO CLUTCH/ENGINE PULLEY SPRING WASHER - (Retains Torque on PTO Clutch Bolt/PTO Clutch) x2 Per PTO Clutch - *USED ONLY ON TITAN Z
- 109-8855-03 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch - *USED ONLY ON TITAN Z MODELS
- 117-1269-03 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch - *USED ONLY ON TITAN ZX MODEL

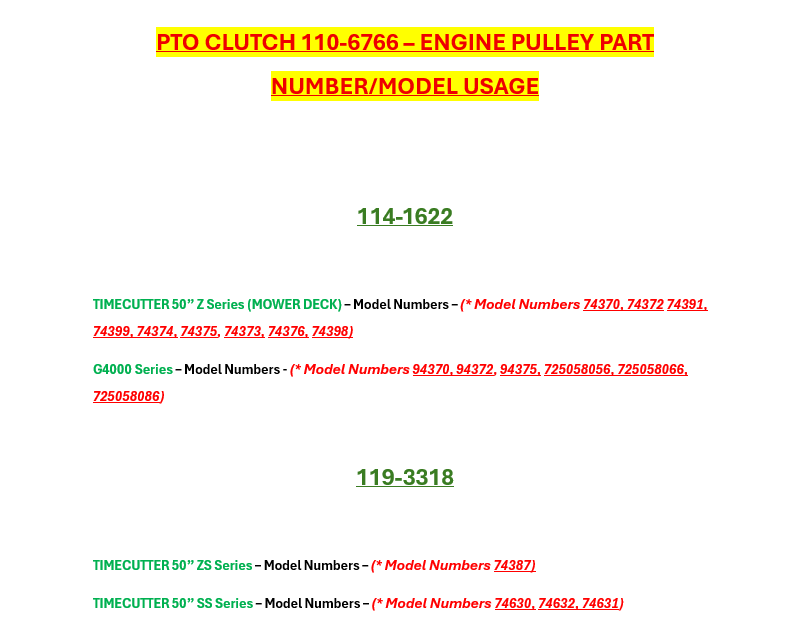

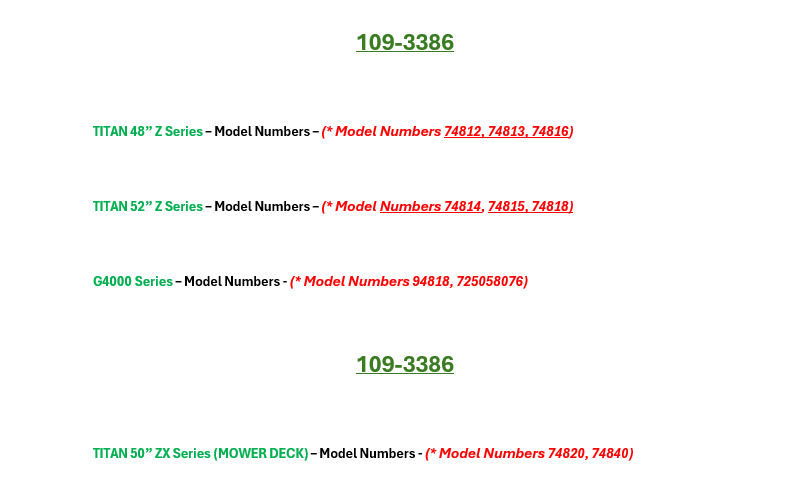

*REFER TO THE ENGINE PULLEY CHART BELOW FOR REFERENCE TO ASSOCIATED MODEL/PART NUMBER REFERENCES
Specification
|
Product Number: |
1106766 |
|
Brand: |
Toro |
|
Length: |
10.000 IN (25.400 CM) |
|
Width: |
10.000 IN (25.400 CM) |
|
Height: |
6.000 IN (15.240 CM) |
|
Weight: |
11.490 LB (5.212 KG) |
Model Fit:
50” TIMECUTTER - 110-6766 MODEL/SERIES USAGE
TIMECUTTER 50” Z Series (MOWER DECK) – Model Numbers – (* Model Numbers 74370, 74372 74391, 74399, 74374, 74375, 74373, 74376, 74398)
TIMECUTTER 50” ZS Series – Model Numbers – (* Model Numbers 74387)
TIMECUTTER 50” SS Series – Model Numbers – (* Model Numbers 74630, 74632, 74631)
48” & 50” TITAN Z, ZX - 110-6766 MODEL/SERIES USAGE
TITAN 48” Z Series – Model Numbers – (* Model Numbers 74812, 74813, 74816)
TITAN 52” Z Series – Model Numbers – (* Model Numbers 74814, 74815, 74818)
TITAN 50” ZX Series (MOWER DECK) – Model Numbers - (* Model Numbers 74820, 74840)
G4000 MOWER - 110-6766 MODEL/SERIES USAGE
G4000 Series – Model Numbers - (* Model Numbers 94370, 94372, 94375, 94818 725058056, 725058066, 725058076, 725058086)
