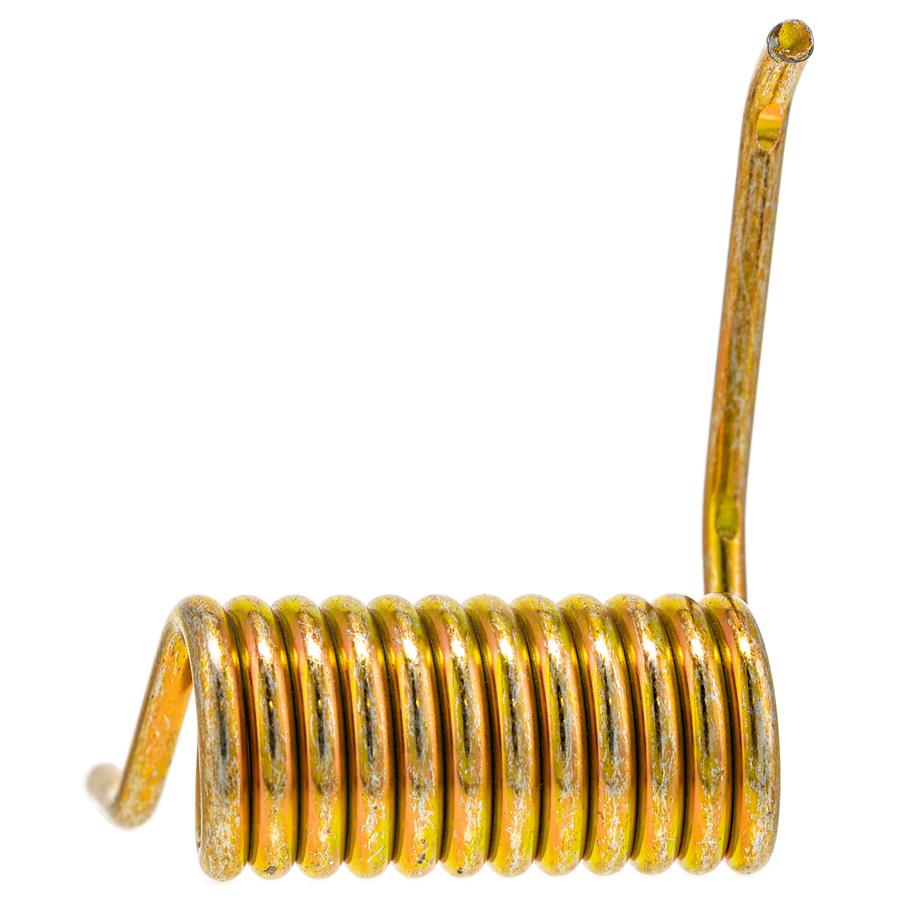

Toro OEM 110-6694 Discharge Chute Torsion Spring Fits Early Model Toro 42", 50" and 54" Timecutter Z, ZS, SS, SW - 50" TITAN ZX - G4000 Zero Turns with Stamped Mower Deck.

The Toro OEM 110 6694 is specially made for the Toro Discharge Chute Application. This Discharge Chute Torsion Spring keeps the chute in the down position and provides adequate downward pressure, preventing it from bouncing on rough terrain. Discharge Torsion Spring 110-6694 is Used on Toro Early Model 42 & 50" Timecutter Z, ZS, SS, SW - 54" Timecutter SS - 50" TITAN ZX - G4000 Series Zero-Turns (Mower Models with Stamped Mower Decks). Please Refer to the Images above, Model Fit Guide and Part Referencing Links below to ensure a proper fit. Click on the Part Numbers in the Part Referencing Links to be redirected.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 110-6694 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 112-3950 - PIVOT PIN (Retains Discharge Chute)
2. 121-4600 - LOCKING NUT (Retains Pivot Pin)
3. 112-3951 - DISCHARGE CHUTE (42" Only)
4. 108-7895 - DISCHARGE CHUTE (50" & 54" Only)







Specification

Product Number:	1106694
Brand:	Toro
Length:	2.400 IN (6.096 CM)
Width:	1.400 IN (3.556 CM)
Height:	2.200 IN (5.588 CM)
Weight:	0.070 LB (0.032 KG)





Model Fit:



TIMECUTTER 42” Z Series – Model Numbers – 74360, 74380, 74363, 74381, 74365, 74366, 74665, 74667



TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74387, 74389, 74655, 74656, 74657



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74680, 74784, 74785, 74788



TIMECUTTER 50” Z Series – Model Numbers – 74370, 74372, 74391, 74399, 74374, 74375, 74373, 74376, 74398, 74387



TIMECUTTER 50” ZS Series – Model Numbers – 74660, 74661



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74793, 74680, 74790



TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TITAN 50” ZX Series – Model Numbers - 74820, 74840



G4000 Series – 94360, 94370, 94372, 94375, 725058046, 725058056, 725058066, 725058086



RIDING TACTOR XLS Series – 71254, 71255
