Description

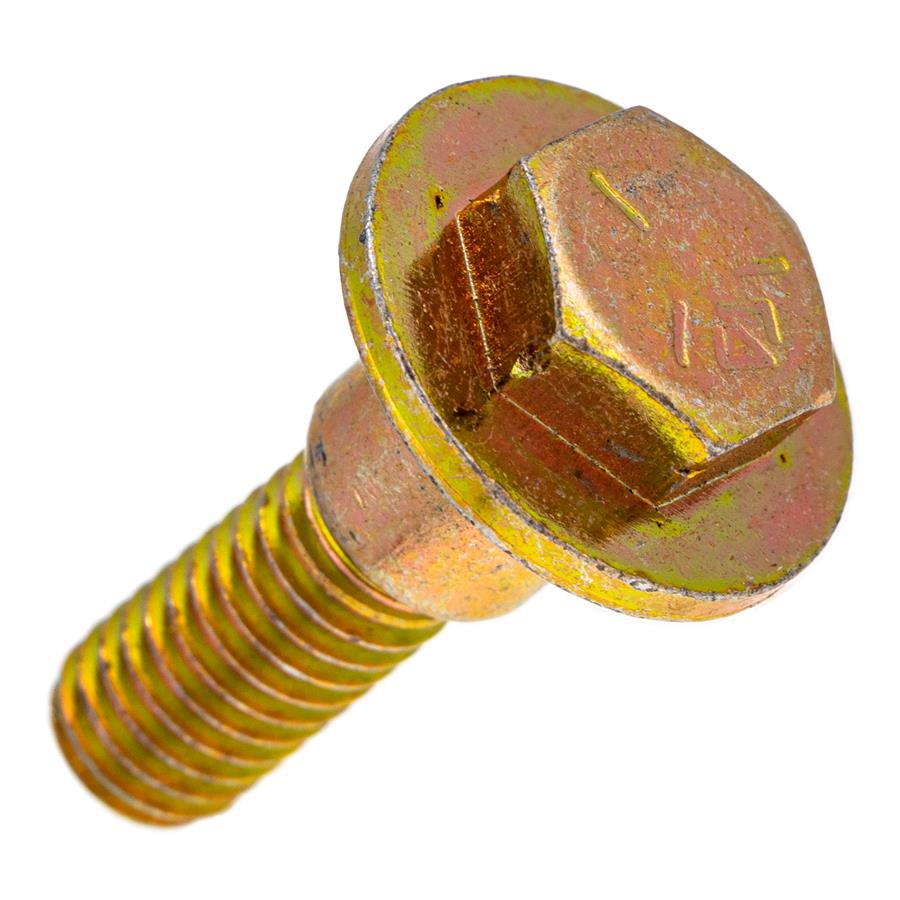

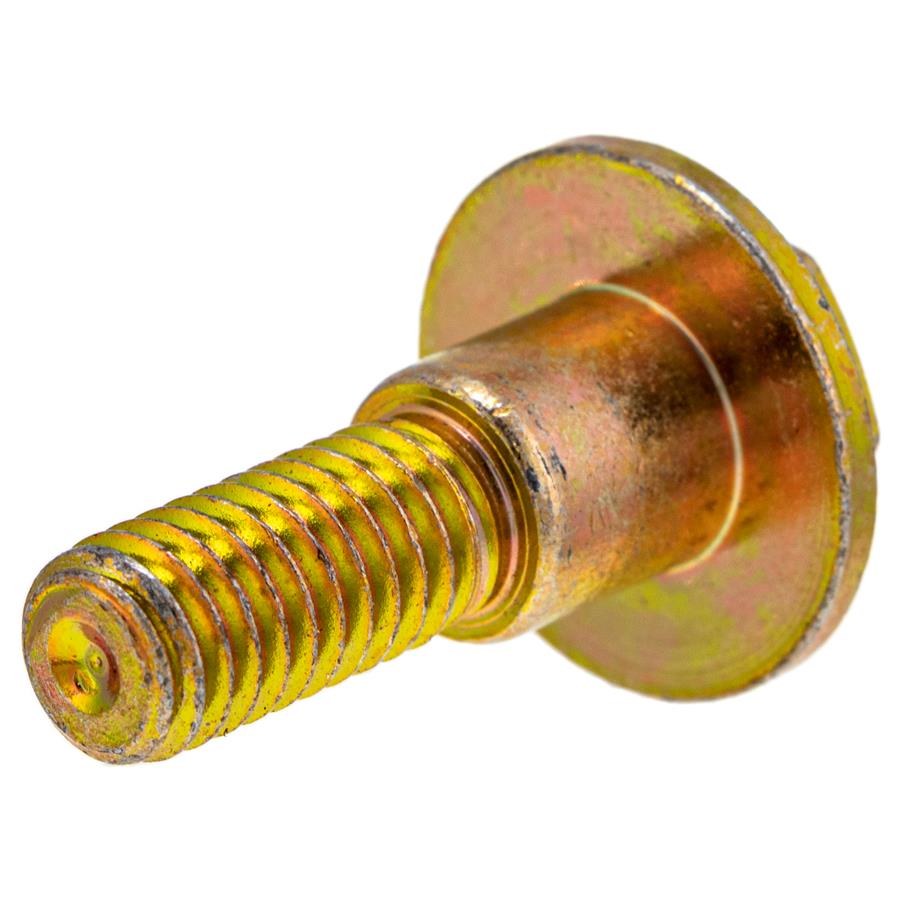

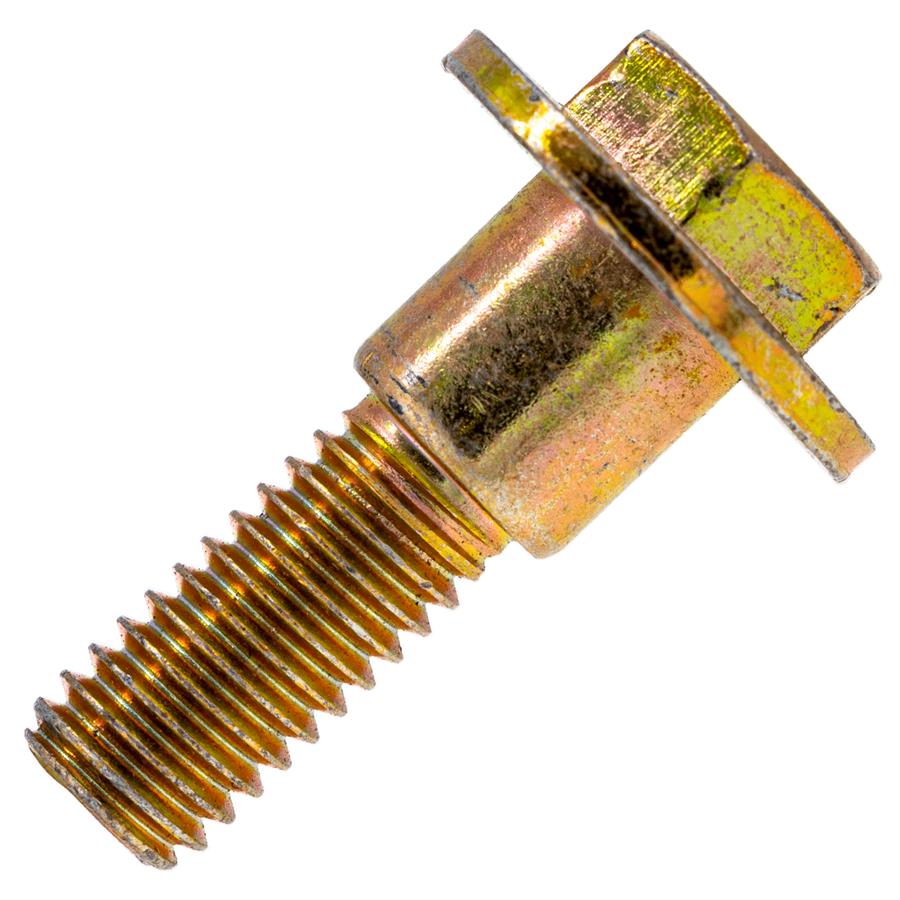

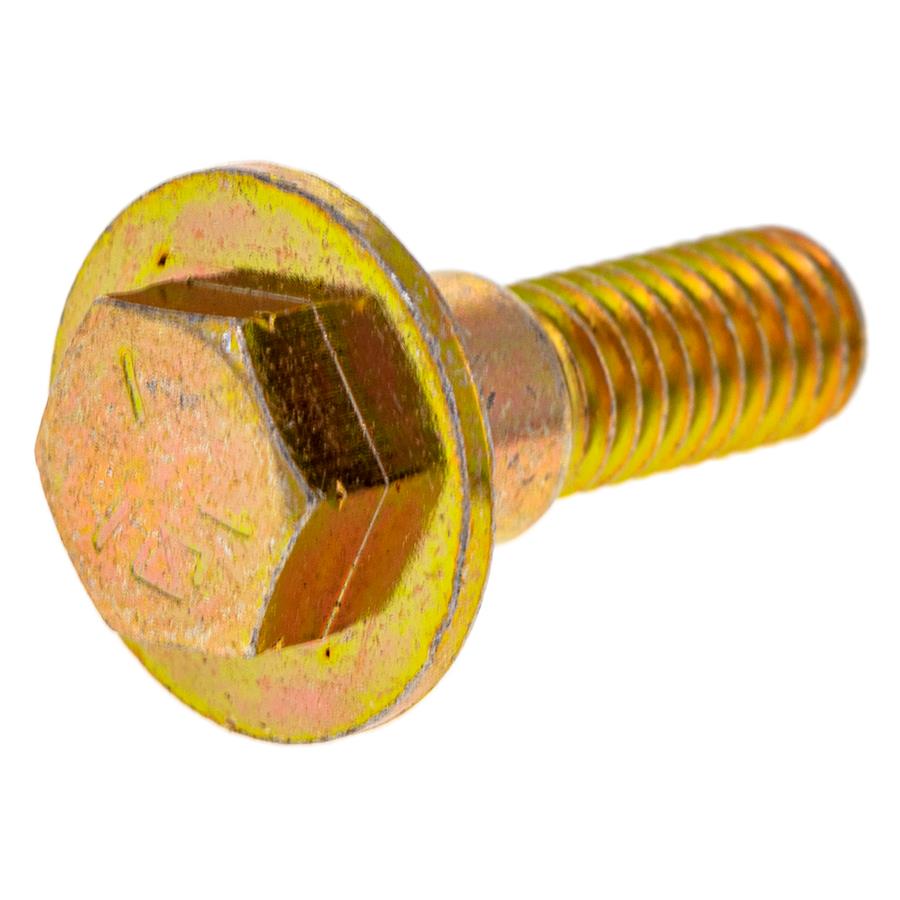

- TYPE: TORO OEM Hex Head Flange, Shoulder Bolt
- SIZE: Standard 3/8 Thread Pattern
- APPLICATIONS: Mower Deck Lift Linkage, Seat Pan
- COMMON SERIES APPLICATIONS: Timecutter - ZMASTER 2000 (Models 74141, 74143, 74145 Only), 3000, 5000, 6000, 7500 G3 - Grandstand (Multi-Force, Revolution, Standard) - Early Stand-On Models - GroundMaster.
*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.
Specification
|
Product Number: |
1099840 |
|
Brand: |
Toro |
|
Length: |
1.500 IN (3.810 CM) |
|
Width: |
0.800 IN (2.032 CM) |
|
Height: |
0.800 IN (2.032 CM) |
|
Weight: |
0.070 LB (0.032 KG) |
Model Fit:
TIMECUTTER
50” TIMECUTTER MX Series – SEAT PAN- (* Model Numbers 74778, 74768)

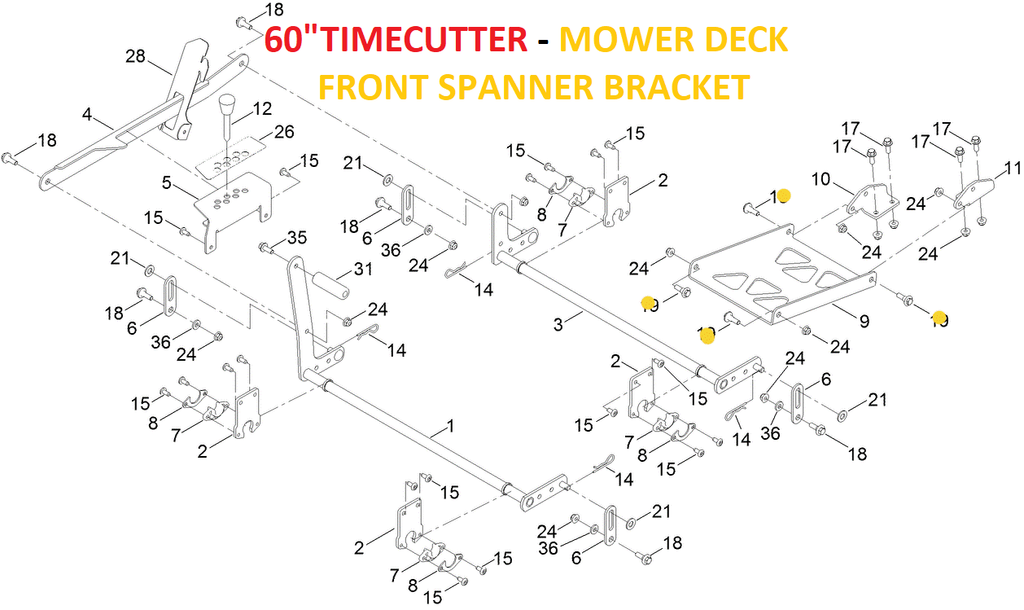

60” TIMECUTTER (STANDARD) Series – FRONT MOWER DECK SPANNER PAN – (* Model Numbers 75760, 75762)
60” TIMECUTTER (My-Ride) Series – FRONT MOWER DECK PIVOT PAN – (* Model Numbers 75763)

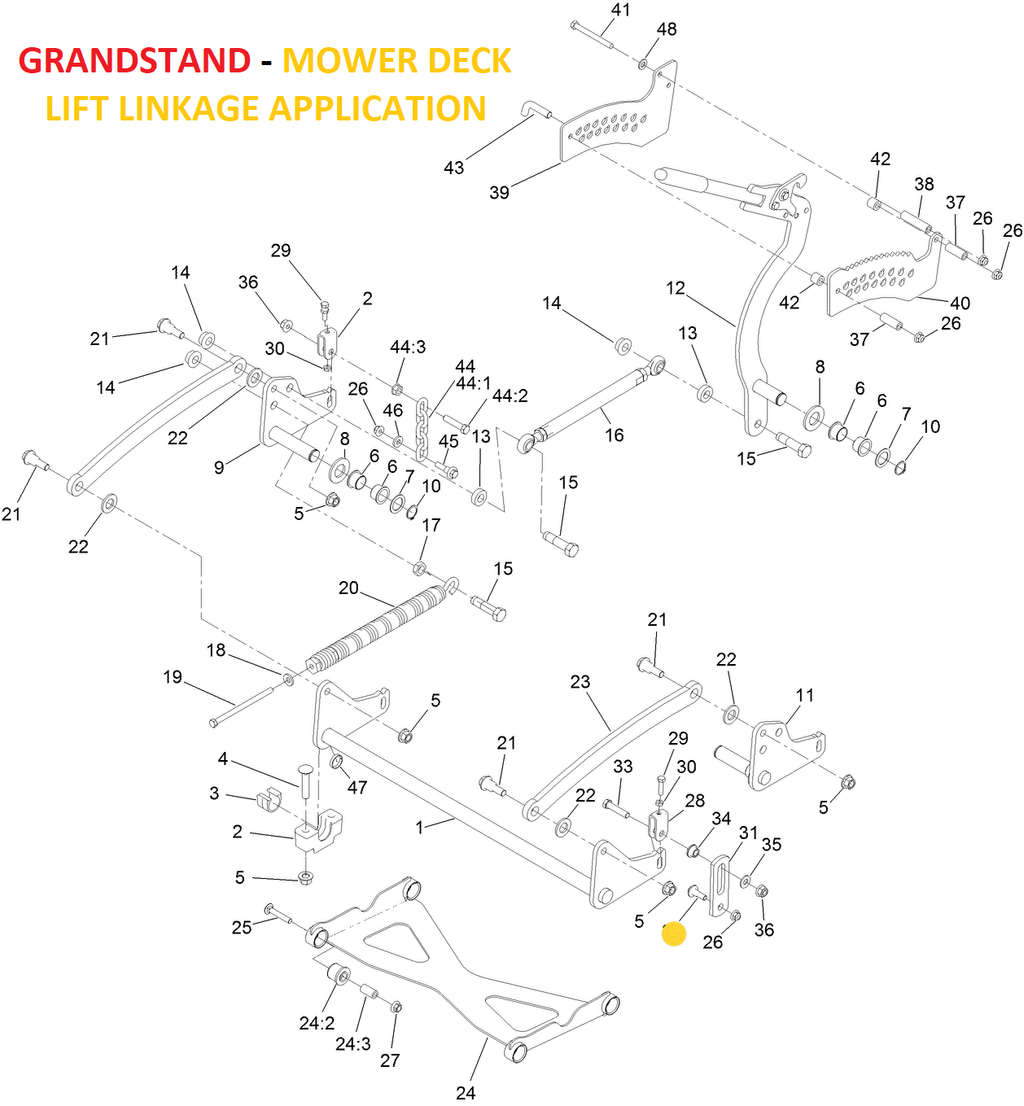

GRANDSTAND
48” GRANDSTAND (Standard) - MOWER DECK LIFT LINK – (* Model Numbers 71504, 72504, 72518, 74504, 74518, 74538, 74548, 74574, 74578, 74588, 79504, 79518, 79548, 79574)
48” E - GRANDSTAND (Revolution) - MOWER DECK LIFT LINK – (* Model Numbers 18562)
52” GRANDSTAND (Standard) - MOWER DECK LIFT LINK – (* Model Numbers 71505, 72505, 72507, 72519, 74505, 74519, 74529, 74539, 74549, 74575, 74583, 74589, 79505, 79549, 79575, 79589)
52” GRANDSTAND (Multi-Force) - MOWER DECK LIFT LINK – (* Model Numbers 72529, 72530)
52” E - GRANDSTAND (Revolution) - MOWER DECK LIFT LINK – (* Model Numbers 18560)
60” GRANDSTAND (Standard) - MOWER DECK LIFT LINK – (* Model Numbers 72509, 72512, 72513, 72520, 74513, 74523, 74550, 74551, 74553, 74576, 74583, 79551, 79553)
60” GRANDSTAND (Multi-Force) - MOWER DECK LIFT LINK – (* Model Numbers 72523, 72524)
60” E - GRANDSTAND (Revolution) - MOWER DECK LIFT LINK – (* Model Numbers 18564)
OLDER STAND-ON MODELS
OLDER STAND-ON MODELS - MOWER DECK LIFT LINK – (* Model Numbers 74558, 74559, 74568, 74569, 79558, 79559)
Z-MASTER
CURRENT/LATE MODELS
Z MASTER 3000 MODELS (LATE MODELS) - MOWER DECK LIFT LINK – (MODEL NUMBERS 72932, 72936, 72949, 72950, 72952, 72958, 72959)
Z MASTER 5000 MODELS (CURRENT/LATE MODELS) - MOWER DECK LIFT LINK – (MODEL NUMBERS 72904, 72906, 72907, 72908, 72910, 72911, 72912, 72915, 72918, 72921, 72922, 72923, 72924, 72930, 72943, 72945, 72951, 72953, 72955, 72956, 72957)
Z MASTER 6000 MODELS (CURRENT/LATE MODELS - MOWER DECK LIFT LINK – (MODEL NUMBERS 72926, 72928, 72946, 72947, 72960, 72961, 72965, 72967, 72968, 72969, 72976, 72977, 72980, 72981, 72982, 72983)
Z MASTER 7500 MODELS (CURRENT/LATE MODELS) - MOWER DECK LIFT LINK – (MODEL NUMBERS 72027, 72028, 72029, 72030, 72065, 72074, 72076, 72096, 72098, 74028, 74029, 74060, 74064, 74072, 74074, 74090 – GAS 96” Model, 74096)
EARLY/LATE MODELS
Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - MOWER DECK LIFT LINK – (* Model Numbers 74141, 74143, 74145)
Z MASTER 3000 MODELS (EARLY/LATE MODELS - MOWER DECK LIFT LINK – (MODEL NUMBERS 74949, 74950, 74952, 74953, 74954, 74955, 74956, 74957, 74958, 74959, 74990, 74994, 74996, 75932, 75934, 75936, 75990, 78953)
Z MASTER 5000 MODELS (EARLY/LATE MODELS - MOWER DECK LIFT LINK – (MODEL NUMBERS 74901, 74903, 74904, 74906, 74915, 74916, 74918, 74930, 74933, 74934, 74942,74943, 74944, 74945, 74991, 74995, 75930, 75951, 75955)
Z MASTER 6000 MODELS (EARLY/LATE MODELS - MOWER DECK LIFT LINK – (MODEL NUMBERS 74922, 74923, 74925, 74926, 74927, 74928, 74936, 74938, 74939, 74940, 74946, 74947, 74960, 74961, 74969, 74975, 74977, 74978, 74979, 74992, 74993, 74997, 74998, 75967, 75968, 78922, 78924, 78926, 78928)
Z MASTER G3 MODELS (EARLY MODELS - MOWER DECK LIFT LINK – (MODELS NUMBERS 74921, 74935, 74937, 74951)
GROUNDMASTER
GROUNDMASTER - MOWER DECK LIFT LINK – (* Model Numbers 31970, 31971, 31972, 31973, 31974, 31975)
