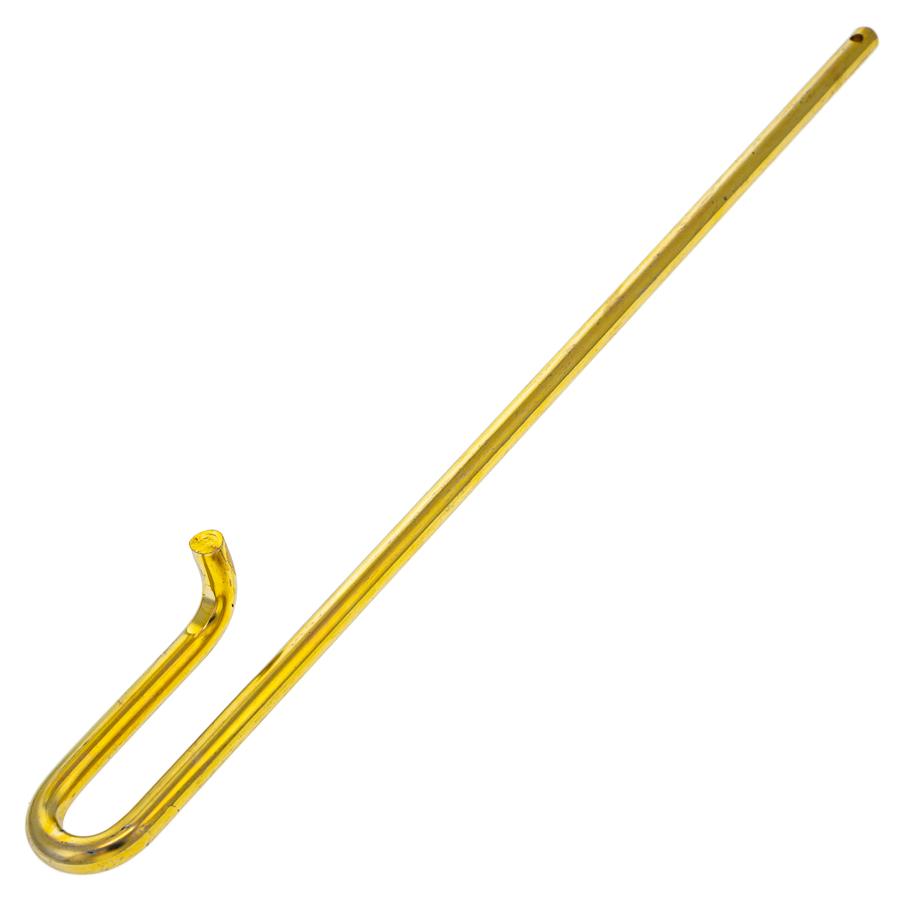

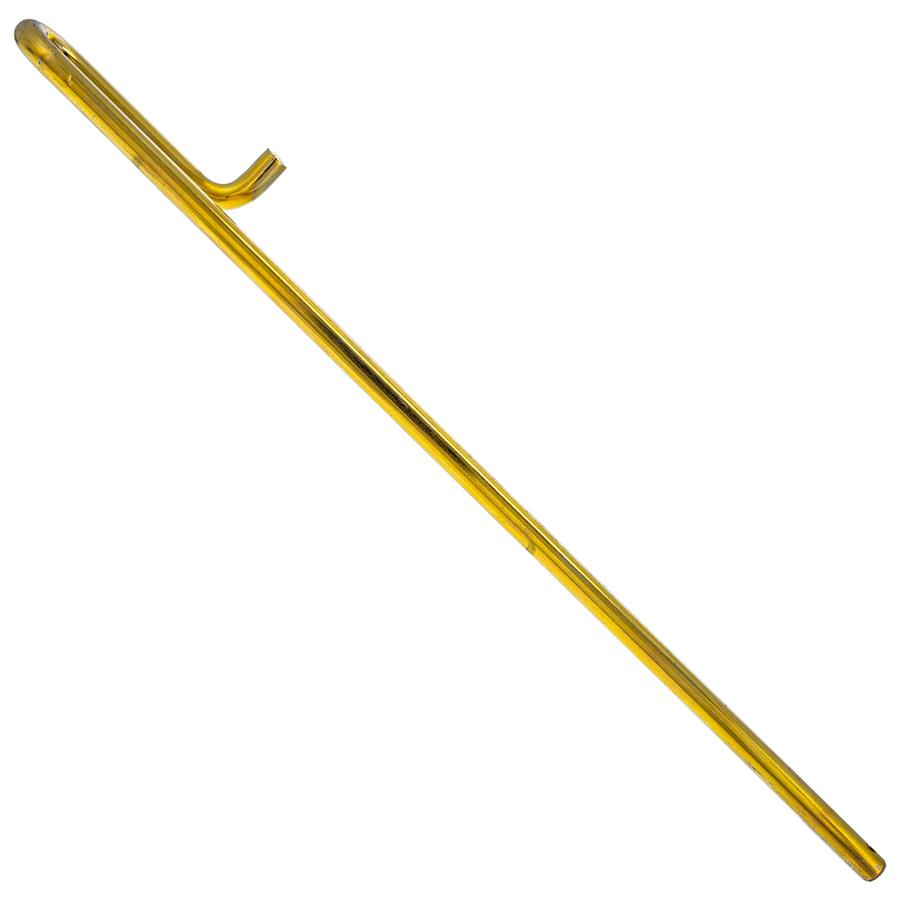

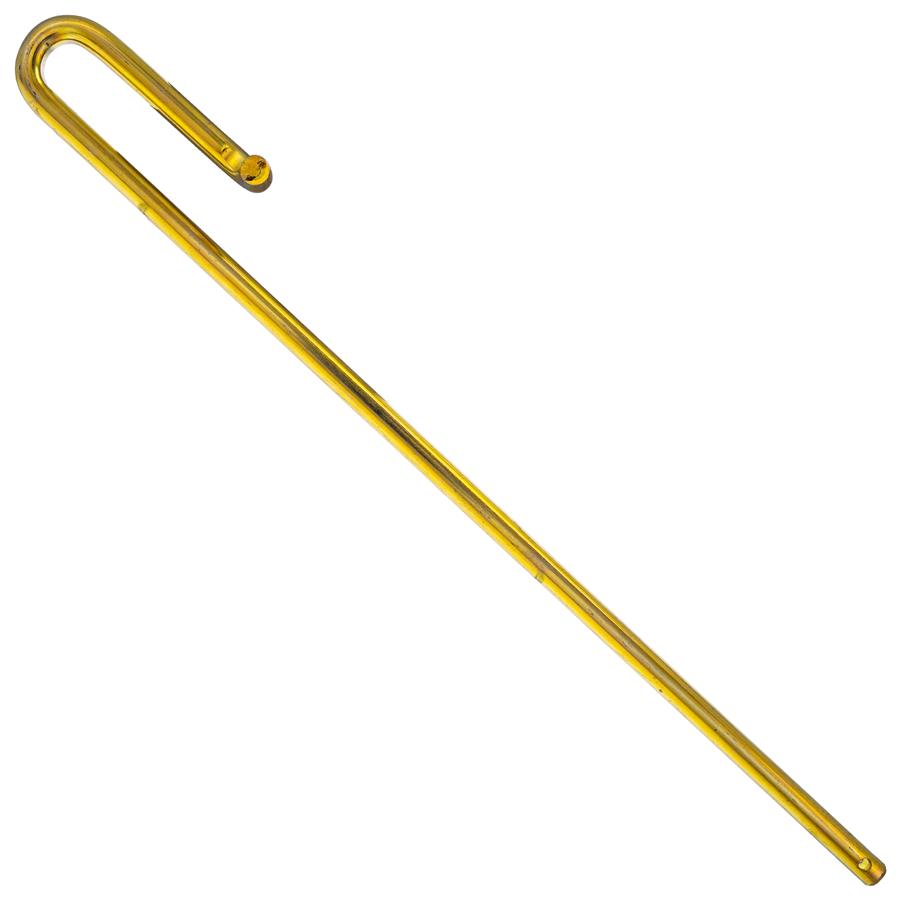

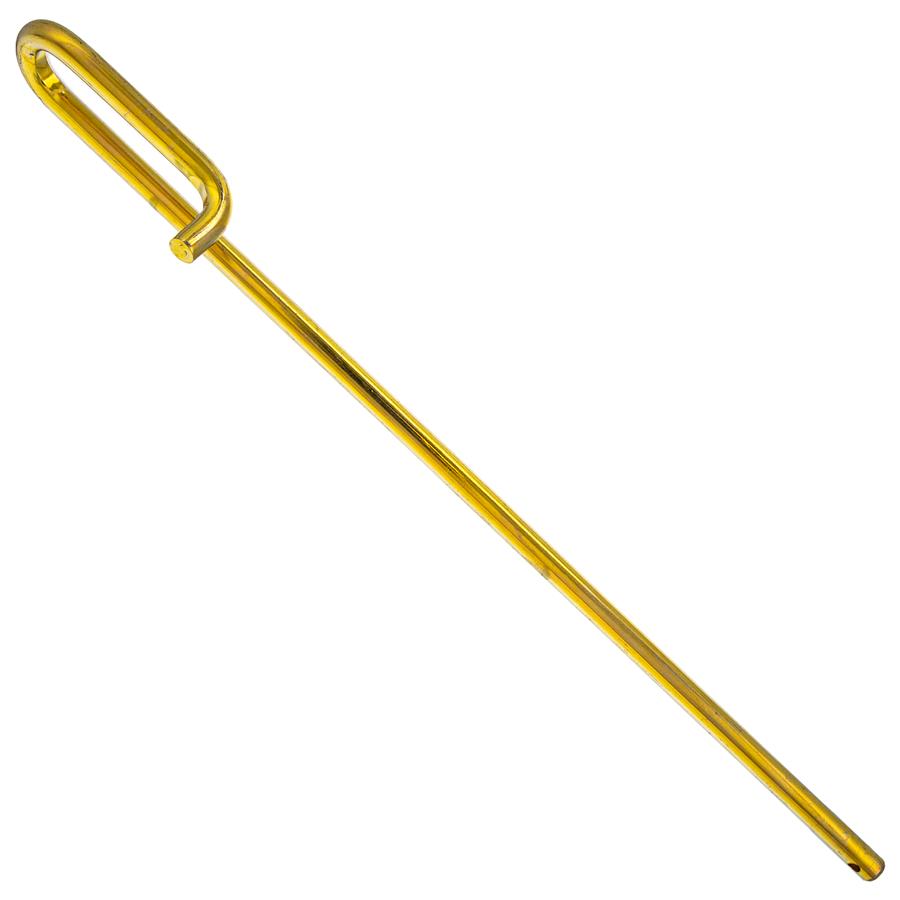

Toro OEM 109-8854 Discharge Chute Pivot Rod Fits Early Toro 48", 54", 60" TITAN MX and ZX Models - Early 52" TITAN Z Models - Early/Late 34", 42", 50", 54", 60" Timecutter MX, ZS, SWX, and HD Models.

Toro OEM 109 8854 Discharge Chute Pivot Pin is Designed for Toro Discharge Chute. 109 8854 is the Rod that Both allows You to Fasten your Discharge Chute, Retain the Torsion Spring that Keeps Constant Downward Pressure - as well as do what it Sounds like it should (Allow you to Pivot Your Discharge Chut Up and Down). 109-8854 is Factory Designed and Made to Fit Toro Late/Early 34" 42", 50", 54", 60" Timecutter MX, ZX, SWX and HD Models - Early 48", 52", 60", TITAN MX and ZX Models - Early 48", 52" TITAN Z Models. For an Accurate Model/Series Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Click on the Part Numbers in the Part Referencing Links to be redirected. Part Number 109-5152 Supersedes to Part Number 109-8854.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 109-8854 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-7232 - TORSION SPRING (Attaches over Pivot Rod)
2. 109-5443 - DISCHARGE CHUTE (Early 48" and 52" TITAN Z and G4000 Models 74813, 74815, 94818, 725058076 - Review Part Number Model Fit Chart to Ensure Correct Fit)
3. 114-1651 - DISCHARGE CHUTE (Early 48" and 52" TITAN Z Models 74812, 74814, 74816, 74818 - Review Part Number Model Fit Chart to Ensure Correct Fit)
4. 117-1270 - DISCHARGE CHUTE (Early 48" and 54" TITAN MX and ZX Models - Review Part Number Model Fit Chart to Ensure Correct Fit)
5. 133-1212 - DISCHARGE CHUTE (Late 60" MX and 48", 54", 60" HD Timecutter - Models Review Part Number Model Fit Chart to Ensure Correct Fit)
6. 121-0739 - DISCHARGE CHUTE (Select - Late 34", 42", 50", 54" MX, ZS, SWX Timecutter Models - Review Part Number Model Fit Chart to Ensure Correct Fit)







Specification

Product Number:	1095152, 1098854
Brand:	Toro
Length:	13.000 IN (33.020 CM)
Width:	1.200 IN (3.048 CM)
Height:	1.000 IN (2.540 CM)
Weight:	1.000 IN (2.540 CM)





Model Fit:



TIMECUTTER 34” MX Series – Model Numbers – 74750



TIMECUTTER 42” SWX Series – Model Numbers – 74787

TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766

TIMECUTTER 42” ZS Series – Model Numbers – 74390



TIMECUTTER 50” SWX Series – Model Numbers – 74795, 74797, 74798

TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774

TIMECUTTER 50” ZS Series – Model Numbers – 74395



TIMECUTTER 48” HD Series – Model Numbers – 75211, 75210, 75201, 74866, 74864

TITAN 48” Z (Late Model – Tube Framing) Series – Model Numbers – 74812, 74813, 74816

TITAN 48” ZX, MX (Early Model – Tube Framing) Series – Model Numbers – 74830, 74841, 74845, 74846, 74851, 74855, 74861, 74871, 74891, 74912, 74920



TITAN 52” Z (Late Model – Tube Framing) Series – Model Numbers – 74814, 74815, 74818



TIMECUTTER 54” HD Series – Model Numbers – 75212, 75202, 74867, 74865

TITAN 54” ZX, MX, (Early Model – Tube Framing) Series – Model Numbers - 74822, 74832, 74842, 74848, 74852, 74862, 74872, 74882, 74892, 74914, 74924



TIMECUTTER 60” MX Series – Model Numbers – 74777

TIMECUTTER 60” HD Series – Model Numbers – 75213

TITAN 60” MX, ZX, (Early Model – Tube Framing) Series – Model Numbers – 74823, 74824, 74833, 74843, 74853, 74863, 74883, 74893



G4000 Series (MOWER DECK)– Model Numbers – 94818, 725058076
