Toro Hydraulic Nylon Flat Idler 109-8076 fits 48", 52", 60", 72" Late/Current 3000, 5000, 6000, Z Master Models - Late/Current 96" 7500 Gasoline Model 74090 - Stand On Sprayer Models.

The Toro OEM 109 8076 Hydraulic Drive Flat Idler is manufactured with strong steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this Flat Idler is designed to maintain correct tension on Hydraulic and/or Traction Drive Belts. 109 8076 OEM Flat Idler is compatible with a variety of Toro models, including the Current/Late 48", 52",60", 72" Z Master 3000, 5000, 6000 Models - Current/Late 96" Z Master 7500 Models - Late/Early Z Master G3 Models - Stand-On Sprayer Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. For Additional Fastner & Associated Part references for Idler Pulley 109-8076 review the Associated Parts Link Below the Model Fit Chart. If You are Having Trouble Finding the Correct Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down with Common Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions.







NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.







Specification

Product Number:	1098076
Brand:	Toro
Length:	5.300 IN (13.462 CM)
Width:	5.100 IN (12.954 CM)
Height:	1.200 IN (3.048 CM)
Weight:	0.640 LB (0.290 KG)



Model Fit:



74915, 74921, 74923, 74925, 74935, 74937, 74901, 74903, 74927, 74922, 78922, 78924, 74926, 74928, 78926, 74975, 74977, 78928, 74951, 74952, 74953, 74936, 74938, 74916, 74930, 74954, 74939, 74940, 74956, 74906, 74978, 74979, 08706, 78953, 74942, 74944, 74957, 74958, 74959, 74918, 74933, 74934, 74946, 74947, 74904, 74955, 74990, 74991, 74992, 74993, 74994, 74995, 74996, 74997, 74998, 74950, 74960, 74961, 74943, 74945, 75934, 75955, 75936, 75951, 75967, 75968, 75930, 75990, 74949, 75932, 74969, 72950, 72952, 72949, 72958, 72946, 72947, 72969, 72959, 72932, 72936, 72904, 72906, 72915, 72918, 72930, 72943, 72945, 72955, 72951, 72926, 72928, 74090, 72960, 72961, 72967, 72968, 72921, 72922, 72911, 72912, 72910, 72965, 72980, 72982, 34240, 34242, 72907, 72923, 72953, 72956, 72908, 72924, 72957, 34243

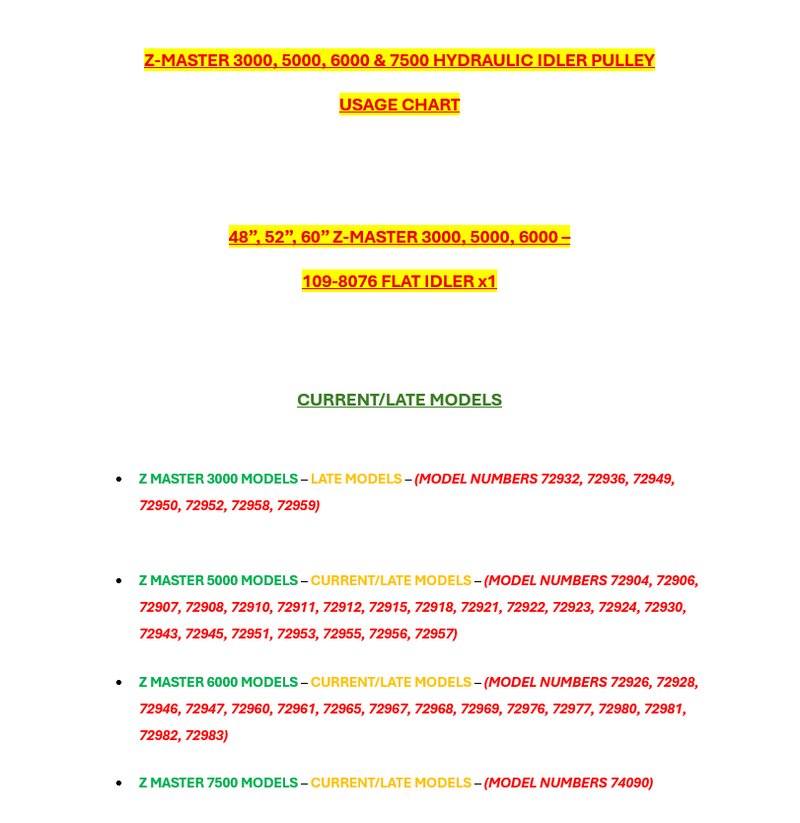

Z-MASTER 3000, 5000, 6000 & 7500 HYDRAULIC IDLER PULLEY

USAGE CHART





48”, 52”, 60”, 72", 96" Z-MASTER 3000, 5000, 6000 –

109-8076 FLAT IDLER x1



CURRENT/LATE MODELS



·         Z MASTER 3000 MODELS – LATE MODELS – (MODEL NUMBERS 72932, 72936, 72949, 72950, 72952, 72958, 72959)



·         Z MASTER 5000 MODELS – CURRENT/LATE MODELS – (MODEL NUMBERS 72904, 72906, 72907, 72908, 72910, 72911, 72912, 72915, 72918, 72921, 72922, 72923, 72924, 72930, 72943, 72945, 72951, 72953, 72955, 72956, 72957)



·         Z MASTER 6000 MODELS – CURRENT/LATE MODELS – (MODEL NUMBERS 72926, 72928, 72946, 72947, 72960, 72961, 72965, 72967, 72968, 72969, 72976, 72977, 72980, 72981, 72982, 72983)



·         Z MASTER 7500 MODELS – CURRENT/LATE MODELS – (MODEL NUMBERS 74090)

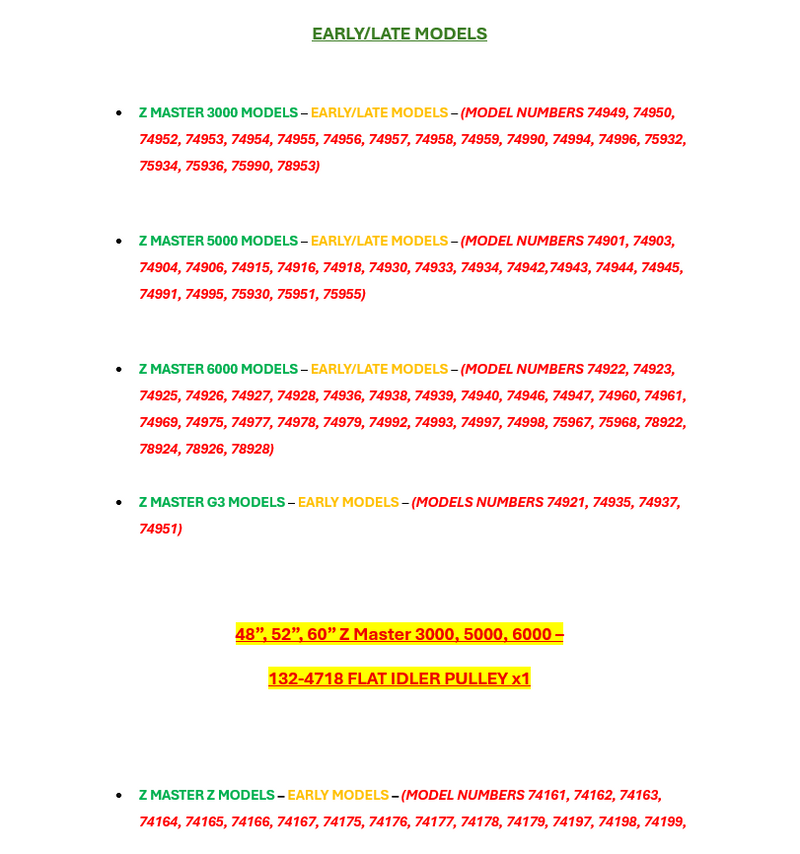

EARLY/LATE MODELS



·         Z MASTER 3000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74949, 74950, 74952, 74953, 74954, 74955, 74956, 74957, 74958, 74959, 74990, 74994, 74996, 75932, 75934, 75936, 75990, 78953)



·         Z MASTER 5000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74901, 74903, 74904, 74906, 74915, 74916, 74918, 74930, 74933, 74934, 74942,74943, 74944, 74945, 74991, 74995, 75930, 75951, 75955)



·         Z MASTER 6000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74922, 74923, 74925, 74926, 74927, 74928, 74936, 74938, 74939, 74940, 74946, 74947, 74960, 74961, 74969, 74975, 74977, 74978, 74979, 74992, 74993, 74997, 74998, 75967, 75968, 78922, 78924, 78926, 78928)



·         Z MASTER G3 MODELS – EARLY MODELS – (MODELS NUMBERS 74921, 74935, 74937, 74951)



STAND ON SPRAYER – 109-8076 MODEL/SERIES USAGE



HYDROSTATIC DRIVE BELT TENSIONER



STAND-ON SPRAYER MODELS – (MODEL NUMBERS 34240, 34241, 34242, 34243)







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 109-8076 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT





Z-MASTER 3000, 5000, 6000, 7500, G3 MODELS ONLY

*GASOLINE MODELS ONLY





1. 323-8 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley
2. 43-0940 - IDLER PULLEY SPACER WASHER - (Enables the Correct Tightening Diameter and Spacing Against the Flat Idler Bearing Surface and is Used between the Bolt Head and the Idler Pulley) x1 Per Flat Idler Pulley
3. 116-1255 - IDLER ARM ASSEMBLY - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit * Comes with Ider Arm, Bearings and Pulley
