Description

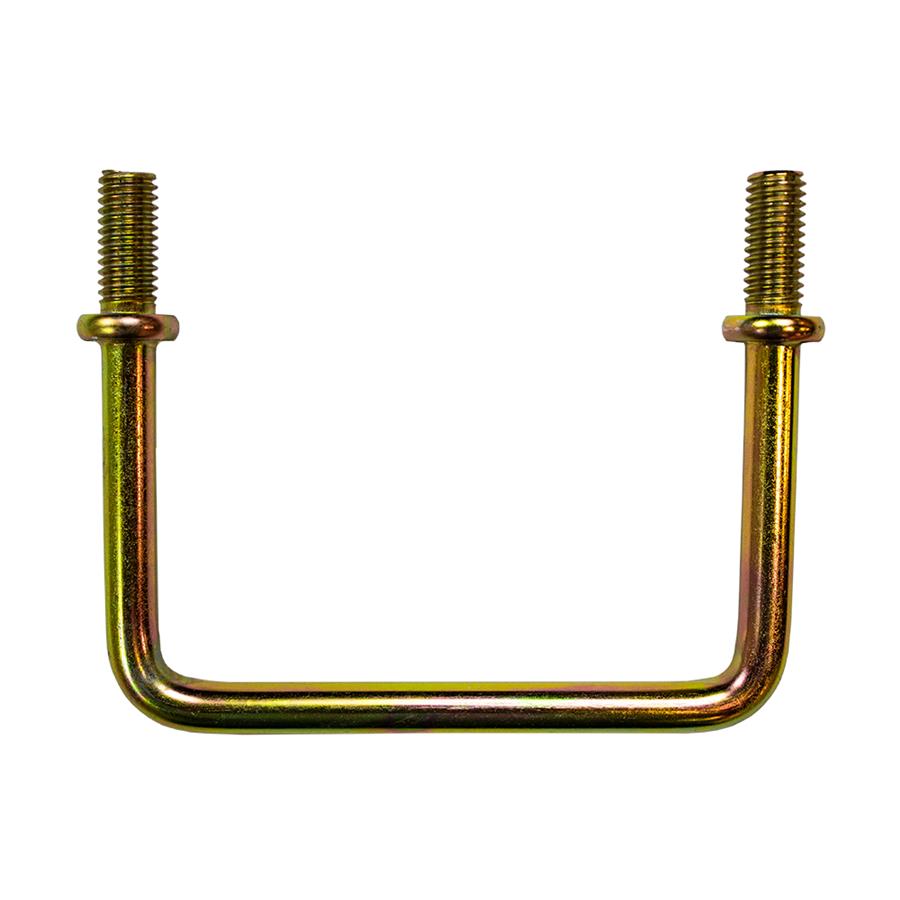

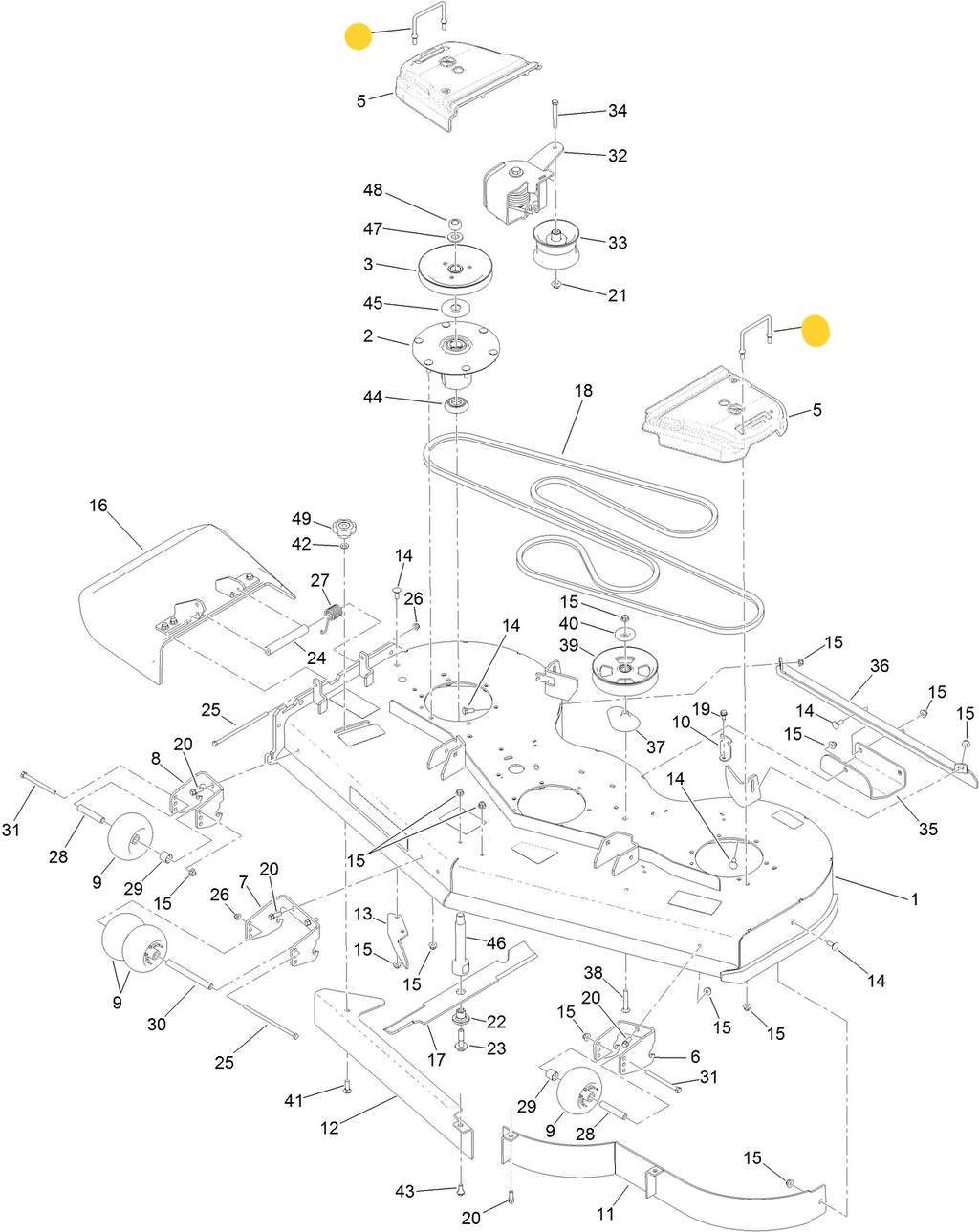

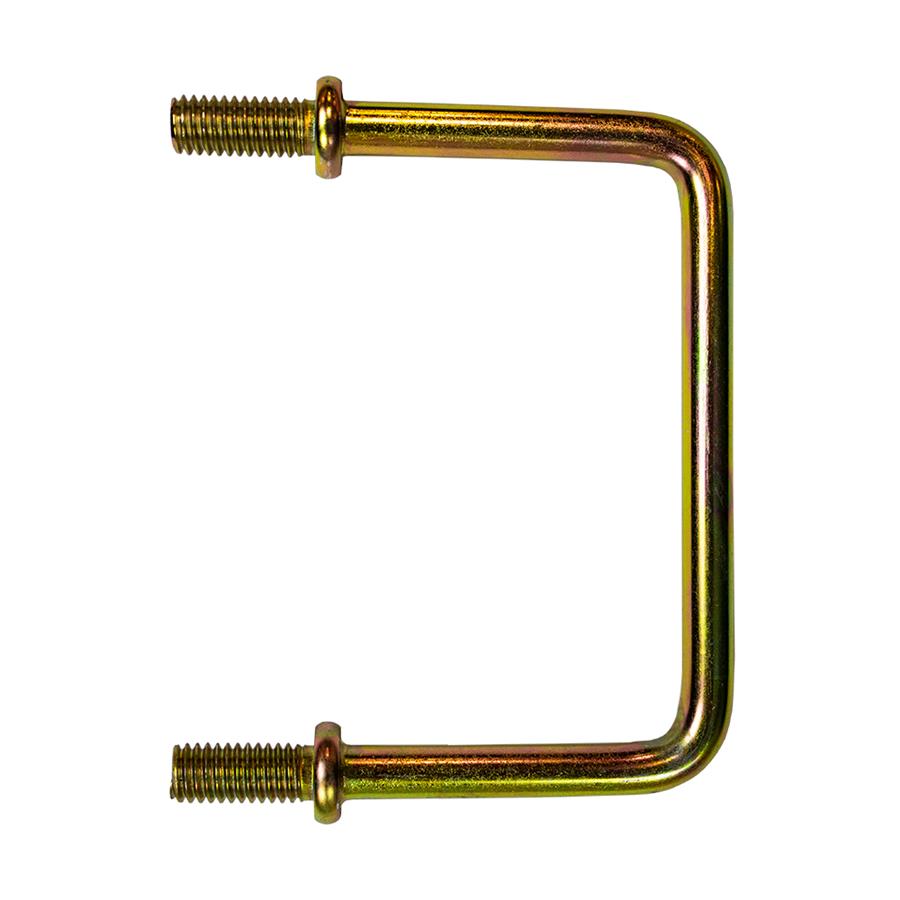

Toro OEM 109 6982 Pulley and Belt Cover Retaining Rod Is Designed with or without the use of the Supporting Washer (According to Model Differences and Needed Spacing) to have the exact clearance from your Mower Deck to Enable you to slide the Mower Deck Pulley Cover over Top of the Belt and Pulleys and have it Clip in Place. Toro OEM 109 6982 Wire Form is Manufactured to Toro OEM precision and is Designed to be use on Toro Titan HD, ZMaster and Grandstand Models. Note: All models will have two Belt Covers Retaining Rods. Unlike the Pulley Covers, Left-hand and Right-hand side are the same size. For the Correct Size Supporting Washer Refer to the Associated Fastener Chart Below. Please refer to the images above, product specification chart and model fit guide below to confirm compatibility before purchasing.
ASSOCIATED FASTNERS FOR PART NUMBER 109-6982 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 1-373034 - FLAT WASHER - (Supports Retaining Rod and is Installed Between Retaining Rod Flange and the Mower Deck) *Select Models Only or Only as Needed For Correct Spacing x2 Per Retaining Rod
- 104-8301 - FLANGE LOCK NUT - (Retains Pulley Cover Retaining Rod) x2 Per Retaining Rod
|
Product Number: |
1096982 |
|
Brand: |
Toro |
|
Length: |
4.650 IN (11.811 CM) |
|
Width: |
3.500 IN (8.890 CM) |
|
Height: |
0.600 IN (1.524 CM) |
|
Weight: |
0.281 LB (0.127 KG) |
Model Fit:
31970, 31971, 31972, 31973, 71504, 71505, 72027, 72030, 72076, 72144, 72504, 72505, 72506, 72507, 72509, 72510, 72512, 72513, 72514, 72517, 72518, 72519, 72520, 72523, 72524, 72529, 72530, 72904, 72906, 72907, 72908, 72910, 72911, 72912, 72915, 72918, 72926, 72928, 72930, 72932, 72936, 72946, 72947, 72949, 72950, 72951, 72952, 72953, 72955, 72956, 72957, 72958, 72959, 72960, 72961, 72965, 72967, 72968, 72969, 72976, 72977, 72980, 72981, 72982, 72983, 74000, 74002, 74004, 74010, 74015, 74020, 74022, 74024, 74035, 74050, 74052, 74054, 74055, 74057, 74060, 74072, 74141, 74143, 74145, 74450, 74451, 74452, 74453, 74454, 74460, 74461, 74462, 74465, 74466, 74467, 74470, 74471, 74472, 74480, 74490, 74491, 74492, 74493, 74494, 74495, 74496, 74497, 74504, 74505, 74513, 74518, 74519, 74523, 74529, 74538, 74539, 74548, 74549, 74550, 74551, 74553, 74558, 74559, 74568, 74569, 74574, 74575, 74576, 74578, 74583, 74588, 74589, 74901, 74903, 74904, 74906, 74915, 74916, 74918, 74921, 74922, 74923, 74925, 74926, 74927, 74928, 74930, 74933, 74934, 74935, 74936, 74937, 74938, 74939, 74940, 74946, 74947, 74949, 74950, 74951, 74952, 74953, 74954, 74955, 74956, 74957, 74958, 74959, 74960, 74961, 74969, 74975, 74977, 74978, 74979, 74990, 74991, 74992, 74993, 74994, 74995, 74996, 74997, 74998, 75930, 75932, 75934, 75936, 75951, 75955, 75967, 75968, 75990, 77248, 77260, 77280, 77281, 77282, 77283, 77284, 77285, 77287, 77288, 77290, 77291, 77293, 77294, 77299, 78450, 78472, 78922, 78924, 78926, 78928, 78953, 79504, 79505, 79518, 79548, 79549, 79551, 79553, 79558, 79559, 79574, 79575, 79589
