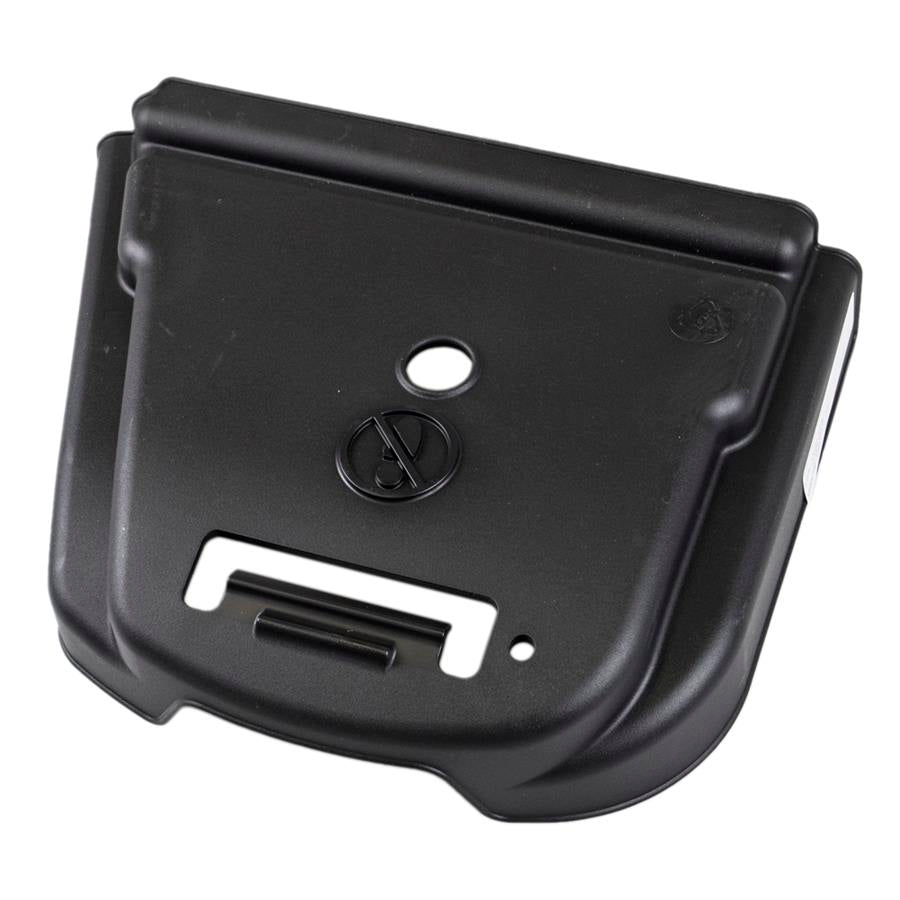

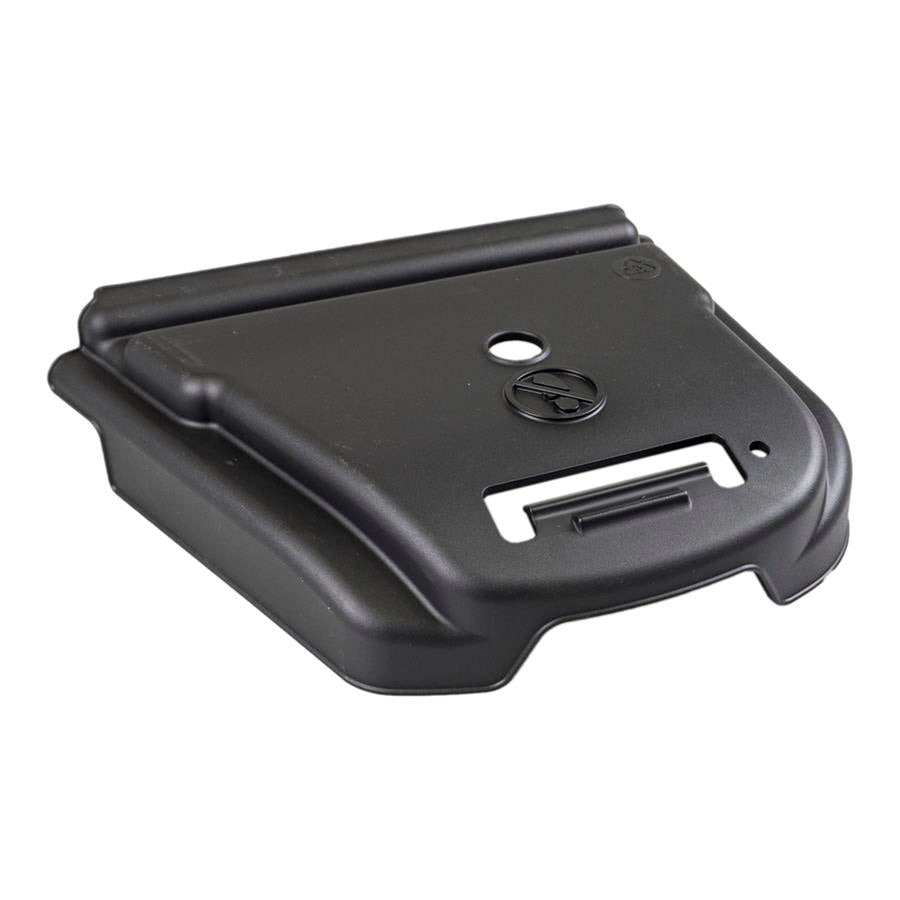

TORO OEM Belt and Pulley Cover 109-6936 fits Toro 48", 52" Titan HD, and Z Master series and 48", 52", 60" Toro Grandstand and Multi-force Series.

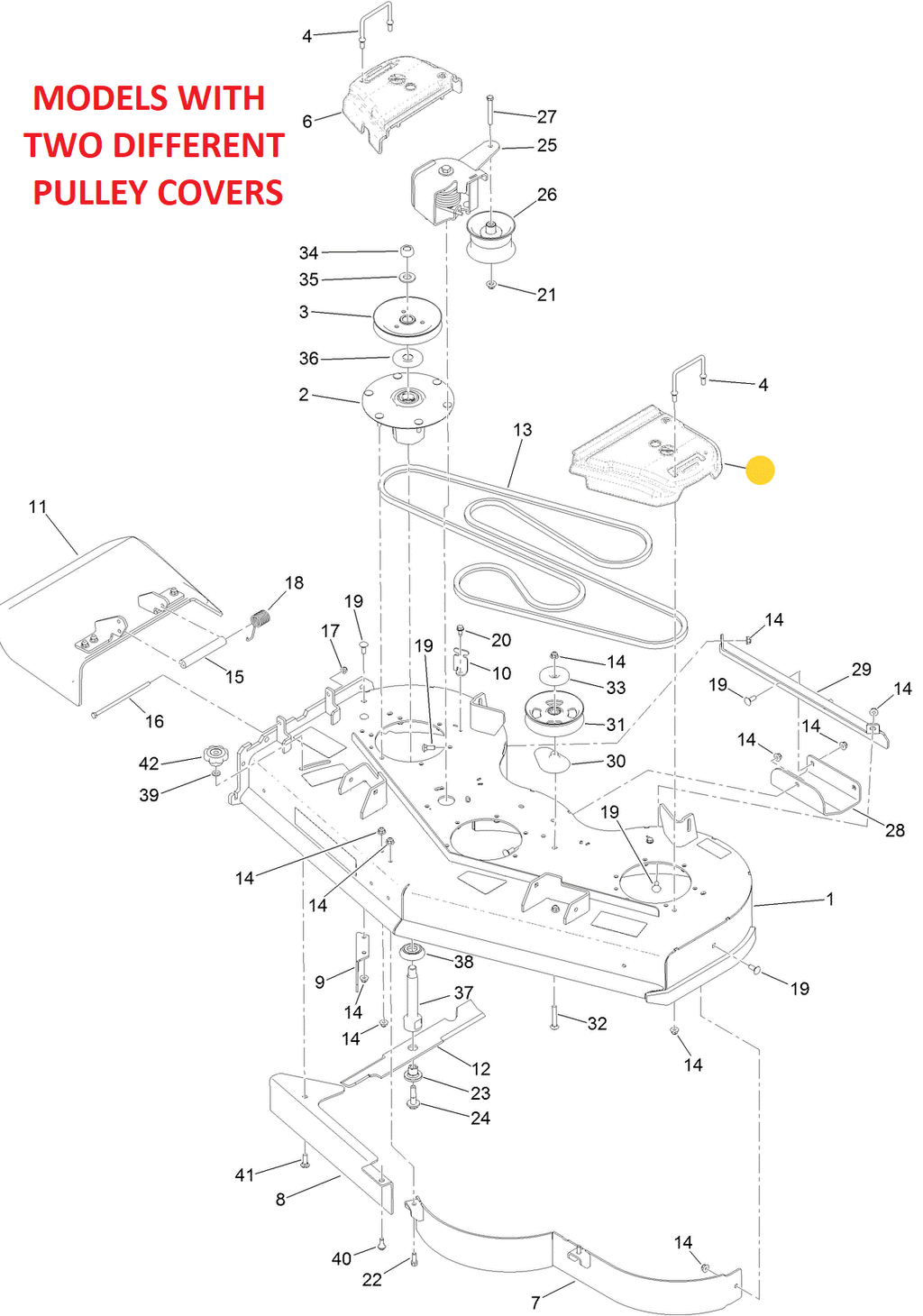

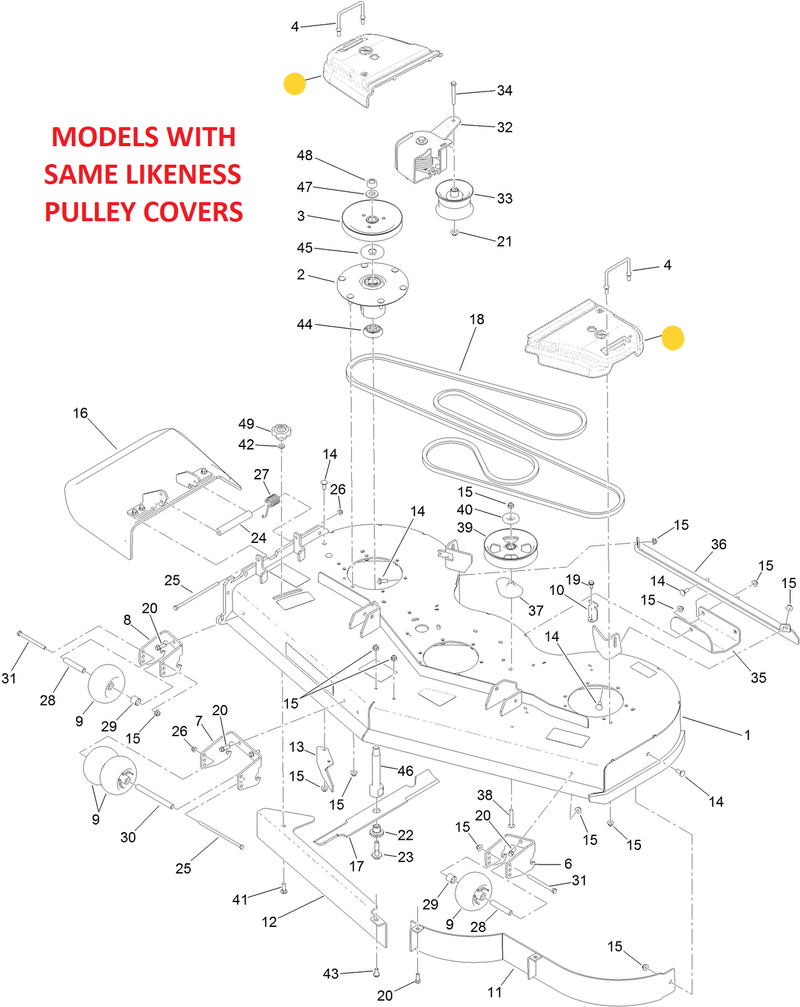

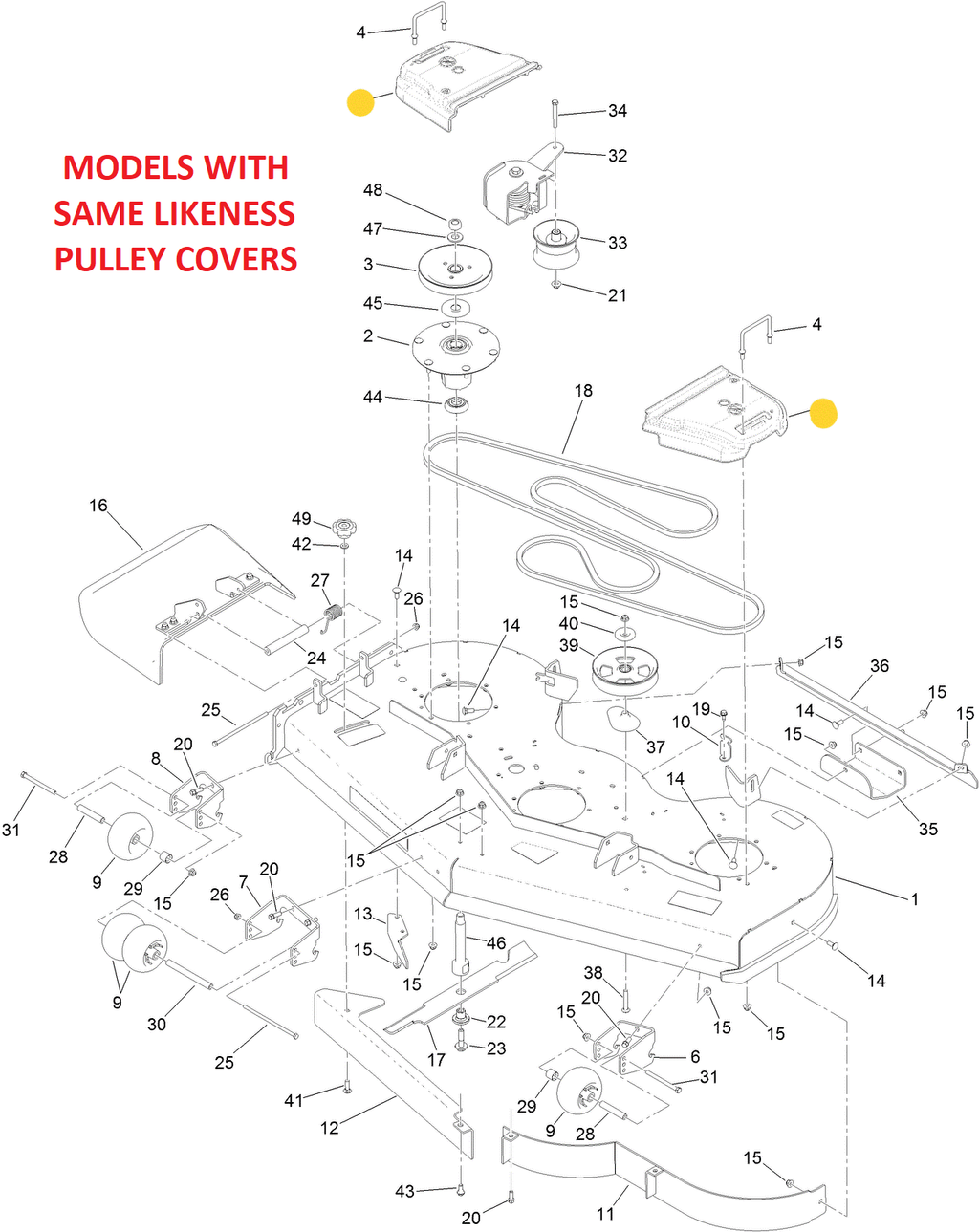

Trust Oem Replacement Left-Side or Left & Right Side 109 6936 Pulley and Belt Sheild to properly fit and covers those belts and pulleys, keeping the operator safe. this easy to remove Guard design allows easy access to cleaning your Mower Deck and fits Toro 48" & 52" Titan HD 1500, 2000 & 2500 series, ZMaster 2000, 3000, 4000, 5000, 6000 Models - Toro 48", 52", 60" Grandstand and Multi-Force Models. Note: All models will have two Belt Covers, in most case there is a Left-hand and Right-hand side Although Some models Such as the 60" Multi-Force will require Two of Part 109-6936 for Both Sides. Left to Right is Determined as you stand or sit on the Operator Station. Differences can also be determined by size. Please refer to the Images Above Product Specifications and Model Fit Guide below to confirm compatibility before purchasing.







ASSOCIATED FASTNERS FOR PART NUMBER 109-6936 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 109-6982 - RETAINING ROD - (Remains Fastened to the Mower Deck Deck and Enables User to Clip Pulley Cover into Position) x1 Per Pulley Cover
2. 1-373034 - FLAT WASHER - (Supports Retaining Rod and is Installed Between Retaining Rod Flange and the Mower Deck) *Select Models Only or Only as Needed For Correct Spacing x2 Per Retaining Rod
3. 104-8301 - FLANGE LOCK NUT - (Retains Pulley Cover Retaining Rod) x2 Per Retaining Rod







Specification

Product Number:	1096936
Brand:	Toro
Length:	14.000 IN (35.560 CM)
Width:	8.900 IN (22.606 CM)
Height:	2.800 IN (7.112 CM)
Weight:	1.220 LB (0.553 KG)





Model Fit:





71504, 71505, 72504, 72505, 72506, 72507, 72509, 72510, 72512, 72513, 72514, 72518, 72519, 72520, 72523, 72524, 72529, 72530, 72904, 72906, 72907, 72908, 72932, 72949, 72952, 72955, 72956, 74000, 74002, 74010, 74050, 74052, 74141, 74143, 74450, 74451, 74453, 74454, 74460, 74461, 74465, 74466, 74470, 74471, 74490, 74491, 74493, 74495, 74504, 74505, 74513, 74518, 74519, 74523, 74529, 74538, 74539, 74548, 74549, 74550, 74551, 74553, 74558, 74559, 74568, 74569, 74901, 74903, 74904, 74906, 74921, 74922, 74923, 74949, 74951, 74952, 74953, 74955, 74994, 74995, 75932, 75934, 75955, 77248, 77280, 77281, 77282, 77283, 77290, 77291, 78450, 78922, 78924, 78953, 79504, 79505, 79518, 79548, 79549, 79551, 79558, 79559
