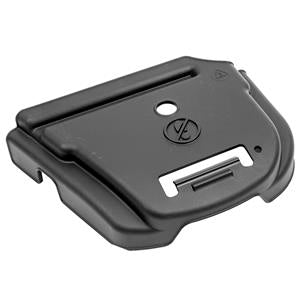

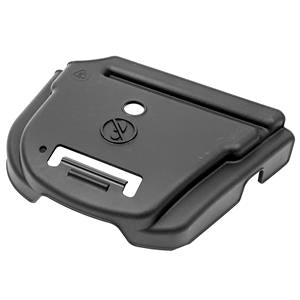

TORO OEM Right-Hand Belt and Pulley Cover 109-6935 fits Toro 48", 52" Titan HD, and Z Master series and 48", 52", 60" Toro Grandstand and 52" Multi-force Series.

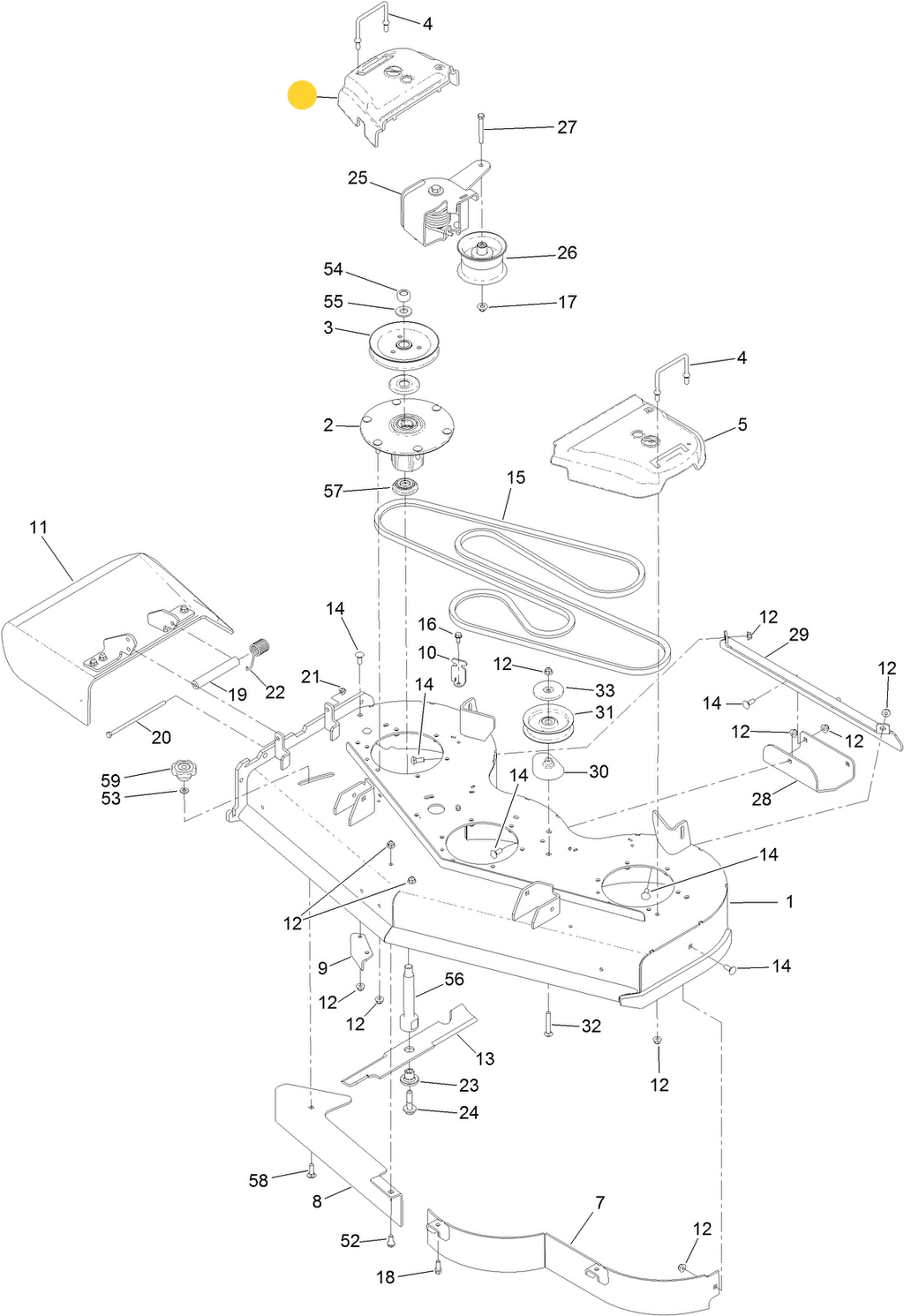

Trust Oem Replacement Right-Side 109 6935 Pulley and Belt Sheild to properly fit and covers those belts and pulleys, keeping the operator safe. this easy to remove Guard design allows easy access to cleaning your Mower Deck and fits Toro 48" & 52" Titan HD 1500, 2000 & 2500 series, ZMaster 2000, 3000, 4000, 5000, 6000 Models - Toro 48", 52", 60" Grandstand and 52" Multi-Force Models. Note: All models will have two Belt Covers, in most case there is a Left-hand and Right-hand side. Left to Right is Determined as you stand or sit on the Operator Station. Differences can also be determined by size. Please refer to the Images Above Product Specifications and Model Fit Guide below to confirm compatibility before purchasing.







ASSOCIATED FASTNERS FOR PART NUMBER 109-6935 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 109-6982 - RETAINING ROD - (Remains Fastened to the Mower Deck and Enables User to Clip Pulley Cover into Position) x1 Per Pulley Cover
2. 1-373034 - FLAT WASHER - (Supports Retaining Rod and is Installed Between Retaining Rod Flange and the Mower Deck) *Select Models Only or Only as Needed For Correct Spacing x2 Per Retaining Rod
3. 104-8301 - FLANGE LOCK NUT - (Retains Pulley Cover Retaining Rod) x2 Per Retaining Rod







Specification

Product Number:	1096935
Brand:	Toro
Length:	12.700 IN (32.258 CM)
Width:	9.750 IN (24.765 CM)
Height:	2.800 IN (7.112 CM)
Weight:	0.940 LB (0.426 KG)





Model Fit:





71504, 71505, 72504, 72505, 72506, 72507, 72518, 72519, 72529, 72530, 72904, 72906, 72907, 72908, 72932, 72949, 72952, 72955, 72956, 74000, 74002, 74010, 74050, 74052, 74141, 74143, 74450, 74451, 74453, 74454, 74460, 74461, 74465, 74466, 74470, 74471, 74490, 74491, 74493, 74495, 74504, 74505, 74518, 74519, 74529, 74538, 74539, 74548, 74549, 74558, 74559, 74568, 74569, 74901, 74903, 74904, 74906, 74921, 74922, 74923, 74949, 74951, 74952, 74953, 74955, 74994, 74995, 75932, 75934, 75955, 77248, 77280, 77281, 77282, 77283, 77290, 77291, 78450, 78922, 78924, 78953, 79504, 79505, 79518, 79548, 79549, 79558, 79559
