Description

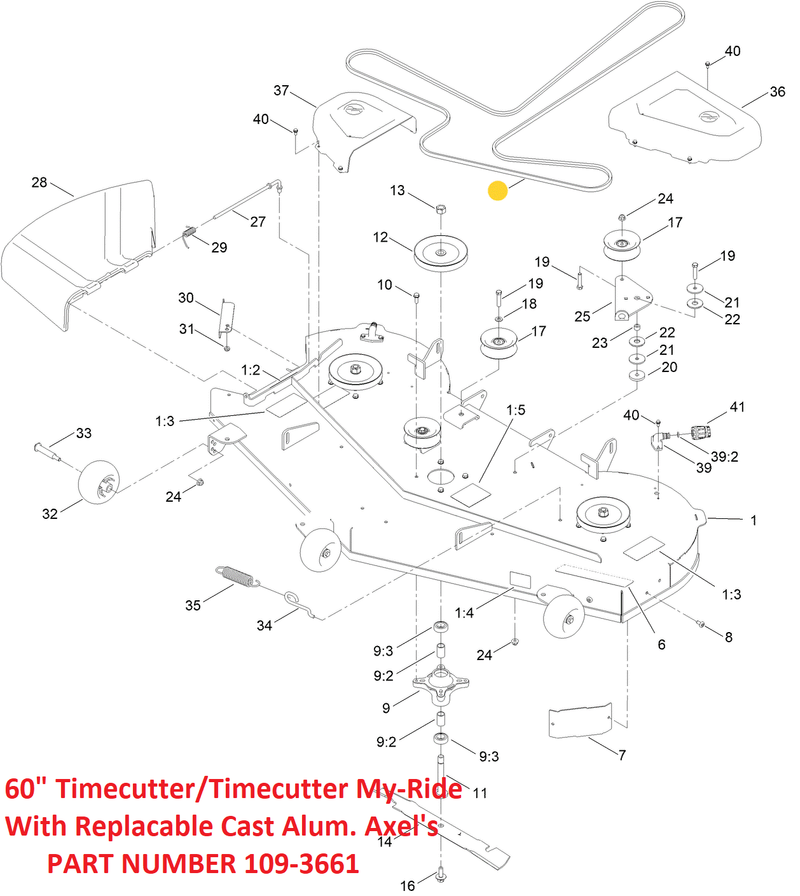

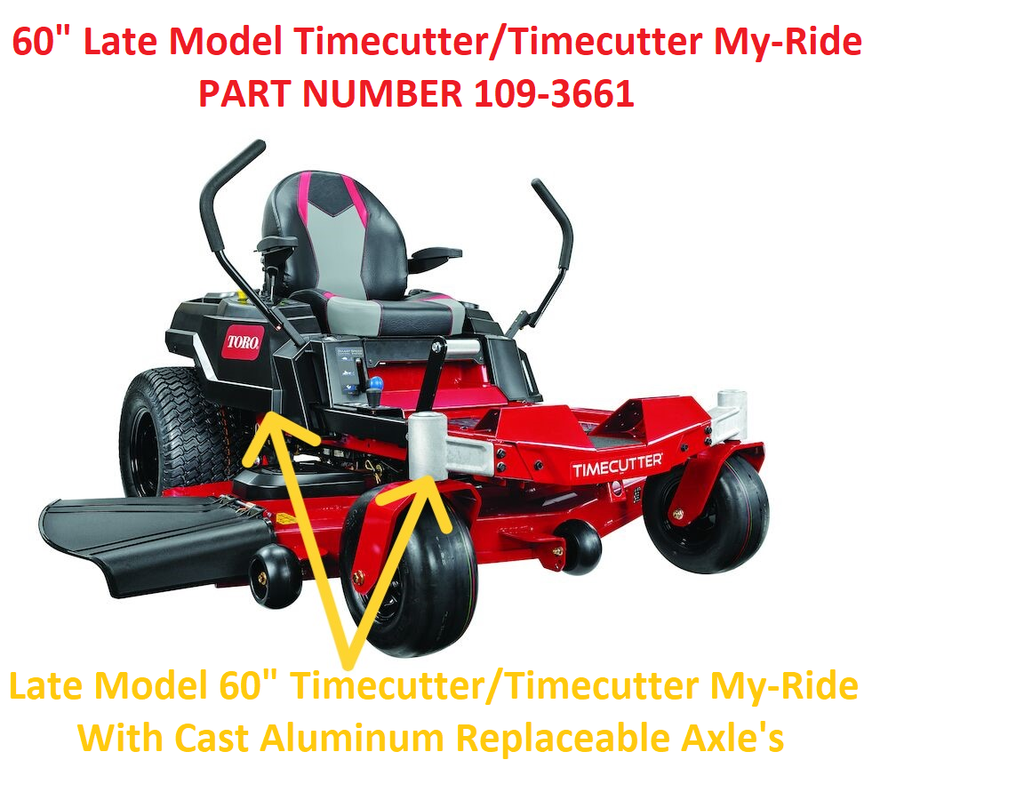

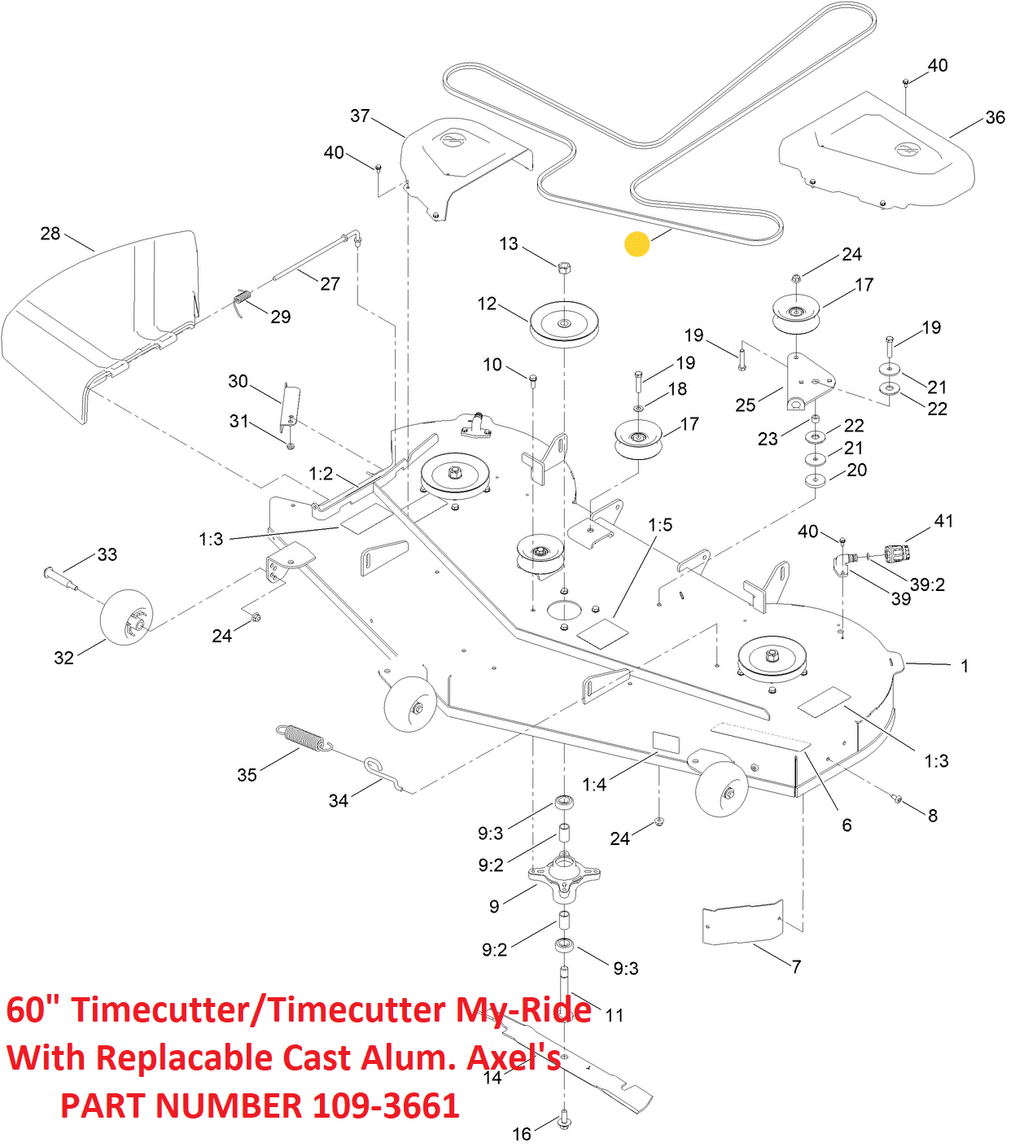

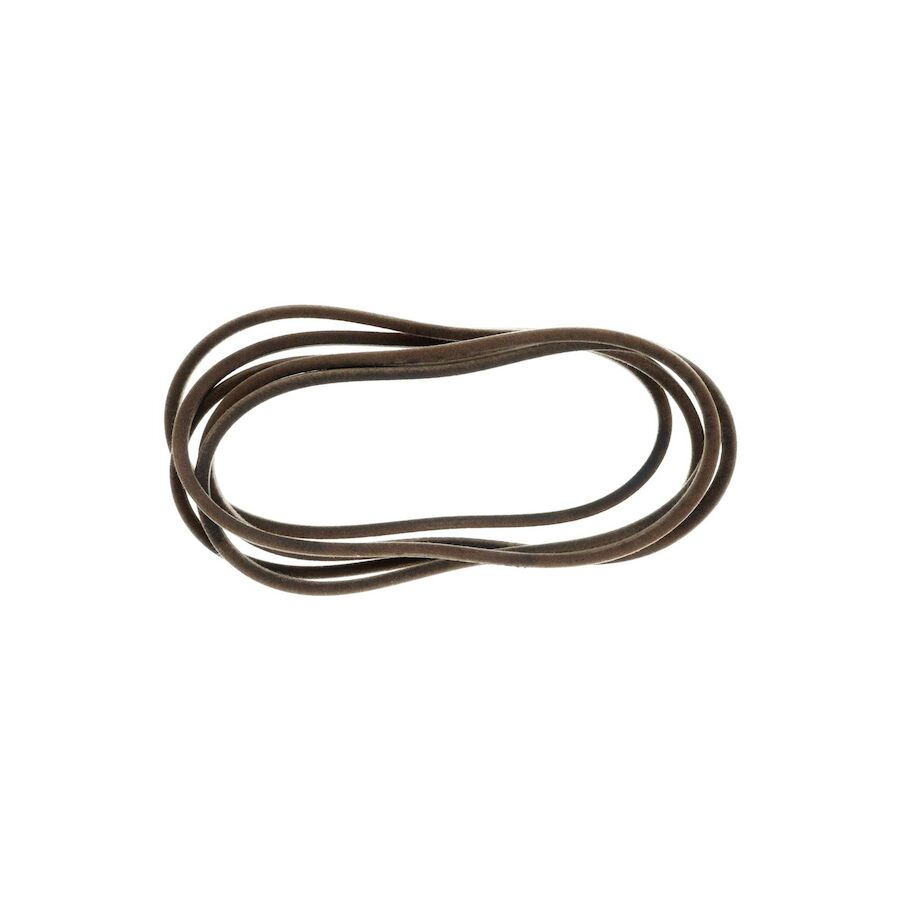

Toro OEM 109 3661 Mower Deck Belt is Crafted only from the Finest of Materials and Rigorously and Extensively Tested to verify it withstands the toughest of Operating Conditions. Expertly crafted from premium Aramids and/or Kevlar materials, the Toro OEM 109-3661 Is made to Fit Toro Late 60" Timecutter MX Model (* Model Number 74777 Only) Late 60" Timecutter Models (* With Replaceable cast aluminum front Axles) and Early 52" TITAN Z5000 and G4000 Series (* Refer to Model Fit Chart, Images, Associated Parts Chart and Special Notes). Don't settle for imitations or substitutes when you can have - worry-free, designed to fit options, knowing that your Toro Mower Deck Belts are built, tested, and designed specifically to OEM Standards and Expectations. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.

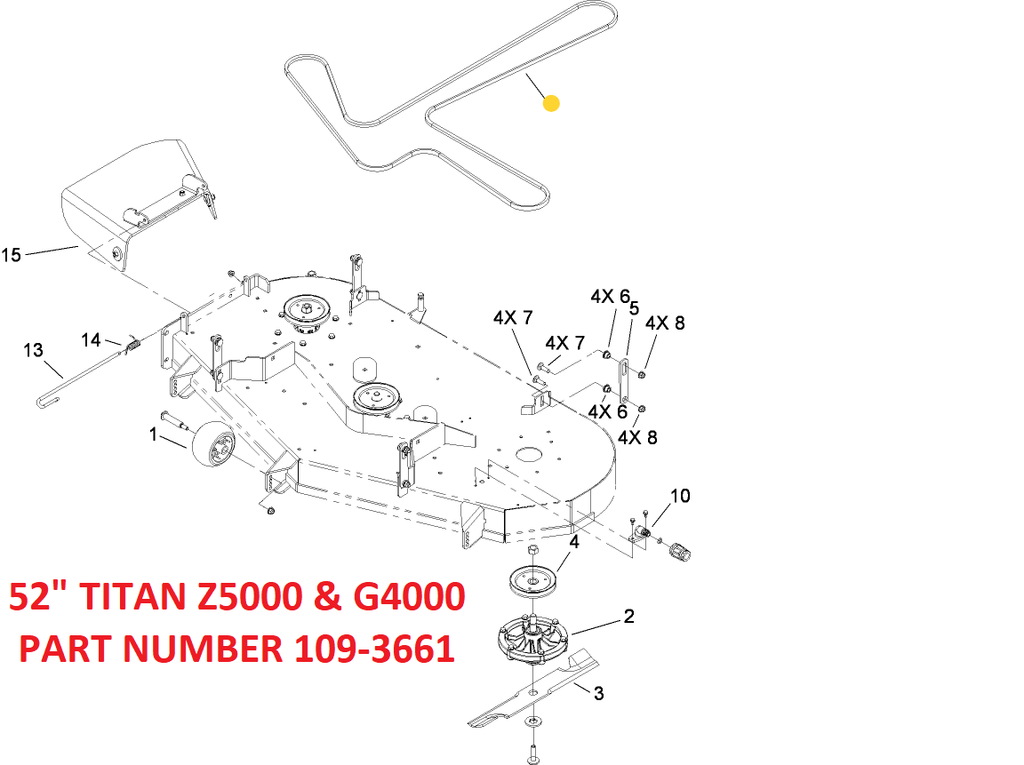

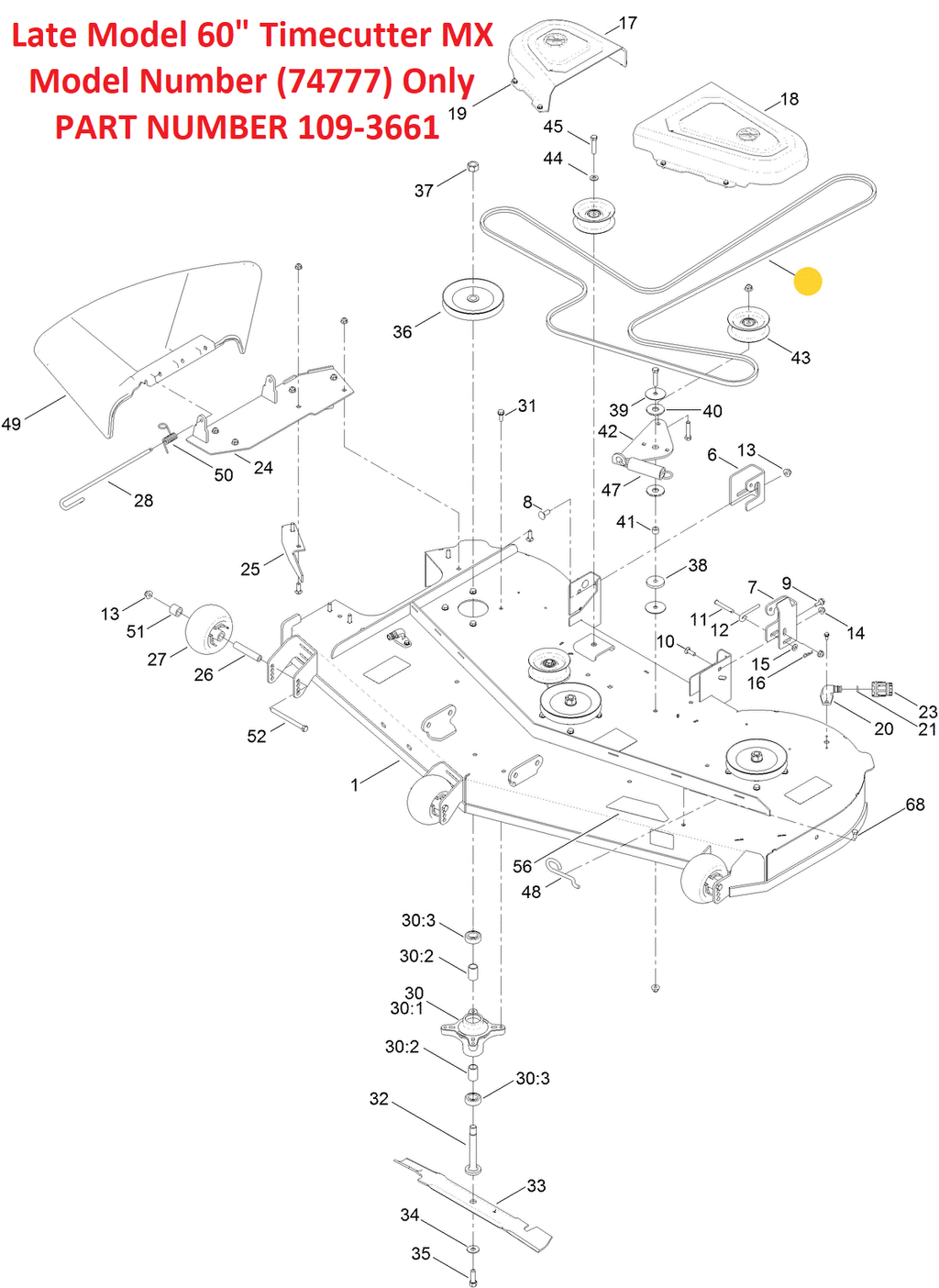

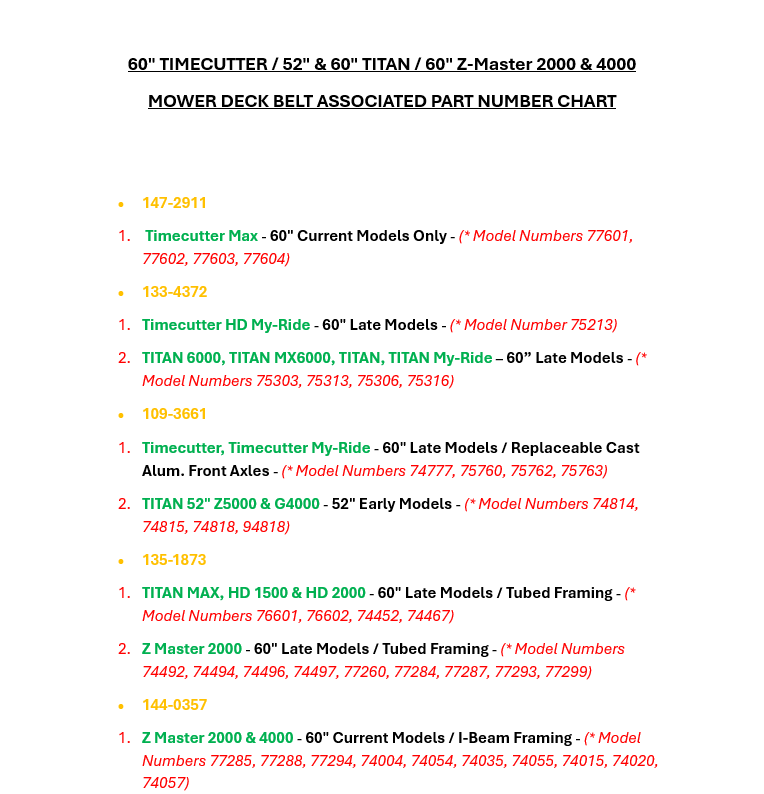

NOTE 1: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Belt Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Belt Part Number Combo. Second Method is to refer to the Images and the Notes in the Image Section of Some of the more Common Model Differences as well as refer to the Part Numbers under the Mower Deck Belt Associated Part Number Reference Chart and Visually Match the correct Part Number with the Correct Model Combo. If this does not prove helpful and you still need assistance with finding the correct part number feel free to text us, email or give us a call and we can try to help you. Remember if further assistance is needed you will need to provide Models and Serial Number of the Unit you are wishing to receive Help with. THERE IS NO DESIGN DIFFERENTIAL IMAGES FOR REFERAL TO THE 52" TITAN Z5000, G4000 and Timecutter MX (Model # 74777). For verification on these Units, Verify Deck Size Series and listed Model Numbers Associated with 109-3661.
ASSOCIATED MOWER DECK IDLER PULLEYS FOR PART NUMBER 109-3661
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
* TIMECUTTER MODELS ONLY
132-9420 - FLAT IDLER - REQUIRES THREE PER MOWER DECK
Specification
|
Product Number: |
1093661 |
|
Brand: |
Toro |
|
Length: |
153 3/4 IN |
|
Width: |
1/2 IN |
|
Height: |
NA |
|
Weight: |
0.870 LB (0.395 KG) |
Model Fit:
74814, 74815, 74818, 94818, 74777, 75760, 75762, 75763
