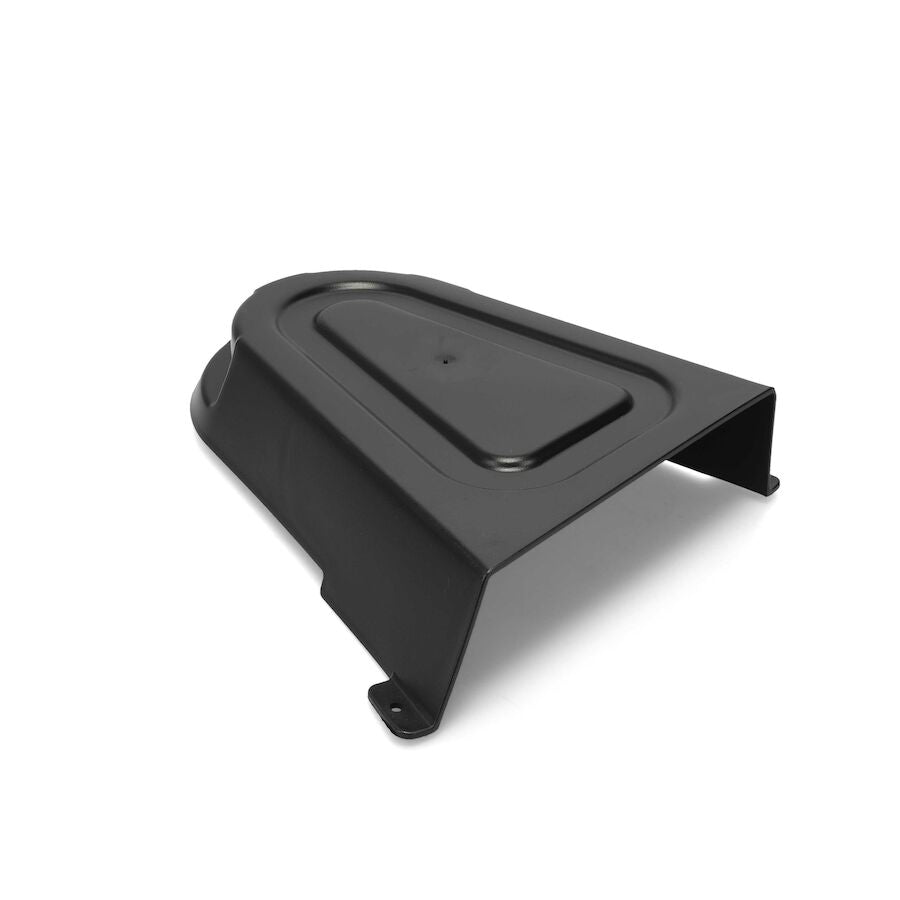

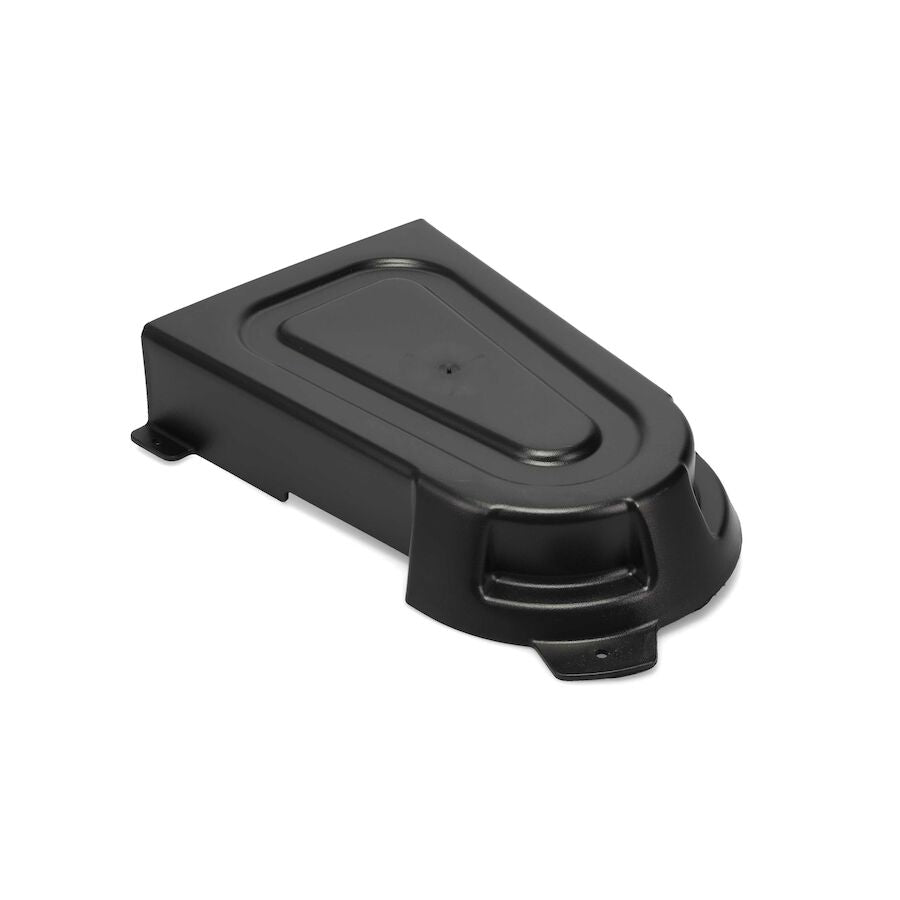

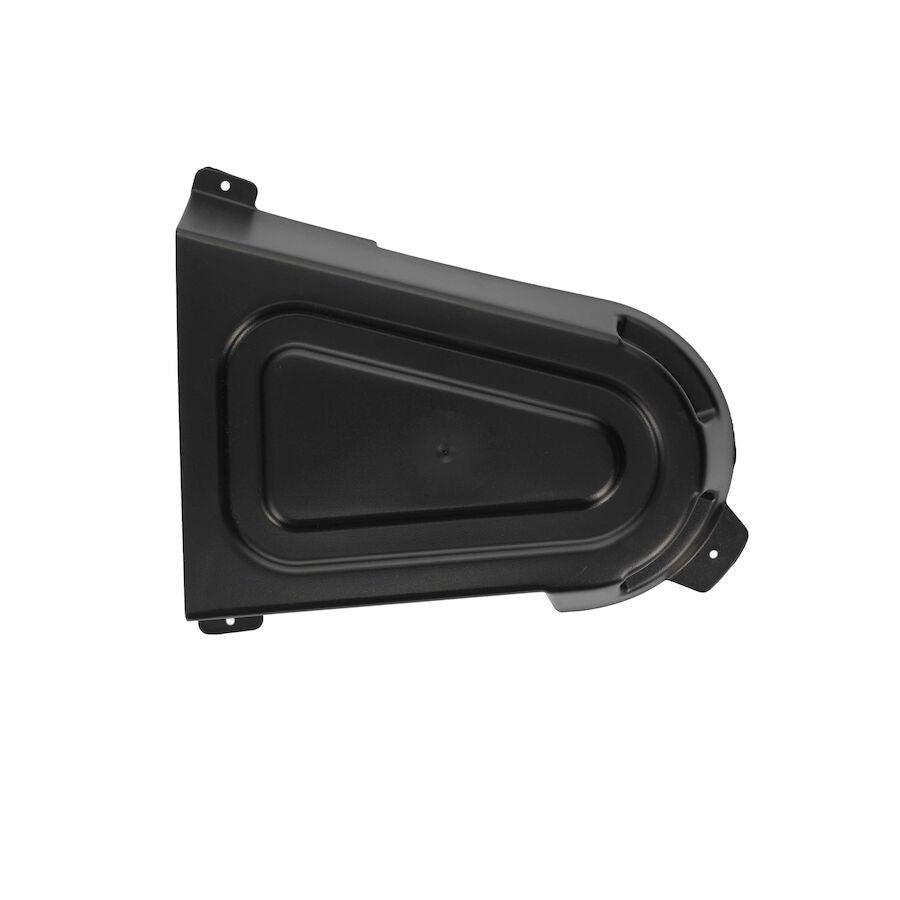

Trust Oem Replacement Right & Left -Side 108 7890 Pulley and Belt Sheild to properly fit and covers those belts and pulleys, keeping the operator safe. the Bolt-On style allows you to remove the Guards and allows easy access to cleaning your Mower Deck. OEM 108 7890 Fits Toro 50" Timecutter Z5000, MX, SS, SW, ZS and TITAN ZX5000 series. (* Note: All models will have two Belt Covers, Left-hand and Right-hand side are the Same). Please refer to the model fit guide below to confirm compatibility before purchasing.
ASSOCIATED FASTNERS FOR PART NUMBER 108-7890 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
32144-1 - Self-tapping Tap Screws (Pulley Cover Fastners)
Specification
|
Product Number: |
1087890 |
|
Brand: |
Toro |
|
Length: |
13.500 IN (34.290 CM) |
|
Width: |
10.500 IN (26.670 CM) |
|
Height: |
2.580 IN (6.553 CM) |
|
Weight: |
0.604 LB (0.274 KG) |
Model Fit:
1. Timecutter and Timecutter MX, SS, SW, ZS Series - Early - Late Models Only (* Model Numbers 74387, 74630, 74632, 74641, 74631, 74395, 74635, 74637, 74638, 74643, 74730, 74740, 74741, 74770, 74660, 74680, 74790, 74793, 74797, 74731, 74798, 74732, 74775, 74661, 74771, 74776, 74795, 74727, 74772, 74773, 74774, 74688)
2. Timecutter MX 5075 Series - Late Models Only (* Model Numbers 74778, 74768).
3. Timecutter Z 5000 Series - Early Models Only (* Model Numbers 74370, 74372, 94370, 94372, 74391, 74399, 74374, 74375, 81271, 74373, 94375, 74376, 74398).
4. TITAN ZX5000 Series - Early Models Only (* Model Numbers 74820, 74840).
