Toro OEM Pivot/Pillow Block 108-7845 Fits Toro Timecutter 32" SS, SW, ZS - 34" MX - 42" MX, SS, SW, SWX, ZS - 50" MX, SS, SW, SWX, ZS - 54" SS, SW - 60" MX Models.

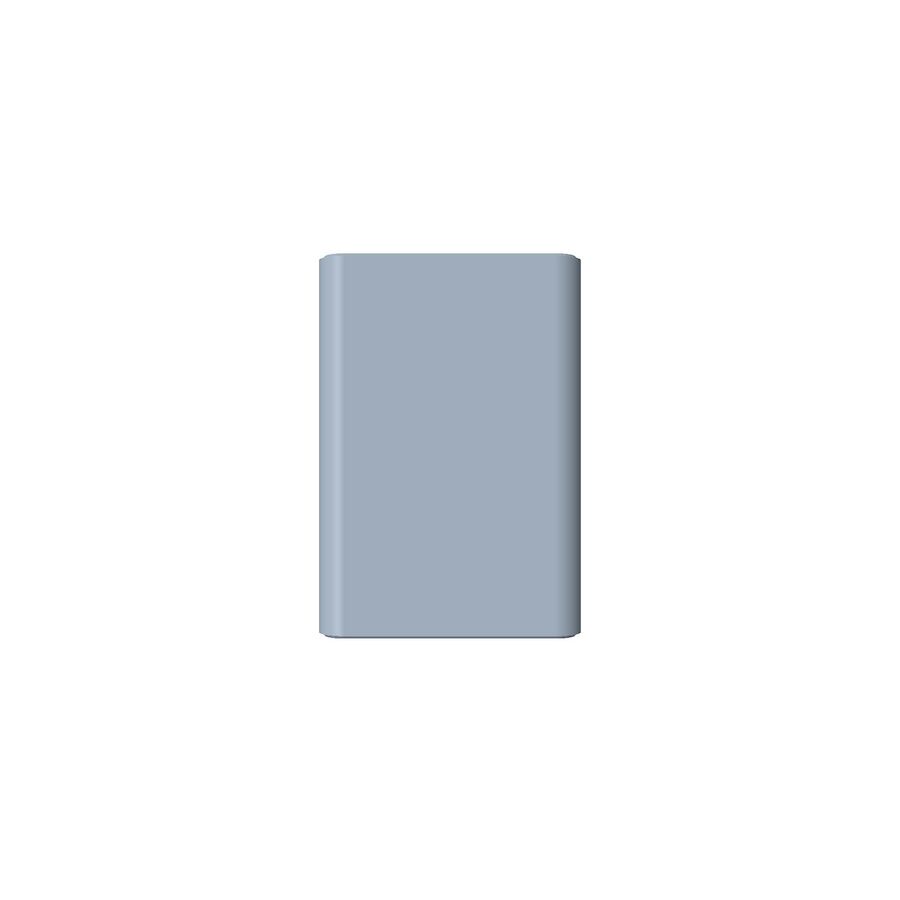

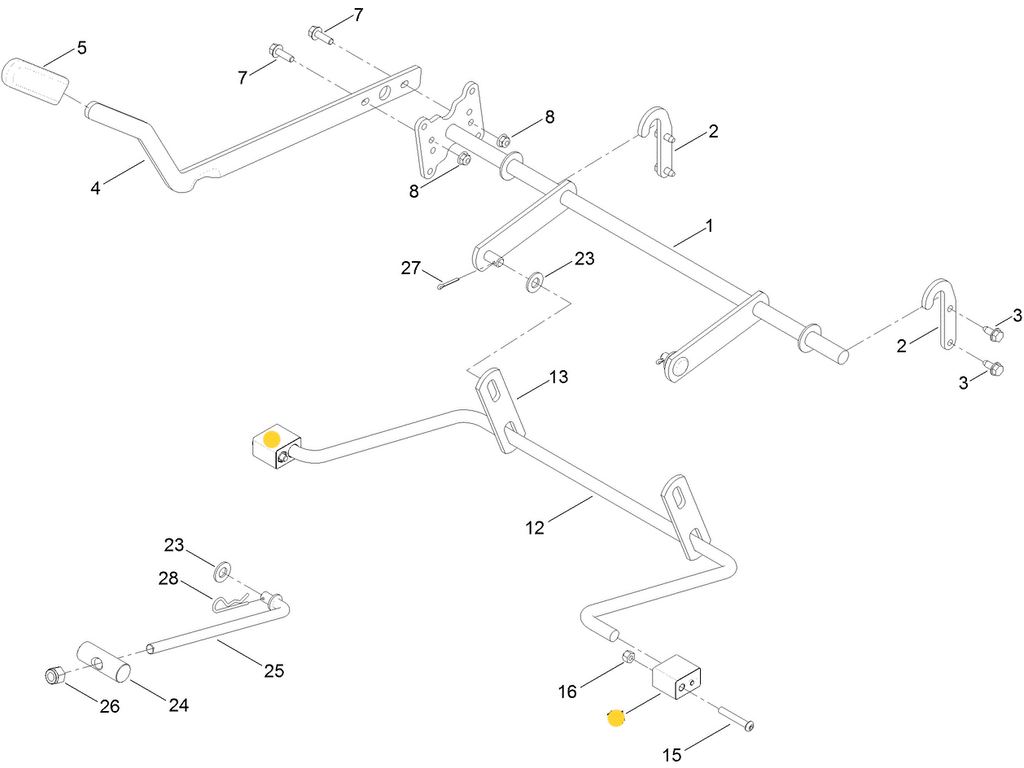

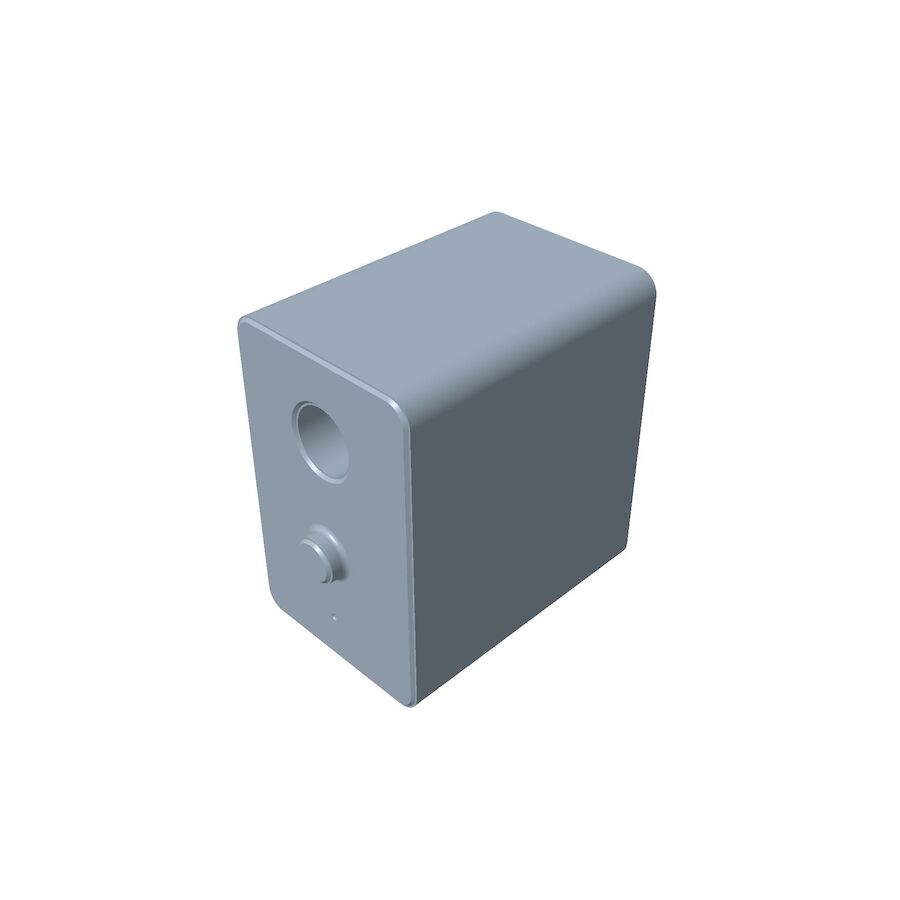

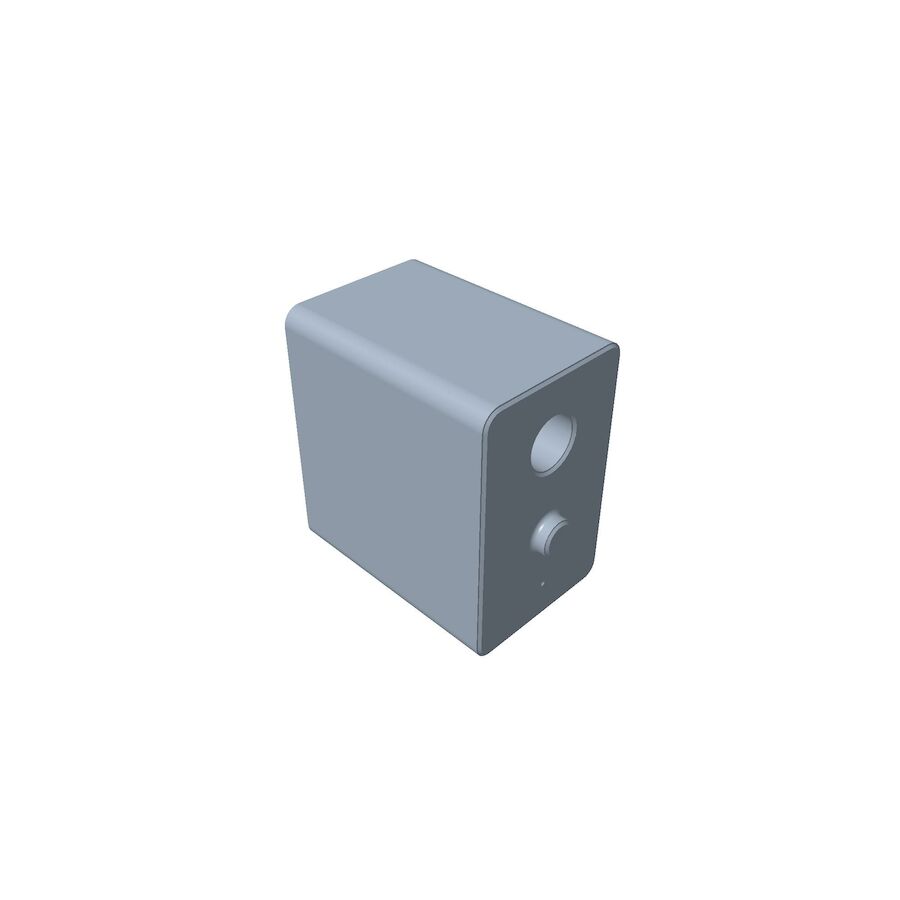

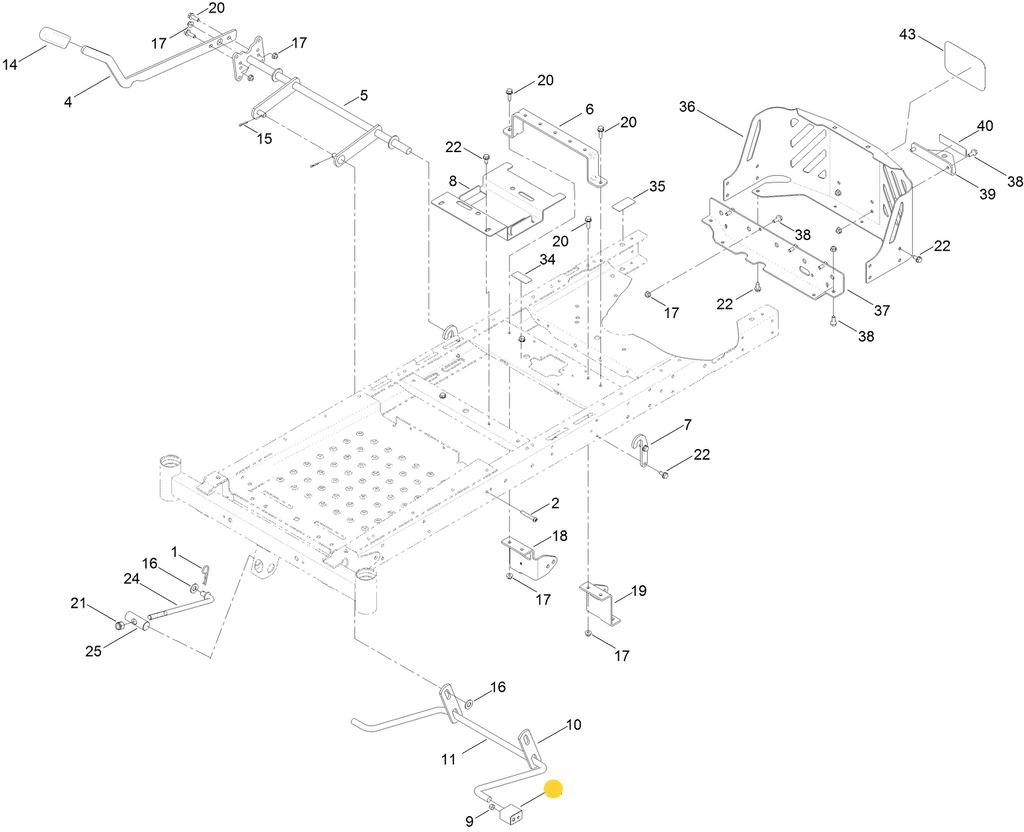

The Toro OEM 108 7845 Pillow Block features robust construction with an integrated dial pin that ensures precise alignment on the mower frame, effectively preventing displacement from operational impacts. This component serves a critical dual function: securing the mower deck's rear lift arm while simultaneously facilitating its pivoting action. Its engineering reflects professional-grade design for optimal performance and durability. Toro OEM 108 7845 Pivot/Pillow Block Is Widely Used on Select Toro Early/Late 32" (SS, SW, ZS), 34" (MX), 42" (MX, SS, SW, SWX, ZS), 50" (MX, SS, SW, SWX, ZS), 54" (SS, SW) and 60" (MX) Timecutter Models. Due to Variation Within Model Numbers/Series, for an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 108-7845 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-7234 - MOWER DECK REAR LIFT ARM - (Fits select 32", 34", 42", 50" Timecutter Models - Attaches to Mower Deck and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
2. 138-7239 - MOWER DECK REAR LIFT ARM - (Fits select 50", 54", 60" Timecutter Models - Attaches to Mower Deck and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
3. 120-5499 - HEX SOCKET BUTTON HEAD BOLTS - (Retains Mower Pivot Block) x1 Per Pillow Block
4. 3296-29 - LOCK NUT - (Retains Mower Pivot Block) x1 Per Pillow Block







Specification

Product Number:	1087845
Brand:	Toro
Length:	1.100 IN (2.794 CM)
Width:	1.700 IN (4.318 CM)
Height:	1.500 IN (3.810 CM)
Weight:	0.630 LB (0.286 KG)





Model Fit:



TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74385, 74388, 74650



TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710



TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781





TIMECUTTER 34” MX Series – Model Numbers – 74750





TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74649, 74760, 74765, 74766



TIMECUTTER 42” Z Series – Model Numbers – 74360, 74380, 74363, 74381, 74365, 74366



TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788



TIMECUTTER 42” SWX Series – Model Numbers – 74787





TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776



TIMECUTTER 50” Z Series – Model Numbers – 74370, 74372, 74391, 74399, 74374, 74375, 74373, 74376, 74398



TIMECUTTER 50” ZS Series – Model Numbers – 74688, 74660, 74661, 74395, 74387



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795





TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TIMECUTTER 54” SW Series – Model Numbers – 74793





TIMECUTTER 60” MX Series – Model Numbers – 74777





XLS Riding Tractor Series (MOWER DECK) – Model Numbers 71254, 71255





G4000 Series (MOWER DECK)– Model Numbers - 94360, 94370, 94372, 94375, 725058056, 725058066, 725058086, 725058046
