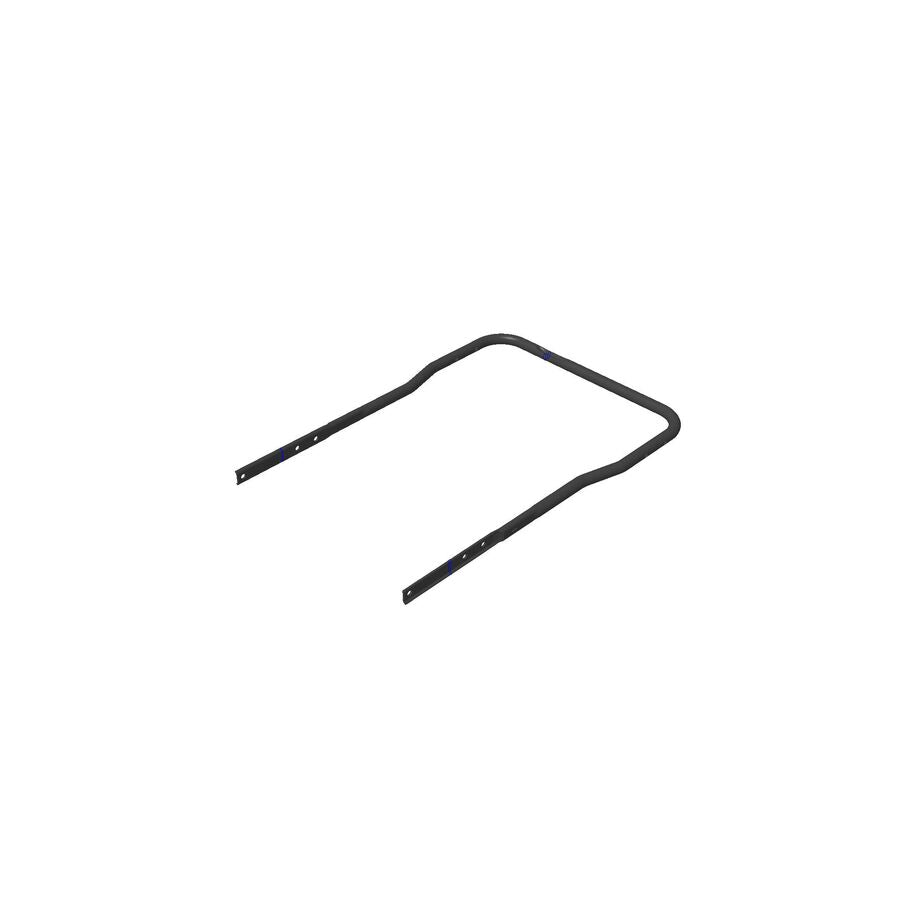

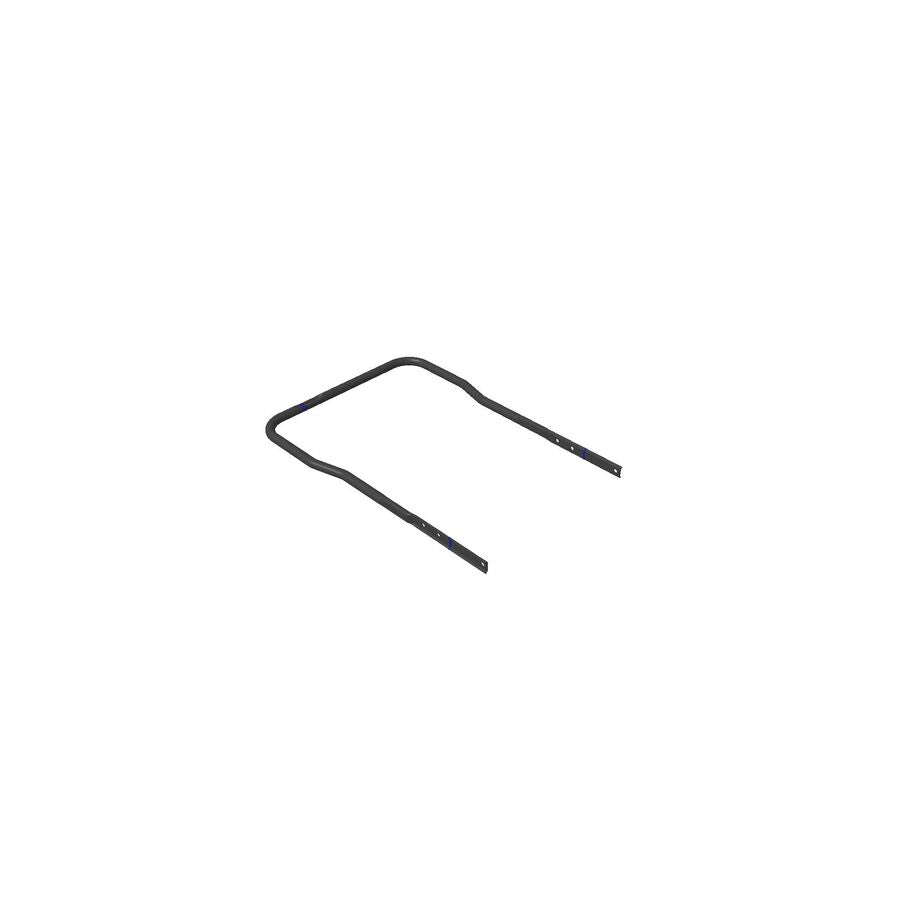

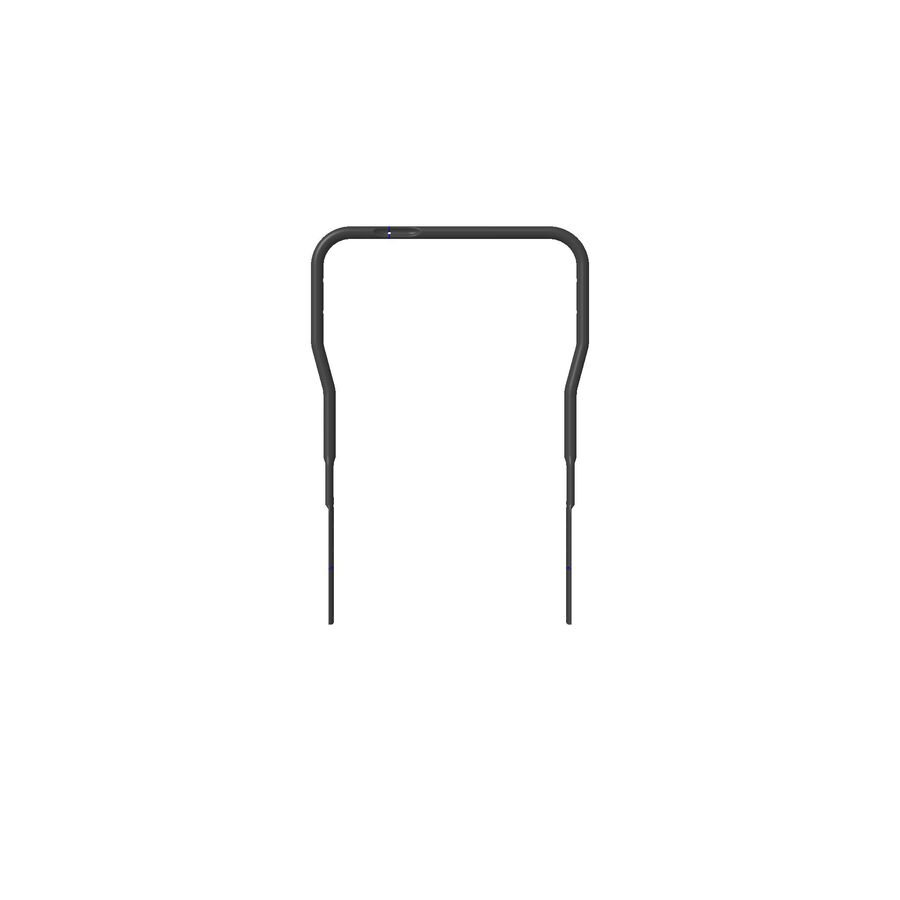

108-4944-03 Lower Handle Section Fits Toro Select 21" Single Stage Power Clear and Quick Clear Snowblower Models.

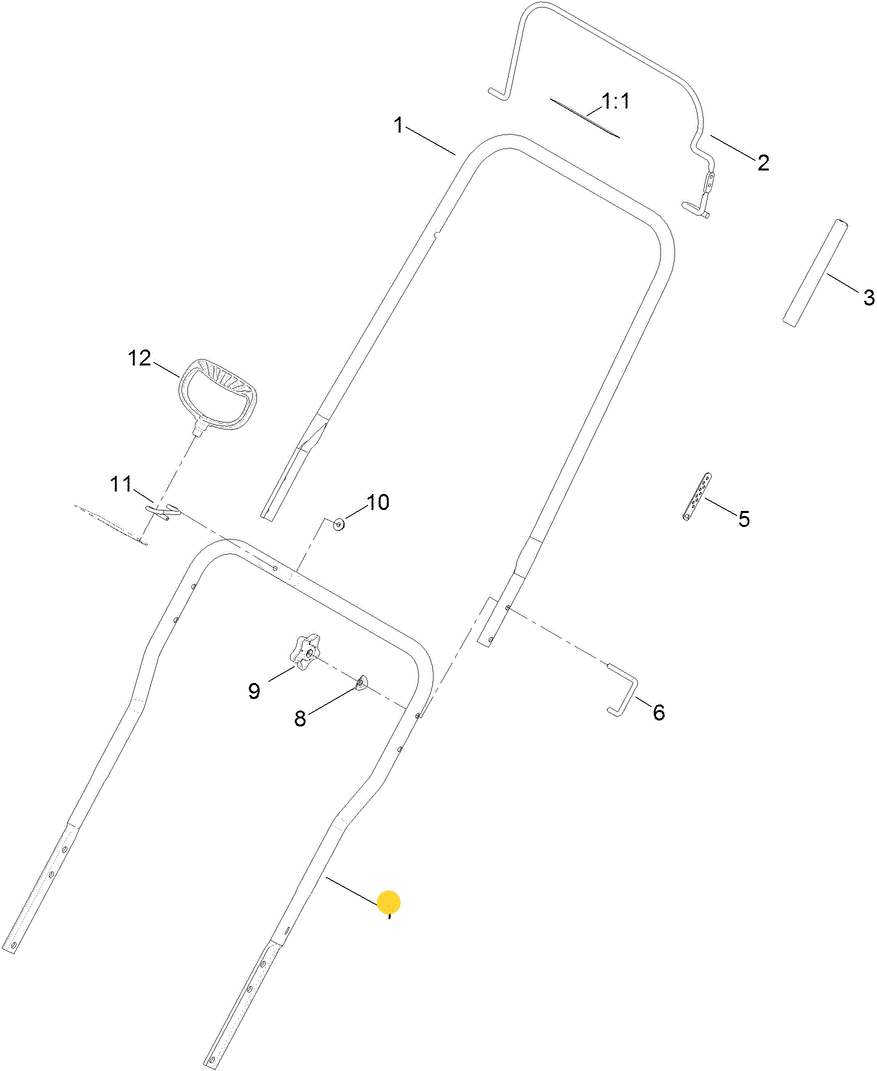

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 108-4944-03, 108 4944 03, 108494403
• PRODUCT TYPE: Lower Handle Section
• SIZE: Length 28.000 in. - Width 17.000 in. - Height 1.000 in. - Weight 3.220 lbs.
• NOTES & DETAILS: Toro OEM  108-4944-03 IS COMMINLY USED - As the Lower of a Two-Piece Handle Assembly and Fastens to The Main Snowblower Assembly - Enabling the Operator to Fold the Upper Handle Section for Transporting and Storage.
• COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S

QUICK CLEAR Series – Model Numbers – (* Model Numbers 38564, 38567, 38569, 38571, 38575, 38576, 38577)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38451, 38452, 38453, 38454, 38458, 38459, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38751)

• ASSOCIATED PARTS CHART:

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 108-4944-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

UPPER & LOWER HANDLE FASTNERS

1. 1. 136-7130 - HANDLE LOCK BOLT/FASTNER (Retains and Locks Two-Piece Handle Assemblies from Coming Apart or Folding) x2 Per Handle Assembly *Select Models Only - R-C (Contractor Grade) Series Would use a Hex Head Bolt and Lock Nuts Instead
   2. 107-3844 - CONTOUR WASHER (Shaped to contour the Handle and is Used Between the Handle and the Fastners to Protect the Handle and Support the Fastners) x1 Per Handle Lock Bolt/Fastner or x2 Per Hex Head Bolt
   3. 114-3779 - HANDLE KNOB (Retains the Handle Lock Bolt Fastner in the Handle Two-Piece Handle Assembly and Enables Operator to Easily Disassemble or Fold the Handle Assembly) x2 Per Handle Assembly *Select Models Only - R-C (Contractor Grade) Series Would use a Hex Head Bolt and Lock Nuts Instead
   4. 125-7944 - HEX HEAD BOLT (Retains and Locks Two-Piece Handle Assemblies from Coming Apart or Folding) x4 Per Handle Assembly *R-C (Contractor Grade) Series Only
   5. 3296-72 - LOCK NUT (Retains the Handle Lock Bolt Fastner in the Handle Two-Piece Handle Assembly and Enables Operator to Easily Disassemble or Fold the Handle Assembly) x4 Per Handle Assembly *R-C (Contractor Grade) Series Only



   LOWER HANDLE & MAIN SNOWBLOWER UNIT FASTNERS & COMPONENTS



   1. 32144-11 - FLANGE BOLT (Retains the Bottom Handle Section to the Main Snowblower Auger Housing Section - Upper Whole Only) x2 Per Handle Assembly
   2. 136-7198 - FLANGE SPACER BOLT (Retains the Bottom Handle Section to the Scraper Blade Using the Same Whole and Fastners in the Main Snowblower Auger Housing - Lower Whole Only) x2 Per Handle Assembly
   3. 3296-39 - NYLON LOCK NUT (Retains the Bottom Handle Section to the Scraper Blade Using the Same Whole and Fastners in the Main Snowblower Auger Housing - Lower Whole Only) x2 Per Handle Assembly
   4. 136-7135 - ROPE GUIDE (Fastened to the Lower Handle Section and Retains the Rope Handle within easy Access to the Operator) x1 Per Handle Assembly
   5. 114-3778 - FLANGE NYLON LOCK NUT (Retains the Rope Handle Guide to the Lower Handle Section) x1 Per Handle Assembly
