Description

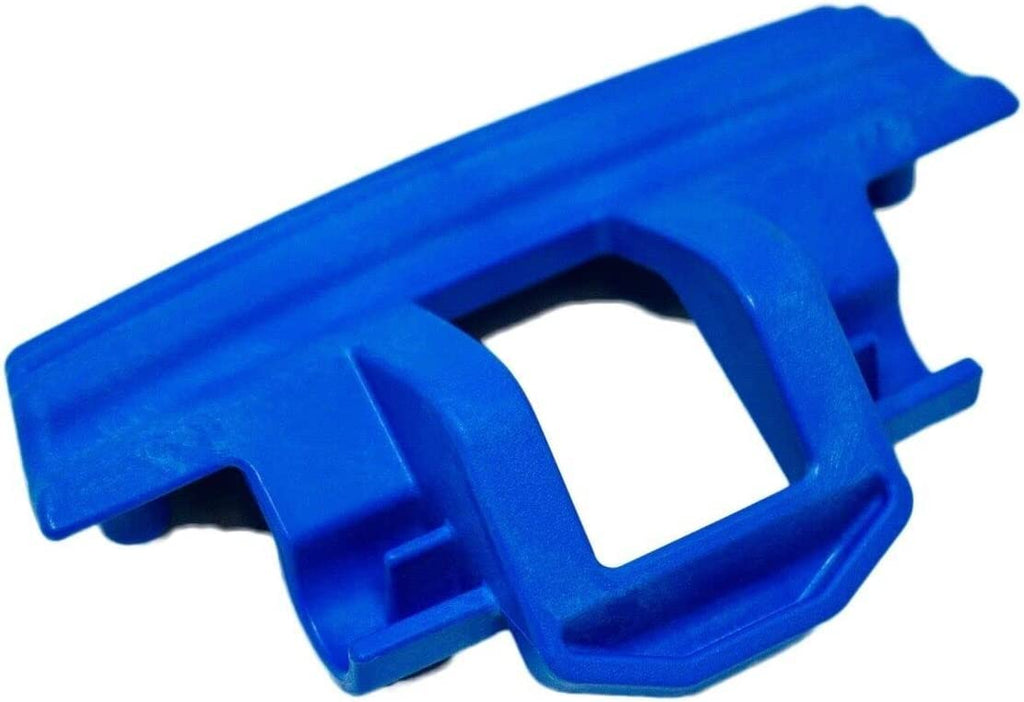

Toro OEM 108-4941 Deflector Trigger
Restore positive control of your snow stream height with the genuine Toro OEM 108-4941 Trigger-Deflector. This part is the hand-operated trigger that lets the operator release, adjust, and re-lock the chute deflector to fine-tune how high or low the snow throws. If your deflector won’t hold position, slips during use, or the trigger is cracked/missing, replacing it will helps bring back the firm “click-in” hold and smooth adjustment you been Missing.
- OEM Part Number: 108-4941, 108 4941, 1084941
- Part Name: Trigger-Deflector
- Function: Releases/Locks the Chute Deflector so you can change throw height on the fly
- Genuine Toro OEM: Correct fit and performance on Select Toro Quick Clear, Power Clear & E-Power Clear snow throwers
Fits These Toro Models (By Family)
Verify your model number (and serial range when applicable) from the machine tag before ordering.
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38567, 38568, 38569, 38571, 38575, 38576, 38577)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38453, 38454, 38458, 38459, 38474, 38475, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38588, 38589, 38743, 38744, 38752, 38753, 38754, 38755, 38756, 38757)
E-POWER MAX Series – Model Numbers – (* Model Numbers 39921, 39921T, 39922T)
Associated Parts (Common “Replace With” Items)

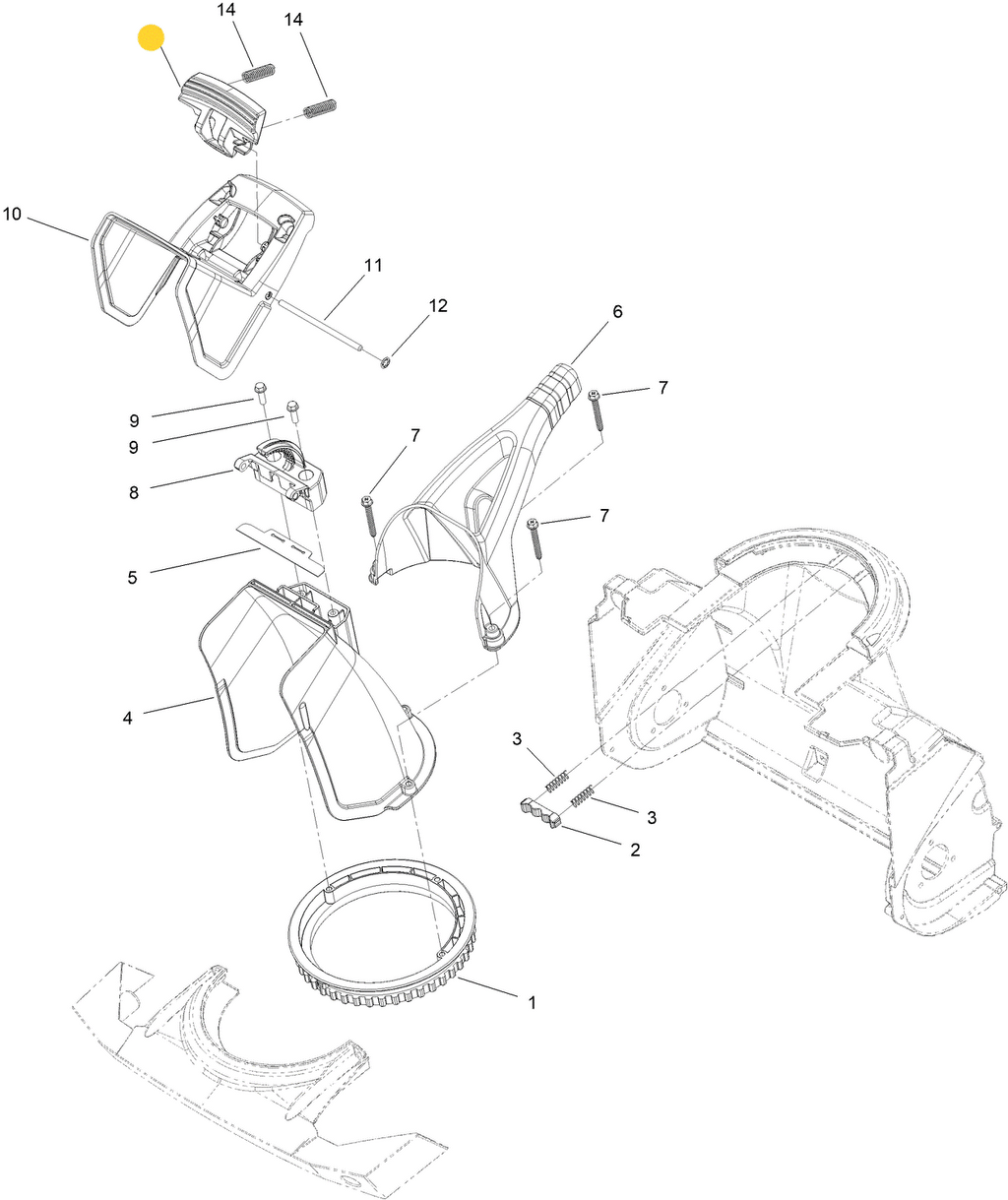

These parts live in the same chute/deflector assembly and are commonly serviced together:
- 136-7136 – Spring-Compression (deflector/trigger feel & return)
- 136-8672 – Hinge Pin-Deflector
- 104-8310 – Hinge Pin-Deflector Retaining Ring (Replace Every time Chute Deflector Hinge Pin is Removed)
- 108-4942 – Deflector Chute Hinge (Replace if Cracked or Broken)
- 114-3790 – Deflector Chute Seal
- 46-8091 – Deflector Chute Hinge and Seal Washer Head Screw
- 108-4939 – Discharge Chute (Replace if Screw Hole is Damaged or Chute is Crack or Broken)
- 117-9121 – Deflector-Chute (Select Models Only Review the Model Fit Chart under each Individual Part Numbers)
- 147-1796 – Deflector-Chute (Select Models Only Review the Model Fit Chart under each Individual Part Numbers - Battery Power Clear Models Only)
Installation
- Safety first: Engine OFF, key removed and disconnect the spark plug wire before working near the chute/impeller area.
- Visual Documentation: Raise the deflector and note the spring orientation before disassembly (a quick phone photo helps).
- Remove: The pin/springs/trigger parts as needed - All Components are Clip Together or Inter Fit to Retain Each Other - Hinge Chute Deflector Pin's Retaining Ring 104-8310 Pushes on and is Retained with Little Metal Reversed Locking Tabs that may Require it to be Bent out of Shape or Cut when Removing it off the Chute Deflector Pin so it is always Recommended Replacing it when Removing the Chute Deflector Pin (common: 136-8672 Hinge Pin, 104-8310 Chute Deflector Pin's Retaining Ring, 136-7136 Compression Spring, 108-4941 Trigger, 117-9121 or 147-1796 Chute Deflector). * Chute Deflector can also be Un-Bolted from the Main Discharge Chute, Chute Deflector, Seal Erea and Independently Disassembled and Re-Assembled for Convenience.
- Re-assemble: The pin/springs/trigger parts as needed - All Components are Clip Together or Inter Fit to Retain Each Other - Hinge Chute Deflector Pin's Retaining Ring 104-8310 Pushes on and is Retained with Little Metal Reversed Locking Tabs that may Require it to be Bent out of Shape or Cut when Removing it off the Chute Deflector Pin so it is always Recommended Replacing it when Removing the Chute Deflector Pin (common: 136-8672 hinge pin, 104-8310 chute deflector pin's retaining ring, 136-7136 compression spring, 108-4941 trigger, 117-9121 or 147-1796 Chute Deflector). * Chute Deflector can also be Un-Bolted from the Main Discharge Chute, Chute Deflector, Seal Erea and Independently Disassembled and Re-Assembled for Convenience.
-
Test Cycle the Deflector Chute full up/down: Operate the Deflector Chute Trigger and Rotate Deflector Chute Up and Down confirming it holds position and does not bind.
