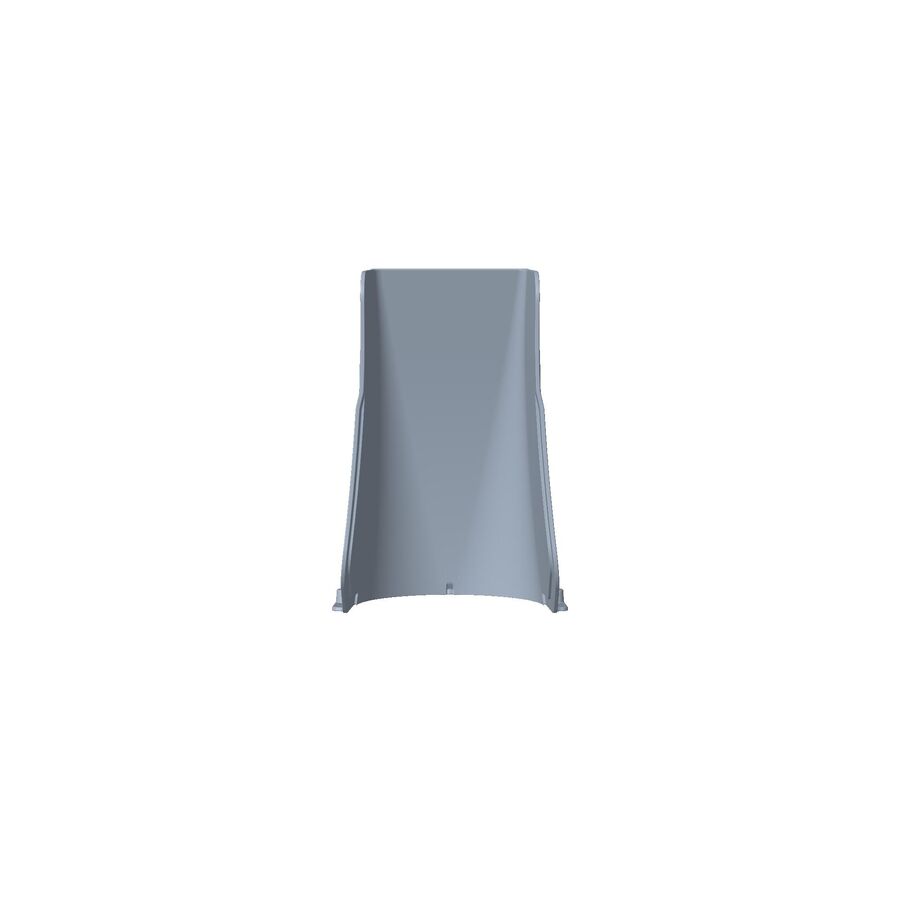

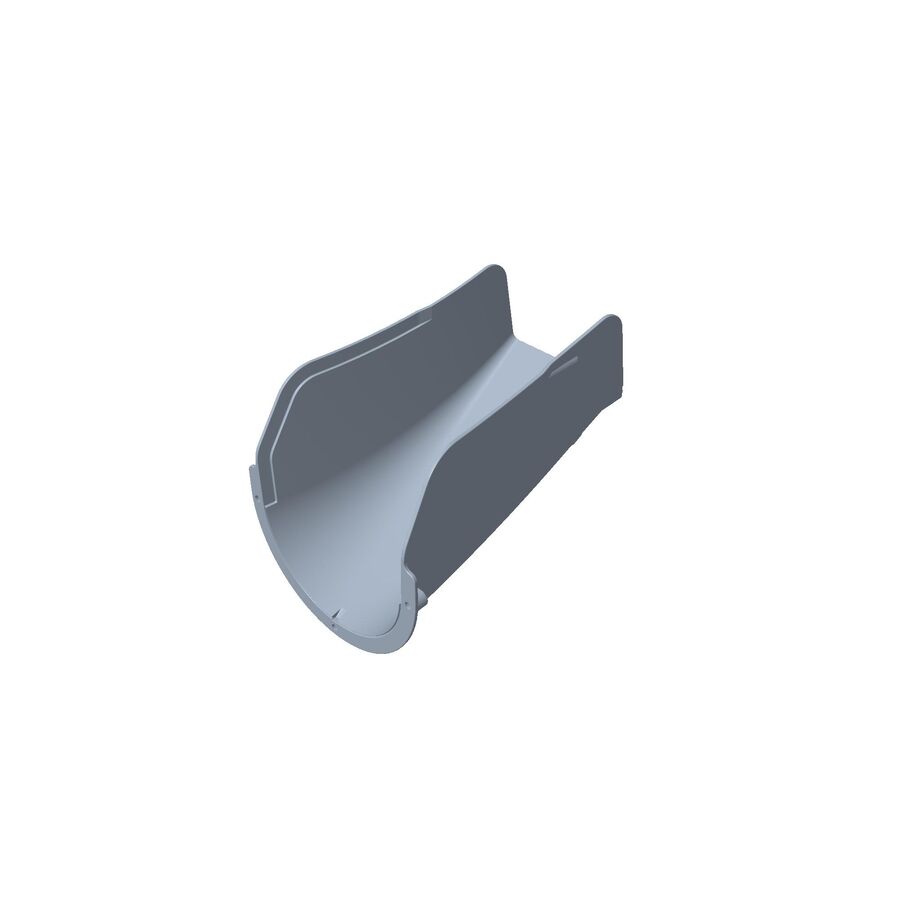

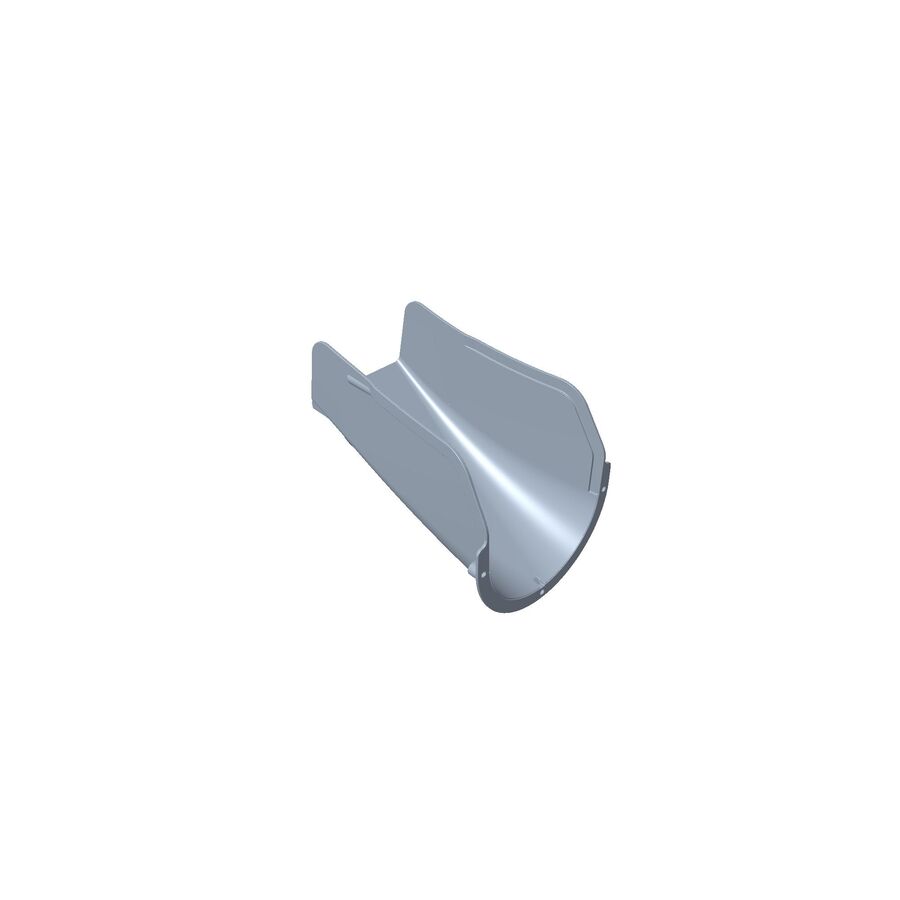

Toro OEM 108-4939 Discharge Chute



This genuine Toro OEM 108-4939 Discharge Chute restores optimal snow throwing performance when your original chute shows signs of damage, deterioration, or snow leakage. As the primary conduit for directing snow discharge, this replacement component works in concert with the rotation mechanism and deflector to ensure precise snow placement. A compromised chute compromises your machine's efficiency, making this direct OEM replacement essential for maintaining peak operational capability.



• OEM Part Number: 108-4939, 108 4939, 1084939
• Part Name: Chute-Discharge
• Function: Directs the Snow Stream as well as control Left-Right Rotation
• Genuine Toro OEM: Correct fit and performance on Select Toro Quick Clear & Power Clear single-stage snow throwers.





Fits These Toro Models (By Family)

Verify your model number (and serial range when applicable) from the machine tag before ordering.



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38567, 38568, 38569, 38571, 38575, 38576, 38577)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38453, 38454, 38458, 38459, 38474, 38475, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38588, 38589, 38743, 38744, 38752, 38753, 38754, 38755, 38756, 38757)



E POWER CLEAR Series – Model Numbers – (* Model Numbers 39921, 39921T, 39922T)





Associated Parts & Hardware (Grouped by Sub-Assembly)



1) Discharge Chute Deflector (Upper Deflector Components)

These parts are specific to the deflector (the top flap that changes throw distance/trajectory) and its linkage on the chute.

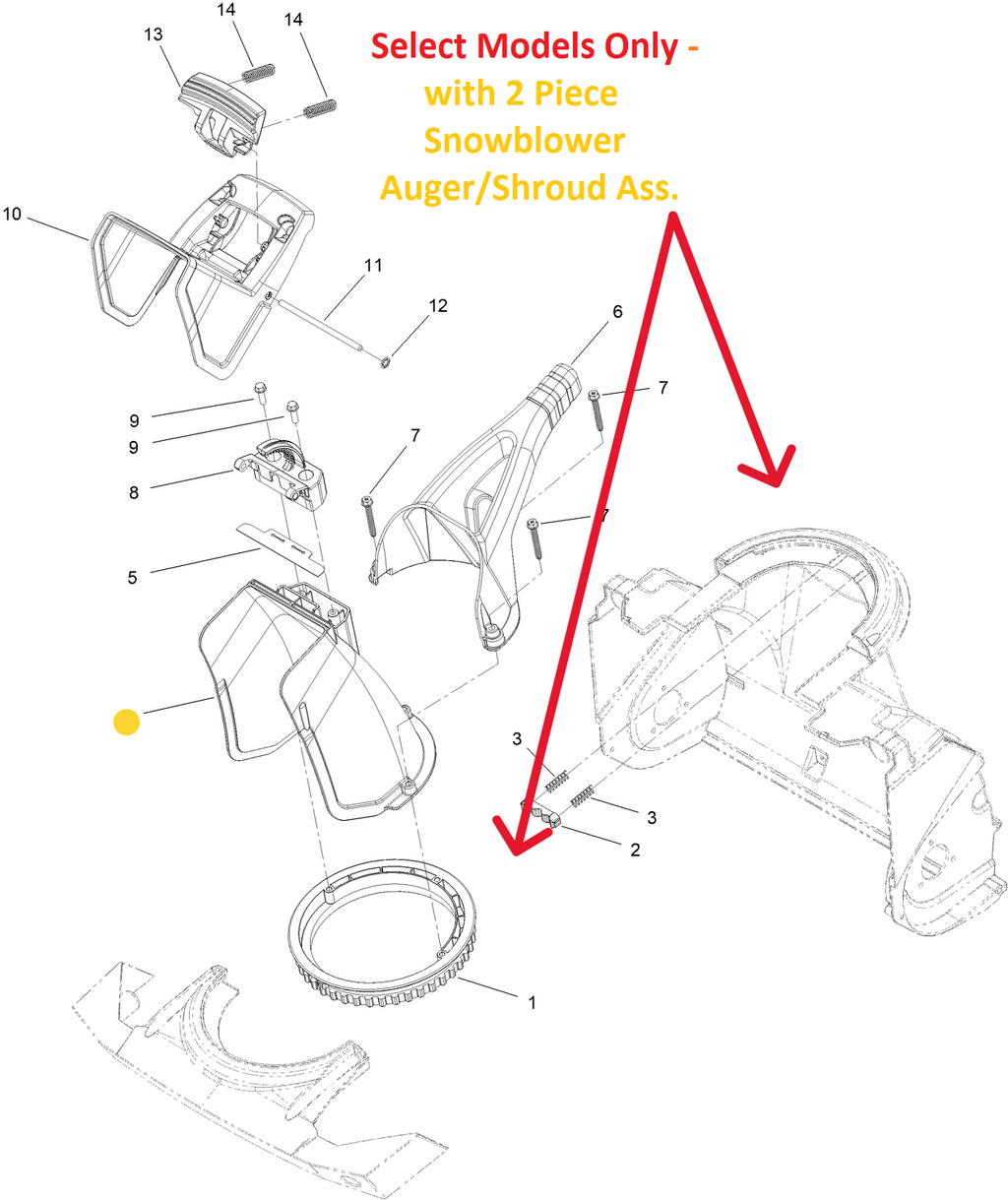

• 117-9121 – Deflector-Chute (Upper deflector- controls the up & down trajectory) * Select Models Only Review the Model Fit Chart under each Individual Part Numbers
• 147-1796 – Deflector-Chute (Upper deflector- controls the up & down trajectory) * Select Models Only Review the Model Fit Chart under each Individual Part Numbers - Battery Power Clear Models Only
• 136-8672 – Pivot Rod-Deflector (linkage rod - Retains the Discharge Chute Deflector to the Discharge Chute - Clip-In or Non-Bolt able) * Select Models Require a Retaining Ring 104-8310 to Retain the Rod Pivot.
• 104-8310 – Hinge Pin-Deflector Retaining Ring (Retains the Pivot Rod to the Discharge Chute/Deflector Ratchet Hinge) * Replace Every time Chute Deflector Hinge Pin is Removed - May Only be Required on Select Models
• 108-4942 – Hinge-Ratchet, Deflector (Bolts to the Discharge Chute Hinge and Enable the Pivot Rod to Insert into it and Be Retained to the Discharge Chute).
• 114-3790 – Seal-Deflector (Assembled Between the Deflector Ratchet Hinge and the Discharge Chute and Eliminates Snow Blow Back)
• 46-8091 or 137-3099 – Screw-HWH (thread-forming - Retains the Deflector Ratchet Hinge and Seal to the Discharge Chute)
• 108-4941 – Trigger-Deflector (Clips into the Discharge Chute Deflector and Enables Selection of Various Angels)
• 136-7136 – Spring-Compression (Deflector/Trigger Feel & Return - Inserted Between the Discharge Chute Deflector and the Deflector Trigger)



2-A) Main Discharge Chute Lower Mounting & Rotation -

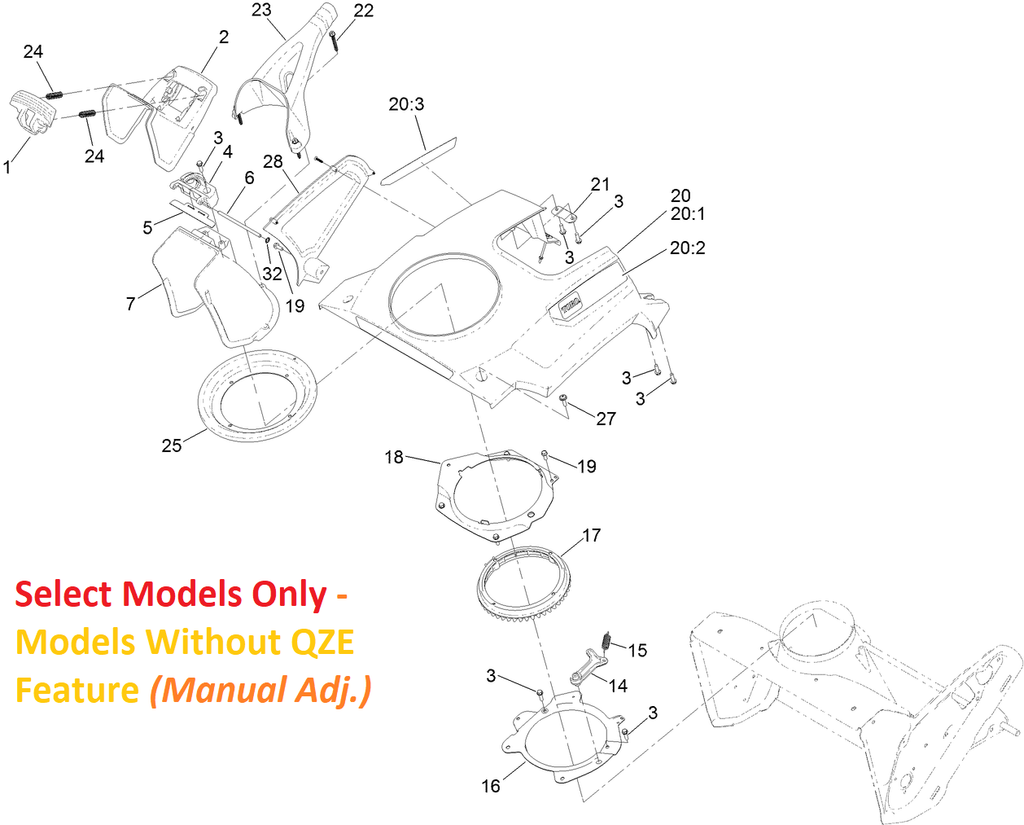

NON-CABLE MODELS ONLY

These parts support the chute at the base and provide detent/positioning action. Parts can vary by model/serial.



• 108-4922 – Chute Handle (Fastens to the Discharge Chute and Detent Chute Ring and Enable the Operator to Manually Adjust the Discharge Chute from Left to Right)
• 114-3751 – Plastite Washer Head Screw (Retains the Chute Handle, Discharge Chute, Chute Ring Seal and the Detent Chute Ring to Each other)

• 114-3772 – Chute Ring Seal (Assembled Between the Detent Chute Ring and the Discharge Chute, Above the Upper Rin Retainer and Eliminates Snow Build Up in the Mechanical Components of the Discharge Chute) * Select Models Only - Review Model Fit Chart Associated to each Model Number
• 94-4496 – Phillip Pan Head Screw (Retains the Front Whole of the Discharge Chute Seale to the Chute Ring) * Select Models Only - Review Model Fit Chart Associated to each Model Number
• 108-4874-03 – Upper Ring Retainer (One of a Two Piece Chute Retainer Clamp is the Upper of the Two Pieces and Retains the Detent Ring Between the Upper and Lower Section)
• 32144-85 – Screw-HWH (Retains the Upper Ring Support/Retainer to the Lower Support/Retainer Clamping the Detent Chute Ring and Discharge Chute)
• 108-4922 – Detent Chute Ring (Assembled Between two Retaining Chute Retainers, Contains Gear for the QZE Features, Retain the Discharge Chute Via Appropriate Fasteners and is Able to Rotate)
• 108-4883-03 – Lower Ring Support/Retainer (One of a Two Piece Chute Retainer Clamp is the Lower of the Two Pieces and Retains the Chute Detent Ring Between the Upper and Lower Sections)
• 46-8091 – Screw-HWH (Retains the Lower Ring Support/Retainer using the Lower Fastner Holes to the Auger Housing)
• 108-4926 – Pawl-Detent (Assembled Between the two Retaining Chute Retainers and Retains Tension on the Detent Chute Ring via an Extension Spring to Keep it From Easily Rotating Left and Right by Itself)
• 80-4600 – Spring-Extension (Retains Tension between the Detent Pawl and the Detent Ring Chute



2-B) Main Discharge Chute Lower Mounting & Rotation -

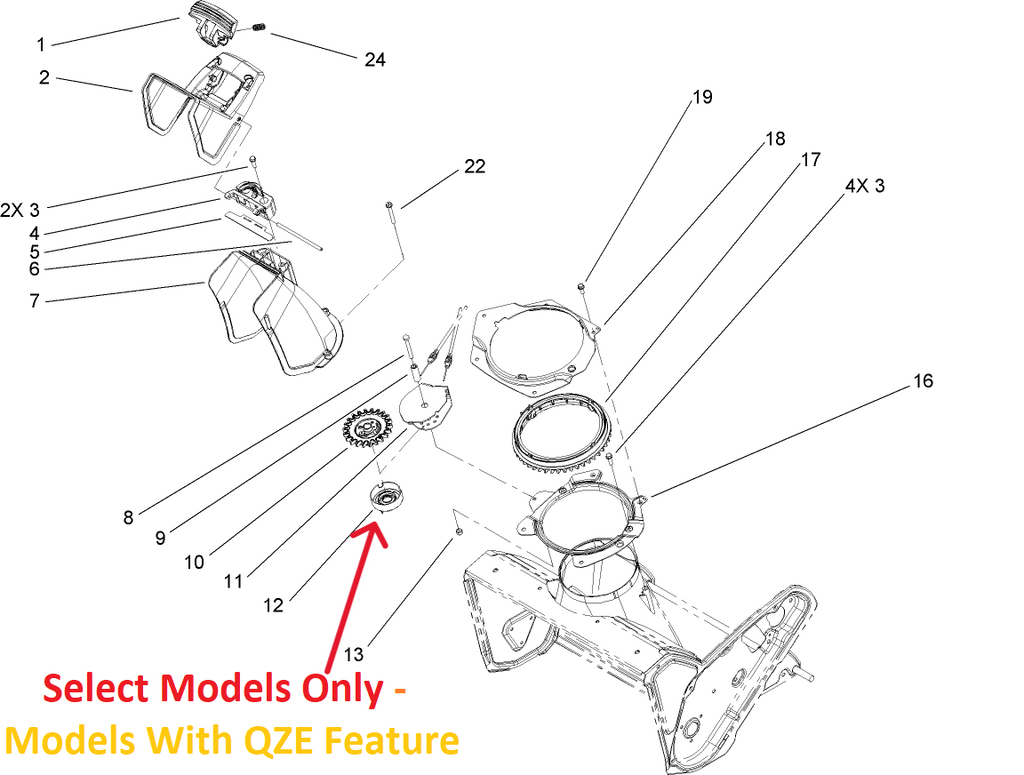

CABLE MODELS ONLY "QZE FEATURE"

These parts support the chute at the base and provide detent/positioning action. Parts can vary by model/serial.



• 137-3012 – Plastite Washer Head Screw (Retains the Discharge Chute Seal [Except the Front Bolt Whole Use Screw 94-4496] and the Chute Gear Ring to Each other)
• 114-3772 – Chute Ring Seal (Assembled Between the Chute Gear Ring and the Discharge Chute, Above the Upper Ring Retainer and Eliminates Snow Build Up in the Mechanical Components of the Discharge Chute)
• 94-4496 – Phillip Pan Head Screw (Retains the Front Whole of the Discharge Chute Seale to the Chute Ring)
• 108-4874-03 – Upper Ring Retainer (One of a Two Piece Chute Retainer Clamp is the Upper of the Two Pieces and Retains the Chute Ring Gear Between the Upper and Lower Section)
• 32144-85 – Screw-HWH (Retains the Upper Ring Support/Retainer to the Lower Support/Retainer Clamping the Detent Chute Ring and Discharge Chute)
• 108-4882 – Chute Ring Gear (Assembled Between two Retaining Chute Retainers, Contains Gear for the QZE Features, Retain the Discharge Chute Via Appropriate Fasteners and is Able to Rotate)
• 108-4883-03 – Lower Ring Support/Retainer (One of a Two Piece Chute Retainer Clamp is the Lower of the Two Pieces and Retains the Chute Ring Gear Between the Upper and Lower Sections)
• 46-8091 – Screw-HWH (Retains the Lower Ring Support/Retainer using the Lower Fastner Holes to the Auger Housing)
• 321-18 – Hex Head Bolt (Assembled on the Upper Side of the Upper Chute Retainer and through the QZE Pinion Gear Spacer and Lower Chute Retainer Retaining the Pinion Gear and Cable Retainer Between the Upper and Lower Chute Retainer)
• 108-4900-03 – Pinion Bracket (Retained Between the Upper and Lower Chute Retaining Brackets and Retains the Pinion Gear Spacer, Pinion Gear and Cable Retainer within it using Retaining Bolt 321-18)
• 108-4877 – Pinion Sleeve Spacer (Assembled Between the Upper and Lower Retaining Chute Retainers and Through the QZE Pinion Gear, Enabling the Bolt to Travel through and retain the QZE Gear Components as well as Enabling the Bolt to Be Properly Tightened without Drawing the Upper and Lower Chute Retainer Against the QZE Pinion Gear - allowing the Pinion Gear to Freely Rotate)
• 108-4875 – QZE Pinion Gear (Assembled Over the 108-4877 Pinion Gear Spacer Sleeve Between the Upper and Lower Chuter Retainers allowing the Gears to Mesh or Align with the Chute Ring Gear and Turn the Chute Gear as Directed by the Control Cable)

• 114-3792 – Cable Retainer (Assembled on the Bottom of the QZE Pinon Gear and Retains the Cable - Allowing the Cable to Control the Chute Gear)
• 3296-42 – Lock Nut (Assembled on the Lower Side of the Lower Chute Retainer and Retains Bolt --- the QZE Gear and Components)




2-C) Main Discharge Chute Lower Mounting & Rotation -

NON-CABLE MODELS ONLY & MOLDED RETAINING SHROUDS FOR RETAINING DETENT RING

These parts support the chute at the base and provide detent/positioning action. Parts can vary by model/serial.



• 110-9366 – Chute Handle (Fastens to the Discharge Chute and Detent Chute Ring and Enable the Operator to Manually Adjust the Discharge Chute from Left to Right)
• 114-3751 – Plastite Washer Head Screw (Retains the Chute Handle, Discharge Chute, Chute Ring Seal and the Detent Chute Ring to Each other)
• 145-1664 – Front Bumper (Molded with Auger Housing to retain the Detent Chute Ring and Fastened and Removed with to Remove the Chute Ring if Necessary with Two Different Screws 137-3101 - Plastite Washer Hex Head & 137-3013 - Phillip Pan Head)
• 137-3101 – Plastite Screw-HWH (Retains the Front Bumper to the Auger Housing Retaining the Chute Ring - Used in the Center Two Hole Closest to the Chute Ring)
• 137-3103 – Phillip Pan Head Screws (Retains the Front Bumper to the Auger Housing Retaining the Chute Ring - Used in the Outer Two Hole Furthest from the Chute Ring)
• 145-1666 – Chute Ring (Assembled Between tho Molded Auger Housing and Fron Bumper and Retains the Discharge Chute Via Appropriate Fasteners and is Able to Rotate as well)
• 75-9160 – Chute Detent (Assembled Between Chute Ring and the Compression Rings that Insert into the Molded Auger Housing and Enable Pressure to be Constantly Applied Keeping the Discharge Chute from Rotating on its own)
• 75-9170 – Compression Spring (Retained Between the Chute Detent and the Auger Housing by Inserting into the Molded Auger Housing - Retains Constants Pressure Between the Chute Detent and the Chute Ring



Installation Directions

(Main Discharge Chute 108-4939 + Upper Deflector Procedure Style)



Hilly Ridge Sales & Service tech tip: Take 2–3 quick photos of the discharge chute rotation gear & bracket components, latch components, deflector linkage & control cable routing before you take anything apart. It makes reassembly faster and prevents confusion.

Safety / Prep



• Park on a flat surface. Shut engine off, remove key, and disconnect the spark plug wire or Battery.
• Let all moving parts stop completely. Wear gloves—sharp edges and packed ice can cut.
• Clean packed snow/ice from the chute base, ring, and gear area before disassembly.
• Take a visual Documentation of Parts (a quick phone photo helps).



A) Remove the Existing Chute Assembly



• Remove the chute mounting fasteners evenly. If the chute is stuck to the base/ring from ice, gently wiggle it free—avoid prying hard on plastic.
• Inspect Chute Ring and other Lower Chute Components - In Most Cases if Further Diagnosis is Need you will or May need to Remove the Plastic Engine Shrouds or Bumpers as well as Chute Ring Retaining Components Depending on Design Type - Due to Variation Between Models if Further Diagnosis or Replacement of Lower Discharge Chute Components are Needed Refer to the Diagrams Above and the Lower Chute Associated Part Reference Above to Determine the Usage and Placements of Associated Parts for Each Design Type Listed.



B) Transfer / Install the Upper Discharge Chute Deflector

* If your deflector (upper flap) and linkage are being reused, transfer them to the new chute now. If you are replacing the deflector components, install them onto the new chute before mounting the chute to the unit.



• Remove: The pin/springs/trigger parts as needed - All Components are Clip Together or Inter Fit to Retain Each Other - Hinge Chute Deflector Pin's Retaining Ring 104-8310 Pushes on and is Retained with Little Metal Reversed Locking Tabs that may Require it to be Bent out of Shape or Cut when Removing it off the Chute Deflector Pin so it is always Recommended Replacing it when Removing the Chute Deflector Pin (common: 136-8672 hinge pin, 104-8310 chute deflector pin's retaining ring, 136-7136 compression spring, 108-4941 trigger). * Chute Deflector can also be Un-Bolted from the Main Discharge Chute, Chute Deflector, Seal Erea and Independently Disassembled and Re-Assembled for Convenience.
• Transfer or Assemble: The pin/springs/trigger parts as needed - All Components are Clip Together or Inter Fit to Retain Each Other - Hinge Chute Deflector Pin's Retaining Ring 104-8310 Pushes on and is Retained with Little Metal Reversed Locking Tabs that may Require it to be Bent out of Shape or Cut when Removing it off the Chute Deflector Pin so it is always Recommended Replacing it when Removing the Chute Deflector Pin (common: 136-8672 hinge pin, 104-8310 chute deflector pin's retaining ring, 136-7136 compression spring, 108-4941 trigger). * Chute Deflector can also be Un-Bolted from the Main Discharge Chute, Chute Deflector, Seal Erea and Independently Disassembled and Re-Assembled for Convenience.



C) Install the New Main Discharge Chute (108-4939) to the Lower Ring / Base



• Inspect the chute ring/base and clean debris from the mating surfaces.
• Set the new chute onto the ring/base, ensuring it seats fully and evenly all the way around.
• Install mounting fasteners finger-tight first, then snug them gradually in a crisscross pattern (even clamping helps prevent distortion and stiff rotation).
• Do not overtighten screws into plastic—snug is enough to prevent cracking and to keep chute rotation smooth.
• If Further Replacement of Lower Discharge Chute Components is Needed Need you will or May need to Remove the Plastic Engine Shrouds or Bumpers as well as Chute Ring Retaining Components Depending on Design Type - Due to Variation Between Models if Further Diagnosis or Replacement of Lower Discharge Chute Components are Needed Refer to the Diagrams Above and the Lower Chute Associated Part Reference Above to Determine the Usage and Placements of Associated Parts for Each Design Type Listed.



D) Final Checks & Adjustments



• Rotate the chute fully left and fully right. It should turn smoothly without binding.
• Rotate the deflector fully up and fully down. Confirm it does not bind and the deflector holds its position.

• Reconnect the spark plug wire or Battery and do a quick functional test at idle speed only.



Not sure if this is the right part?
Send us your Toro model and serial number and we’ll help verify fitment before you order.
