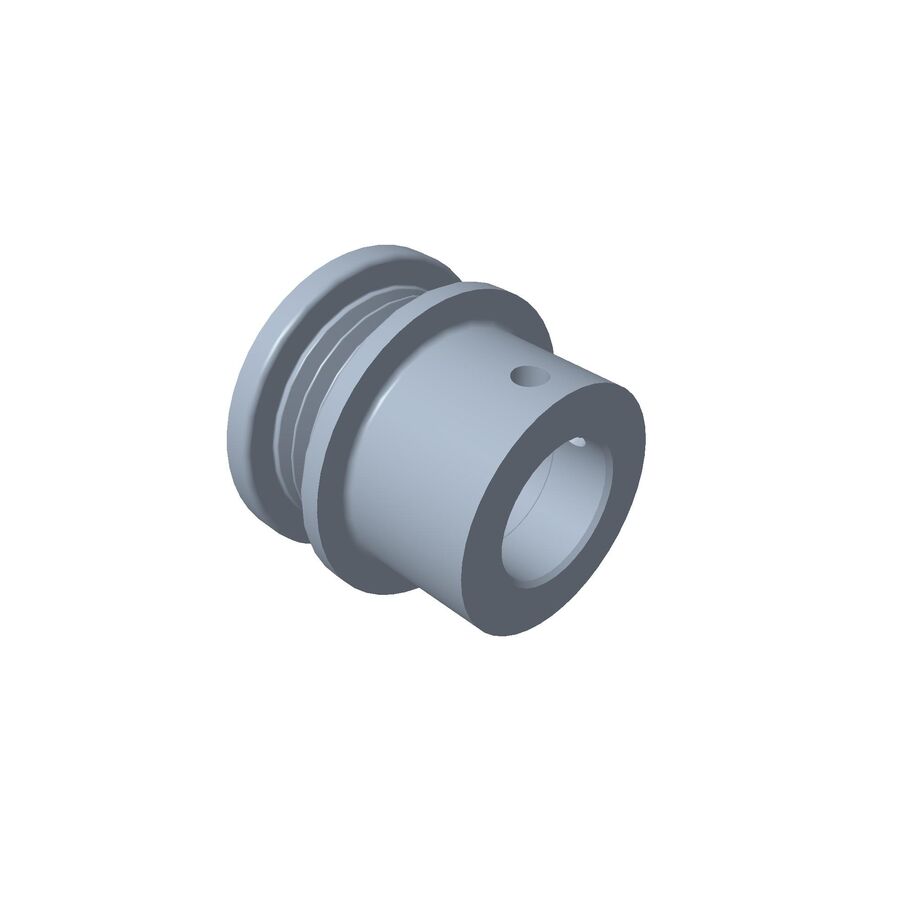

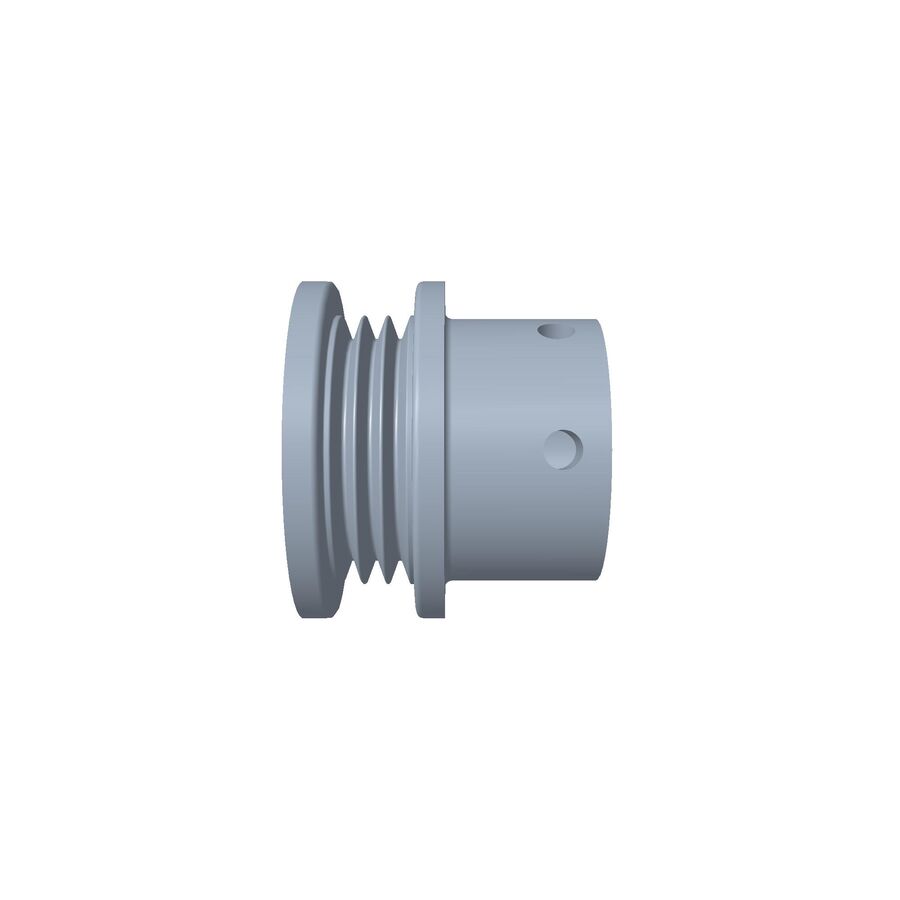

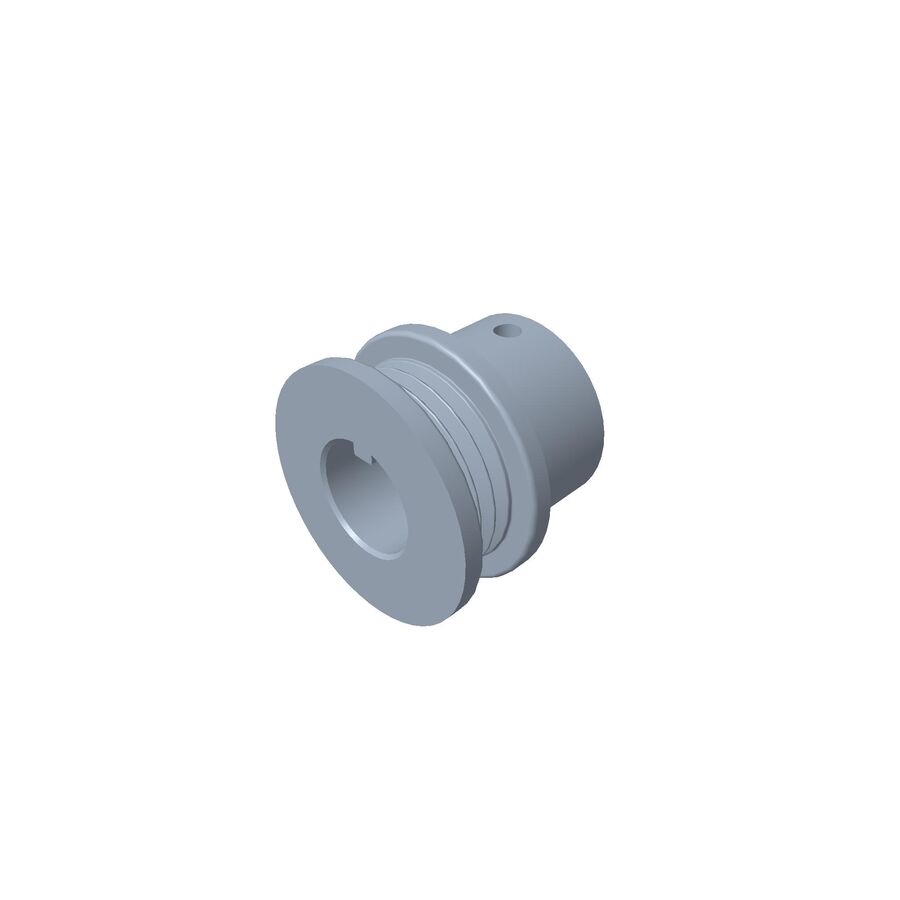

Toro OEM 108-4934 Engine Crankshaft Pulley Fits Select 21" Toro Single Stage Power Clear and Quick Clear Snowblower Models.

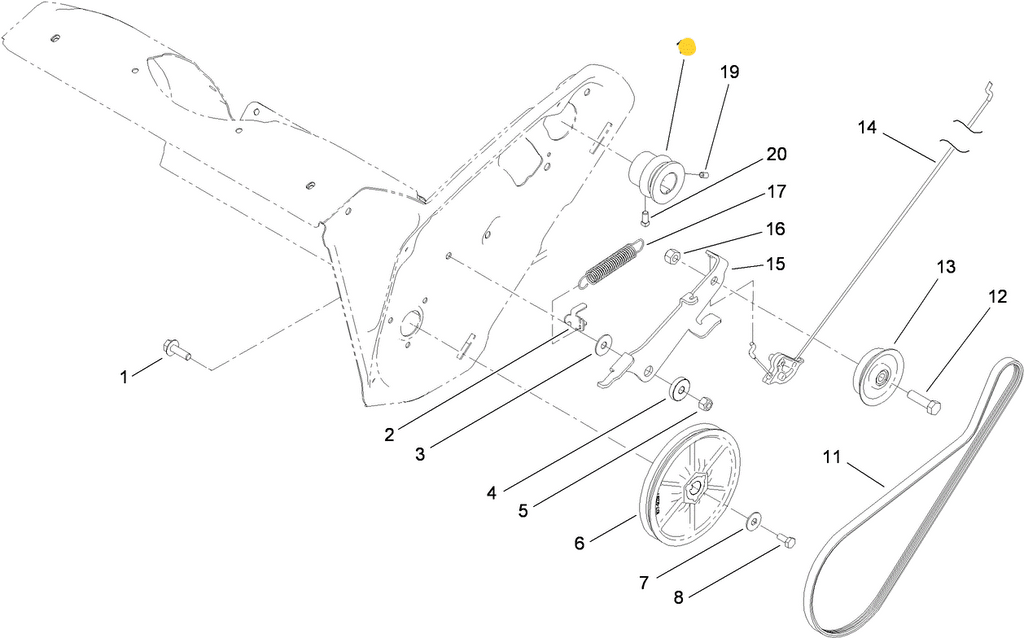

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



Select Model in The Model Fit Chart do have a Break in Usage with Select Serial Numbers. To Correctly Differentiate the Correct Part Number Required for your Model Number, Review the Serial Number Listed with the Model Number in the Model Fit Chart. Any Serial Numbers Higher than the Serial Numbers Listed Refer to Part Number 121-6605. Models with No Serial Numbers Listed with the Model Number Contain No Serial Number Breaks.





• PRODUCT NUMBER AND VARIATIONS: 108-4934, 108 4934, 1084934
• PRODUCT TYPE: Engine Crankshaft Pulley Assembly
• SIZE: Length 2.000 in. - Width 2.000 in. - Height 1.750 in. - Weight 0.700 lbs.
• NOTES & DETAILS: Toro OEM  108-4934 IS COMMINLY USED - 108-4934 Is Assembled Directly to the Engine Crankshaft and Enables the Engine to Rotate the Auger/Rotor when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle.
• COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models.





• MODEL FIT CHART:



SNOWBLOWER’S



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38567 Serial Number 313001999 and Lower, 38569 Serial Number 313001999 and Lower, 38571, 38575, 38576, 38577)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38451 Serial Number 313001999 and Lower, 38452 Serial Number 312999999 and Lower, 38453, 38454 Serial Number 313001999 and Lower, 38458 Serial Number 312999999 and Lower, 38459 Serial Number 312999999 and Lower, 38578, 38585, 38586, 38588, 38589)

Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 34001, 34002)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 108-4934 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



1. 3245-32 - ALLEN SOCKET SCREW (Retains 108-4934 Engine Crankshaft Pulley to the Engine Crankshaft) x1 Per Engine Pulley - *Screws Against the Crankshaft
2. 3241-7 - SQUARE HEAD SOCKET SCREW (Retains 108-4934 Engine Crankshaft Pulley to the Engine Crankshaft) x1 Per Engine Pulley - *Screws Against the Crankshaft Key
3. 108-4921 - AUGER/ROTOR DRIVE BELT (Travels from the Engine Pulley to the Auger/Rotor Pulley - Rotates the Auger When Pressure is Applied by the Tensioner Idler Pulley) x1 Per Snowblower Unit
