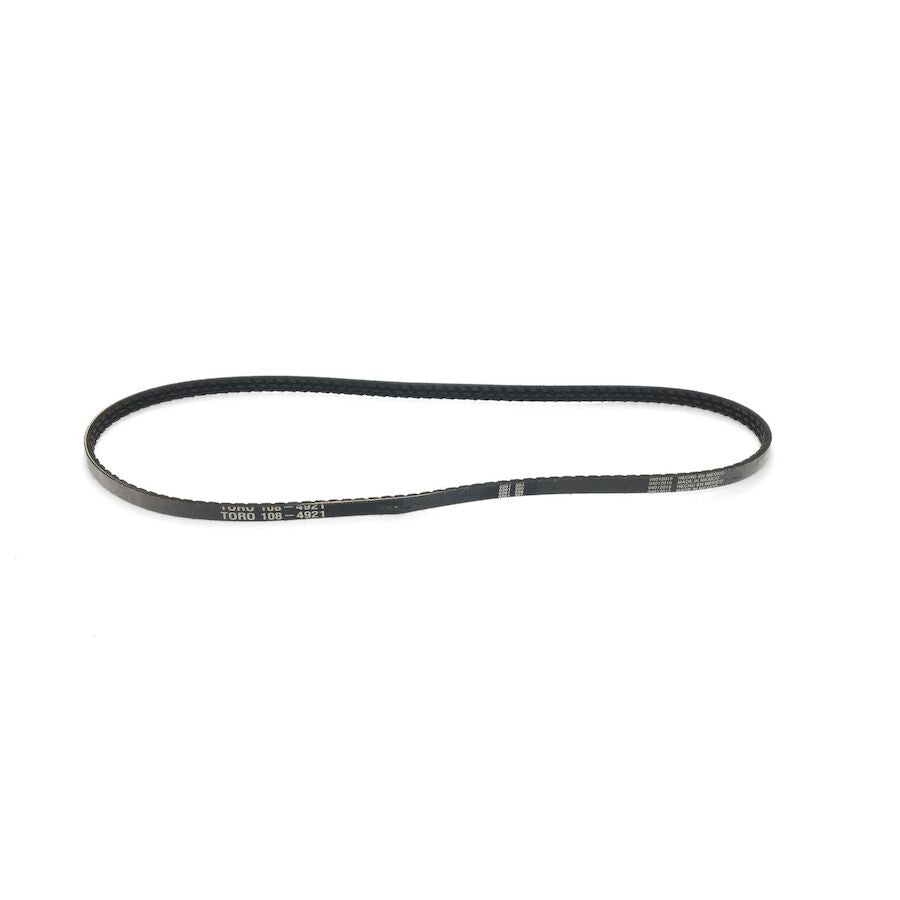

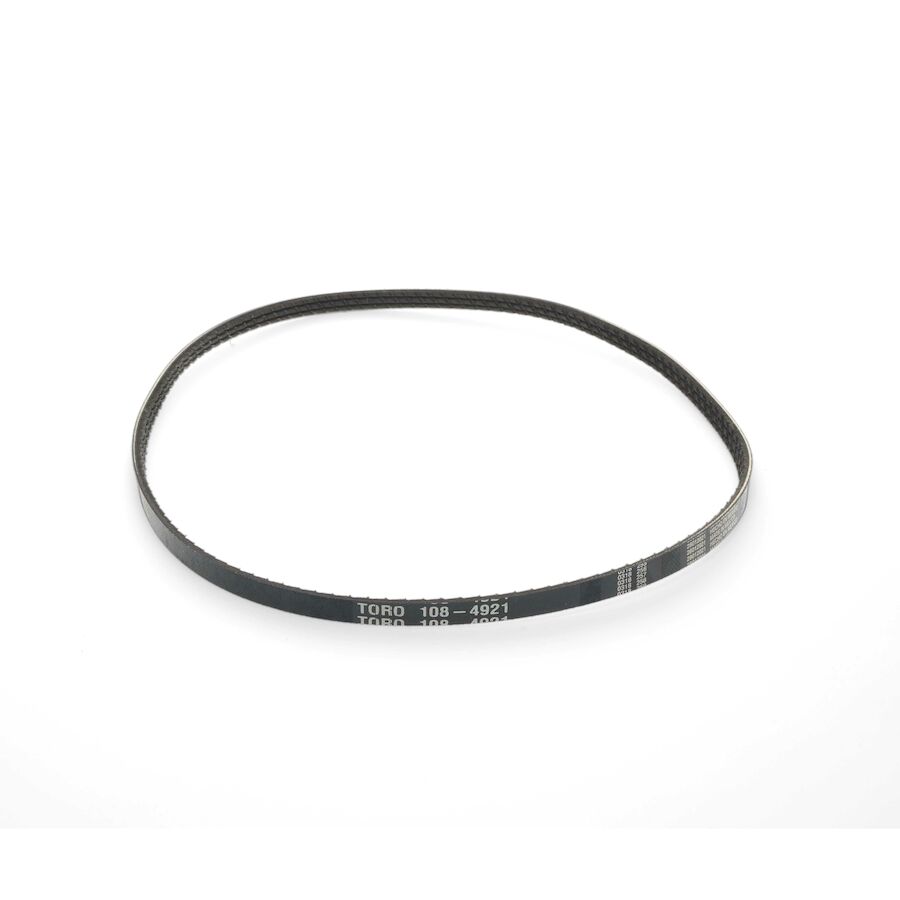

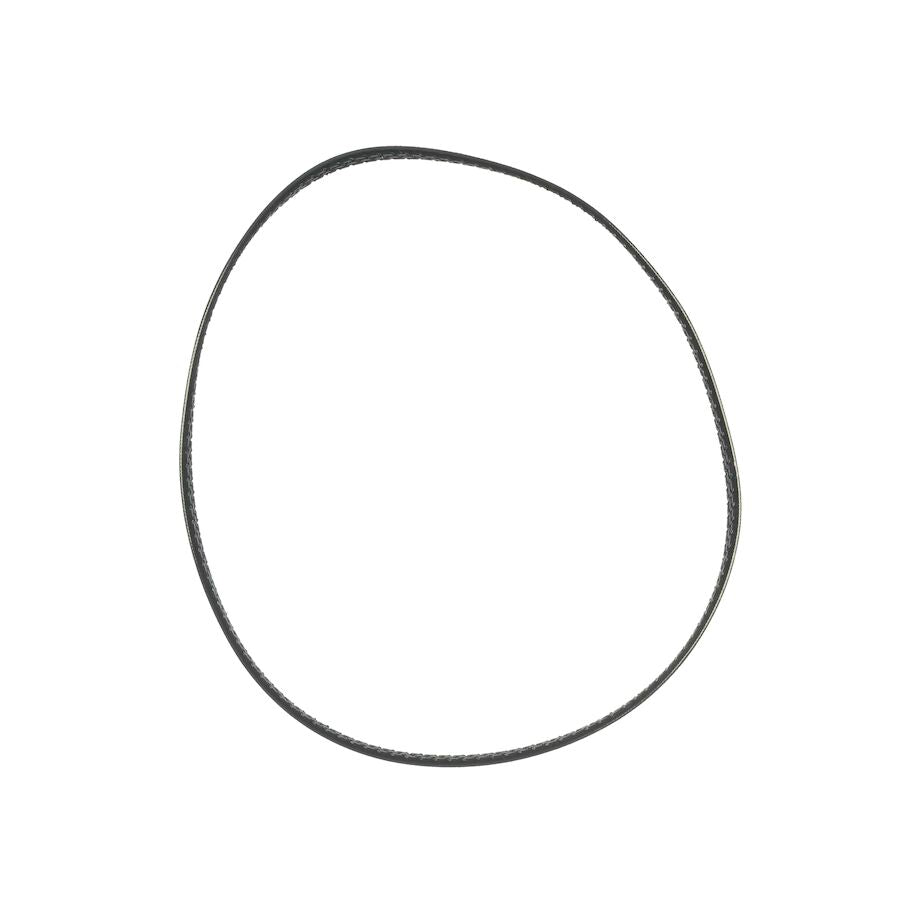

Toro 108-4921 Ribbed Auger/Rotor Drive Belt Fits Select 21" Toro Single Stage Power Clear and Quick Clear Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



• PRODUCT NUMBER AND VARIATIONS: 108-4921, 108 4921, 1084921
• PRODUCT TYPE: Ribbed Auger/Rotor Drive Belt
• SIZE: Length N/A in. - Width N/A in. - Height N/A in. - Weight 0.121 lbs.
• NOTES & DETAILS: Toro OEM  108-4921 IS COMMINLY USED - 108-4921 Travels from the Engine Pulley to the Auger/Rotor Pulley - Rotates the Auger When Pressure is Applied by the Tensioner Idler Pulley.
• COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models.





• MODEL FIT CHART:



SNOWBLOWER’S



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38564, 38567, 38569, 38571, 38575, 38576, 38577)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38451,38452, 38453, 38454, 38458, 38459, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593)

Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 34001, 34002)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 108-4921 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



1. 108-4934 - ENGINE PULLEY (Is Assembled Directly to the Engine Crankshaft and Enables the Engine to Rotate the Auger/Rotor when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle) x1 Per Snowblower Unit *Select Models and Serial Numbers Only - Review Model and Serial Numbers Listed Under the Model Fit Chart for a Correct Fit
2. 121-6605 - ENGINE PULLEY (Is Assembled Directly to the Engine Crankshaft and Enables the Engine to Rotate the Auger/Rotor when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle) x1 Per Snowblower Unit *Select Models and Serial Numbers Only - Review Model and Serial Numbers Listed Under the Model Fit Chart for a Correct Fit
3. 117-7732 - AUGER/ROTOR PULLEY (Is Assembled Directly to the Auger/Rotor Assembly Shaft and Enables the Auger/Rotor to Rotate when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle) x1 Per Snowblower Unit *Select Models Numbers Only - Review Model Numbers Listed Under the Model Fit Chart for a Correct Fit
4. 107-9287 - AUGER/ROTOR PULLEY (Is Assembled Directly to the Auger/Rotor Assembly Shaft and Enables the Auger/Rotor to Rotate when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle) x1 Per Snowblower Unit *Select Models Numbers Only - Review Model Numbers Listed Under the Model Fit Chart for a Correct Fit
5. 114-3785 - IDLER PULLEY (Maintains Roller Bearing that Allow the Pulley to Match the Speed of the Engine RPM's as the Operator Applies Direct Tension Between the Belt and Idler Pulley while Engaging the Auger or Rotor - Fastens Directly on the Outside side of the Idler Pulley Tensioner Arm) x1 Per Snowblower Unit
