Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 108-4920, 108 4920, 1084920

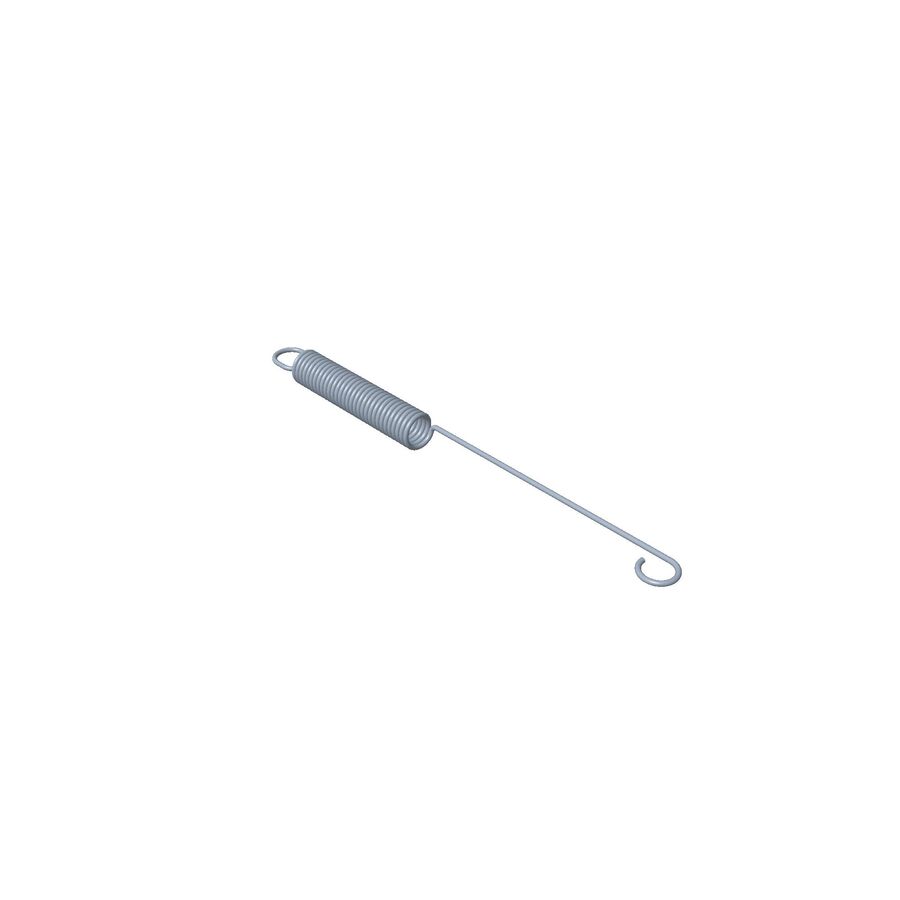

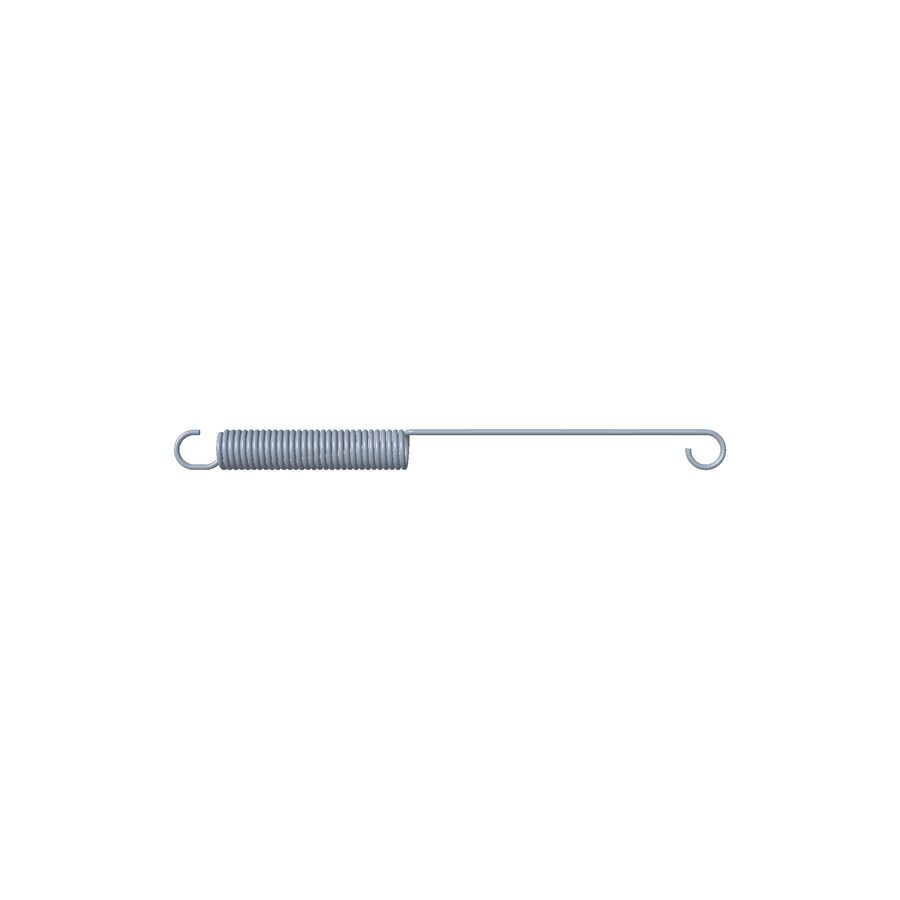

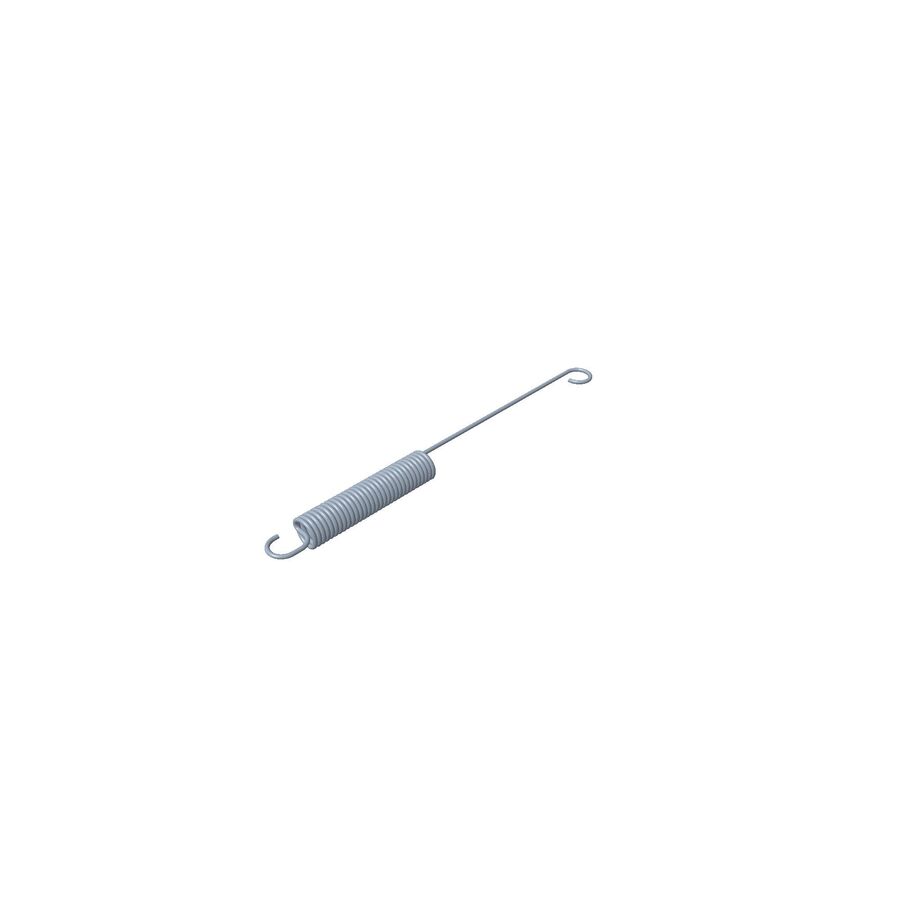

- PRODUCT TYPE: Auger/Rotor Clutch Cable Spring
- SIZE: Length 8.100 in. - Width 0.600 in. - Height 0.600 in. - Weight 0.090 lbs.

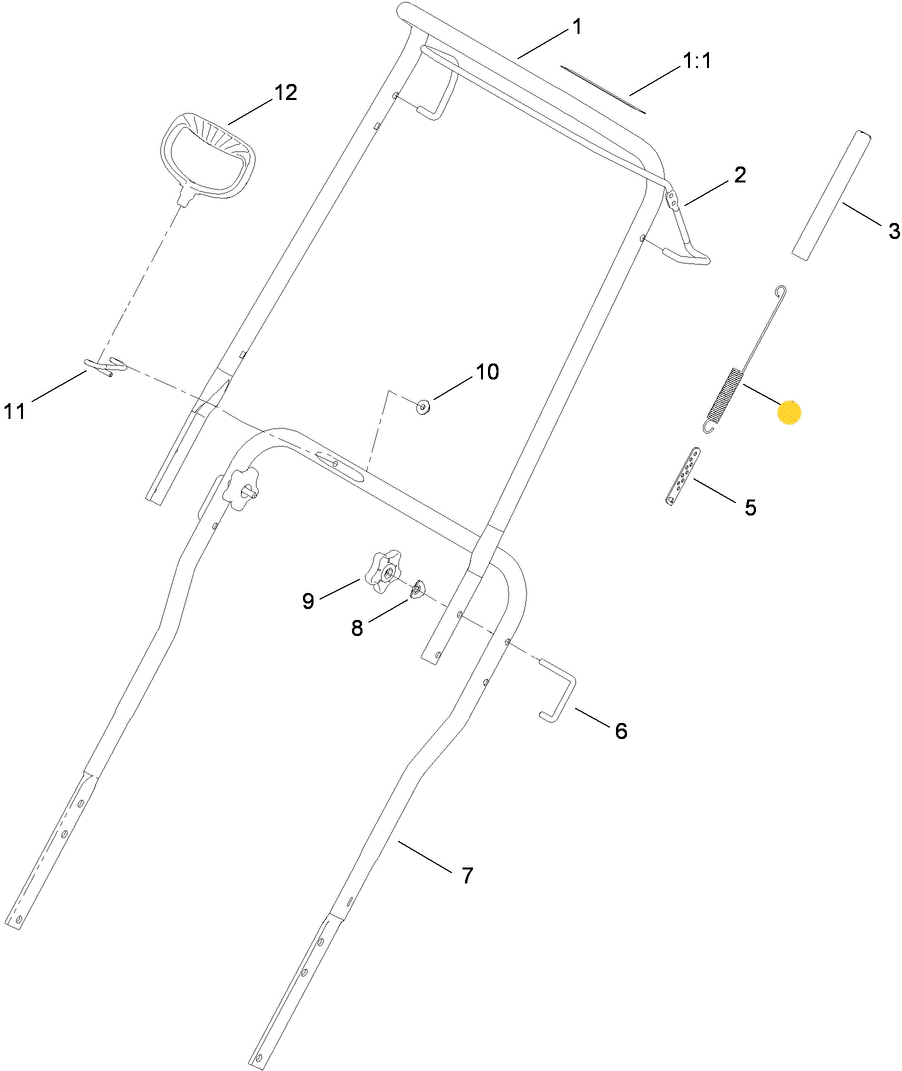

- NOTES & DETAILS: Toro OEM 108-4920 IS COMMINLY USED - In the Upper Handle Clutch Bail and Clutch Cable Adjustment Plate and Eliminates Broken Cables and Linkage Items in the Case of if those Items Where to Freeze or Bind from Less-than-Ideal Weather Elements and Circumstances. Toro 108 4920 Design also Enable the Operator to Easily Adjust Clutch Cable Tension/Responsiveness to Preferred Amount While on the Go.
- COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38567, 38569, 38571, 38575, 38576, 38577)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38453, 38454, 38458, 38459, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38588, 38589)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 108-4920 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 114-3780-03 - CLUTCH BAIL (Inserts into the Upper Whole's in the Upper Handle Section and Enables the Operator to Engage and Disengage the Rotors/Auger) x1 Per Handle Assembly
- 114-3796 - CLUTCH SPRING COVER (Installed Over the Spring to Protect the Spring of Outside Elements) x1 Auger/Rotor Clutch Spring
- 136-7126 - CLUTCH SPRING/CABLE ADJUSTMENT PLATE (Serves as the link between the Clutch Cable and the Clutch Cable Spring to which both would Hook Into - 136-7126 Contains Numerous Whole for Adjustment Purposes) x1 Per Clutch Cable and Spring
