Description

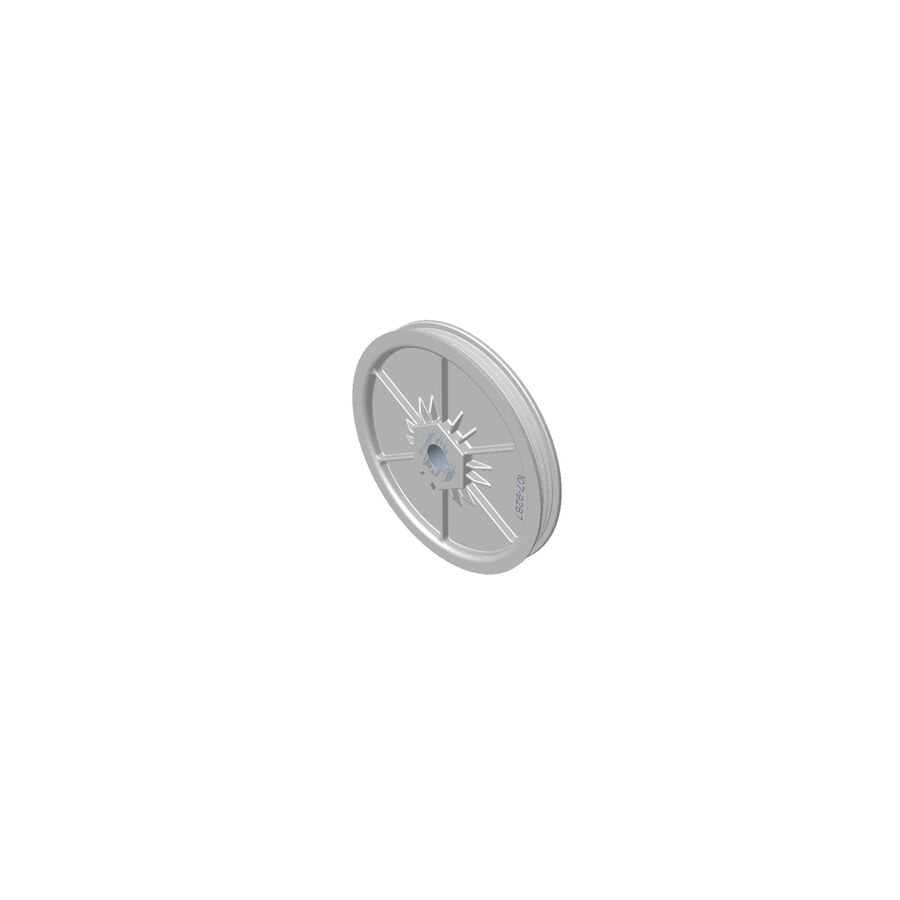

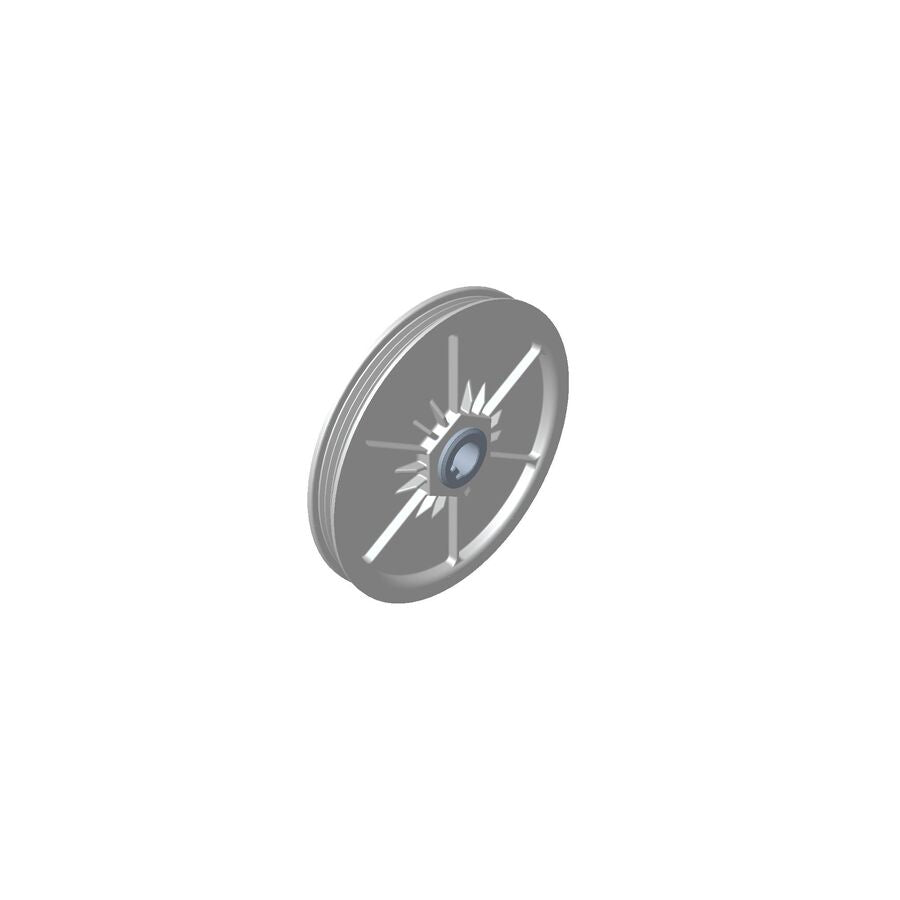

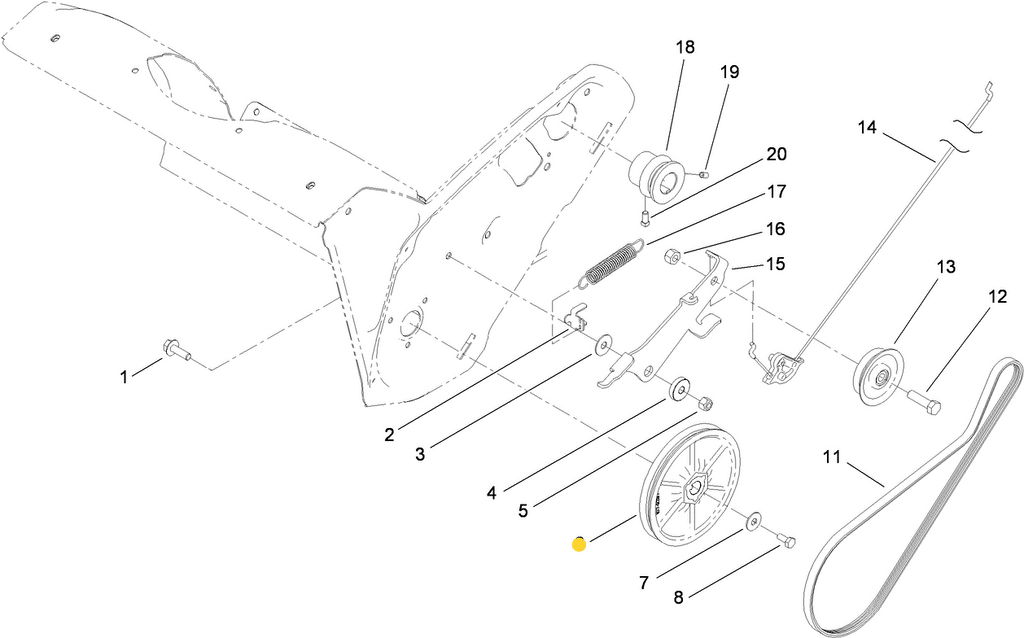

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 107-9287, 107 9287, 1079287
- PRODUCT TYPE: Auger/Rotor Pulley Assembly
- SIZE: Length 5.800 in. - Width 5.800 in. - Height 0.700 in. - Weight 0.410 lbs.
- NOTES & DETAILS: Toro OEM 107-9285 IS COMMINLY USED - 107-9285 Is Assembled Directly to the Auger/Rotor Assembly Shaft and Enables the Auger/Rotor to Rotate when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle.
- COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38564, 38567, 38569, 38571, 38575, 38576, 38577)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38451, 38452, 38453, 38454, 38458, 38459, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593)
Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 34001, 34002)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 107-9287 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 110-9381 or 137-3014 - HEX HEAD BOLT (Retains 107-9287 Auger/Rotor Pulley to the Auger/Rotor Assembly Shaft) x1 Per Auger/Rotor Pulley *Select Models Only - Same Bolt Size for Both Bolt Part Numbers (1/4 x 5/8 - 20)
- 3290-456 - BELLEVILLE WASHER (Used Between 107-9287 Auger/Rotor Pulley and 137-3014 Hex Head Bolt - When Tightened or Compressed it Applies Pressure on the Bolt Head and Pulley Not Allowing the Bolt to Rotate as Easy if the Augers where to come in Contact with anything and Forcibly Stopped causing Reversal Rotational Torque that Could Loosen the Pulley) x1 Per Auger/Rotor Pulley
- 108-4921 - AUGER/ROTOR DRIVE BELT (Travels from the Engine Pulley to the Auger/Rotor Pulley - Rotates the Auger When Pressure is Applied by the Tensioner Idler Pulley) x1 Per Snowblower Unit
