Description

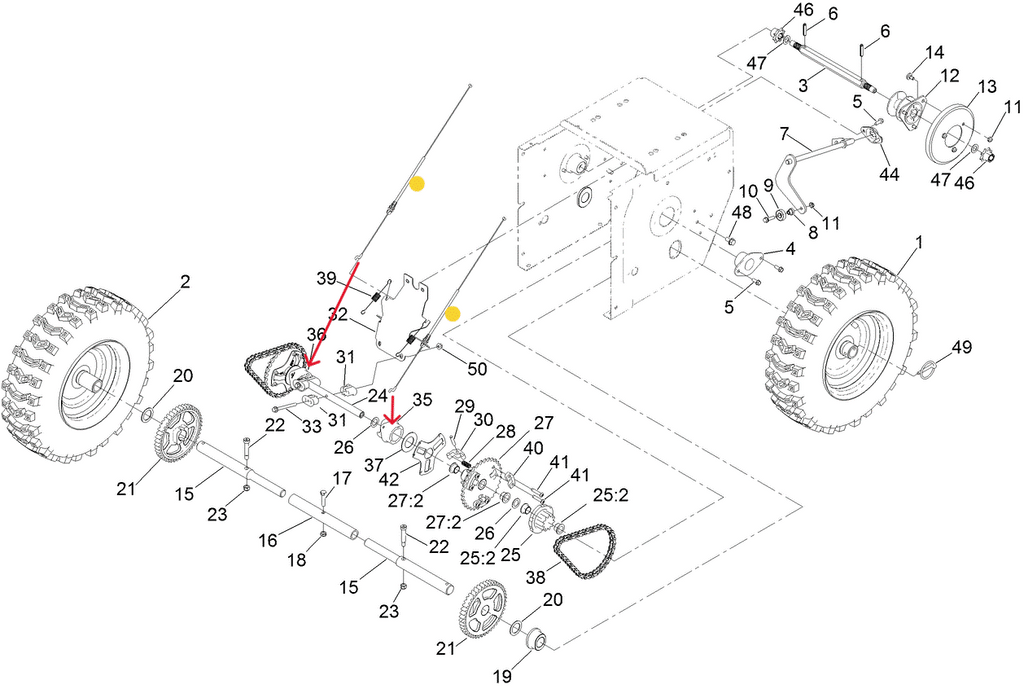

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 107-8898, 107 8898, 1078898

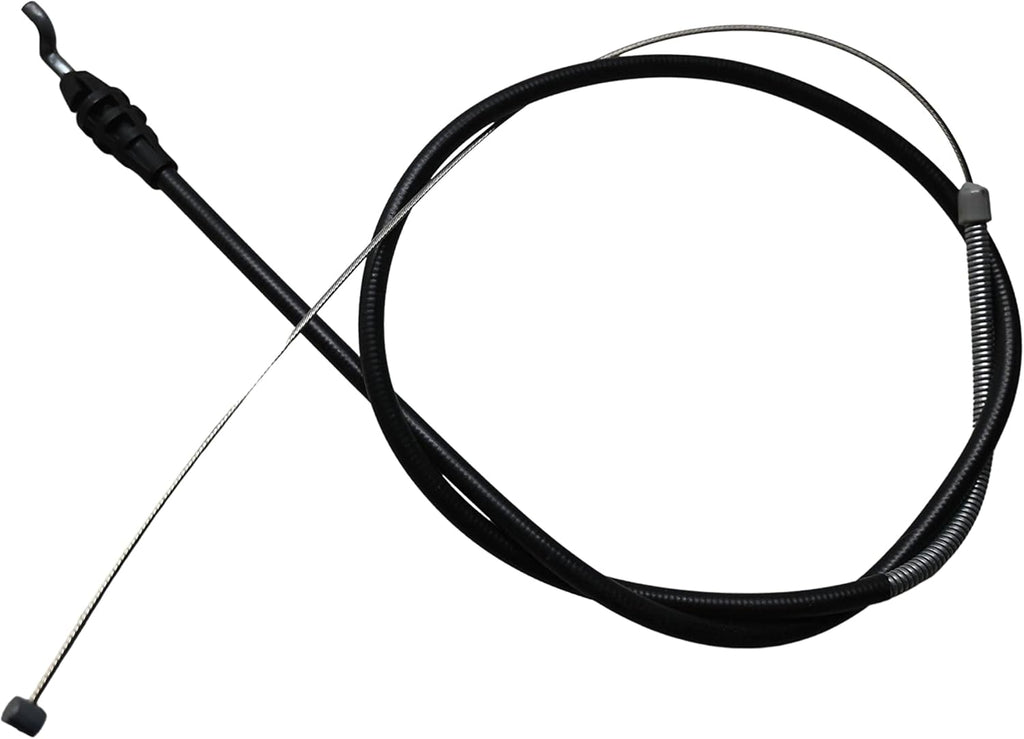

- PRODUCT TYPE: Power Steering Clutch Cable
- SIZE: Length N/A - Width N/A - Height N/A in. - Weight 0.180 lbs.
- NOTES & DETAILS: Toro OEM 107-8898 IS COMMINLY USED - 107-8898 Cable End Inserts into the Operator's Steering Clutch Levers on Each Handle Assembly - 107-8898 Cable's Hook End Equipped with Plastic Retaining Clips that Pushes into and Retains the Cable in the Shift Collar Bracket that Mounts to the Intermediate Shaft with the Shift Collor Guides, While the Hook or Shoe of the Cable End Hooks into the Shift Collar and Enable the Shift Collar to Rotate Away From the Shift Collar Guide when the Operator Engages the Steering Clutch Levers. This Enables the Wheel or Unit Side that is Engaged to Free Wheel Disengaging the Drive Capabilities to that Side, while Pressure to the Steering/ Traction Clutch Lever is Applied - Giving the Snowblower Steering Capabilities. Snow Blower's with the Power Steering Feature Will Require Two Power Steering Cables - One for Each Side.
- COMMON SERIES APPLICATIONS: Toro Select Power MAX & Power Max HD Snow Blower Models - Power Broom Models.
- MODEL FIT CHART:
SNOWBLOWER’S & POWER BROOMS
POWER MAX Series – Model Numbers – (* Model Numbers 38630, 38631, 38633, 38634, 38637, 38640, 38641, 38644, 38650, 38651, 38654, 38661, 38662, 38663, 38664, 38674, 38680, 38800, 38801, 38802, 38803, 38805, 38806, 38820, 38822, 38823, 38824, 38826, 38828, 38833, 38834, 38836)
Power Broom Series – Model Numbers – (* Model Numbers 23740, 23741, 38700, 38701)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 107-8896 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 106-4505 - Power Steering Clutch Lever x2
- 107-8892-03 - Shift Collar Bracket/Brace x1
- 107-8888 - Right Hand Shift Collar x1
- 107-8887 - Left Hand Shift Collar x1
