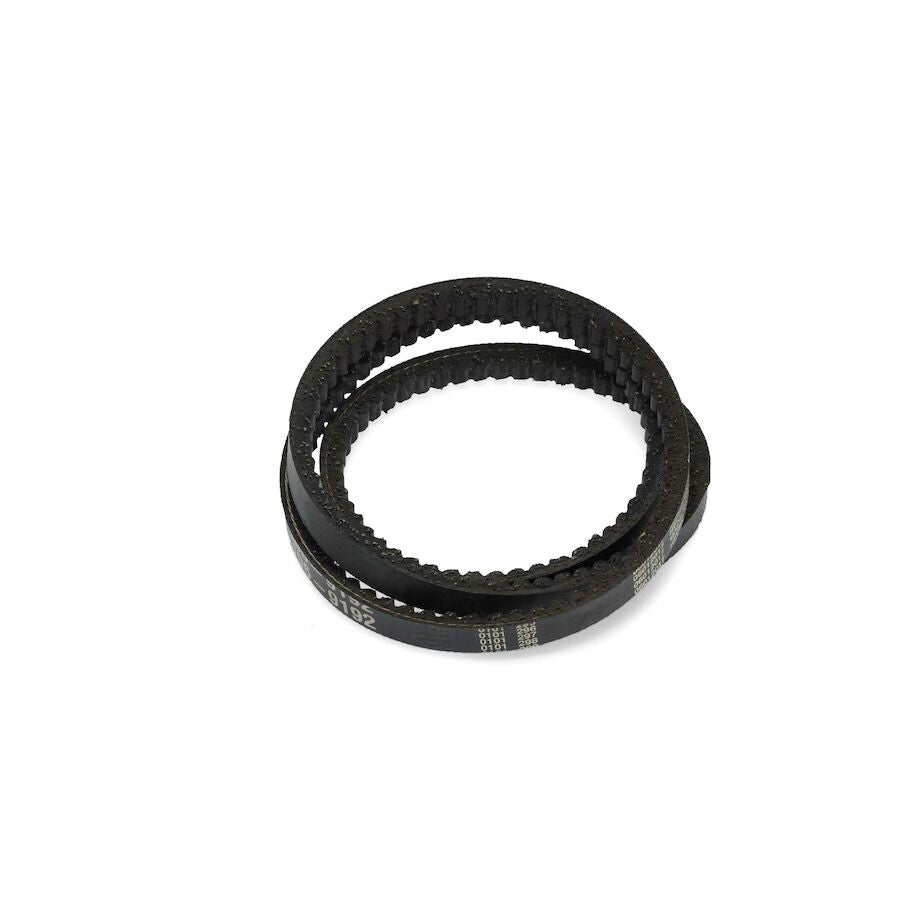

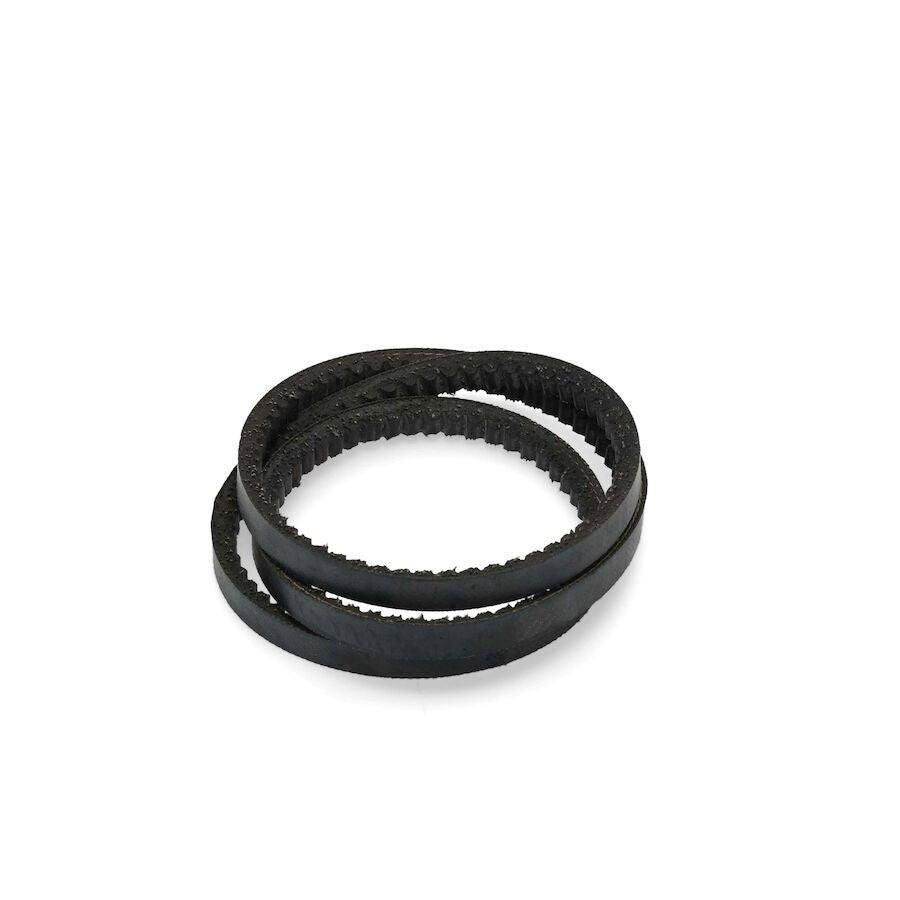

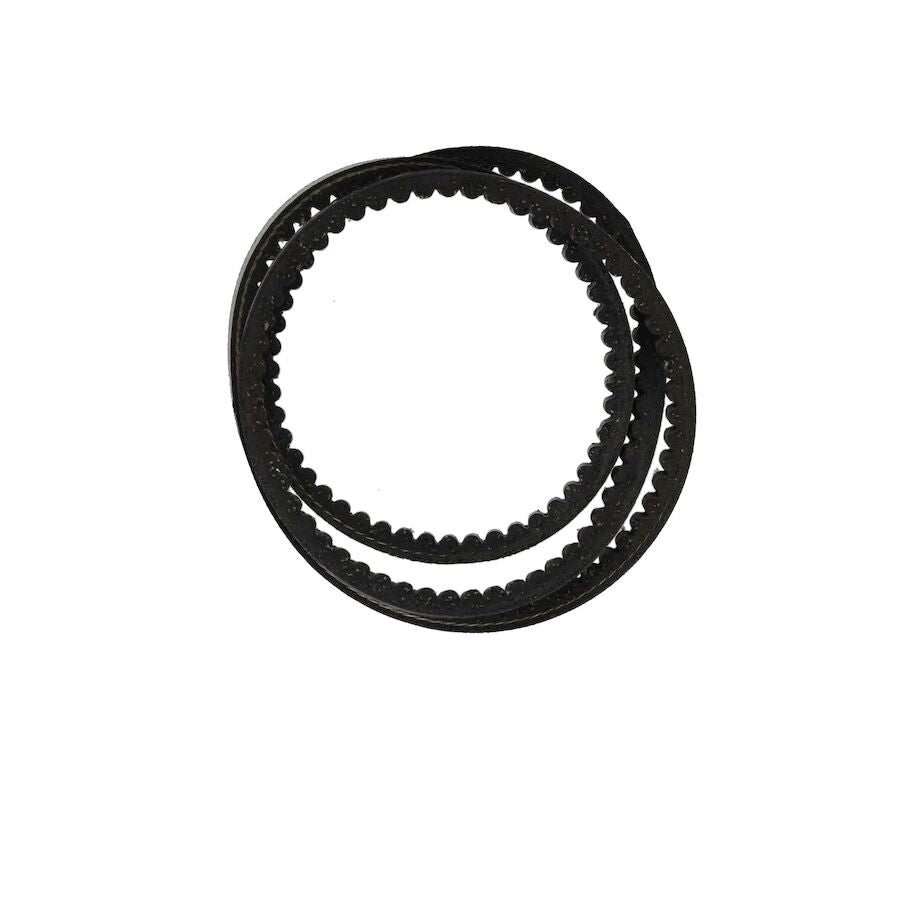

Toro OEM 106-9192 Snowblower Traction Drive Belt Fits Select Standard Power Max Snowblower Models (Only Models 38610 and 38611). TORO DEALER

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 106-9192, 106 9192, 1069192
• PRODUCT TYPE: Traction Drive V-Belt
• SIZE: Length N/A in. - Width N/A in. - Height N/A in. - Weight 0.100 lbs.

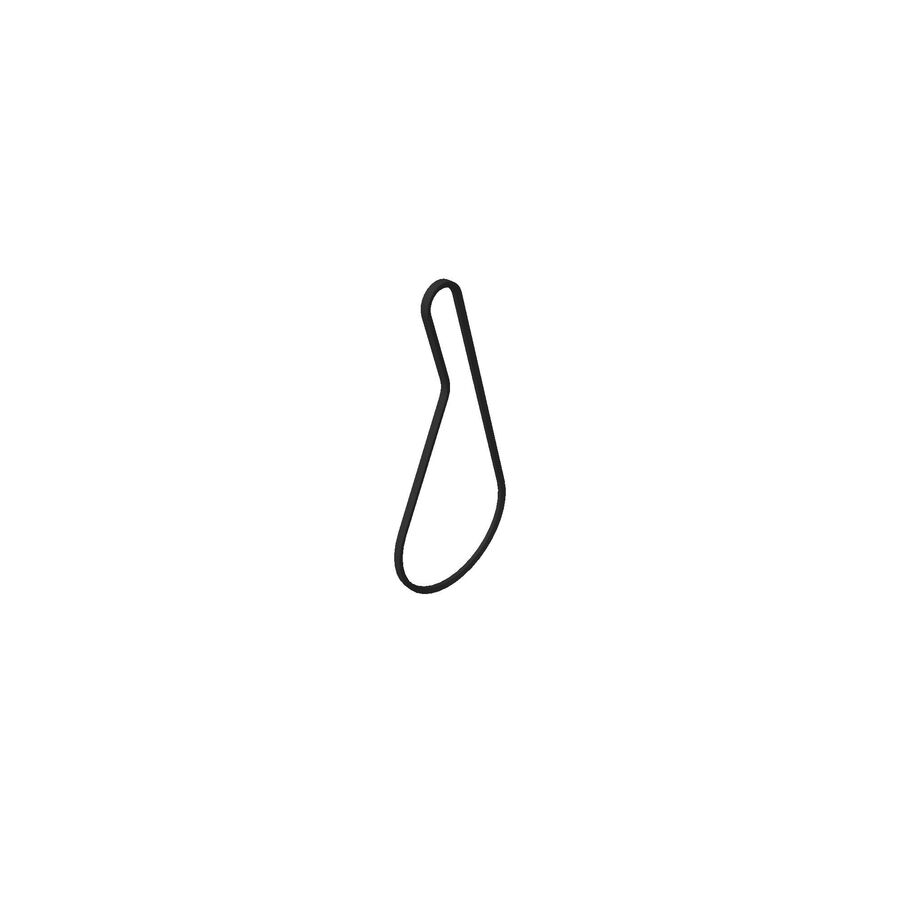

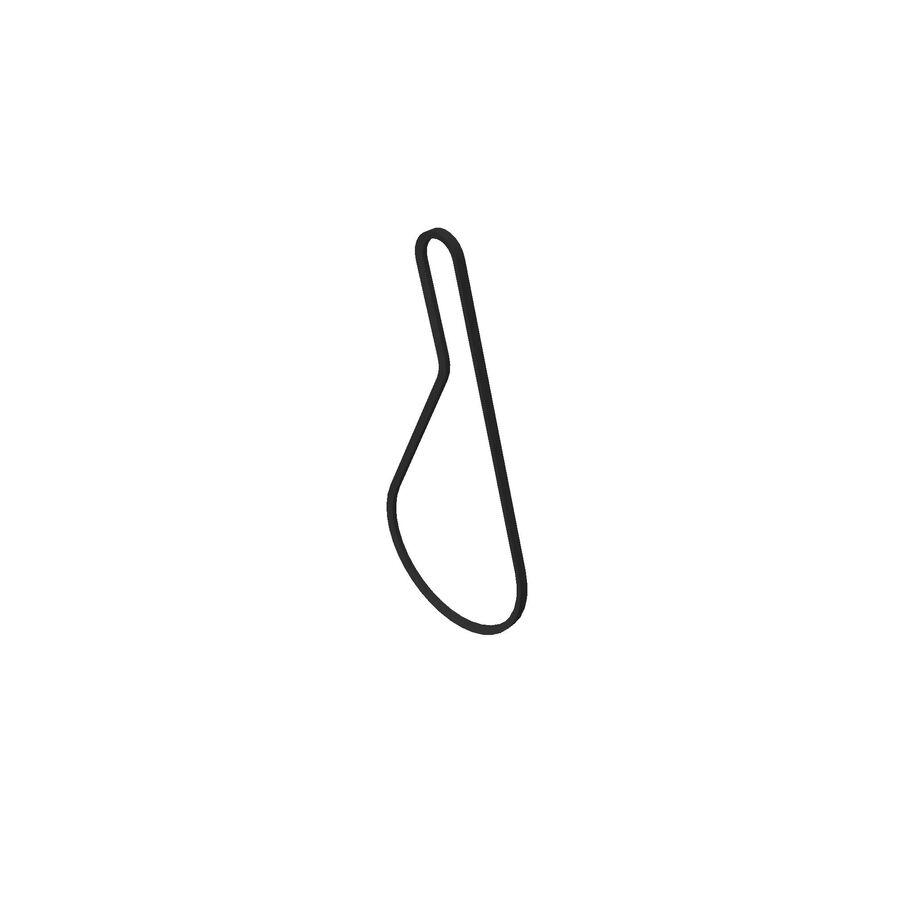

• NOTES & DETAILS: Toro OEM  106-9192 IS COMMINLY USED - 106-9192 Traction Belt Travels from the Engine Pulley to the Traction Pulley - Tension on the Drive Belt and Idler Pulley or Constant Allowing the Traction Pulley Rotation to be Constant.  When the Operator Engages the Traction Control Handle/Lever it Applies Pressure Between the Traction Pulley and the Rubber Friction Wheel causing the Shaft and Drive Components Parts to Rotate with the Traction Pulley and the Rubber Friction Wheel. Speed of the Snowblower travel as well as Forward and Reverse is Select by the Amount of Friction, Rotational Speed, and Location of the Friction Wheel Against the Beveled Style Traction Pulley as Selected by the Operator.
• COMMON SERIES APPLICATIONS: Toro Select Standard Power Max Snow Blower Models.





• MODEL FIT CHART:



SNOWBLOWER’S



POWER MAX Series – Model Numbers – (* Model Numbers 38610, 38611)





• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 106-9192 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

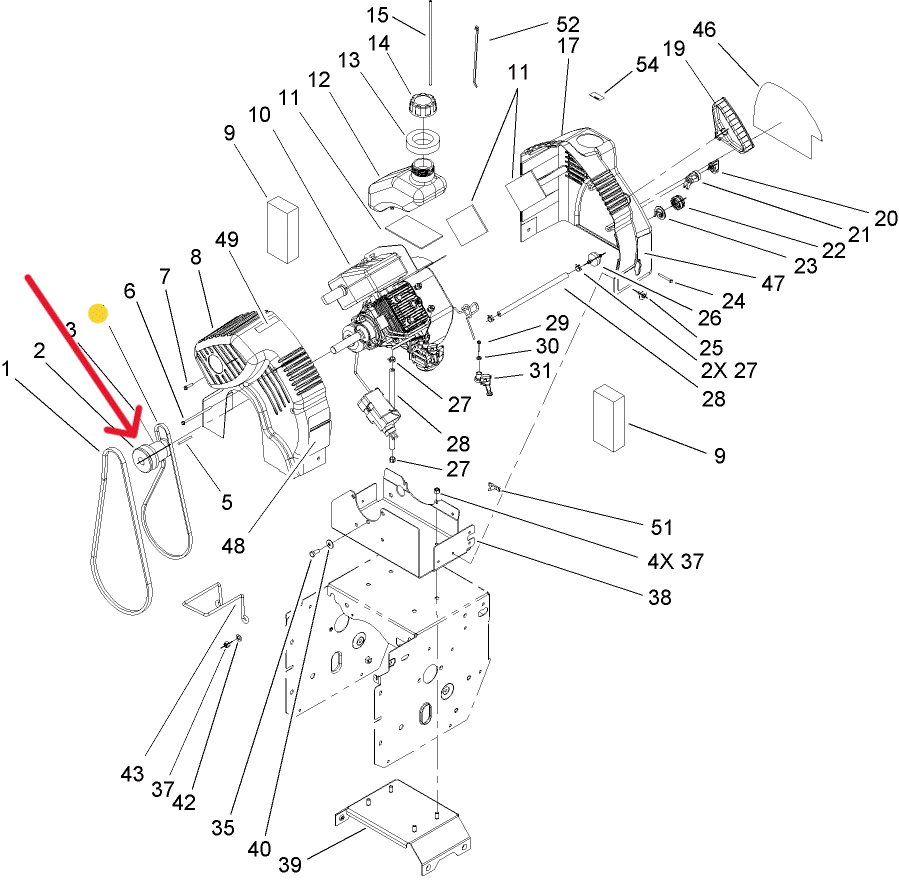

1. 105-8883 - ONE-PIECE ENGINE AUGER & TRACTION/DRIVE PULLEY (Transfers Engine Rotation to the Traction Pulley via Traction Drive Belt - Is a One-Piece Pulley and is Assembled Directly to the Engine Crankshaft Contains Both Auger and Traction Drive Belt V's - Enables the Engine to Rotate the Traction/Drive Belt, Pulley and Other Drive Components) x1 Per Snowblower Unit

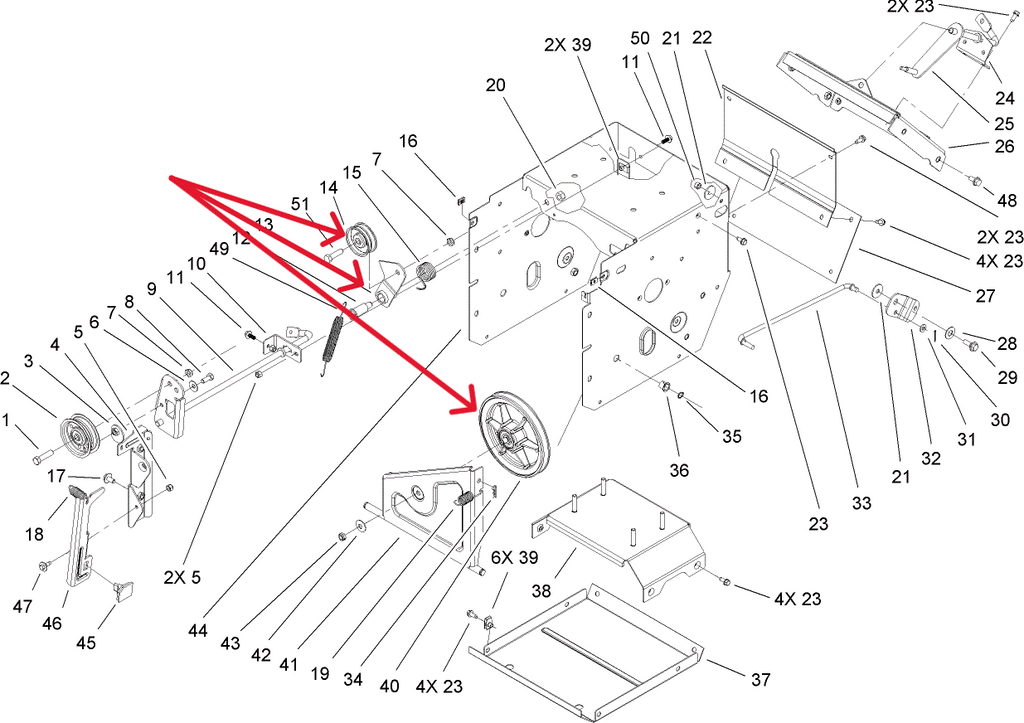

2. 136-7319 - TRACTION PULLEY (Receives Constant Engine Rotation from the Engine Via Traction Drive Belt - Is Assembled with the use of a Bearing and Bearing Collar Directly to the Friction Wheel Plate Which Rotates Towards and Away from the Rubber Friction Wheel as the Operator Engages Traction Drive Bail Lever) x1 Per Snowblower Unit
3. 3-4244 - IDLER PULLEY (Contains Roller Bearing that Allow the Pulley to Match the Speed of the Engine RPM's and is Retained to the Idler Pulley Tensioner Arm - Used to Retain Constant Pressure on The Traction Drive Belt via a Torsion Spring Allowing the Rotation of the Traction Pulley to remain Constant) x1 Per Snowblower Unit
4. 108-7332 - IDLER PULLEY TORSION SPRING (Assembled over the Flange on the Idler Pulley Tensioner Arm and Retains Constant Pressure on Between the Idler Pulley and Traction Drive Belt) x1 Per Snowblower Unit
5. 108-0011 - IDLER PULLEY TENSIOM ARM (Fasten to the Snowblower Frame or Brackets and Retains the Idler Pulley and a Torsion Spring and Enable Tension to be Constantly Applied to the Auger Belt as well as Giving the Idler Pulley Correct Spacing to Travel in-line with the Traction Drive Belt) x1 Per Snowblower Unit
