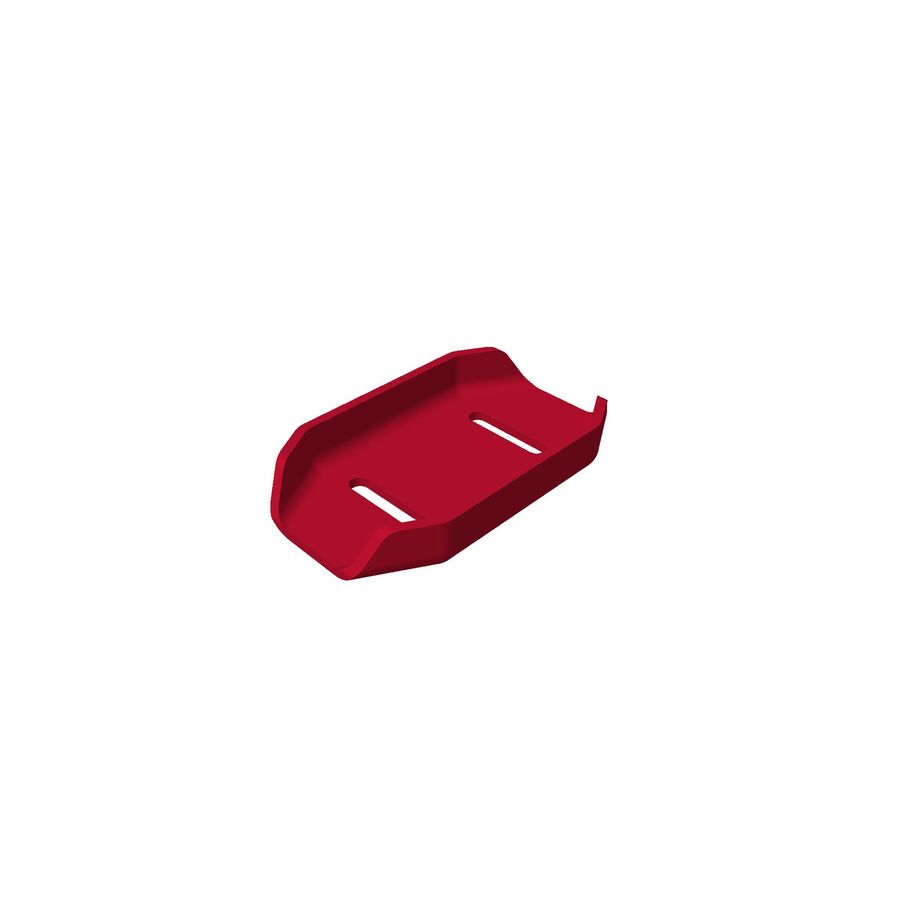

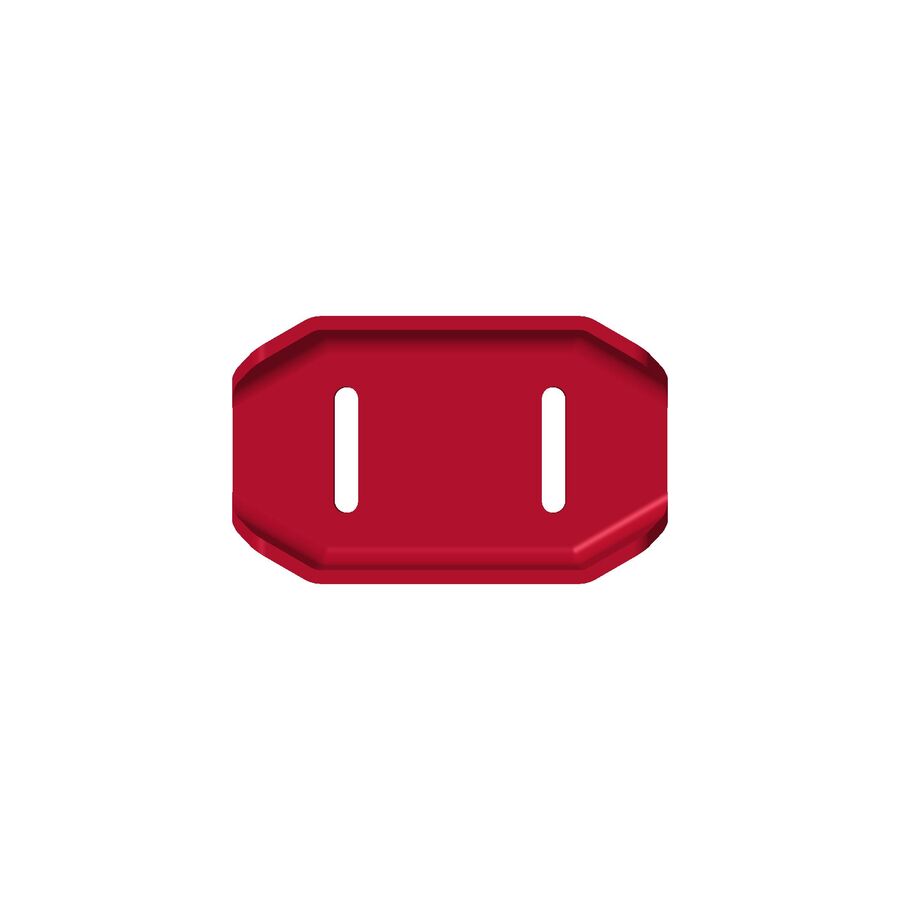

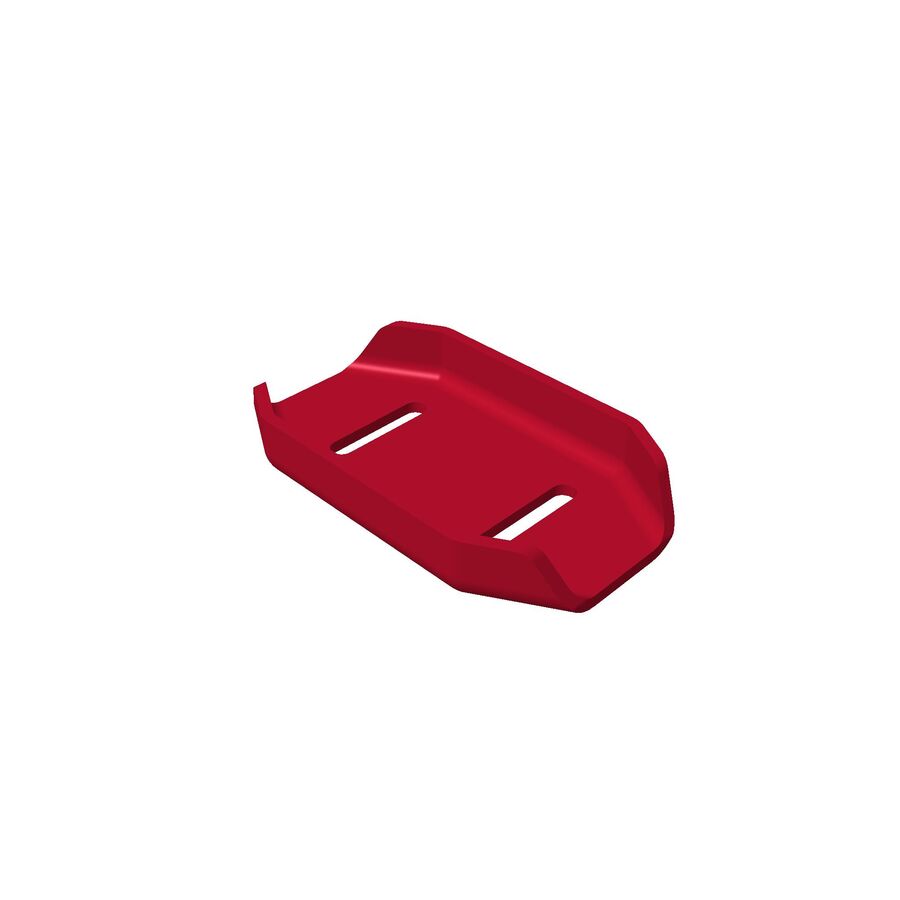

Toro OEM 106-4588-01 Snowblower Factory Installed Individual Metal/Steel Skid Shoe Fits Select Standard Power Max, E - Power MAX, Power Max HD, Power TRX Snowblower Models.

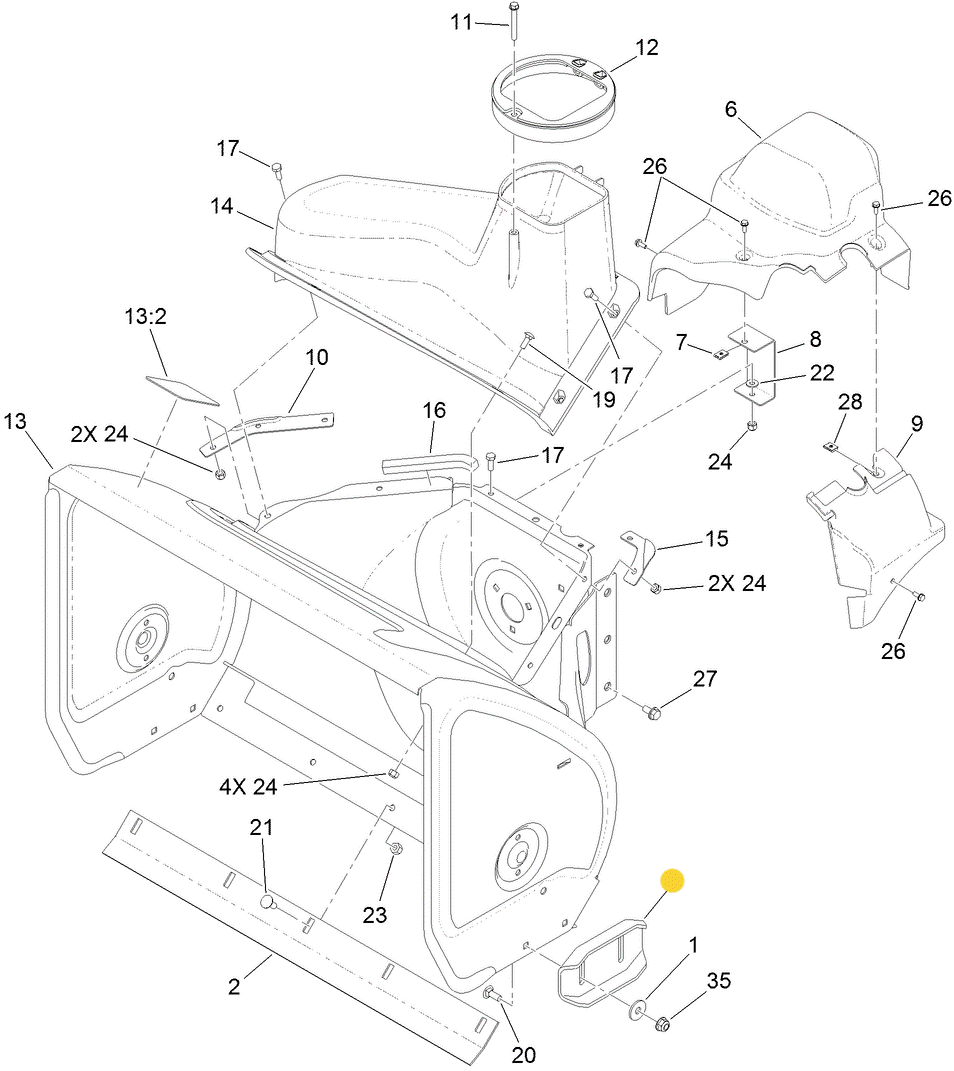

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 106-4588-01, 106 4588 01, 106458801
• PRODUCT TYPE:  Replaceable Individual Heavy-Duty Metal or Steel Skid Shoe
• SIZE: Length 5.300 in. - Width 1.000 in. - Height 3.500 in. - Weight 1.316 lbs.
• NOTES & DETAILS: Toro OEM 106-4588-01 IS COMMINLY USED - 106-4588-01 Individual Replaceable Heavy-Duty Metal/Steel Skid Shoes - Mount one on Each Side of the Auger Housing and are a Replaceable as well as Adjustable. 106-4588-01 Most Commonly Serves the Purpose of Adjusting the Depth of Spacing Between Cleaning Surface and the Lower Auger Scraper Bar that Travels Across the Bottom of the Snowblower Auger Housing. Skid Shoes are Commonly Used - 1 - (Although for a Cleaner Surface Scraper Bars Can Travel Against the Hard Surface) However Commonly Used to Prevent Premature Wear to the Scraper Bar on Hard Surface Driveways/Walkways By Giving it a Small Air Gap Between the Scraper Bar on the Bottom of the Auger Housing and the Cleaning Surface - 2 - Used to Space The Scraper Bar on the Bottom of the Auger Housing at a Greater Distance for a Loose Gravel to Prevent the Scraper Bar from Accumulating Gravel and Other Debris into the Auger/Auger Housing Erea and Discharging them Creating Greater Liability and Possible Damages. Individual Heavy Duty Metal or Steel Skid Shoes 106-4588-01 are Available only as Individual Skid Shoes. FOR ADDITIONAL REFERENCES REFER TO THE ASSOCIATED PARTS REFERENCE BELOW
• COMMON SERIES APPLICATIONS: Select Toro E - Power MAX, Standard Power MAX, Power MAX HD and Power TRX Snow Blower Models.





• MODEL FIT CHART:



SNOWBLOWER’S



POWER MAX Series – Model Numbers – (* Model Numbers 37770, 37771, 37772, 37775, 37777, 37779, 37780, 37781, 37793, 37797, 37798, 37799, 37802, 37805, 37807, 38595, 38597, 38610, 38611, 38614, 38620, 38621, 38622, 38624, 38629, 38630, 38631, 38632, 38633, 38634, 38635, 38637, 38639, 38640, 38641, 38642, 38644, 38645, 38650, 38651, 38652, 38654, 38657, 38660, 38661, 38662, 38663, 38664, 38674, 38680, 38800, 38801, 38802, 38803, 38805, 38806, 38810, 38811, 38812, 38813, 38814, 38815, 38816, 38817, 38819, 38820, 38822, 38823, 38824, 38826, 38828, 38830, 38833, 38834, 38836, 38838, 38840, 38841, 38842, 38843, 38844, 38850, 38855, 38860, 38865)



E - POWER MAX Series – Model Numbers – (* Model Numbers 31875, 39924, 39925, 39926, 39926T)



POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)





• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 106-4588-01 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



COMPLETE SKID SHOE KIT - SKID SHOE & HARDWARE



1. 38211 - NON-MARKING POLY SKID SHOE KIT (Made from a Hardened Poly Material to Eliminate Markings and Scuff Marks on Hard Top Surfaces) x1 Per Snowblower
2. 38212 - HEAVY-DUTY CAST SKID SHOE KIT (Made from Hardened Cast Steel to Eliminate Pre-Mature Well and Designed to outlast any one of the Other Skid Shoe Options) x1 Per Snowblower



INDIVIDUAL ASSOCIATED FASTNER PARTS



1. 137-3059 - CARIAGE BOLT (Retains Skid Shoes to the Snowblower Auger Housing) x2 Per Skid Plate
2. 119-4150 - FLAT WASHER (Retains Skid Shoes to the Snowblower Auger Housing) x2 Per Skid Plate
3. 119-4041 - FLANGE NUT (Retains Skid Shoes to the Snowblower Auger Housing) x2 Per Skid Plate
