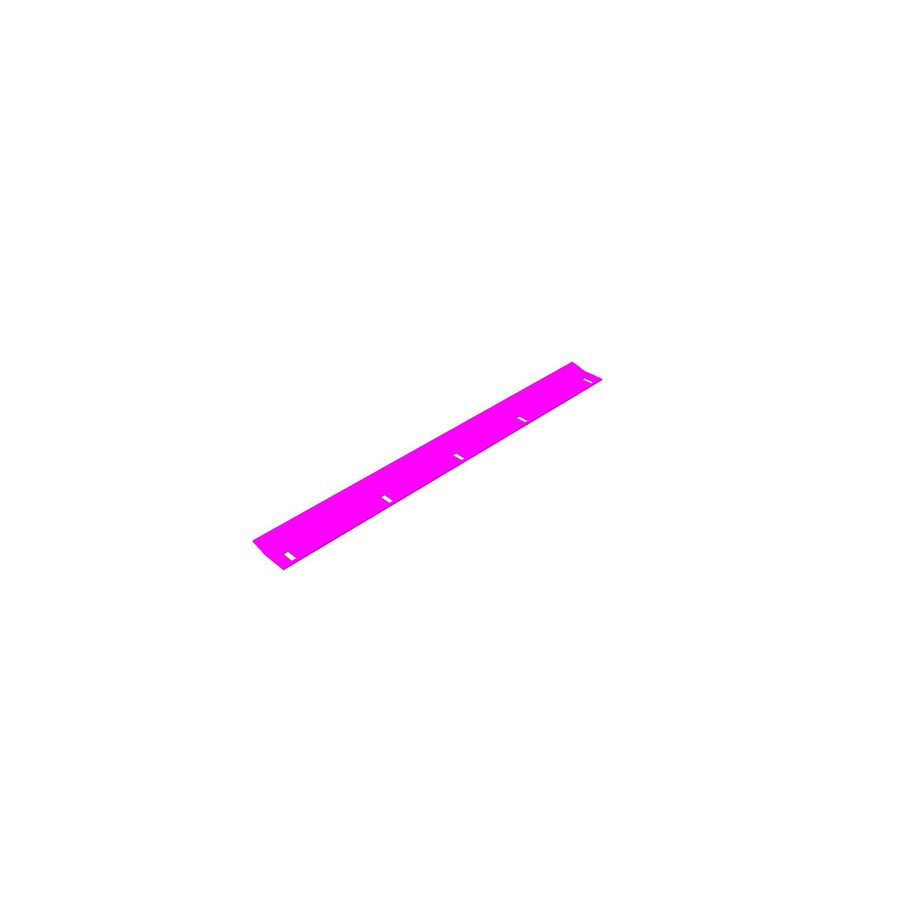

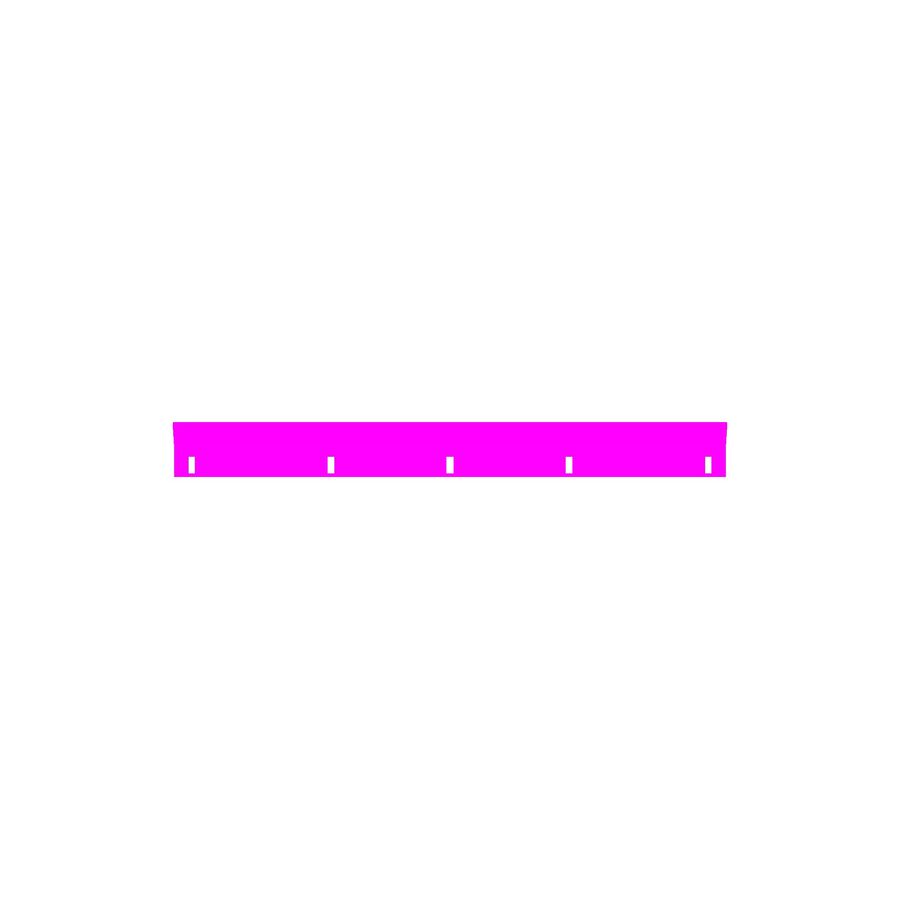

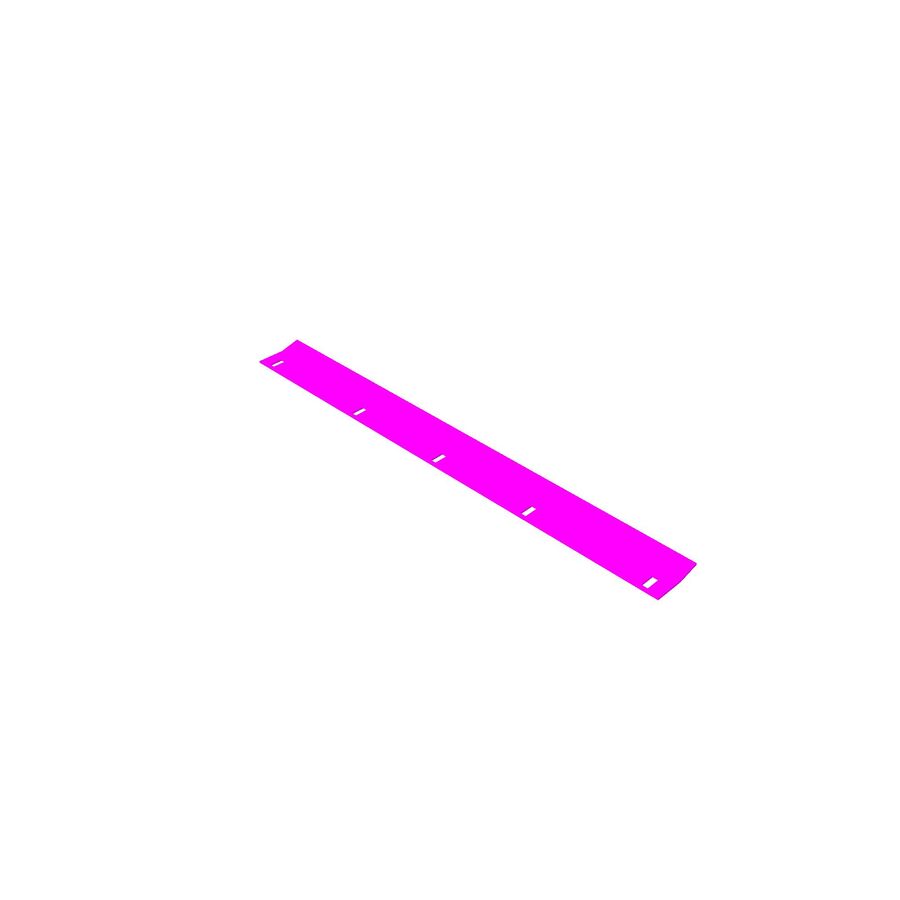

Toro OEM 106-4573-01 Metal Scraper Bar Fits Select Toro 28" Dual Stage Standard Power MAX and Power MAX HD Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 106-4573-01, 106 4573 01, 106457301
• PRODUCT TYPE: Replaceable Metal Scraper Blade
• SIZE: Length 27.000 in. - Width 2.500 in. - Height 0.200 in. - Weight 2.050 lbs.
• NOTES & DETAILS: Toro OEM  106-4573-01 IS COMMINLY USED - 106-4573-01 is a Metal Replaceable Scraper Bar and is Designed to Travels the Length of the Snowblower Housing. 106-4573-01 Scraper Bar Travels Against Hard Surfaces Absorbing the Wear and Abuse. This Enable an Easy Replacement of the Scraper Bar when it is Worn, over Repairing or Replacing the Main Snowblower Auger Housing. 106-4573-01 Scraper Bar can Serve the Purpose of Scraping Against Paved or Concrete Walkways and Driveways or a Straight Line of Depth Adjustable from Stone Surface and Hard Surfaces Upon the Operator Preferences. - Important to Note the Effectiveness and Durability of the Scraper Bar and Unit can be Affected in How the Operator Uses and Adjust the Adjustable Skid Plates - REFER TO THE OWNER'S MANUAL FOR PREFERED ADJUSTMENT DIRECTIONS. 106-4573-01 Scraper Bar is Fastened Inside the Auger Housing Using Five Carriage Bolts That Insert with the Bolt Head Resting into the Scraper Bar or Inside the Auger Housing Out and are Retained with Scraper Bar to the Snowblower Auger Housing Using Lock Nut on the Back Side of the Auger Housing.
• COMMON SERIES APPLICATIONS: Toro 28" Standard Power MAX and Power MAX HD Snow Blower Models.





• MODEL FIT CHART:

SNOWBLOWER’S



POWER MAX Series – Model Numbers – (* Model Numbers 38630, 38631, 38632, 38633, 38634, 38635, 38637, 38639, 38640, 38641, 38642, 38644, 38645, 38660, 38662, 38663, 38674, 38801, 38802, 38806, 38822, 38824, 38834)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 106-4573-01 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

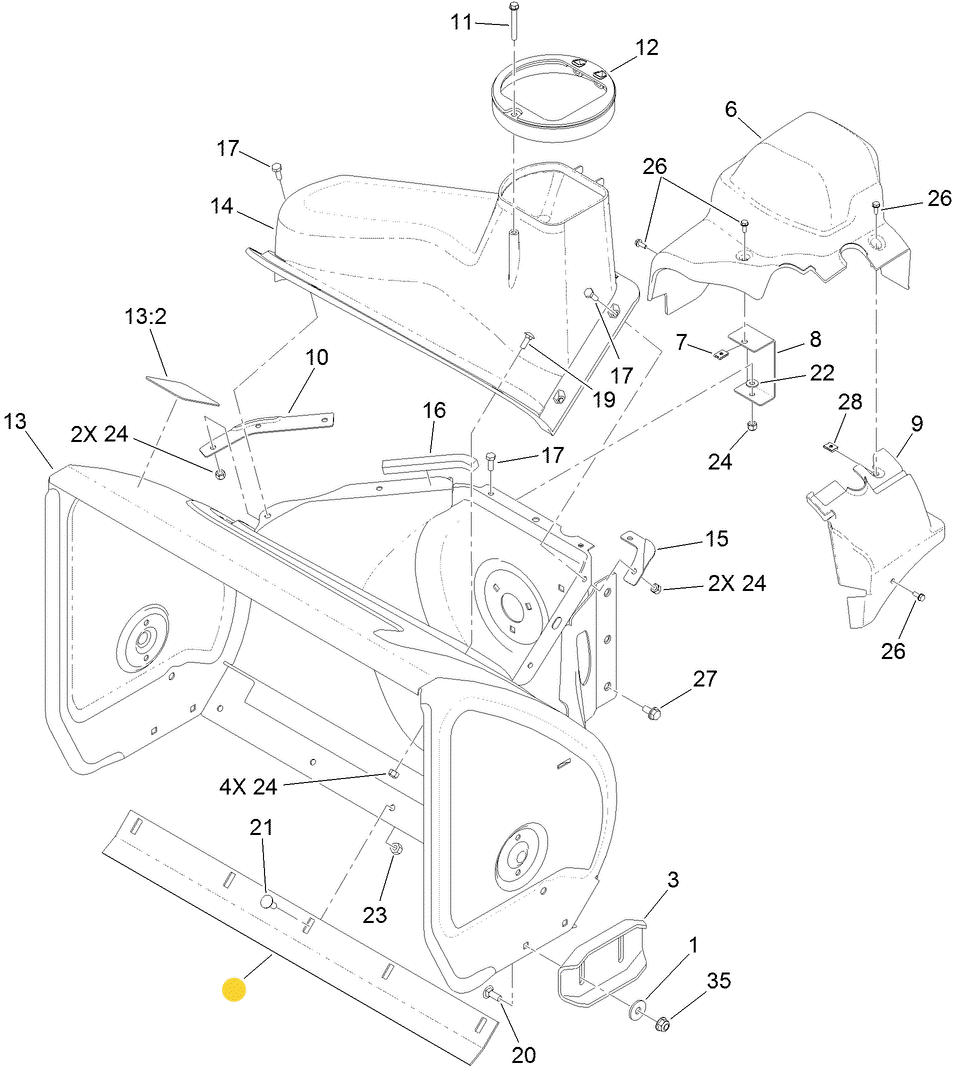

1. 3230-23 - CARRIAGE BOLT (Retains the Scraper Bar to the Bottom of the Snowblower Auger Housing - Inserts from Inside the Auger Housing and Travels Through the Scraper Bar and Auger Housing Allowing the Nut to Be Attached to the Back of the Auger Housing) x5 Per Scraper Blade
2. 3296-29 - LOCK NUT (Retains the Scraper Bar and Carriage Bolt to the Auger Housing - Used on the Back Side or Outside of the Auger Housing) x5 Per Scraper Blade
