Description

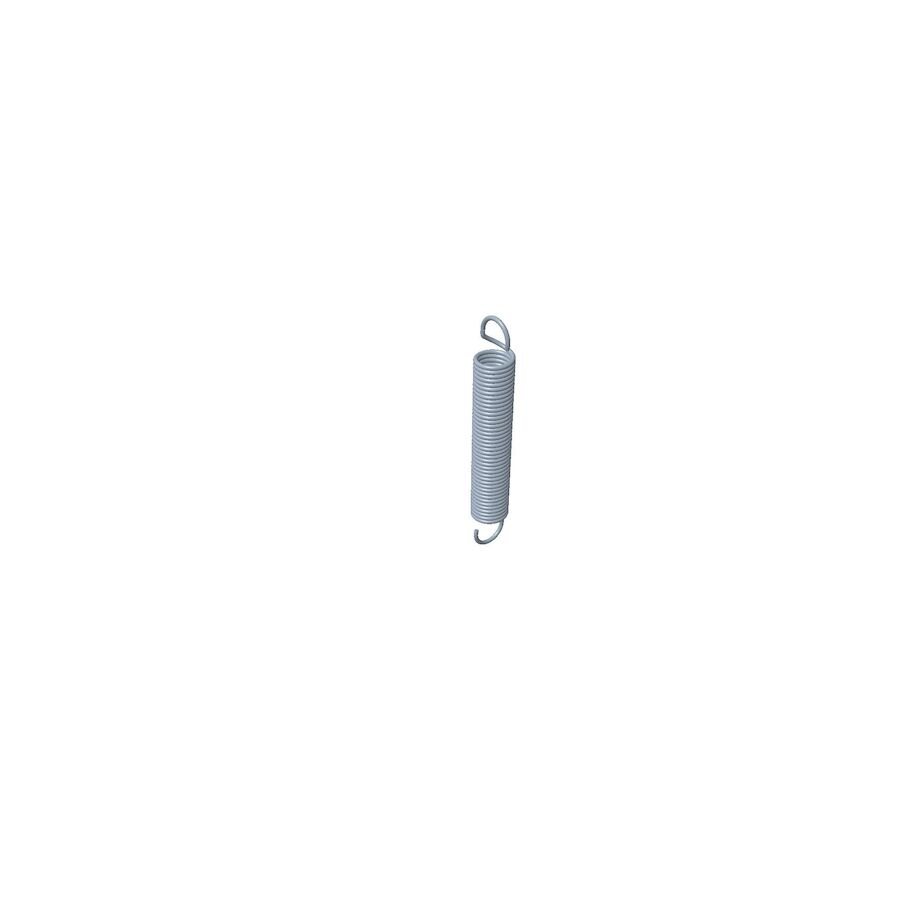

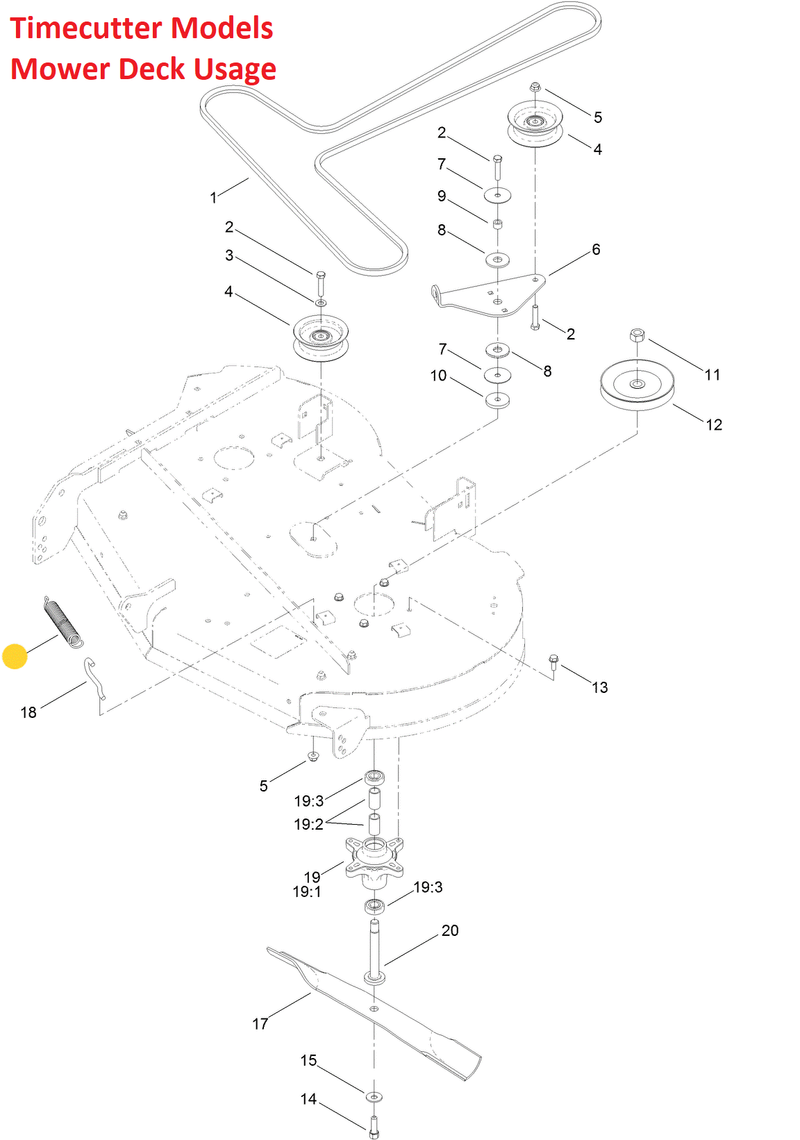

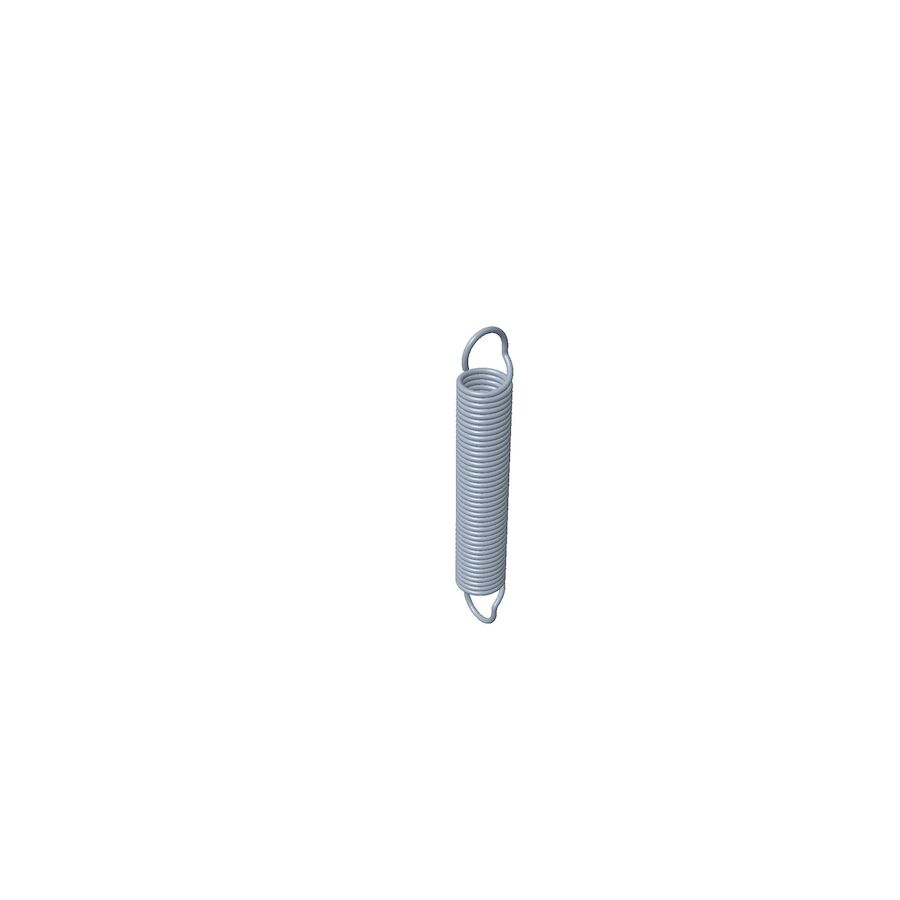

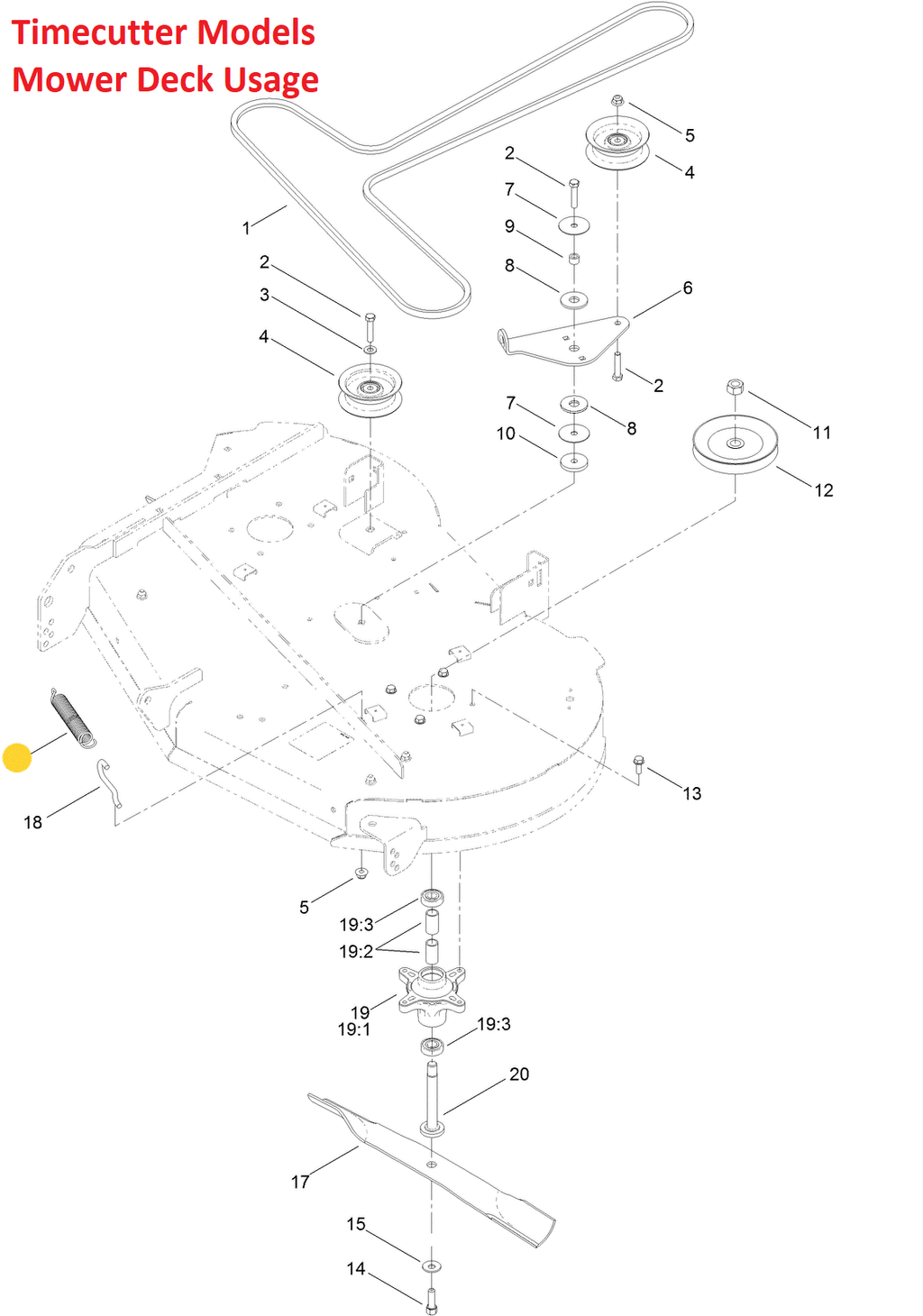

Toro OEM 106 2177 Mower Deck Tension Spring (Used in Other Applications as well) is the Part that allows for Forgiveness in Uneven Mower Deck Work Loads, Absorbing Unfortunate Mower Blade Impacts, keeping that Belt Tight and by doing all that Eliminating the Belt from coming Off and Creating Additional Damage. So, when it comes to a Replacement Springs Trust no other than Toro OEM to Be Sized Correctly and Tested to withstand the Hard Rigorous Workload the Toro OEM 106 2177 is expected to fulfill. Toro OEM 106-2177 Spring is used on more recent Early Model 32", 34", 38", 42", MX, SS, SW, SWX, Z, ZS, Timecutter Models and Toro Brushcutter Models as a Mower Deck Spring. However, Some Aerator, Power Hopper Dumps, Snow Blades and Early Model Timecutter 44" & 48" Z Models would have used it on Their Lift Linkage, Handle Assemblies, Ect. For an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.
Specification
|
Product Number: |
1062177 |
|
Brand: |
Toro |
|
Length: |
6.400 IN (16.256 CM) |
|
Width: |
1.100 IN (2.794 CM) |
|
Height: |
1.100 IN (2.794 CM) |
|
Weight: |
0.320 LB (0.145 KG) |
Model Fit:
TIMECUTTER 32” ZS Series – Model Numbers – 74385, 74388, 74650
TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710
TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781
TIMECUTTER 34” MX Series – Model Numbers – 74750
TIMECUTTER 38” Z Series – Model Numbers – 74301, 74402, 74419
TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766
TIMECUTTER 42” Z Series – Model Numbers – 74325, 74327, 74330, 74350, 74360, 74380, 74363, 74381, 74365, 74366, 74389, 74390, 74403, 74420, 74425, 74655, 74656, 74657, 74665, 74667
TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74667
TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726
TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788
TIMECUTTER 42” SWX Series – Model Numbers – 74787

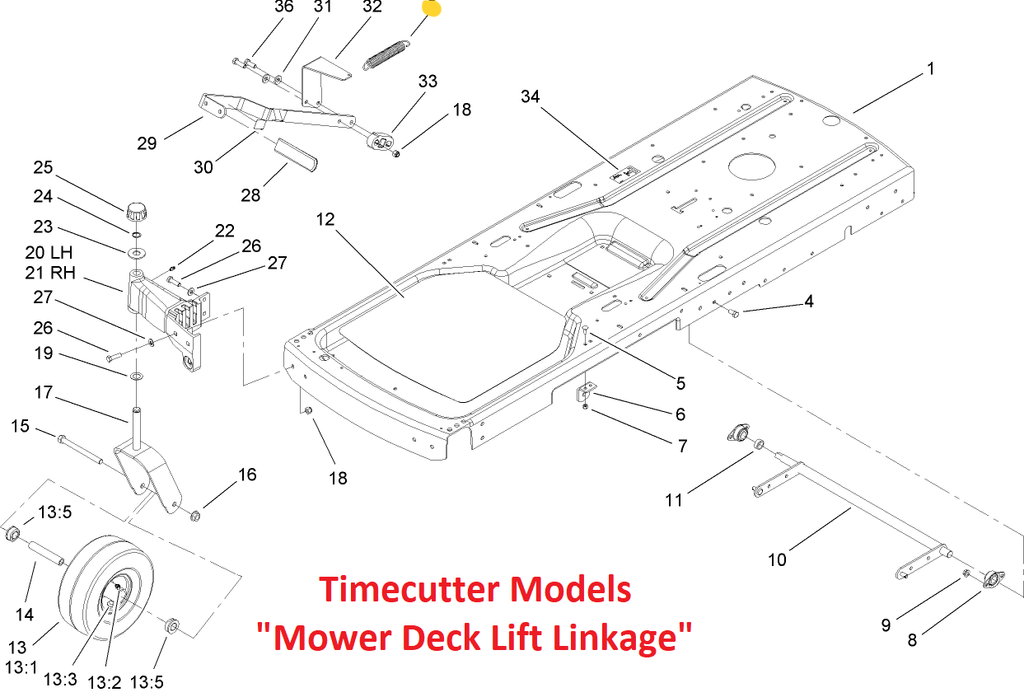

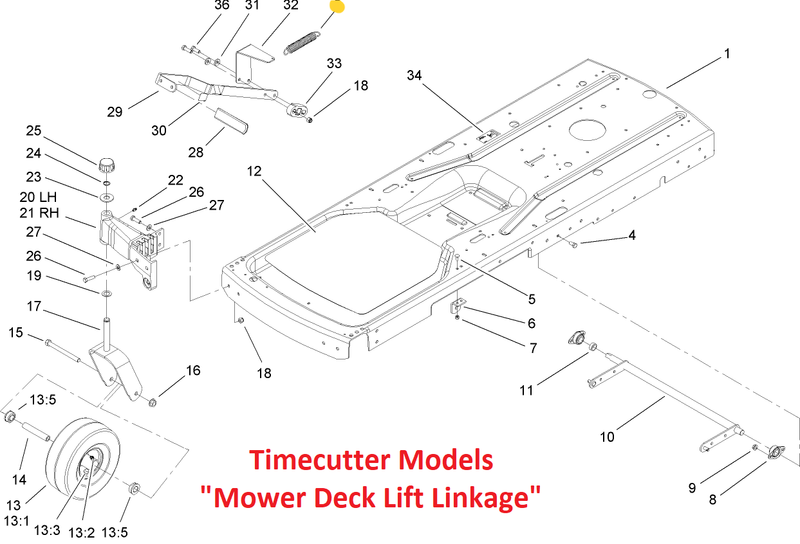

TIMECUTTER 44” Z Series (LIFT LINKAGE-FRAME ASSEMBLY) – Model Numbers – 74351
TIMECUTTER 48” Z Series (LIFT LINKAGE-FRAME ASSEMBLY) – Model Numbers – 74352, 74353
G4000 Series (MOWER DECK)– Model Numbers - 94360, 725058046
MZ Riding Tractor Series (LINKAGE-FRAME ASSEMBLY) – Model Numbers 725057026, 94352, 725058006
MZ Riding Tractor Series (MOWER DECK) – Model Numbers 94301, 94330, 94351, 725057006, 725057016, 725058026, 94327
XLS Riding Tractor Series (MOWER DECK) – Model Numbers 71254, 71255
Brush Cutter Models (MOWER DECK) – Model Numbers – 23522, 33522, 23521, 33521
Snow Blade Models (LIFT LINKAGE) – Model Numbers – 74351, 716258006, 99216, 63600
Aerator (HANDLE LINKAGE) – Model Numbers – 23515, 33515
Power Hopper Dump (DUMP LINKAGE) – Model Numbers – 130-8458
