Toro OEM 106-2176 Fits Early/Late 32", 34", 38", 42", 44", 48", 50", 54", 60" Timecutter HD, MX, SS, SW, SWX, ZS, Z, ZD - EZ-VAC Models.

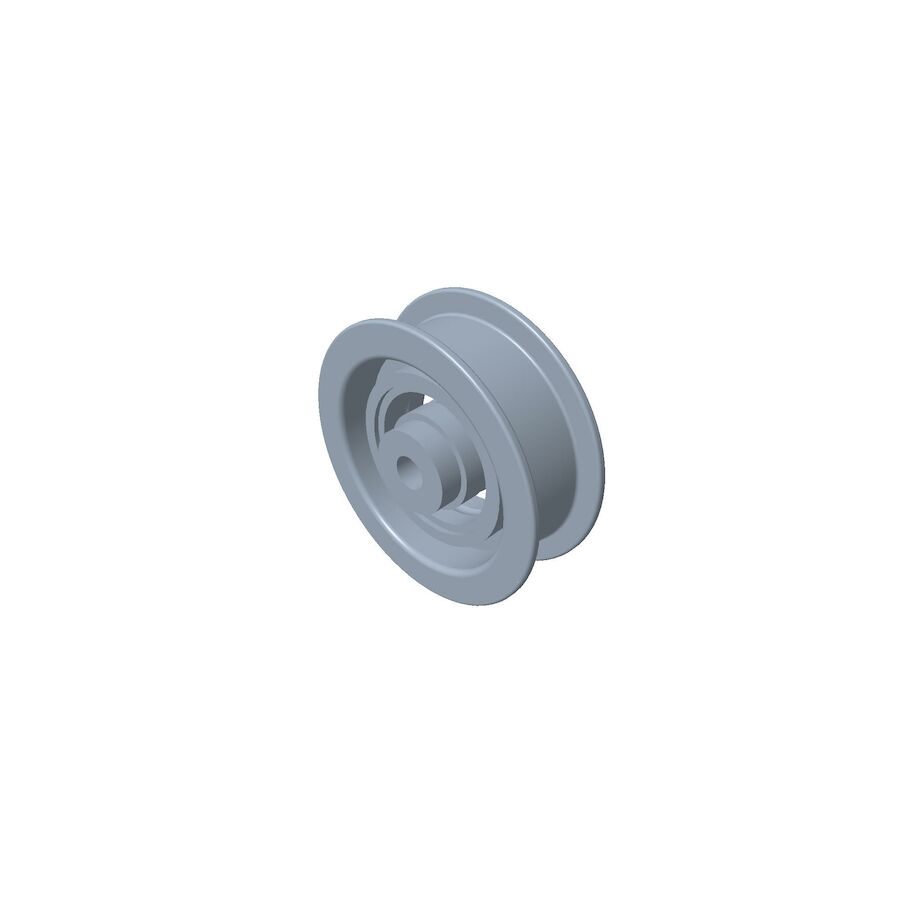

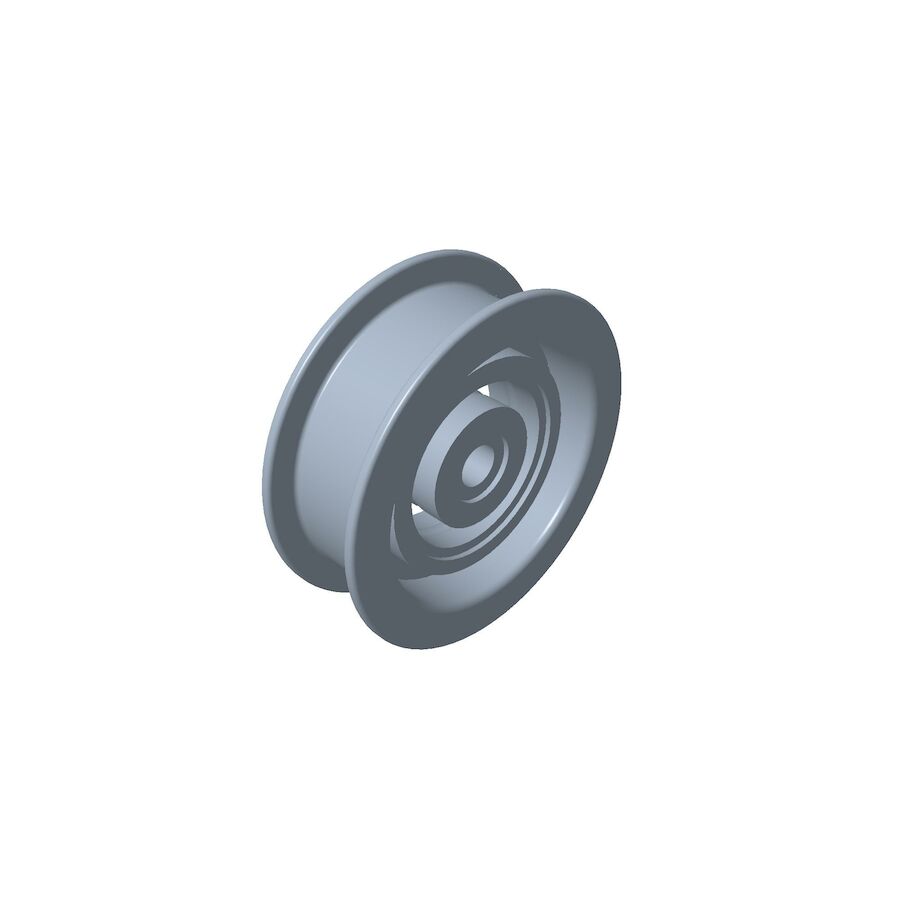

The Toro OEM 106 2176 Hydraulic Drive Flat Idler is manufactured with strong steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this Flat Idler is designed to maintain correct tension on Hydraulic and/or Traction Drive Belts. 106 2176 OEM Flat Idler is compatible with a variety of Toro models, including the 32", 34", 42", 44", 48", 50", 54",60", Timecutter HD, MX, SS, SW, SWX, ZS, Z, ZD Models - EZ-VAC Model 79345. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. For Additional Fastner & Associated Part references for Idler Pulley 106-2176 review the Associated Parts Link Below the Model Fit Chart. If You are Having Trouble Finding the Correct Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down of the Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions.







NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.







Specification

Product Number:	1062176
Brand:	Toro
Length:	2.700 IN (6.858 CM)
Width:	2.700 IN (6.858 CM)
Height:	1.000 IN (2.540 CM)
Weight:	0.250 LB (0.113 KG)





Model Fit:



74301, 74325, 74327, 74330, 74350, 74351, 74352, 74353, 74385, 74386, 74387, 74388, 74389, 74390, 74395, 74402, 74403, 74419, 74420, 74425, 74432, 74433, 74434, 74437, 74616, 74620, 74621, 74622, 74623, 74624, 74625, 74626, 74627, 74628, 74629, 74630, 74631, 74632, 74633, 74635, 74636, 74637, 74638, 74640, 74641, 74642, 74643, 74650, 74655, 74656, 74657, 74660, 74661, 74665, 74667, 74670, 74675, 74676, 74680, 74705, 74706, 74710, 74711, 74720, 74721, 74722, 74723, 74725, 74726, 74727, 74730, 74731, 74732, 74740, 74741, 74750, 74760, 74765, 74766, 74770, 74771, 74775, 74776, 74777, 74780, 74781, 74784, 74785, 74787, 74788, 74790, 74793, 74795, 74797, 74798, 74864, 74865, 74866, 74867, 75201, 75202, 75210, 75211, 75212, 75213, 79345, 81228, 81229, 81230, 81235, 81240, 81242, 81243, 81245, 81246, 81250, 94301, 94327, 94330, 94351, 94352













32”, 34”, 38”, 42”, 44”, 50”, 54”, 60” Timecutter – 106-2176 MODEL/SERIES USAGE





32” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74385, 74388, 74650)

32” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74620, 74621, 74629, 74710 Serial Number 402842614 and Lower)

32” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74670, 74780, 74781)



34” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74750 Serial Number 40431399 and Lower)



38” TIMECUTTER Z Series – Model Numbers – (* Model Numbers 74301, 74402, 74419)



42” TIMECUTTER Z Series – Model Numbers – (* Model Numbers 74325, 74327, 74330, 74350, 74403, 74420)

42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74640, 74642, 74760, 74765, 74766)

42” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705 Serial Number 403320566 and Lower, 74706 Serial Number 404314199 and Lower, 74711 Serial Number 403045173 and Lower, 74720, 74721, 74722, 74723, 74725, 74726)

42” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74675, 74676, 74784, 74785, 74788)

42” TIMECUTTER SWX Series – Model Numbers – (* Model Numbers 74787)



44” TIMECUTTER Z Series – Model Numbers – (* Model Numbers 74351)



48” TIMECUTTER Z Series – Model Numbers – (* Model Numbers 74352, 74353)



50” TIMECUTTER Z Series – Model Numbers – (* Model Numbers 74425)

50” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74387, 74660, 74661, 74395)

50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74641, 74643, 74770, 74771, 74775, 74776 Serial Number 404314999 and Lower, 74727)

50” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732)

50” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74680, 74790, 74793, 74795)

50” TIMECUTTER SWX Series – Model Numbers – (* Model Numbers 74797, 74798, 74795)



54” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74740, 74741)

54” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74793)



60” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74777)



TIMECUTTER ZD Series – Model Numbers – (* Model Numbers 74432, 74433, 74434, 74437)





48”, 54”, 60" Timecutter HD – 106-2176 MODEL/SERIES USAGE





48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74864, 74866, 75201, 75210 Serial Number 404313999 and Lower, 75211)

54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74865, 74867, 75202, 75212)

60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)





EZ-VAC MODELS – 106-2176 MODEL/SERIES USAGE





TIMECUTTER HD EZ-VAC – Model Numbers – (* Model Numbers 79345 Serial Number 405699999 and Lower





Misc. Models – 106-2176 MODEL/SERIES USAGE





MZ Riding Tractor Series – Model Numbers - (* Model Numbers 94301, 94330, 94351, 94352, 94327, 725057006, 725057016, 725057026, 725058006, 725058026)

G4000 Series - Model Numbers - (* Model Numbers 94818, 725058076)











ASSOCIATED PARTS REFERENCES FOR PART NUMBER 106-2176 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT

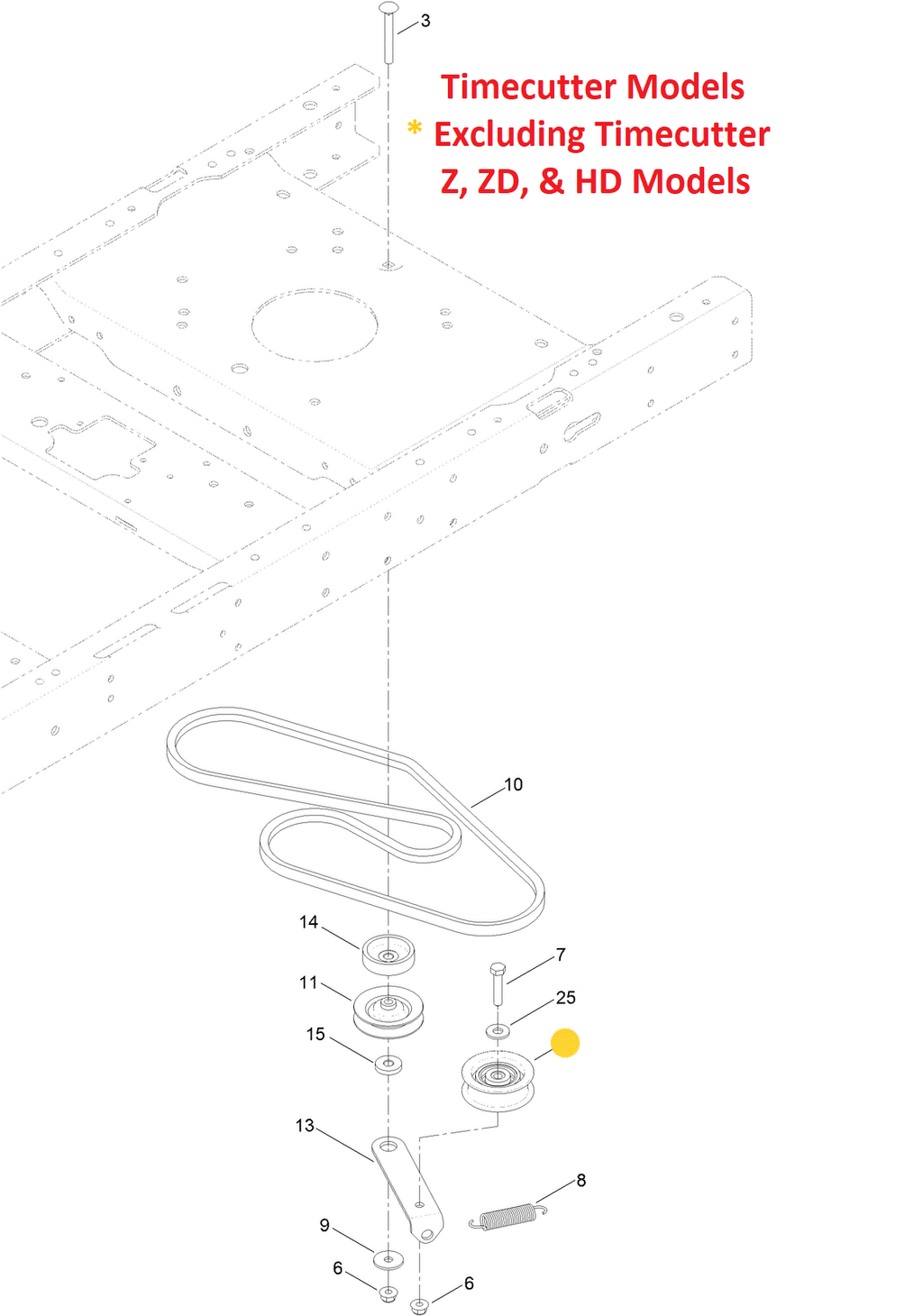

TIMECUTTER MODELS ONLY (* Excludes Timecutter HD Models)





1. 322-7 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley Fastened to Idler Arm
2. 3256-3 - IDLER PULLEY WASHER - (Enables the Correct Tightening Diameter Against the Flat Idler Bearing Surface) x1 Per Flat Idler Pulley
3. ????? - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Flat Idler Pulley Fastened to Idler Arm - * Idler Arms Vary Upon Model/Serial Number Breaks for Accurate Part Number Review the Model Fit Chart Associated to the Model Number of a Suggested Ilder Arm Part Number Associated to the Family of your Mower
4. 104-8300 - IDLER PULLEY NUT - (Retains Flat Idler) x1 Per Flat Idler Pulley Fastened to Idler Arm

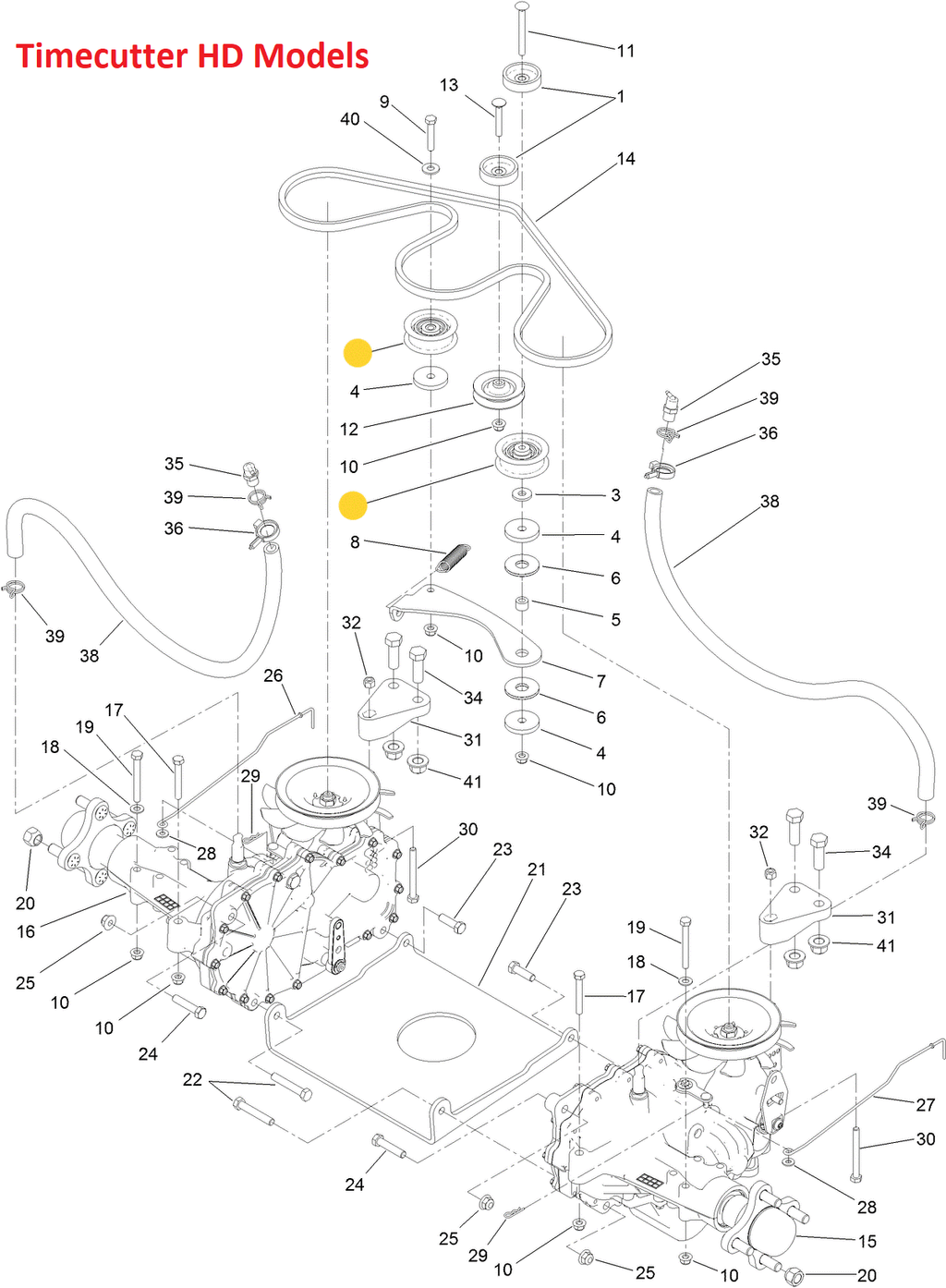

TITAN (Tube Framing) & TIMECUTTER HD MODELS ONLY



FRAME/ENGINE PLATFORM FLAT IDLER – IDLER ARM FASTENING



1. 119-9784 - IDLER PULLEY CARRIAGE BOLT - (Retains Flat Idler/Idler Arm) x1 Per Flat Idler Pulley Fastened to Engine Platform/Mower Frame.
2. 119-3353 - IDLER PULLEY SPACER - (Enables Hydraulic Flat Idler to be Tightened Within Correct Spacing from Mower Frame/Engine Platform) x1 Per Flat Idler Pulley Fastened to Engine Platform/Mower Frame.
3. 5-0838 - IDLER PULLEY WASHER - (Enables the Correct Tightening Diameter Against the Flat Idler Bearing Surface and is Used under Flat Idler Above the Spacer Washer) x1 Per Flat Idler Pulley Fastened to Engine Platform/Mower Frame.
4.  110-9981 - IDLER PULLEY SPACER WASHER - (Enables Hydraulic Flat Idler to be Tightened Within Correct Spacing from Idler Arm as Well as Supports the Composite Friction Washer) x2 Per Pulley Idler Arm * One on Each Side
5. 114-0463 - IDLER PULLEY ARM - FRICTION WASHER - (Reduces the Slop from the Idler Arm Spacer and Reduces Wear from Metal Against Metal from The Idler Arm and Idler Arm Spacer Washer Being in Direct Contact) x2 Per Pulley Idler Arm * One on Each Side

6. 114-0463 - IDLER ARM SPACER/BUSHING - (Inserts into Idler Pulley Arm and Spaces V-Idler Pulley to Correct Height Above the Ilder Pulley Arm as Well as Enabling Idler Pivot Arm to Pivot After It’s Tightened) x1 Per Idler Pulley Tensioner Arm
7. ????? - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit - * Idler Arms Vary Upon Model/Serial Number Breaks for Accurate Part Number Review the Model Fit Chart Associated to the Model Number of a Suggested Ilder Arm Part Number Associated to the Family of your Mower
8. 104-8300 - IDLER PULLEY NUT - (Retains Idler/Idler Arm) x1 Per Idler Pulley





IDLER ARM FLAT IDLER



1. 322-9 - IDLER PULLEY CARRIAGE BOLT - (Retains Flat Idler/Idler Arm) x1 Per Flat Idler Pulley Fastened to Idler Arm.
2. 3256-3 - IDLER PULLEY WASHER - (Enables the Correct Tightening Diameter Against the Flat Idler Bearing Surface and is Used Above Flat Idler and Under the Engine Platform/Mower Frame) x1 Per Flat Idler Pulley Fastened to Idler Arm.
3. 110-9981 - IDLER PULLEY SPACER WASHER - (Enables Hydraulic Flat Idler to be Tightened Within Correct Spacing from Idler Arm) x1 Per Flat Idler Pulley Fastened to Idler Arm.
4. ????? - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit - * Idler Arms Vary Upon Model/Serial Number Breaks for Accurate Part Number Review the Model Fit Chart Associated to the Model Number of a Suggested Ilder Arm Part Number Associated to the Family of your Mower
5. 104-8300 - IDLER PULLEY NUT - (Retains Idler/Idler Arm) x1 Per Idler Pulley
