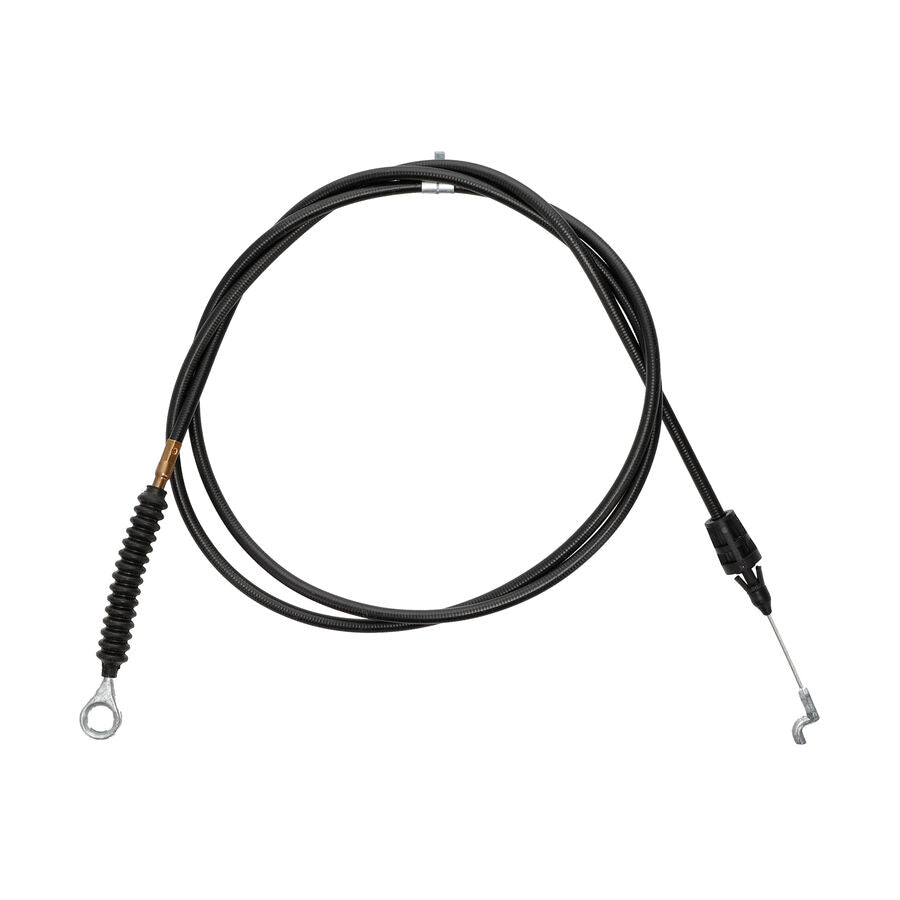

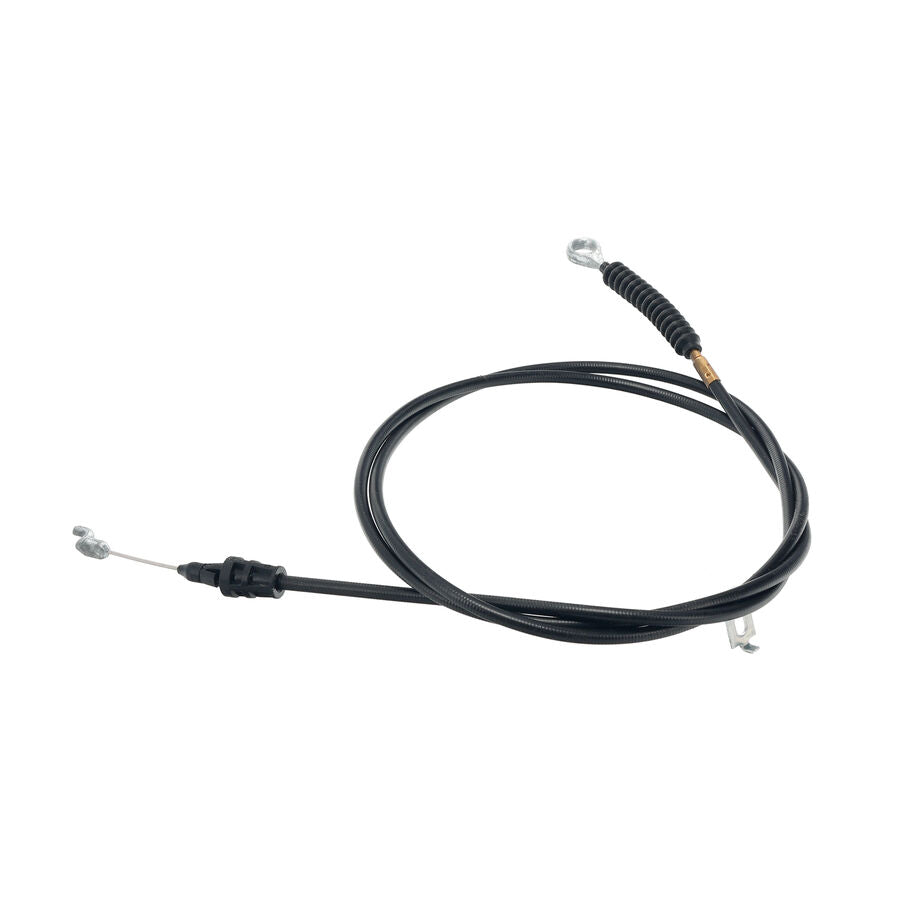

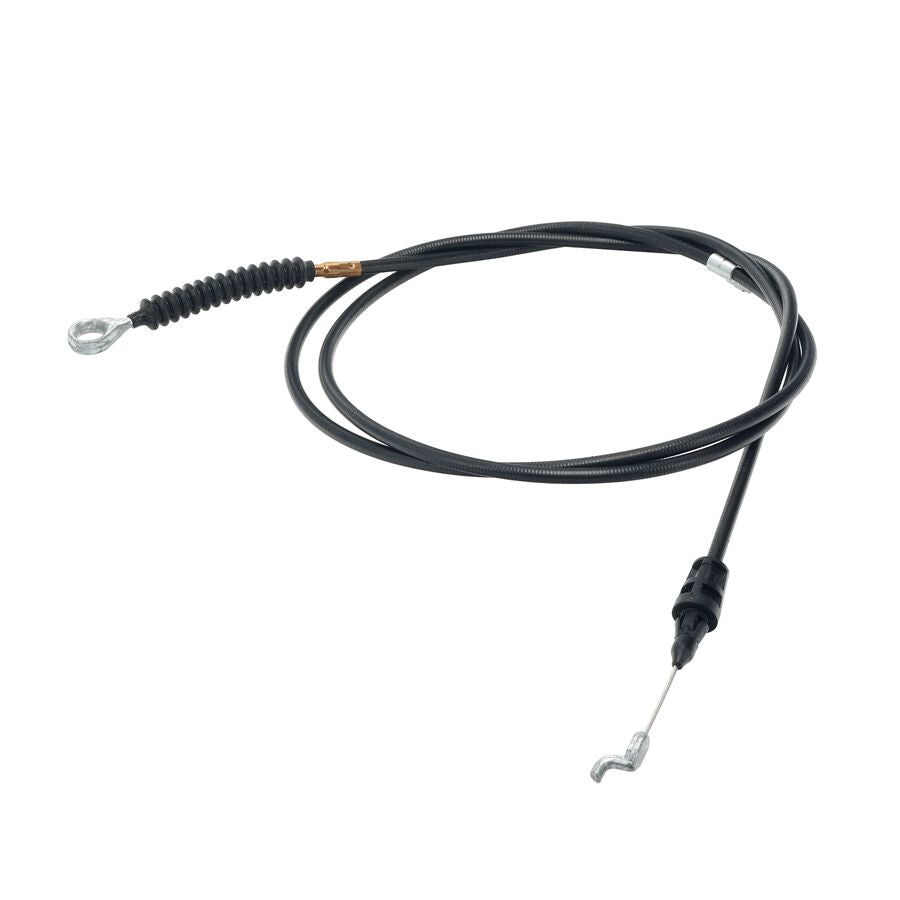

Toro OEM 105-9990 Snowblower Chute Deflector Control Cable Fits Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 105-9990, 105 9990, 1059990
• PRODUCT TYPE: Chute Deflector Control Cable
• SIZE: Length N/A - Width N/A - Height N/A - Weight 0.370 lbs.
• NOTES & DETAILS: Toro OEM  105-9990 IS COMMINLY USED - 105-9990 Cable Ends - Hook or Shoe End Inserts into the Control Rod/Bracket that Mounts to the Chute Control Handle the Eyelet End Fastens to the Chute Deflector with the Chute Deflector Pivot Rod. - 105-9990 The Cable Itself - Fastens through a Series of Fasteners and Clamps that retain it to the Snowblower Assembly. Cable is routed around the Engine Erea and Retained to the Frame Using the Factory Installed Cable's Clamp Via a Washer Head Bolt - Next the Cable Feeds through a Cable Clamp and Fastener that Attaches to the Cable Bracket with the Chute Gear Support Bracket that Attaches to the Plastic Discharge Chute. - 105-9990 Deflector Cable Assembly - Only Serves the Purpose of Lowering and Raising the Deflector as the Operator Pushes and Pulls the Chute Control Handle Foward and Backward this Also Enables the Operator to Control the Distance of Snow Travel Preventing Blowing Snow and Debris Against Vehicles or other Object, Items and Areas.
• COMMON SERIES APPLICATIONS: Toro Select Standard Power MAX & Power MAX HD Snow Blower Models.





• MODEL FIT CHART:



SNOWBLOWER’S



POWER MAX Series – Model Numbers – (* Model Numbers 38595, 38597, 38610, 38611, 38614, 38620, 38621, 38622, 38624, 38629, 38630, 38631, 38632, 38633, 38634, 38635, 38637, 38639, 38640, 38641, 38642, 38644, 38645, 38650, 38651, 38652, 38657, 38654, 38660, 38661, 38662, 38663, 38664, 38674, 38680, 38800, 38801, 38802, 38803, 38805, 38806, 38820, 38822, 38823, 38824, 38826, 38828, 38833, 38834, 38836)





• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 105-9990 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 106-4479 - Chute Control Rod Bracket (Whole for Cable Shoe or Hook) x1
2. 32144-85 - Washer Head Bolt (Retains the Cable to the Snowblower Main Frame Using the Factory Installed Cable Clamp Via the Bolt) x1

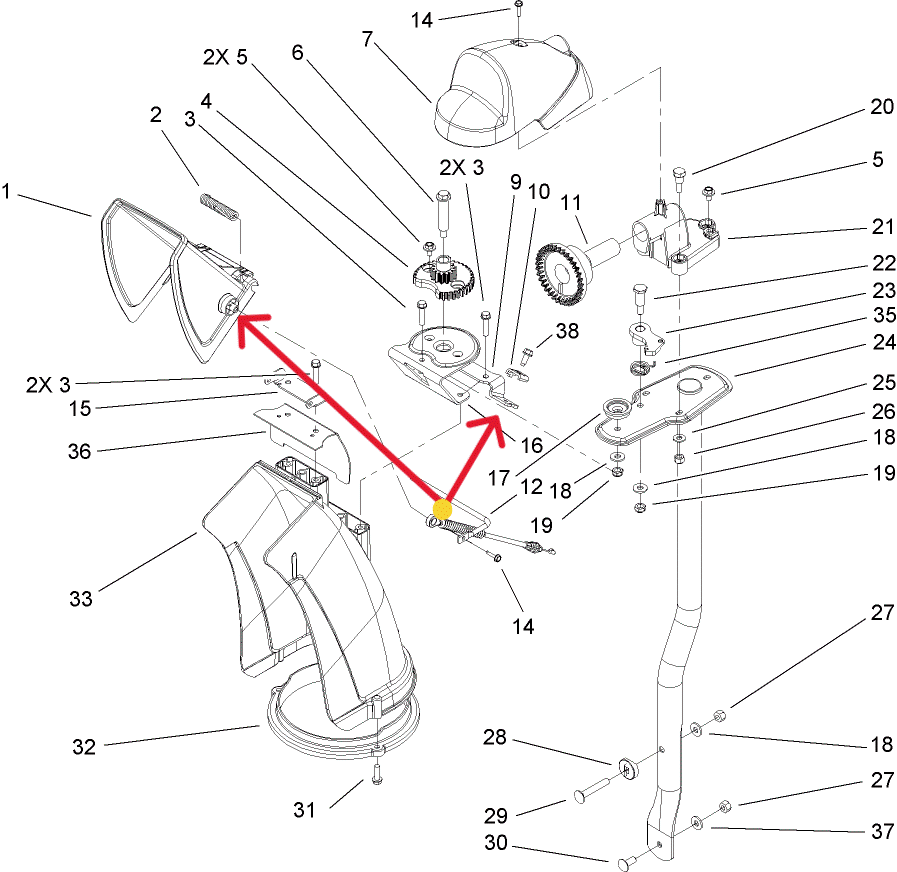

3. 106-7296 - Cable Bracket (Retains Cable to the Discharge Chute) x1
4. 106-7297 - Cable Clamp (Retains the Cable to the Cable Bracket Via the Washer Head Bolt) x1
5. 32144-10 - Washer Head Bolt (Retains Cable Clamp and Cable to Cable Bracket) x1
6. 112-6629 - Deflector Chute - Plastic (Retains the Cable's Eyelet End & Deflector Pivot Rod Via the Bolt and Molded Flange/Whole on the Side of the Chute Deflector) x1
7. 98-1375 - Washer Head Bolt (Retains the Cable Eyelet with the Chute Pivot Rod to the Deflector Chute) x1
