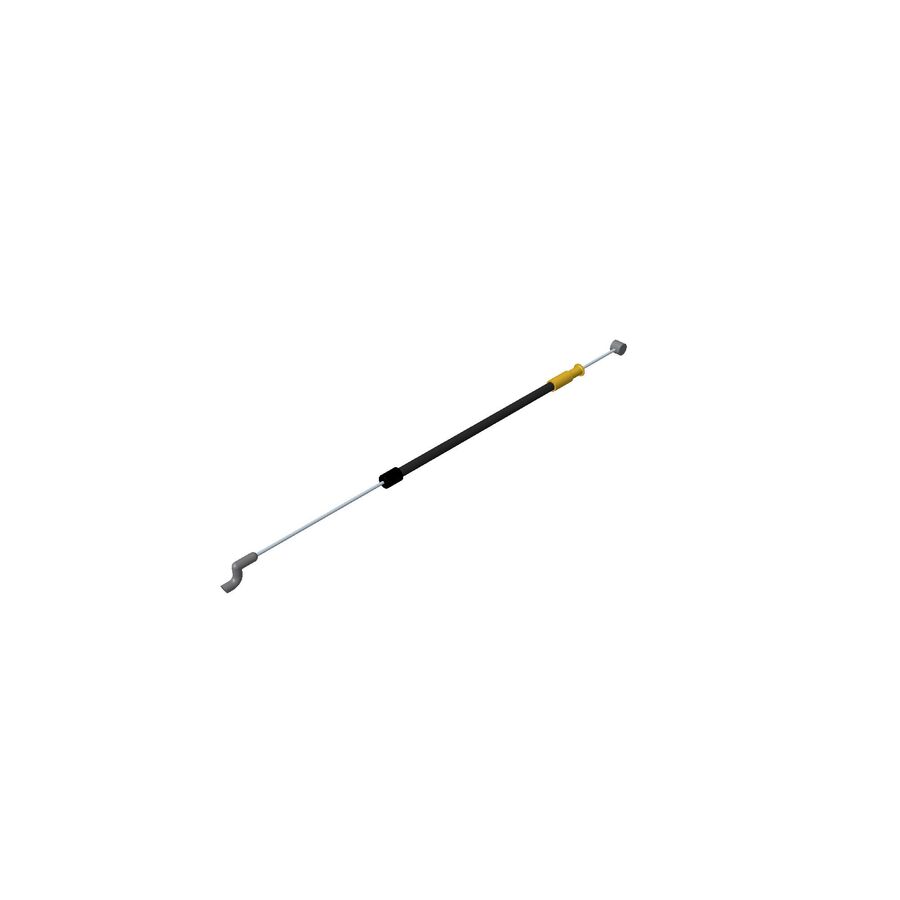

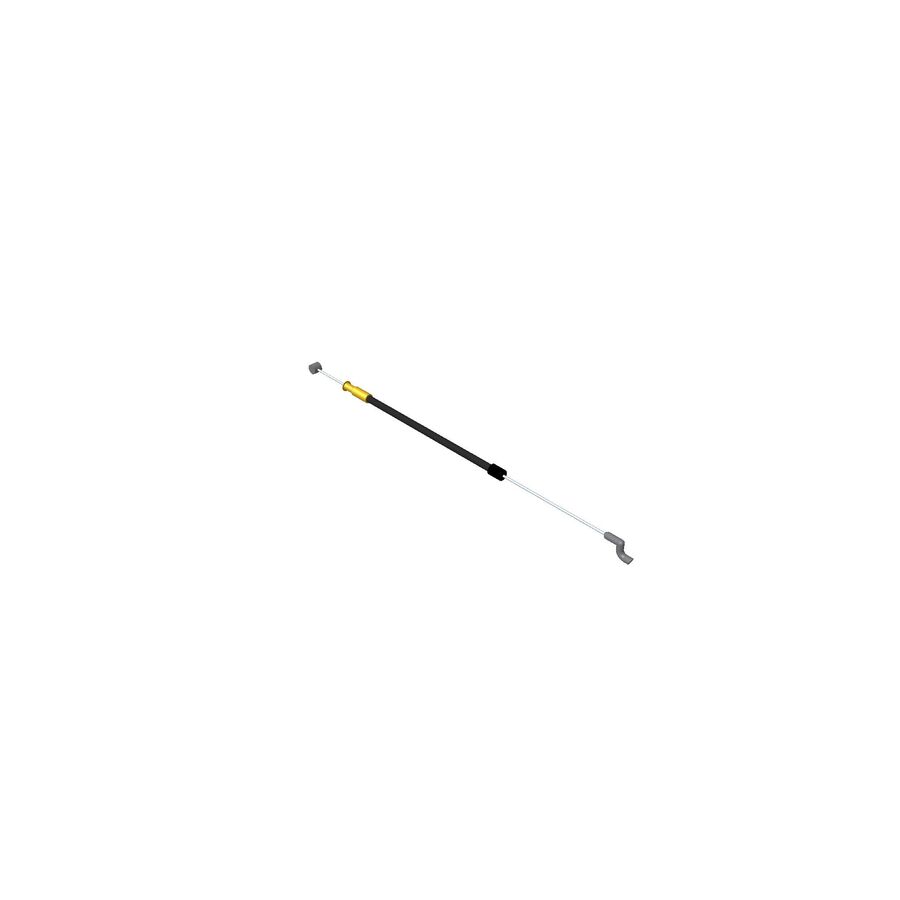

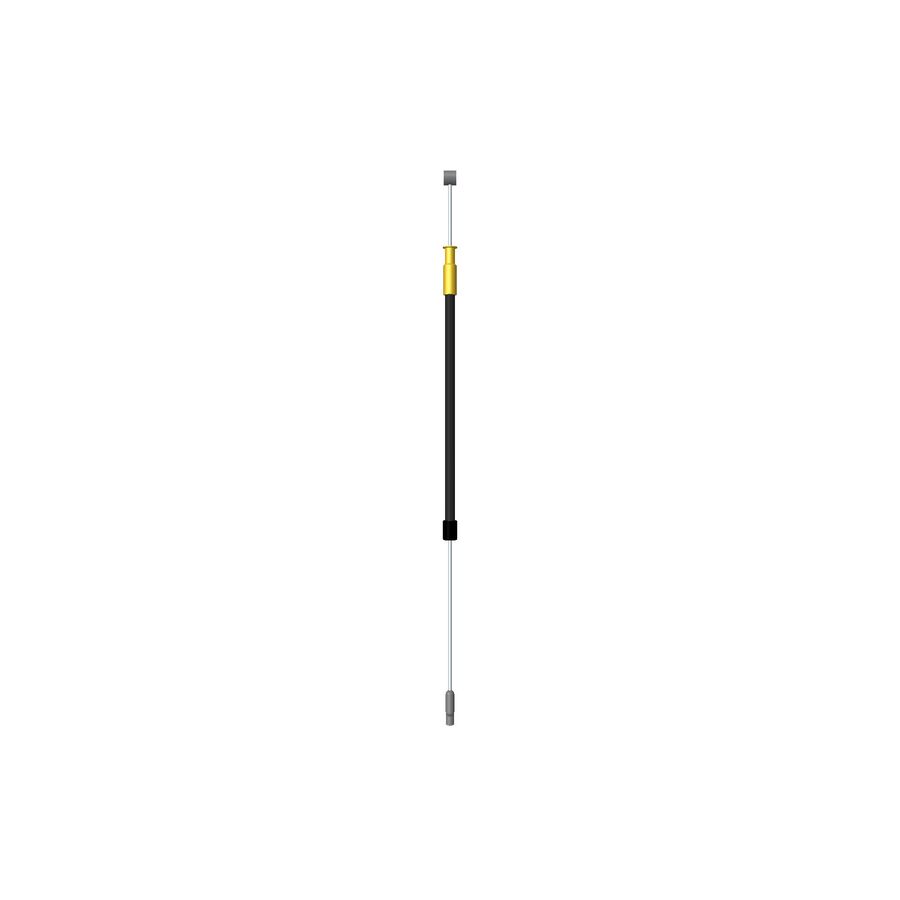

Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).
Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).
Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).
Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).
Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).
Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).
Roll over image to zoom in Click on image to zoom
Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).
Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).
Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).
Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).
Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).
Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).

Toro OEM 105-9989 Snowblower Chute Release Cable Select Standard Power Max and Power Max HD Snowblower Models (Plastic Chute).

ToroSKU: 105-9989
Price:
$25.99

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





  • PRODUCT NUMBER AND VARIATIONS: 105-9989, 105 9989, 1059989
  • PRODUCT TYPE:  Discharge Chute Latch Release Cable
  • SIZE: Length N/A - Width N/A - Height N/A - Weight 0.220 lbs.

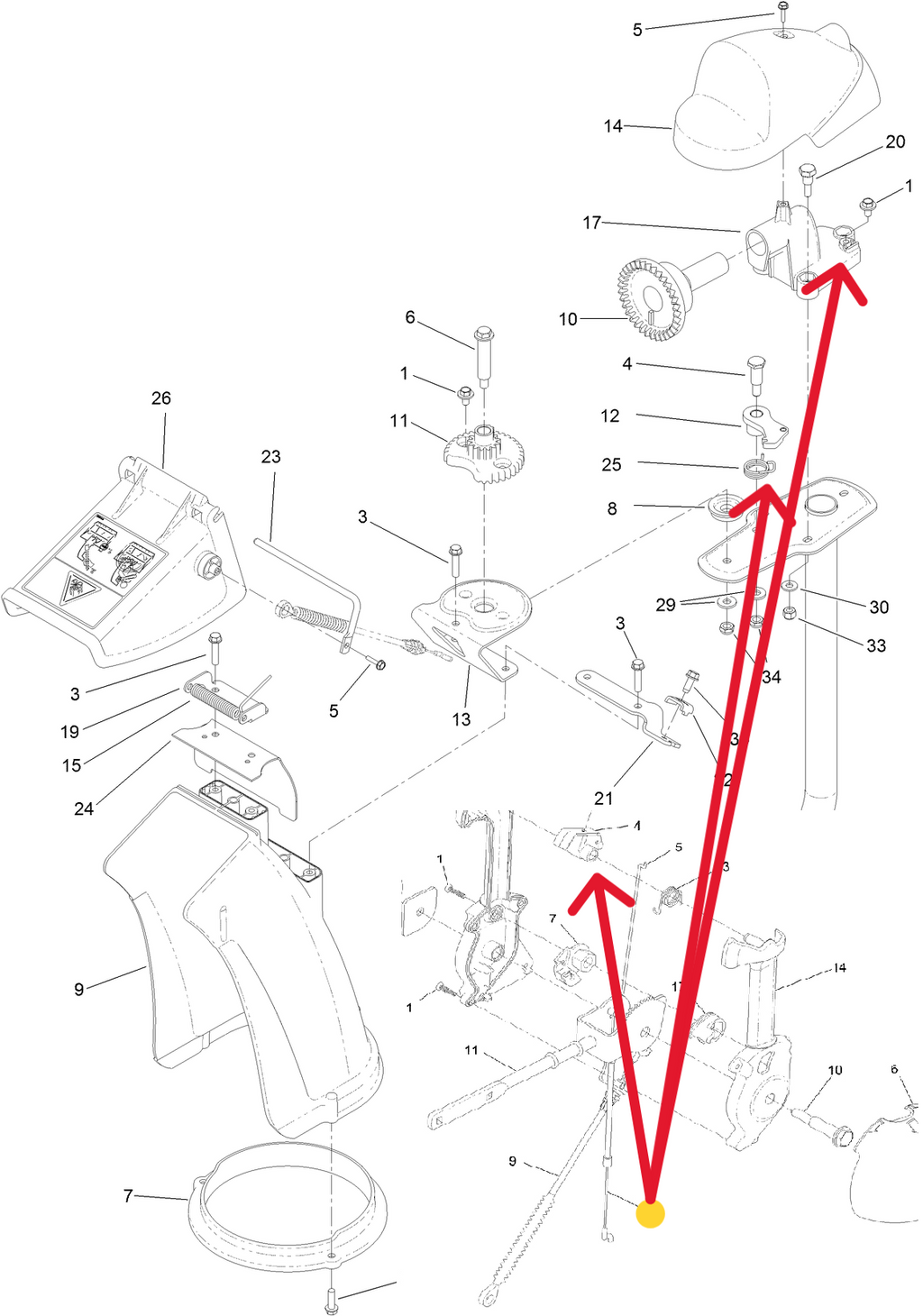

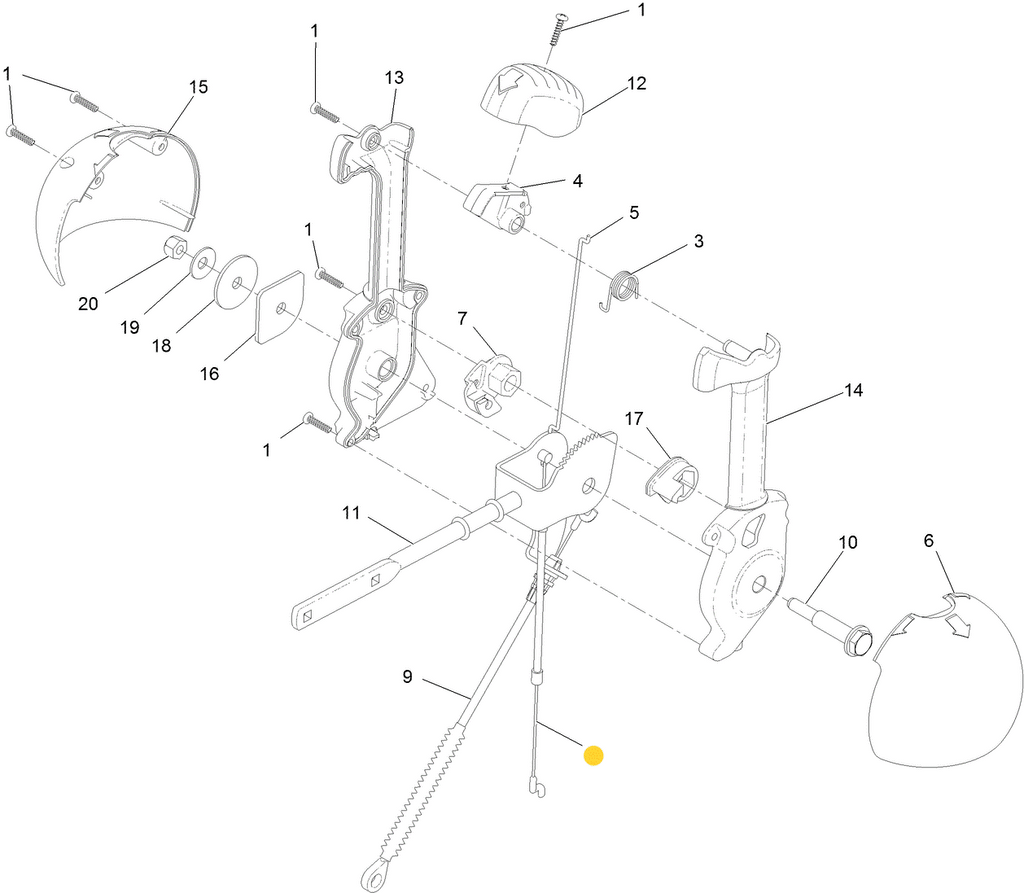

  • NOTES & DETAILS: Toro OEM 105-9989 IS COMMINLY USED - 105-9989 Cable Ends - 105-9989 Chute Release Cable Attaches to the Chute Release Cable's QuickStick or Latch Lever 105-9988 that is Assembled inside the Handle or Quickstick assembly. The Lower End of the Chute Release Cable (With the Hook or Shoe) Attaches to the Quickstick Chute Latch 106-4476 (Latch is Responsible from Disabling the Discharge Chute to Rotation). - 105-9989 The Cable Itself - 105-9989 Chute Release Cable is Routed from the Chute Control Lever or Quistick Assembly Across the Discharge Chute Rod 106-7283 and Fastened to the Chute Control Rod with the Factory Installed Cable Clamp By Using the Bolt Whole on the Chute Control Rod and Carriage Bolt 3229-30 and Nylon Lock Nut 3296-73 - Next the Cable Continues Its Route Directly to and Insert Into the Cable Anchor  on the Chute Gear Mount 106-7257 and Retained Using the Anchor Screw Washer Assembly 46-6810. - 105-9989 Deflector Cable Assembly - Enables the Operator to Push on the Blue Lever/Button on the Control Handle or Quick stick, By Pushing the Button/Lever the Cable Pulls the Toothed Latch Away from the Discharge Chute Gear Allowing the Discharge Chute to Rotate Left to Right as the Operator Rotate the Quickstick Left to Right. Click on the Associated Part Numbers to Be Redirected.
  • COMMON SERIES APPLICATIONS: Select Toro Standard Power MAX & Power MAX HD Snow Blower Models.





  • MODEL FIT CHART:



SNOWBLOWER’S



POWER MAX Series – Model Numbers – (* Model Numbers 38595, 38597, 38610, 38611, 38614, 38620, 38621, 38622, 38624, 38629, 38630, 38631, 38632, 38633, 38634, 38635, 38637, 38639, 38640, 38641, 38642, 38644, 38645, 38650, 38651, 38652, 38657, 38654, 38661, 38662, 38663)
