Description

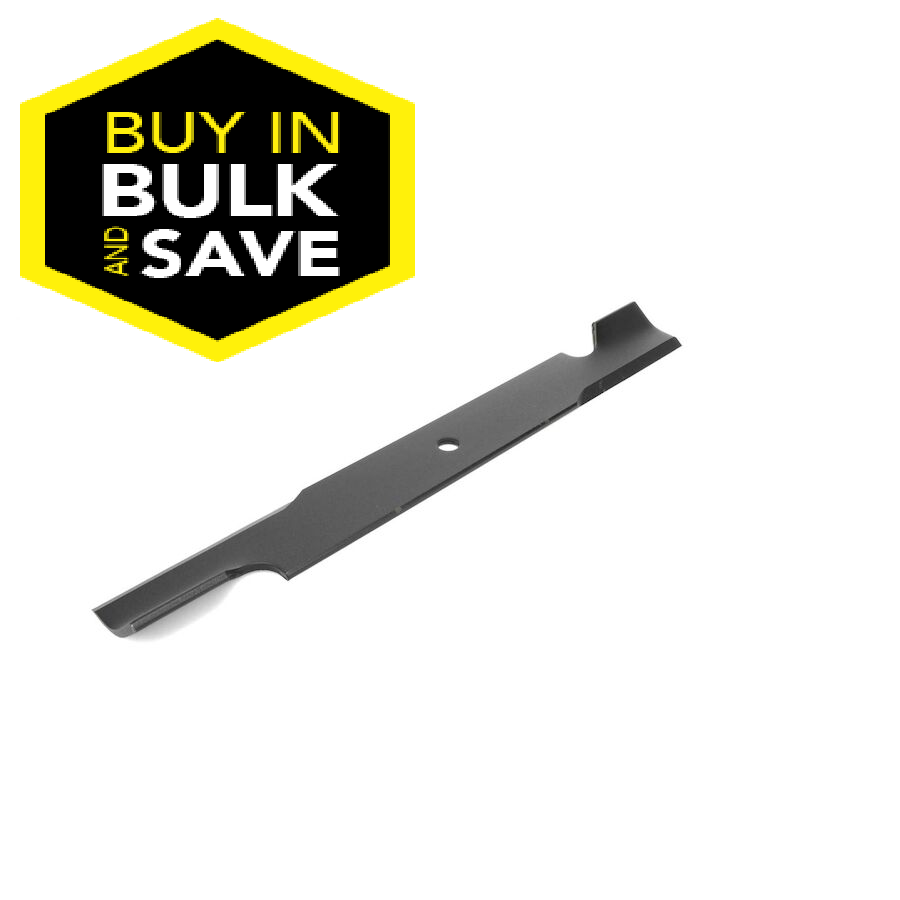

Toro OEM 105 7718 03 HI-FLO Mower Deck Blade was created for the purpose of giving a little extra lift to that wet heavy grass that seems to want to fall short of your discharge chute. The OEM 105 7718 03 HI Lift Mower Blades have an added lip that increases air volume and promotes air circulation in your deck, resulting in a cleaner mowing experience without clumps. This feature varies in effectiveness depending on the type of grass you have. This Mower Deck Blade was made to OEM Specifications to fit Toro Grandstand and ZMaster 3000, 5000, 6000, and 7000 series with a 60 in. Deck. Please Refer to the Special Notes, References and The Model Fit Chart below to ensure a proper fit. Click on the Part Numbers to be redirected. Part Number 105-7718 Supersedes to 105-7718-03.
NOTE: Due to a Serial Number brake that could overlap Models, The Toro 105-7718-03 does require the External Octogen or Round Shaft/Blade Arbor Assembly with the Stand-Alone bolt and removable Belleville Washer. Refer to the image above for an accurate Comparision. If you have a Hex Insert Shaft/Blade Arbor refer to part number 140-1240.
- COMPATIBLE BLADE REFERENCES
- 105-7716-03 - Low Lift Blade
- 105-7715-03 - Medium Lift Blade
- 105-8777-03 - Atomic Blade
- 105-7777-03 - Mulching/Recycler Blade
- COMPATIBLE PART REFERENCES
- 51-4060 - Blade Bolt
- 103-0865 - Removable Belleville Washer
- 119-8560 - Spindle Assembly/Round Shaft (Click on part number to view associated parts)
- 127-0560 - Spindle Assembly/External Octogen shaft (Click on part number to view associated parts)
Specification
|
Product Number: |
105771803, 1057718 |
|
Brand: |
Toro |
|
Length: |
20.200 IN (51.308 CM) |
|
Width: |
2.750 IN (6.985 CM) |
|
Height: |
0.900 IN (2.286 CM) |
|
Weight: |
3.230 LB (1.465 KG) |
Model Fit:
74244, 74245, 74246, 74250, 74251, 74255, 74268, 74265, 74262, 74249, 74267, 74263, 30280, 74238, 74272, 74253, 74283, 74292, 74915, 74925, 74935, 74550, 74296, 74926, 78926, 79551, 74551, 74975, 74553, 74936, 79553, 74930, 74954, 74583, 74939, 74956, 74978, 74957, 74958, 74933, 74946, 74576, 74990, 74991, 74992, 74513, 74523, 74996, 74997, 74950, 74960, 74923, 74943, 75936, 75951, 75967, 75930, 75990, 74060, 74969
