Description

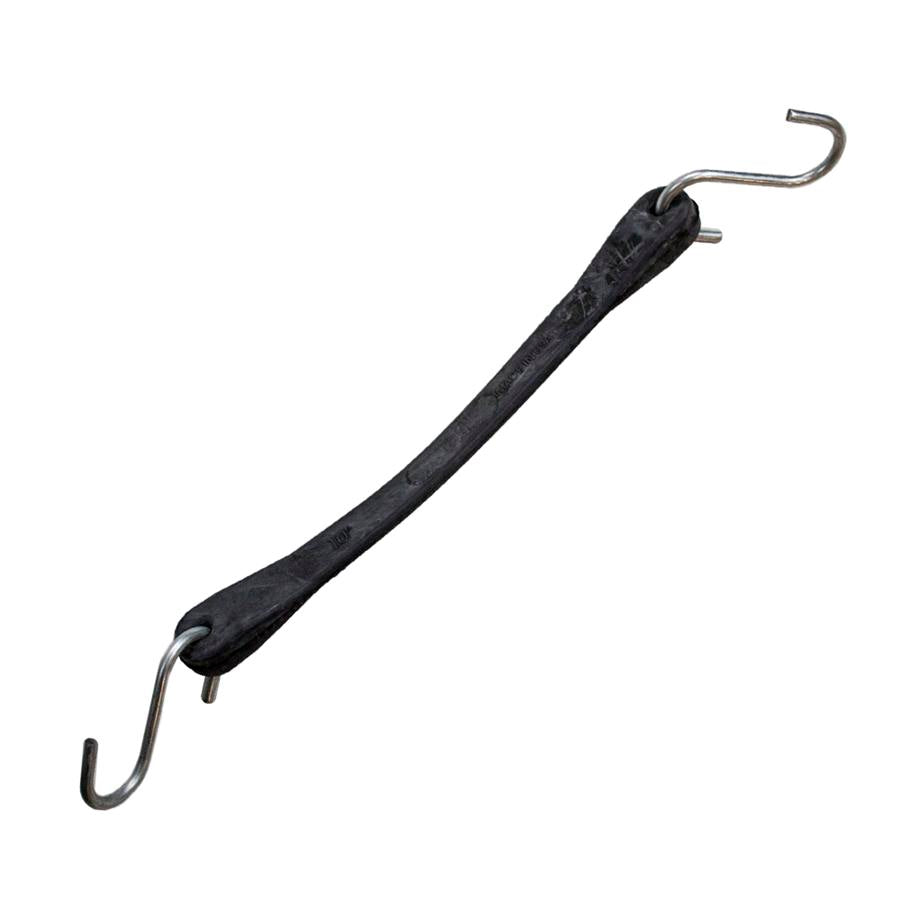

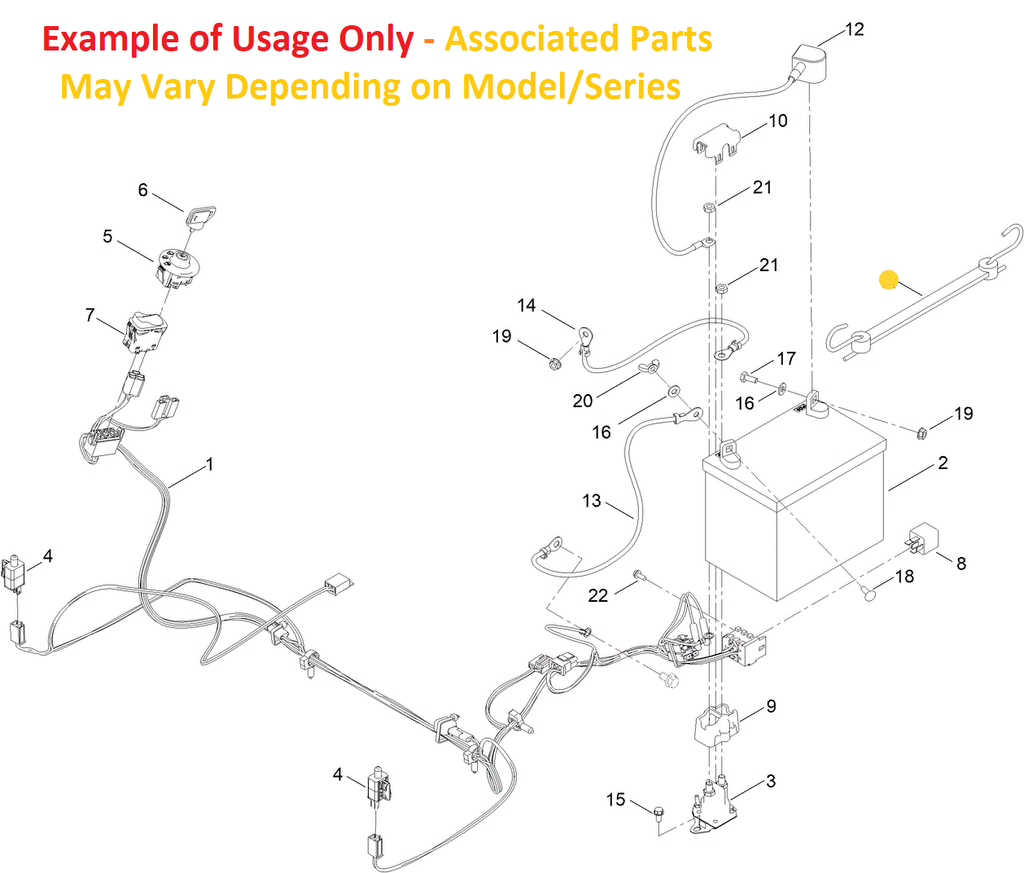

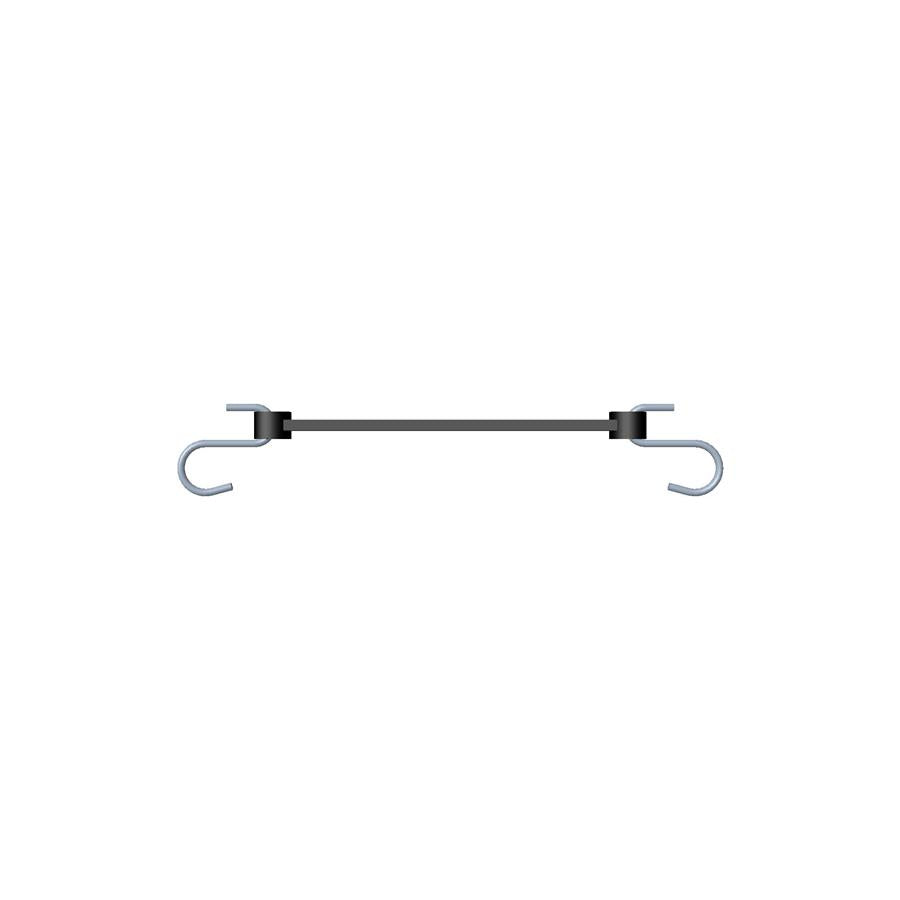

Please refer to the Images above; Product Specifications and the Model Fit Guide below to Ensure a proper fit. The Differences in sizes With the Battery Hold-Down Straps that contain the Two Metal Hook-Style Basically Revolves Between a 15" & 14" Strap. The Models with the Shorter Strap Will Typically Have Elevated Ears that the Strap Will Hook into Whereas the Longer of the Two would typically Hook into the Slots on the Battery Plate where the Battery is Setting.
- PRODUCT NUMBER AND VARIATIONS: 104-2466, 104 2466, 1042466
- PRODUCT TYPE: TORO OEM BATTERY HOLD-DOWN STRAP
- NOTES & DETAILS: Toro OEM 104-2466 14 in. Battery Hold Down Strap is Made to Perfection for the Toro Battery Size and is Designed for Quick Easy Disconnect with a Hook & Bungy Strap Design Allowing. Toro OEM 104 2466 Battery Bungy Strap Eliminates Removing Corroded Battery Hold Down Bracket and Hardware.
- SIZE: 14 in.
- COMMON SERIES APPLICATIONS: Toro All Current Timecutter MAX Models - Select Late Timecutter Models - Late Timecutter HD Models - All Current Titan Models (Excluding Titan Max Models - Only Models With I-Beam Framing) - Most Late Titan Models (Tube Style Framing) - All Current/Late Proline Models - Stand-On Aerator Models - Older Riding Tractor and G4000 Zero Turn Models.
- MODEL FIT CHART:
144-2570, 23518, 29516, 29517, 29518, 29519, 29521, 33518, 39514, 39517, 39518, 39519, 39521, 44409, 44410, 44423, 44424, 44427, 44430, 44436, 44448, 44454, 44460, 725057006, 725057016, 725057026, 725057036, 725058006, 725058016, 725058026, 725058036, 725058046, 725058056, 725058066, 725058086, 73429, 73449, 73450, 74301, 74325, 74327, 74330, 74350, 74351, 74352, 74353, 74360, 74363, 74365, 74366, 74370, 74372, 74373, 74374, 74375, 74376, 74380, 74381, 74385, 74386, 74387, 74388, 74389, 74390, 74391, 74395, 74398, 74399, 74401, 74402, 74403, 74405, 74406, 74407, 74419, 74420, 74425, 74432, 74433, 74434, 74437, 74501, 74502, 74601, 74602, 74603, 74616, 74620, 74621, 74622, 74623, 74624, 74625, 74626, 74627, 74628, 74629, 74630, 74631, 74632, 74633, 74635, 74636, 74637, 74638, 74640, 74641, 74642, 74643, 74650, 74655, 74656, 74657, 74660, 74661, 74665, 74667, 74670, 74675, 74676, 74680, 74682, 74684, 74686, 74688, 74701, 74702, 74704, 74705, 74706, 74710, 74711, 74720, 74721, 74722, 74723, 74725, 74726, 74727, 74730, 74731, 74732, 74740, 74741, 74750, 74760, 74765, 74766, 74768, 74770, 74771, 74772, 74773, 74774, 74775, 74776, 74777, 74778, 74780, 74781, 74784, 74785, 74787, 74788, 74790, 74793, 74795, 74797, 74798, 74801, 74802, 74806, 74864, 74865, 74866, 74867, 74874, 74875, 74876, 74877, 74886, 74887, 74888, 74889, 74890, 74898, 75201, 75202, 75210, 75211, 75212, 75213, 75301, 75302, 75303, 75304, 75305, 75306, 75310, 75311, 75312, 75313, 75314, 75315, 75316, 76401, 76411, 76420, 76425, 76448, 76501, 76511, 76530, 76554, 76604, 76605, 76614, 76635, 76660, 77402, 77403, 77501, 77502, 77503, 77504, 77505, 77506, 77507, 77601, 77602, 77603, 81228, 81229, 81230, 81235, 81240, 81242, 81243, 81245, 81246, 81250, 81270, 81271, 94301, 94327, 94330, 94351, 94352, 94360, 94370, 94372, 94375, 94603, 94802, 94806
