Toro OEM 104-0892 Anti-Scalp Wheel Spacer Fits Toro Timecutter HD Model - Titan 4800, 5400, 6000, X, XS, Z, ZX, MX, Standard, My-Ride Models - Titan Max Models - 60" Grandstand Standard, Multi-Force, Revolution Models - Proline Models.

Toro OEM 104 0892 (Plastic) Anti-Scalp Wheel Spacer or Rear Axle Spacer Fits on the Non-Molded Flange Side of the Anti-Scalp Wheel and is Often Used with a Two Spacer/One Bolt System. This Spacer System is Often Used on Models that Require the Anti-Scalp Wheel to Be Installed inside a Dual Bracket System with Retaining Ears on Both Sides of the Anti-Scalp. Toro 104 0892 Spacer Spaces the Non-Molded Flange Side of the Anti-Scalp Wheel Away from the Retaining Ear, eliminating it From Rubbing on the Retaining Ear and Enabling it to Spin Freely. 104-0892 Anti Scalp Wheel Spacer Fits Toro Late Timecutter HD Models - Late/Current Proline Models - Late/Current 60" Grandstand Standard, MultiForce, Revolution Models - Current Titan Standard and My-Ride Models (I-Beam Framing) - Current Titan MAX Models (I-Beam Framing) - Late Titan X, XS, 4800, 5400, 6000, Standard, My-Ride Models (Tube Style Framing) - Early Titan Z, ZX, MX Models (Only Models with Dual Ear Fastening Points - Some Models May Contain a Single Ear and Require a Flange Bolt Instead of the Spacer System Depending on Model and Serial Number Breaks) - Early Snow Commander Snowblower Models (Used in Between Framing and Rear Wheel for Spacing).

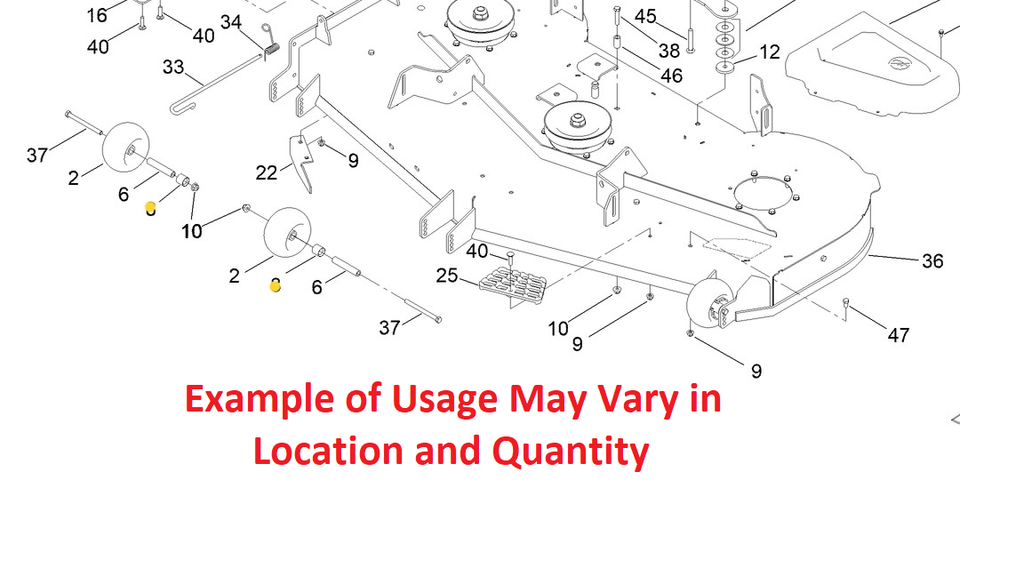

*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED ANTI-SCALP WHEEL PARTS FOR PART NUMBER 104-0892 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 323-23 or 139-2592 - HEX HEAD BOLT (Retains the Anti-Scalp Wheel, Anti-Scalp Wheel Spacer and Spanner to Mower Deck) x1 Per Anti-Scalp Wheel *Bolt Size is the Same - 2 Different Part Numbers for the Same Size Bolt - 139-2592 Part Number Used on Current I-Beam Titan Models.
2. 98-7912 - ANTI-SCALP WHEEL SPANNER TUBE (Serial Number Break) - (Installed Through the Mower Deck Anti-Scalp Wheel and Anti-Scalp Wheel Spacer as well as Between the Dual Mower Deck Fastening Ears/Bracket - Enables the Fasteners Bolt/Nut to Be Firmly Tightened Without Bending the Mower Deck Anti-Scalp Wheel Fastening Ears/Bracket Against the Anti-Scalp Wheel) x1 Per Anti-Scalp Wheel * Models May Overlap in Part Requirement with Part Number 138-7229 However to Unsure a Correct Fit Review The Model Fit Chart for Each Part Number. Model Numbers That Do overlap with Part Number 138-7229 will Have Serial Number Breaks - any Serial Number 400000000 and Higher Except Model 75210 Which Would be 40431400 and Higher Refer to Part Number 138-7229 - Any Model Number with Overlapping Part Number Requirement Under Those Serial Numbers Would Require Part Number 98-7912.
3. 138-7229 - ANTI-SCALP WHEEL SPANNER TUBE (Serial Number Break) - (Installed Through the Mower Deck Anti-Scalp Wheel and Anti-Scalp Wheel Spacer as well as Between the Dual Mower Deck Fastening Ears/Bracket - Enables the Fasteners Bolt/Nut to Be Firmly Tightened Without Bending the Mower Deck Anti-Scalp Wheel Fastening Ears/Bracket Against the Anti-Scalp Wheel) x1 Per Anti-Scalp Wheel * Models May Overlap in Part Requirement with Part Number 98-7912 However to Unsure a Correct Fit Review The Model Fit Chart for Each Part Number. Model Numbers That Do overlap with Part Number 98-7912 will Have Serial Number Breaks - any Serial Number 400000000 and Higher Except Model 75210 Which Would be 40431400 and Higher Refer to Part Number 138-7229 - Any Model Number with Overlapping Part Number Requirement Under Those Serial Numbers Would Require Part Number 98-7912.
4. 104-0892 - ANTI-SCALP WHEEL SPACER TUBE (Plastic - *Select Models) - (Installed Over the Anti-Scalp Wheel Spanner Tube and Against the Non-Molded Flange Side of the Anti-Scalp Wheel to Eliminate the Anti-Scalp Wheel from Moving Side to Side and Rubbing Against the Metal Anti-Scalp Wheel Fastening Ears/Brackets) x1 Per Anti-Scalp Wheel
5. 1-603299 - ANTI-SCALP WHEEL (Small Wheels Fastened to the Mower Deck and Aids in Helping the Mower Deck to Float Across Uneven Terrain, Helping to Eliminate Scalping) x? Quantity Varies Depending on Model/Series
6. 104-8301 - FLANGE LOCK NUT (Retains the Ant-Scalp Wheel, Anti-Scalp Wheel Spacer and Spanner to Mower Deck) x1 Per Anti-Scalp Wheel









Specification

Product Number:	104-0892
Brand:	Toro
Length:	0.700 IN (1.778 CM)
Width:	1.000 IN (2.540 CM)
Height:	1.000 IN (2.540 CM)
Weight:	0.015 LB (0.007 KG)





Model Fit:



TIMECUTTER



TIMECUTTER 48” HD Series – Model Numbers – (* Model Numbers 74864, 74866, 74886, 75201, 75210, 75211)



TIMECUTTER 54” HD Series – Model Numbers – (* Model Numbers 74865, 74867, 74876, 74888, 75202, 75212)



TIMECUTTER 60” MX Series – Model Numbers – (* Model Numbers 74777)

TIMECUTTER 60” HD Series – Model Numbers – (* Model Numbers 75213)





TITAN



48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)

48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)

48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)

48” Titan Z, ZX, MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74846, 74851, 74855, 74891, 74861, 75301)



54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)

54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)

54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)

54” Titan ZX, MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74848, 74852, 74862, 74882, 74892, 75302)



60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)

60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)

60” Titan ZX, MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models Only - (* Model Numbers 74853, 74863, 74883, 74893, 75303)



60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)

60” TITAN MAX (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 76601, 76602)





GRANDSTAND



60” GRANDSTAND – (Standard) – (* Model Numbers 72509, 72512, 72513, 72520, 74513, 74523)

60” GRANDSTAND – (Multi-Force) – (* Model Numbers 72523, 72524)

60” GRANDSTAND – (Revolution) – (* Model Numbers 18564,





PROLINE



48” Proline Series – 48” Current/Late Models Only - (* Model Numbers 44423, 44424, 44448)



54” Proline Series – 54” Current/Late Models Only - (* Model Numbers 44427, 44454)



60” Proline Series – 60” Current/Late Models Only - (* Model Numbers 44430, 44460)





SNOW COMMANDER



SNOW COMMANDER – (* Model Numbers 38600, 38601, 38602, 38603)





MISC.



ANTI-SCALP WHEEL KITS - Part Numbers - (* Model Numbers 133-1440)
