Description

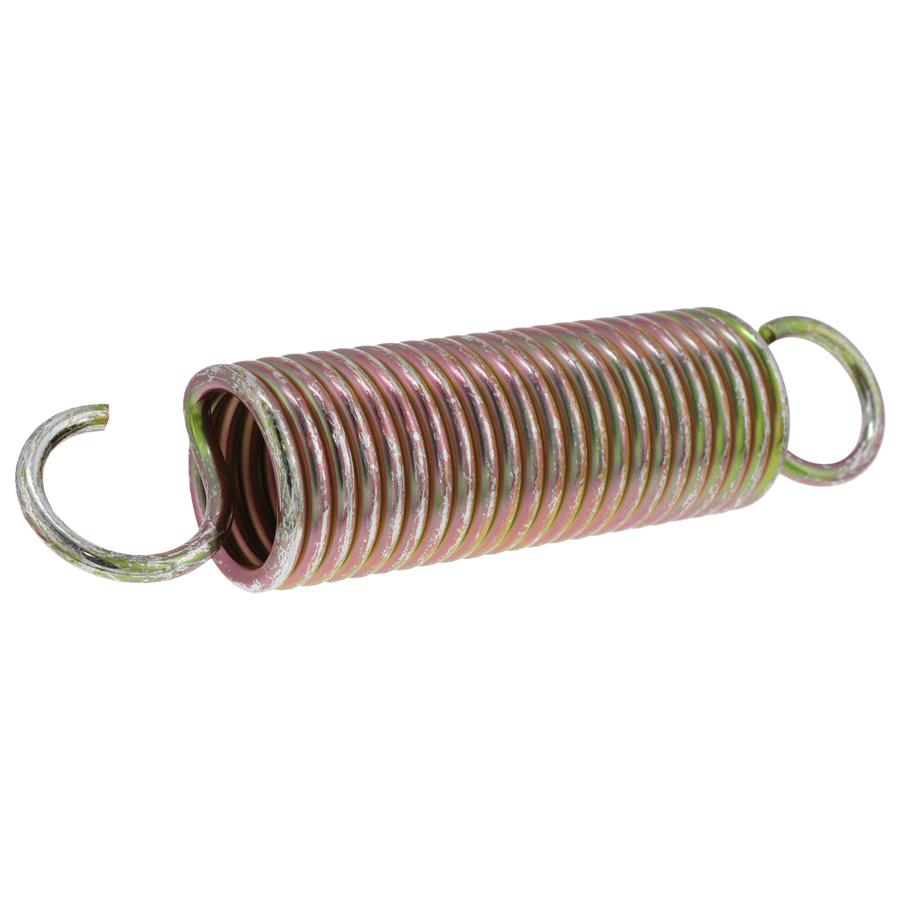

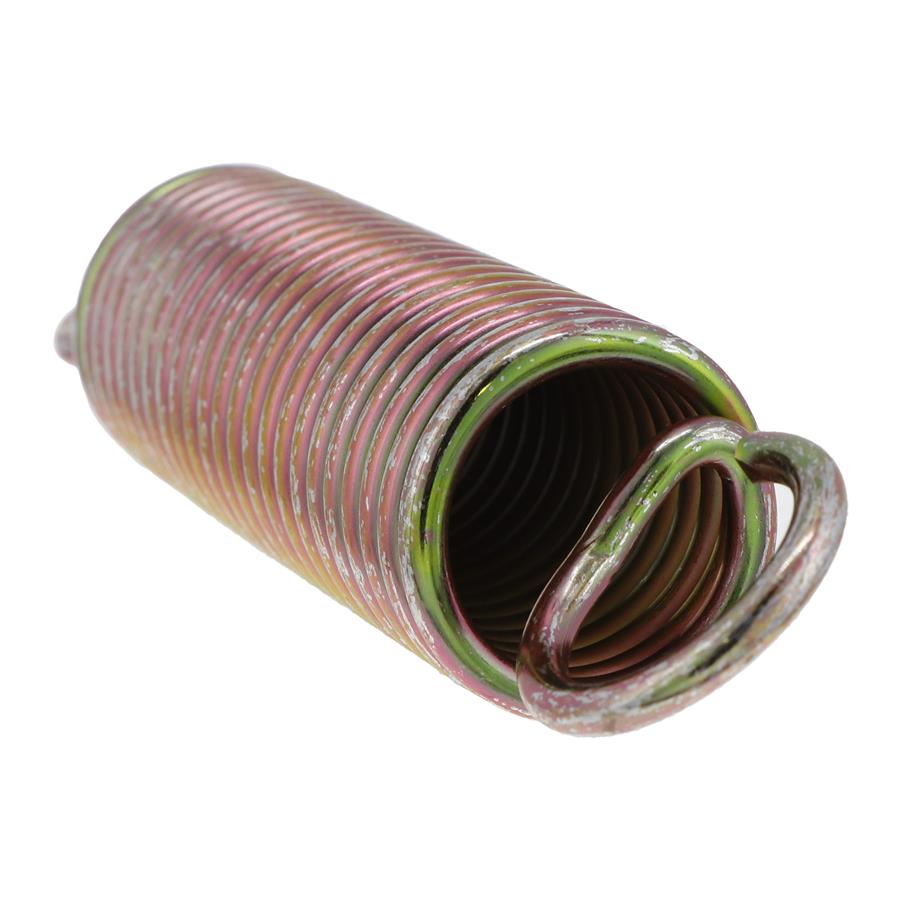

Toro OEM 1 603414 Mower Deck Tension Spring is the Part that allows for Forgiveness in Uneven Mower Deck Work Loads, Absorbing Unfortunate Mower Blade Impacts, keeping that Belt Tight and by doing all that Eliminating the Belt from coming Off and Creating Additional Damage. So, when it comes to Replacement Springs Trust no other than Toro OEM to Be Size Correctly and Tested to withstand the Hard Rigorous Workload the Toro OEM 1 603414 is expected to fulfill. Toro OEM 1-603414 Spring is used on more recent Early Model 50", 54", 60", MX, SS, SWX, Z, ZS, Timecutter Models and 50" TITAN ZX Models as a Mower Deck Spring. However, Early Model Riding Mower such as 44" Z & 52" ZX Timecutter Models and Some ZMaster Models would have used it as Hydraulic Belt Tension Spring and the Zmaster Diesels as a Tension Spring on the Water Pump Belt. For an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Numbers E603414 Supersede to Part Number 1-603414.
Specification
|
Product Number: |
E603414, 1603414 |
|
Brand: |
Toro |
|
Length: |
5.750 IN (14.605 CM) |
|
Width: |
1.250 IN (3.175 CM) |
|
Height: |
1.250 IN (3.175 CM) |
|
Weight: |
0.430 LB (0.195 KG) |
Model Fit:
TIMECUTTER 44” Z Series (HYDRAULIC DRIVE) – Model Numbers – 74501, 74601, 74270, 74401, 74502, 74602, 74603, 74406

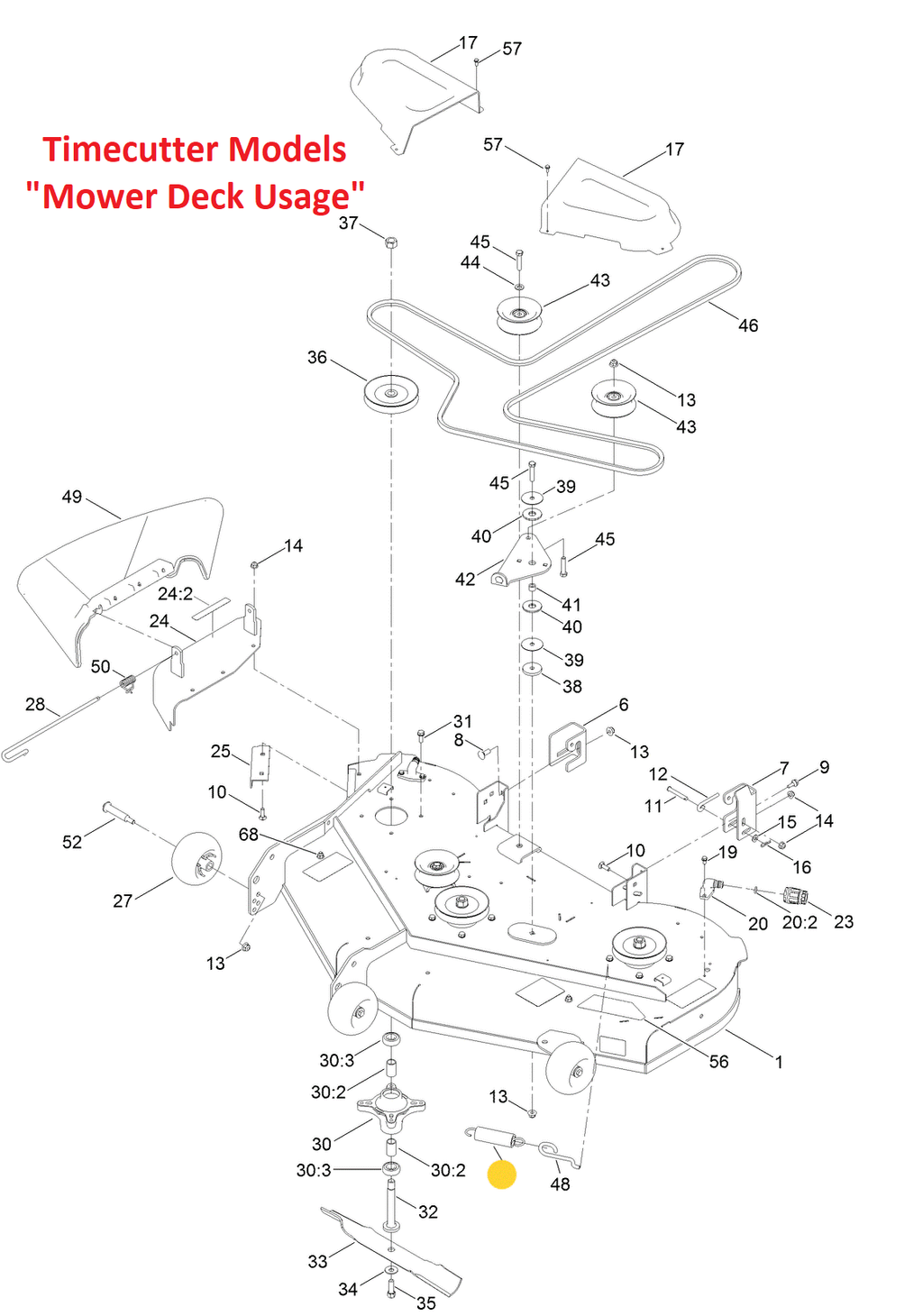

TIMECUTTER 44” Z Series (MOWER DECK) – Model Numbers – 74351
TIMECUTTER 48” Z Series (MOWER DECK) – Model Numbers – 74352, 74704, 74353
TIMECUTTER 50” MX Series (MOWER DECK) – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774
TIMECUTTER 50” Z Series (MOWER DECK) – Model Numbers – 74370, 74372 74391, 74399, 74374, 74375, 74373, 74376, 74398, 74387
TIMECUTTER 50” ZS Series (MOWER DECK) – Model Numbers – 74387, 74660, 74661, 74395
TIMECUTTER 50” SS Series (MOWER DECK) – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732
TIMECUTTER 50” SW Series (MOWER DECK) – Model Numbers – 74793, 74680, 74790, 74795
TIMECUTTER 50” SWX Series (MOWER DECK) – Model Numbers – 74797, 74798, 74795
TIMECUTTER 52” ZX Series (HYDRAULIC DRIVE) – Model Numbers – 74701, 74801, 74405, 74702, 74802, 74806, 74407
TIMECUTTER 54” SS Series (MOWER DECK) – Model Numbers – 74740, 74741
TIMECUTTER 54” SW Series (MOWER DECK) – Model Numbers – 74793
TIMECUTTER 60” MX Series (MOWER DECK) – Model Numbers – 74777

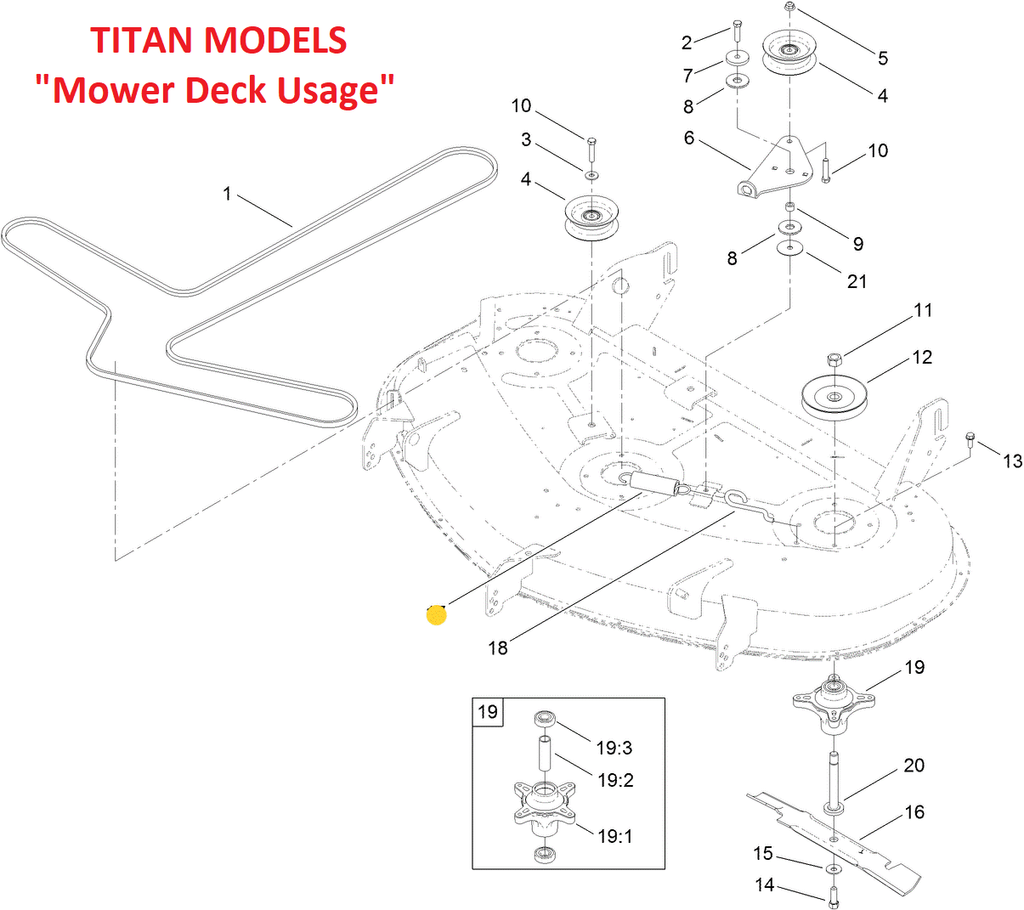

TITAN 50” ZX Series (MOWER DECK) – Model Numbers - 74820, 74840
G4000 Series (MOWER DECK)– Model Numbers - 94370, 94372, 94375, 725058056, 725058066, 725058086
MZ Riding Tractor Series (HYDRAULIC DRIVE) – Model Numbers 94802, 725057036, 725058016, 94806, 94603, 725058036
MZ Riding Tractor Series (MOWER DECK) – Model Numbers 94351, 725057026, 94352, 725058006
ZMaster Z Series (HYDRAULIC DRIVE) – Model Numbers – 74170, 74171, 74172, 74173, 74174, 74175, 74176, 74177, 74178, 74179, 74197, 74198, 74270

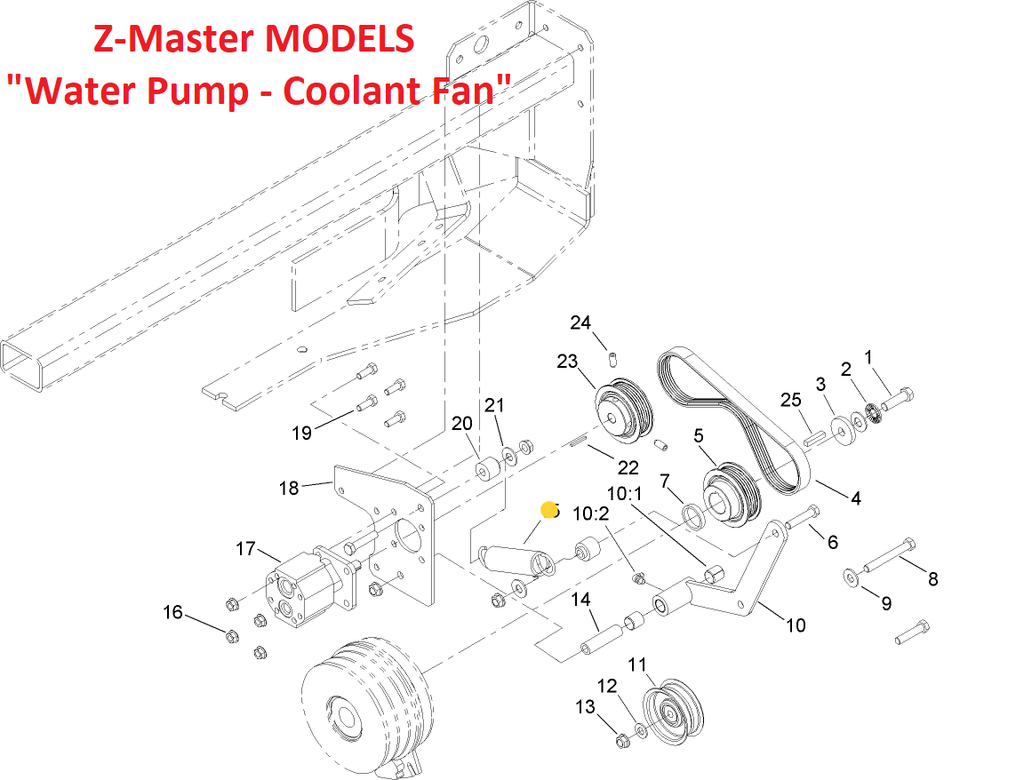

ZMaster Z Diesel Series (COOLING PUMP) – Model Numbers – 74268, 74269
