Description

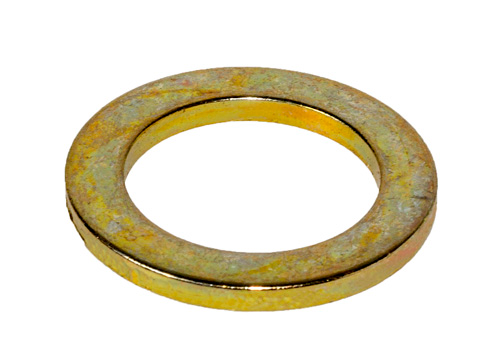

Hustler OEM 045765 is Designed for A wide Range of Hustler Models (Used on Side & Rear Discharge Models) and is Typically Installed Under the Spindle Pulley on Zero Turn Models, On the Left & Right Wing Caster Wheel Assembly on the Super 104 Models and in the T-Bar Handle Assembly on the Trimstar Walk-Behind Models. For Spindle Pulley Usages Refer the Correct Pulley Part Number on Hilly Ridge's Website Page for Your Specific Model or Family for Pulley Diagrams and Pulley Part Combination and Placement (This can be Found by Entering your Model Number and Part Type - Spindle Pulley - in the Search TAB @ the Top of the Page). Hustler 045765 Fits Hustler:
- 2011 - Current FastTrack, X-ONE, X-RIDE, Super S, Super Z, Super Z HD, Diesel Z (Side Discharge Models Only). * Mower Deck Usages

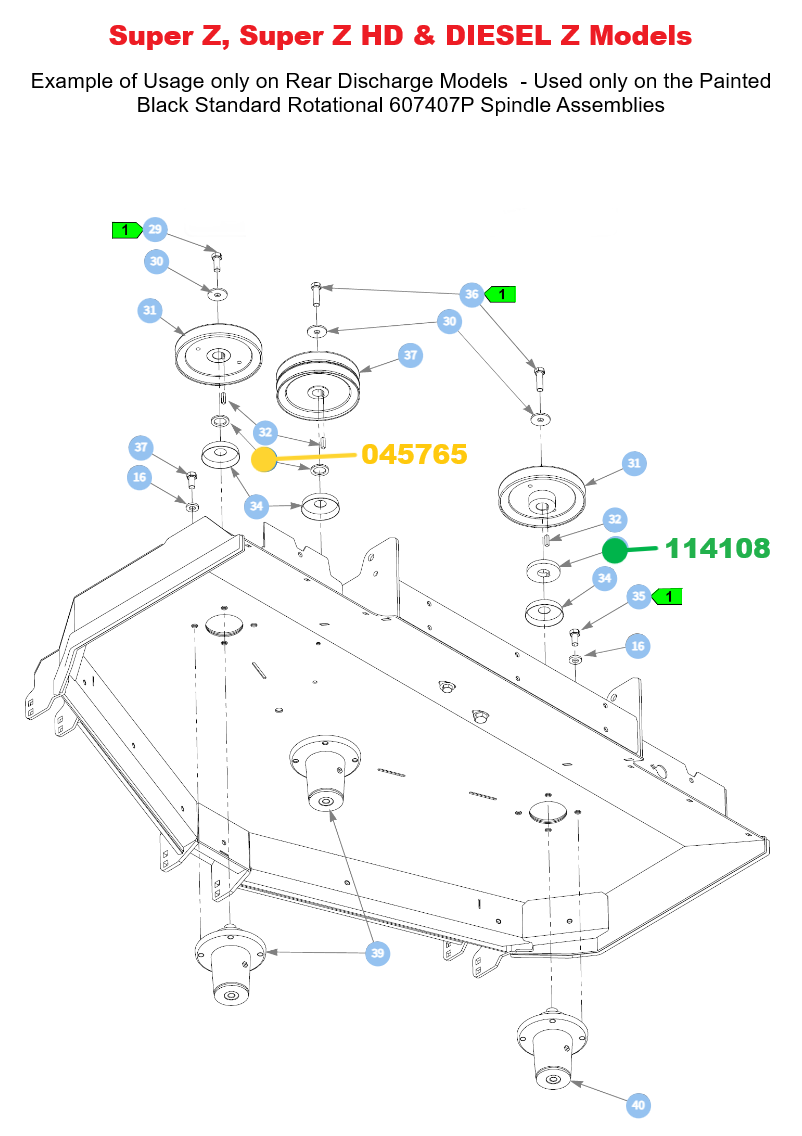

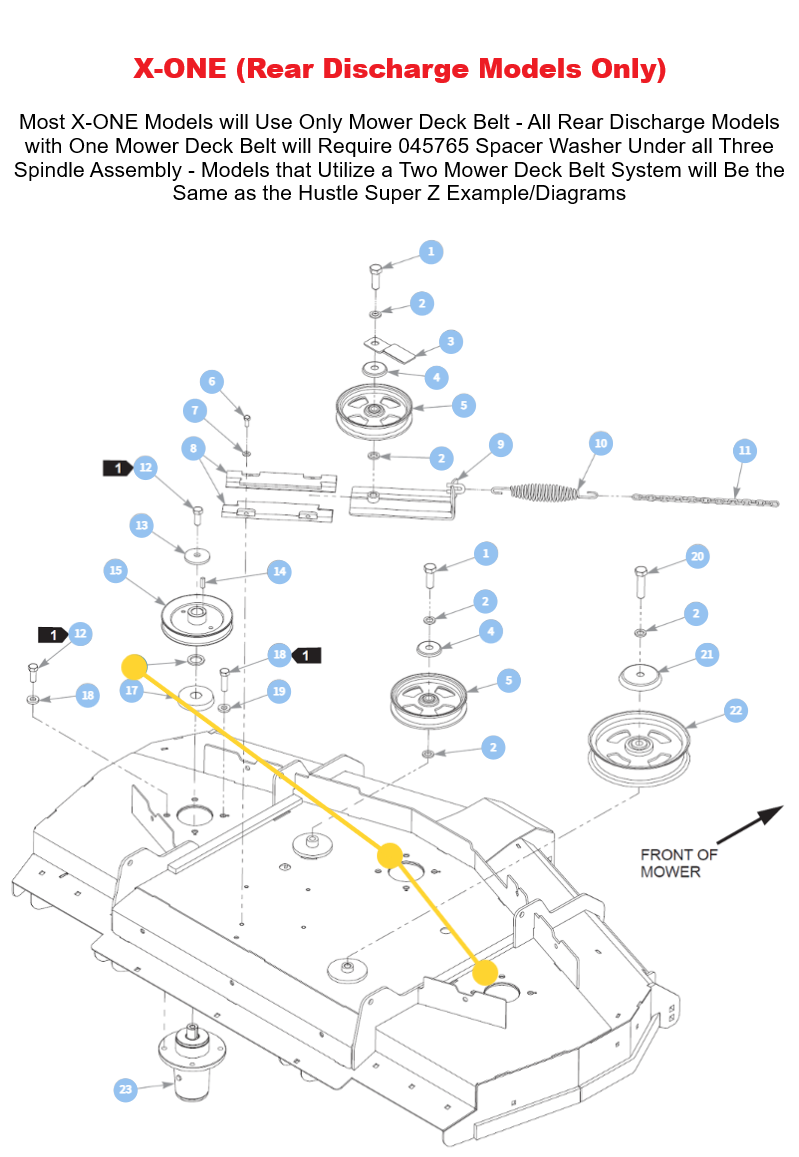

- 2011 - Current X-ONE, Super Z, Super Z HD, Diesel Z (Rear Discharge Models Only). * Mower Deck Usages - Only Used under Standard Rotational Spindle Assemblies Pullies Which are Always Painted Black - Reverse or Left-Hand Rotational Spindles (Required only at Specific Mower Deck Locations and are Painted Red) are only on Rear Discharge Models and Will Require 3/8" Spacer 114108 in Place of 045765. Note Excludes Most X-ONE Models - Most X-ONE Models do not utilize Reverse Spindle Assemblies.

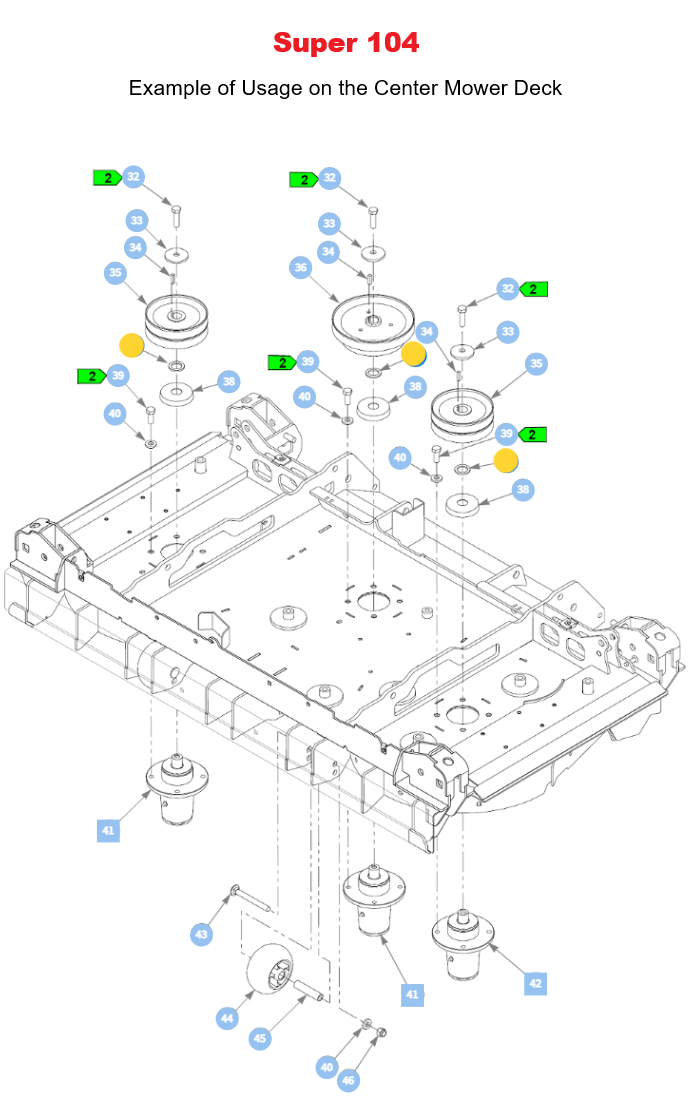

- 2011 - Current Super 104 Models * Used Only Under the Center Mower Deck Spindle's and on the Caster Wheel Assembly on the Two Wings.

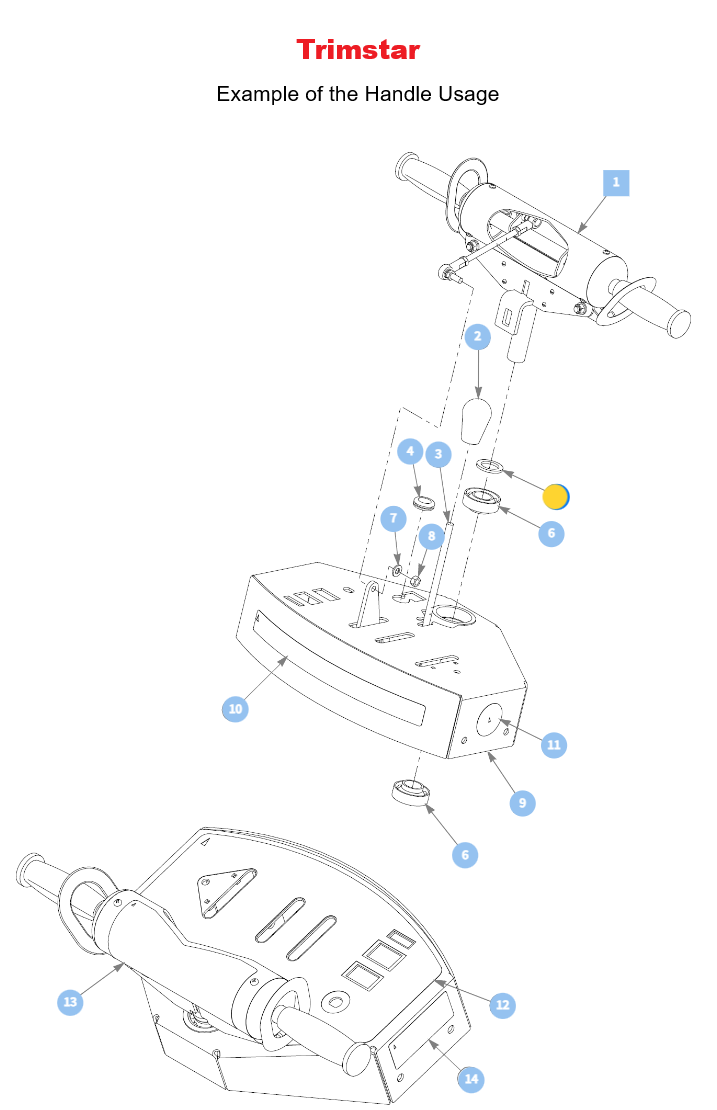

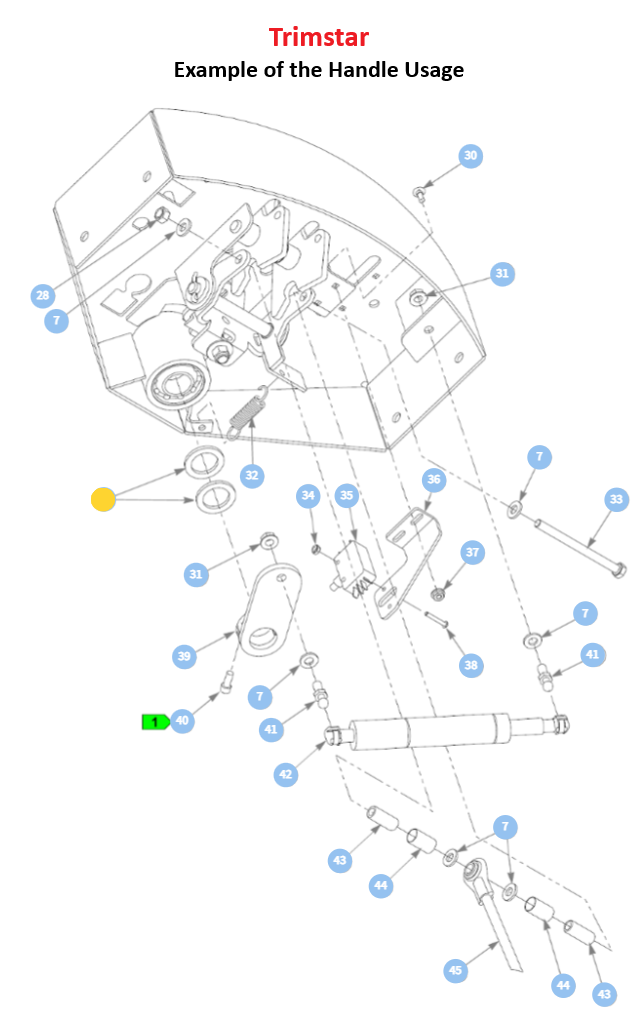

- 2011 - Current Trimstar Models * T-Bar Handle Usage
Please Refer to the Images above, Model Fit Chart, Special Notes and Product References below to ensure a proper fit. Click on the Part Numbers to be redirected.
- 607407P - Right-Hand, Standard or Common Mower Blade Spindle Assembly (Excludes Raptor & FasTrack Models)

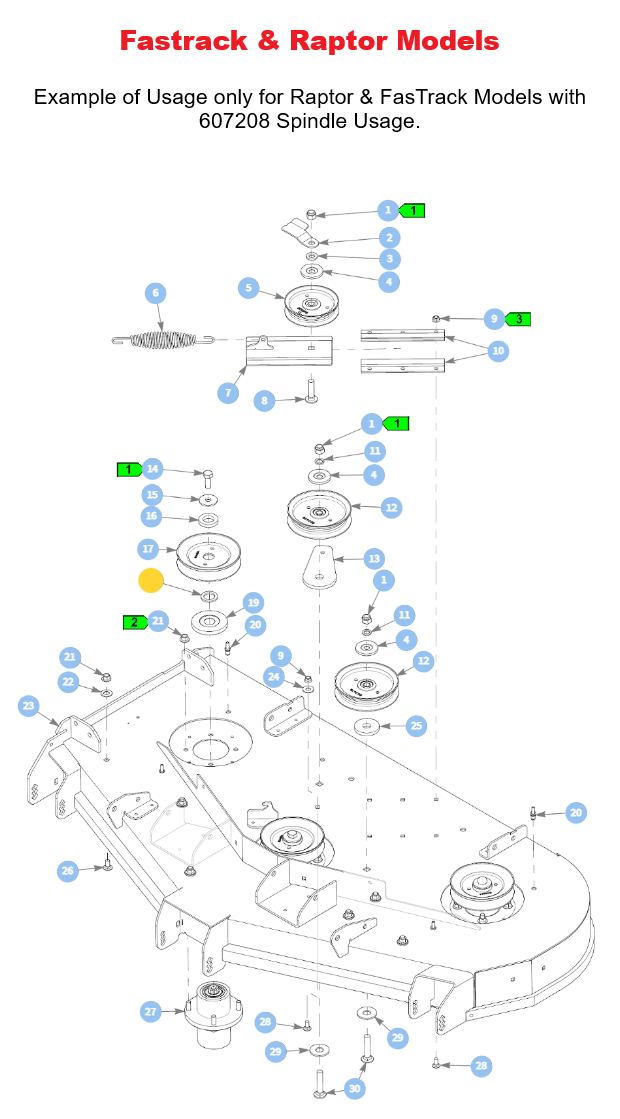

- 607208 - Spindle Assembly (Raptor & FasTrack Models)
Model Fit:
* 045765 May Be Used on Additional Models/Families like Deisel Z & X-One Models - Due to Lack of Information and Details - Hilly Ridge Will Continue to MANUELLY Improve the Model Fit Chart with Time - If you Have any Questions on Exact Fit Feel free to Message or Call us.
Raptor
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
FasTrack
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
X-ONE - Side & Rear Discharge Models
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
X-RIDE - ALL MODELS
944074, 944868
Super Z - Side & Rear Discharge Models
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive - Side & Rear Discharge Models
(Models 2013 and Later are Listed - Models Listed Prior To 2013 May Not Be Listed If Applicable)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934315, 934307, 934323, 934349, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Diesel Z - Side & Rear Discharge Models
Models are Currently Not Listed Will Be Eventually
Super ATZ
No Listed Model Numbers
Super 104
Models are Currently Not Listed Will Be Eventually
Trimstar
(Models 2013 and Later are Listed - Models Listed Prior To 2013 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
Super S
Models are Currently Not Listed Will Be Eventually
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
