Description

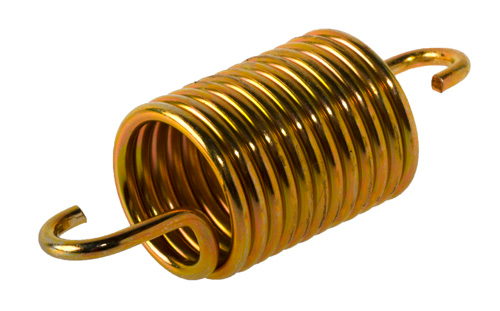

Hustler OEM 036384 Tension Spring
The Genuine Hustler OEM 036384 Tension Spring is Primarily Designed to Maintain Proper Hydraulic Belt Tension within Select Hustler Models. Proper Spring Tension Helps Ensure Consistent Belt Performance, Reliable Operation and Reduced Wear on Related Components by Enabling Load Variation Forgiveness. Hustler OEM 036384 is Also Commonly Used on Hustler Bagger Blower Assembly and Bac/Vac Systems (Belt Tensioner Arm) to Tension the Secondary Belt that Attaches to the Discharge Side of the Mower Deck.
⚠️ Before You Order – Verify Fitment
Hustler Uses Multiple Hydraulic Tension Springs that May Appear Similar but Vary by Application, Mower Series, and Production Version. So Be Sure to Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage Before Ordering.
Not sure? Contact us with your Hustler Model and Serial Number and We’ll Help Verify Fitment.
What This Part Does
- Maintains Proper Tension and Tension Variation on Hydraulic Drive Belt and Idler System.
- Helps Ensure Consistent Belt Tracking and Forgiveness for Uneven Load Applications.
- Reduces Excessive Belt Slippage and Component Wear
- Genuine Hustler OEM Replacement Part for Proper Fit and Performance.
Part Details
- Brand: Hustler
- Part Number: 036384
- Supersession: Part Number 504712 Supersedes to Part Number 036384
- Part Type: Tension Spring
- Application: Hydro Belt Tension / Idler System
- Length: 3.6" or 3 2/5 IN.
- Width: 1.24" or 1 6/25 IN.
Fits These Hustler Models/Families
Verify your model number is Listed in the Model Fit Chart Below before ordering.
- Trimstar Series (All Models)
- FasTrack Series (2015 - Current Models)
- Baggers & Bac/Vac Series (Select Models)
Model Fit Chart

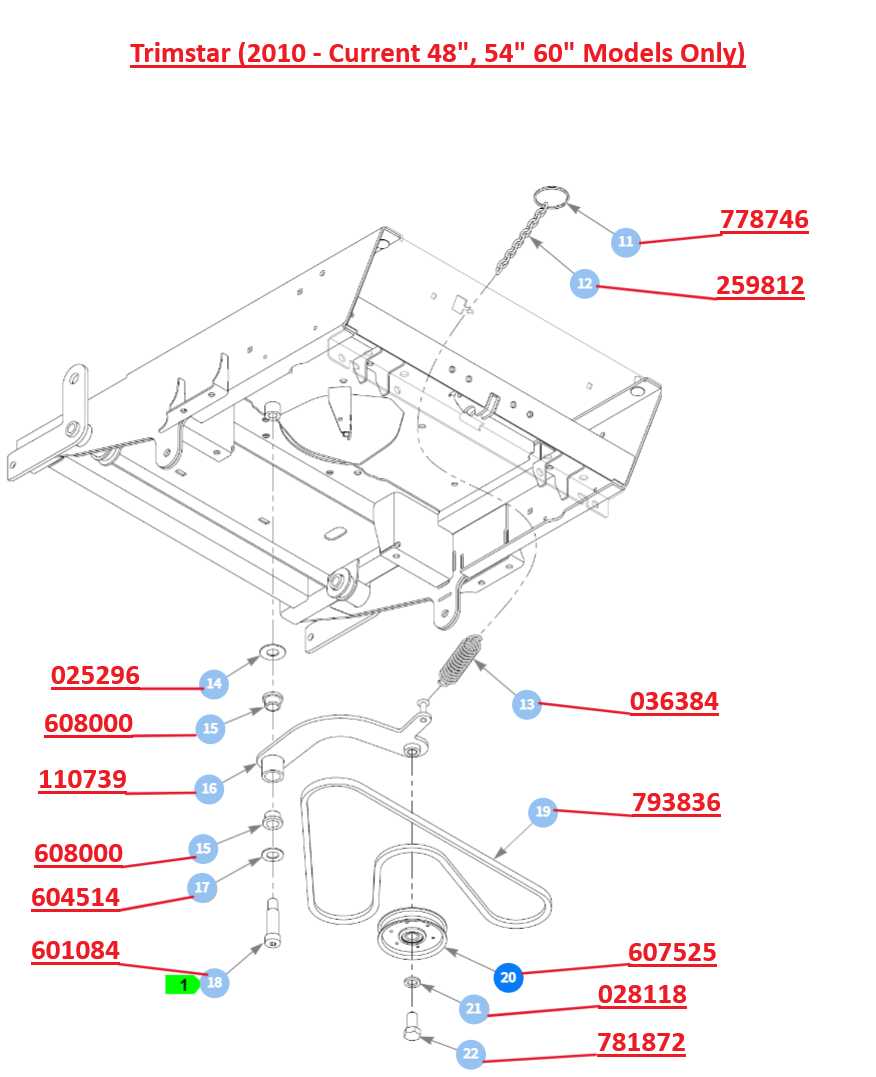

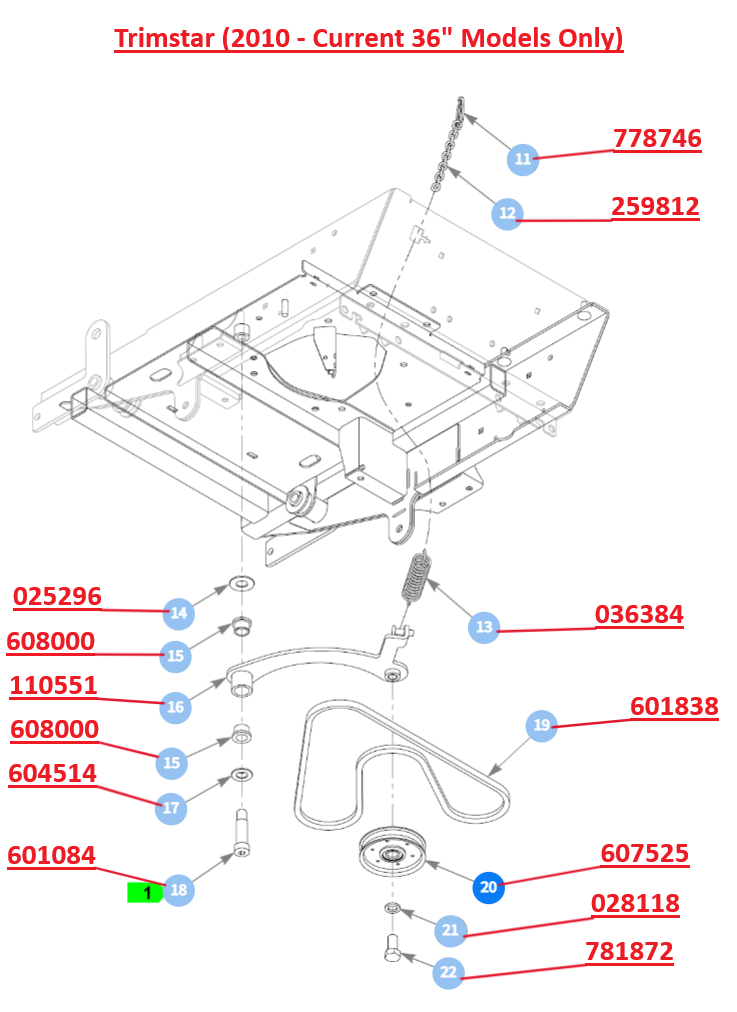

Trimstar (All Models)
929240, 929265, 929273, 929232, 930388, 930388US, 930396, 930404, 930412, 939496, 939504, 939512, 939538, 942268, 942276

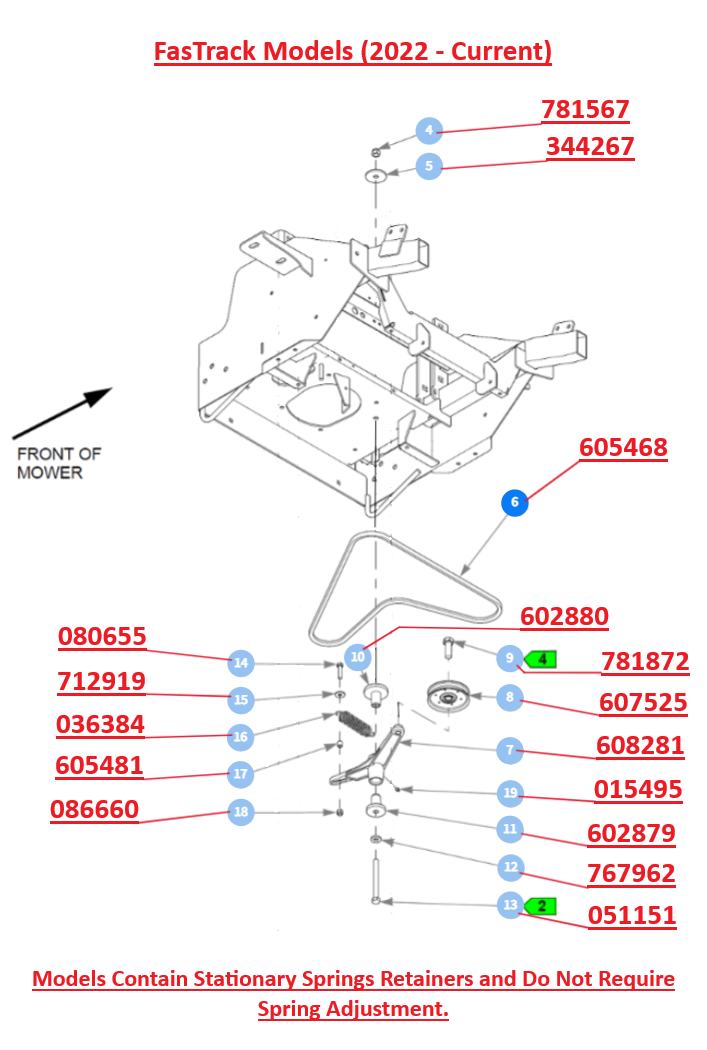

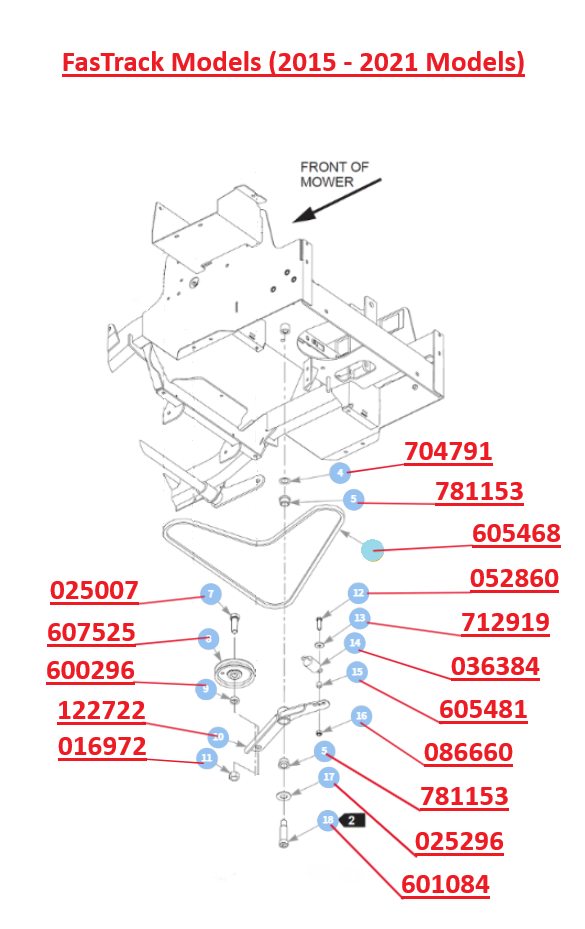

FasTrack (2015 - Current Models)
933424, 933432, 933440, 934851, 935627, 936054, 936062, 936070, 936088, 936104, 936112, 936120, 936138, 936146US, 936153US, 936161US, 938043, 938050, 938704, 938712, 938720, 938738, 938746, 938753, 938761, 938779, 938787, 938795, 940346, 940353, 940361, 940379, 940387, 940395, 940403, 940411, 940429, 940437, 941724, 941732, 941740, 941757, 941765, 941773, 941781, 941674, 941682, 941708, 943704, 943753, 943761

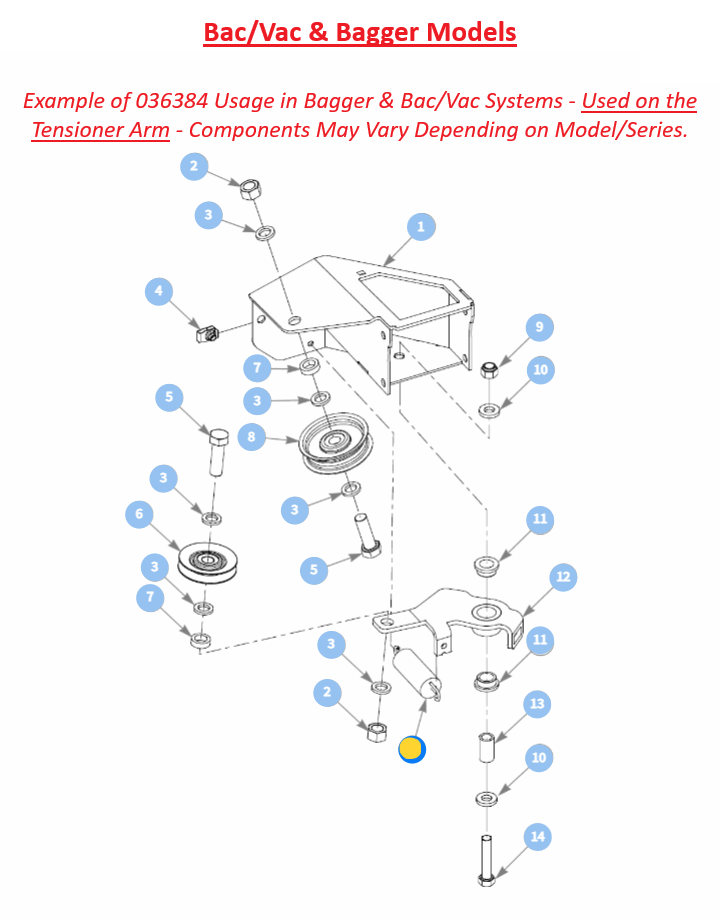

Bagger Systems & Bac/Vac
Individual Model Numbers are Not Listed
Important Replacement Notes & Helps (Hydraulic Tensioner Arm)
* Helps and Directions in the Image Section are Organize by Model/Series

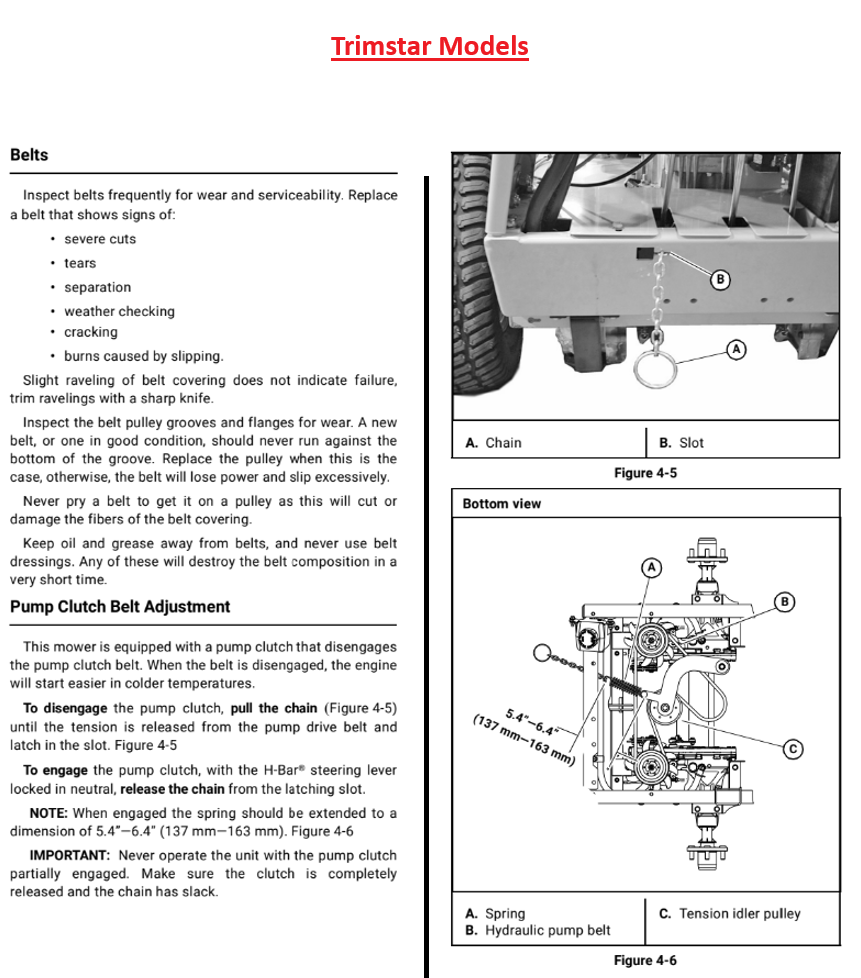

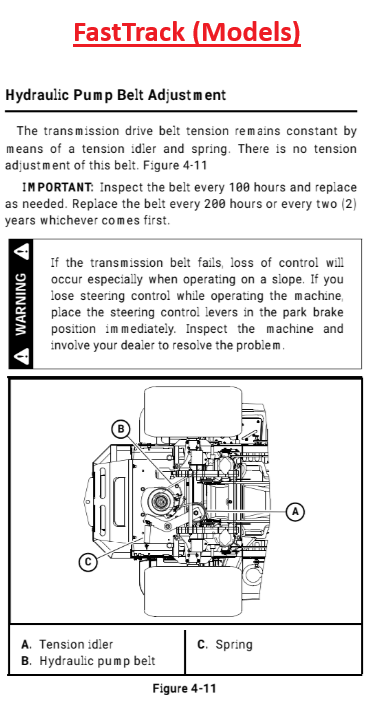

- When Experiencing Belt Slipping Before Replacing the Hydro Drive Components Alway Evaluate the Problem First - Refer to the Directions & Drive Belt Helps in the Images Above for Proper Evaluation and Adjustment of the Drive Belt
- Whenever Replacing the Hydro Drive Components, it is Always Recommended to Evaluate and Replace the Hydraulic Drive Belt - If Replacing the Hydraulic Drive Belt, the Belt Requires Proper Spring Tension Adjustment. Refer to the Direction in the Images Above or Contact us here at Hilly Ridge if Further Assistance is Needed with finding Proper Spring Tension Measurements and Directions.
- Whenever Replacing Hydro Drive Components Whether or Not Replacing the Hydraulic Drive Belt, the Hydraulic Drive Belt Tension Will Require the Spring Tension Adjustment to Be Readjusted. Refer to the Direction in the Images Above or Contact us here at Hilly Ridge if Further Assistance is Needed with finding Proper Spring Tension Measurements and Directions.
