Hustler OEM 034652 Return Spring (2 1/2") Fits Hustler Raptor Flip-Up, Trimstar, Super SF, Super 88 (All Models), Super S (All 36" Models - 2016 - 2020 48", 52", 60" Models).

• Part Number: 034652

• Supersession: n/a

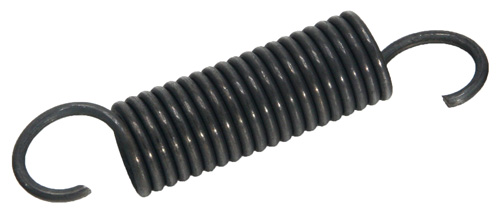

• Description: 034652 - 2.5 in. Return Spring
• Application: 034652 Return Spring is Used on All Trimstar Models - All Raptor Flip-Up Models - Super S, Super SF, Super 88. 1 - Super S, Super SF, Super 88 - 034652 Is Installed Between 122625 Safety Switch Plunger Bracket and 125783-1 (Super SF, Super 88), 122082 or 121903 (Super S) Operator's Platform - This Enable the Plunger Bracket to Activate the Safety Switch When the Operator's Weight isn't Present on the Operator's Platform Communicating to Othe Electrical Circuits (Mower Engagement) they Need to be Close or it will Close the Main Electrical Circuit Shutting off the Engine. 2 - Raptor Flip-Up Models - 034652 Is Installed Between the Actuator / Latch Pivot Pin and the Frame to Ensure the Pivot Pin, Rod and/or Bracket Fully Re-Track with the Actuator. 3- Trimstar - 034652 Is Installed Between the Brake Yoke 119748P and A Weldment Tab Under the Operator's Console - This Ensures that the Brake Rod and Yoke Assembly Travels Back to the Unengaged Position When Releasing It From the Engagement Knoch in the Operator's Console Ensuring It Does Hinder the Movement of the Hydraulic Drive Linkage.



Keep your equipment performing the way it was designed with this genuine OEM replacement part. Manufactured to the original equipment manufacturer's specifications, this part is engineered for the proper fit, dependable performance, and long service life.

Whether you're performing routine maintenance or repairing a broken component, using genuine OEM parts helps maintain the reliability and performance of your equipment.

Choosing genuine OEM parts helps ensure your machine continues to operate as the manufacturer intended.

Please verify that Part Number 034652 is the correct replacement for your equipment before placing your order.

Model Fit Chart

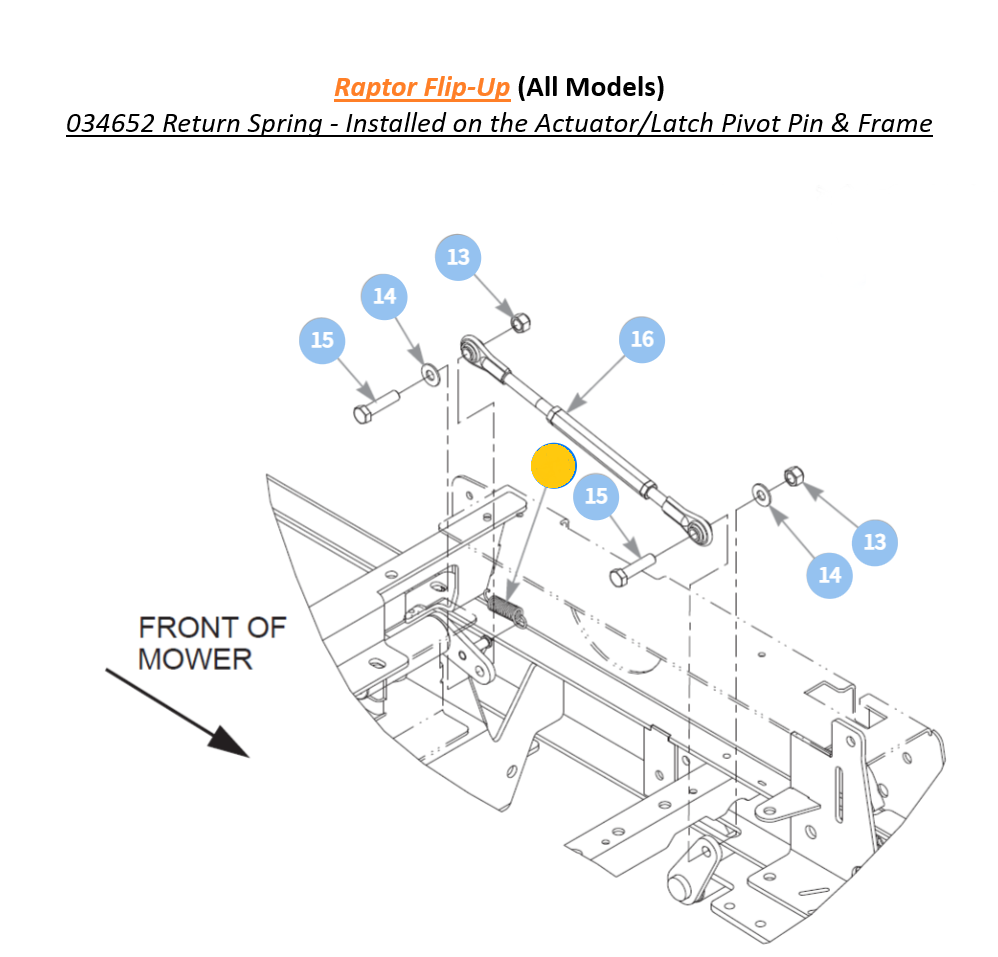

Raptor FLIP UP Models (All Models)

Actuator/Latch Pivot Pin



933614, 933622, 933630, 933846US, 933853US, 934745, 935940, 935957, 935965, 938464, 938472, 940312, 940320

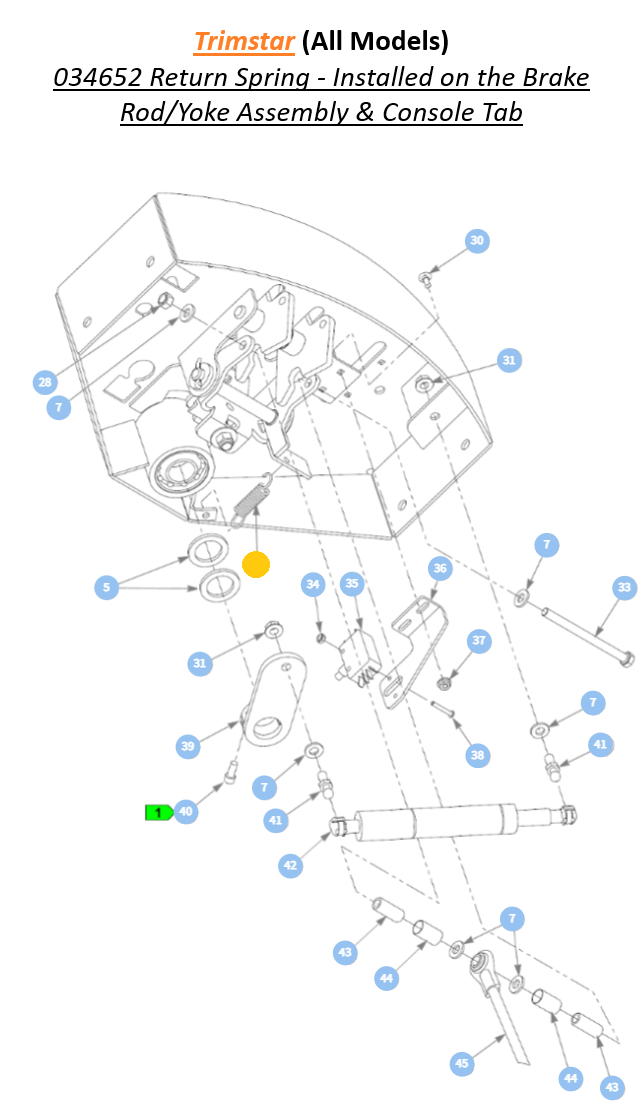

Trimstar (All Models)

Broke Rod/Yoke Assembly



929240, 929265, 929273, 929232, 930388, 930388US, 930396, 930404, 930412, 939496, 939504, 939512, 939538, 942268, 942276

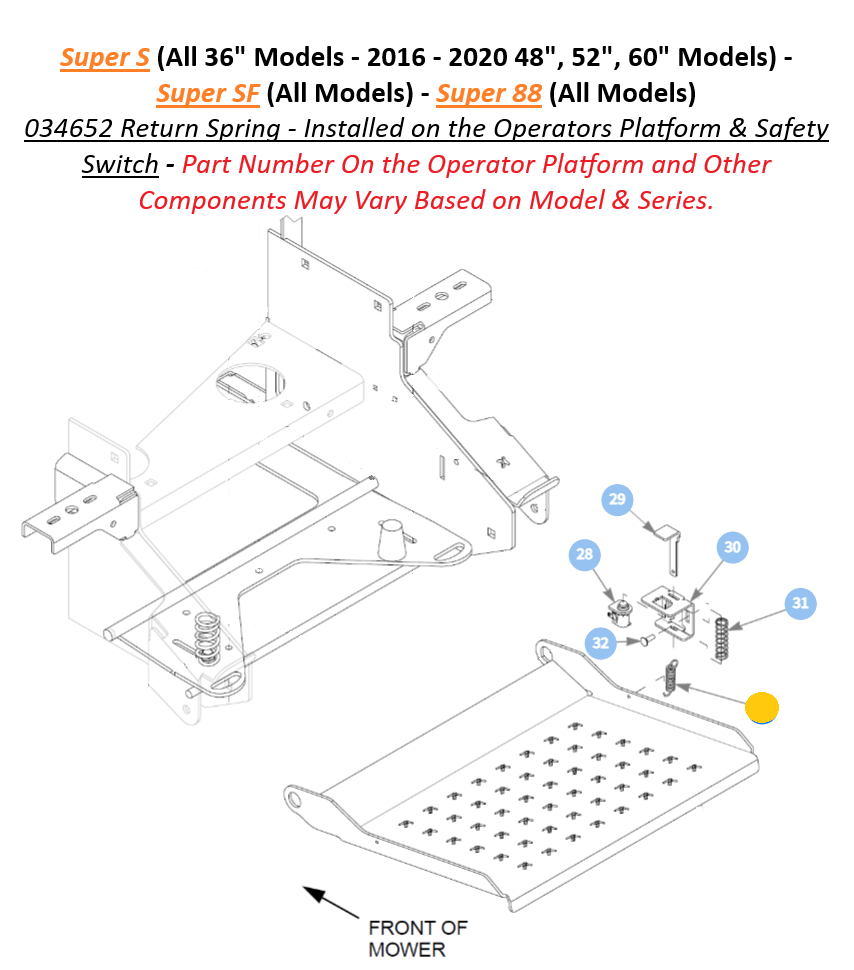

Super S (All 36" Models - 2016 - 2020 48", 52", 60" Models)

Operator's Platform Safety Switch



933325, 933333, 933341, 933358, 935353, 935361, 935387US, 935395US, 937128, 937136, 937144, 937151, 937169, 937177, 939439, 939447, 939454, 940205, 940288



Super SF (All Models)

Operator's Platform Safety Switch



942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530



Super 88 (All Models)

Operator's Platform Safety Switch



936617, 939546





If you're unsure, send us your model and serial number, and we'll be happy to verify the correct part before you order.

Your order is shipped by a knowledgeable outdoor power equipment dealership—not a general warehouse.

Every order is carefully packed, and our experienced parts specialists are available to help if you have questions before or after your purchase.

Thank you for choosing Hilly Ridge Sales & Service for your genuine OEM parts needs.

Part Number: 034652

Description:  034652 - 2.5 in. Return Spring.
