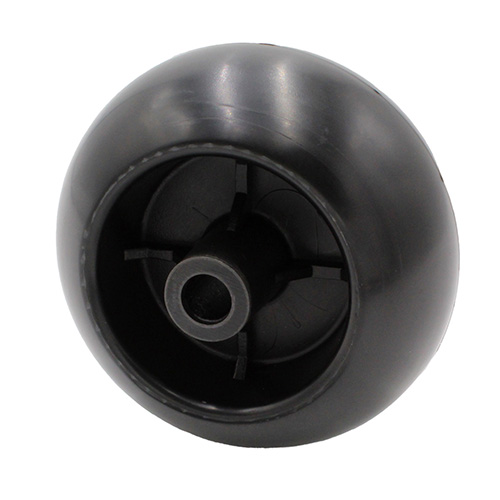

Hustler OEM 031997 Anti-Scalp Wheel



Crafted from durable hard plastic material, the Hustler OEM Anti-Scalp Wheels are designed to withstand frequent contact and rough surfaces. With the ability to lift and transport a mower deck, these wheels eliminate the risk of scalping on uneven terrains and imperfections in your yard. Trust Hustler OEM 031997 to keep your yard looking pristine. The Hustler OEM 031997 Comes as An Individual Anti-Scalp Wheel and Can Be Purchase as a Kit (Including 031997 Anti-Scalp Wheel and Hardware) When Purchasing 788166P Anti-Scalp Wheel Kit. Refer to Images Above, Special Notes and Part References Below to verify a Correct Fit. Click on the Additional Part References Below to be Redirected.



The Hustler OEM 031997 Anti-Scalp Wheel is Designed for Hustler and used for a Couple of Different Applications as follows:





Mower Deck Anti-Scalp Wheel Rollers

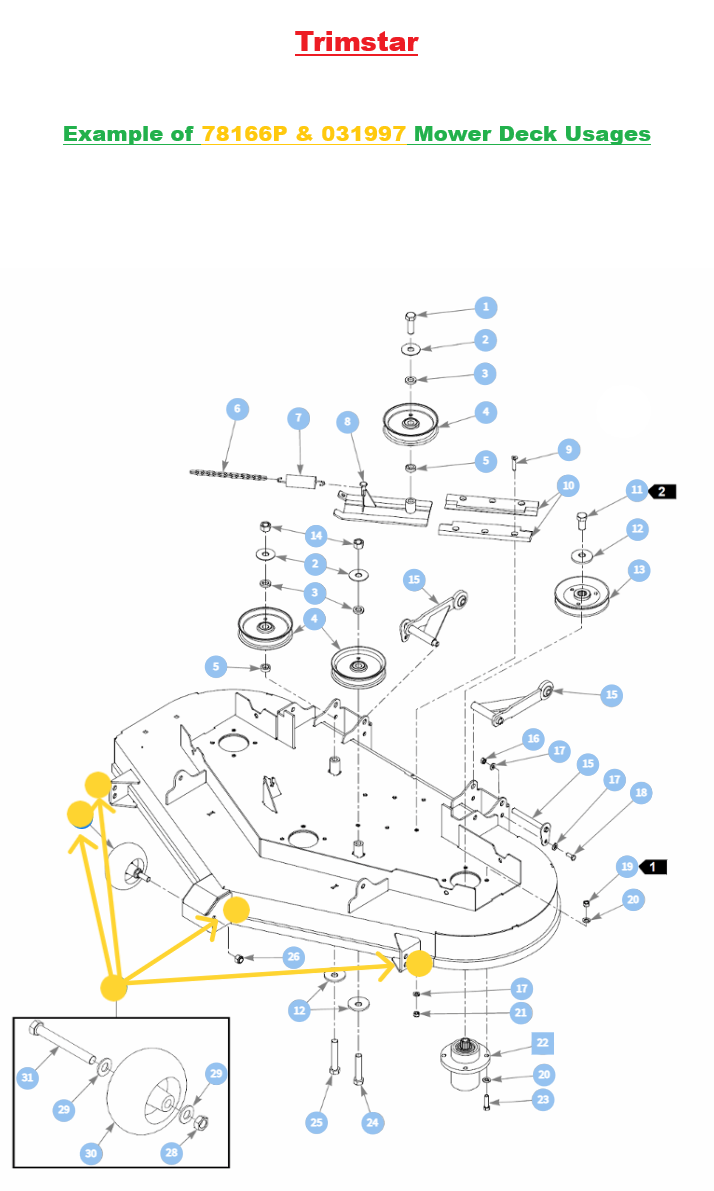

Trimstar  (2019 - Prior)

Dash XD (Only Model 940767)

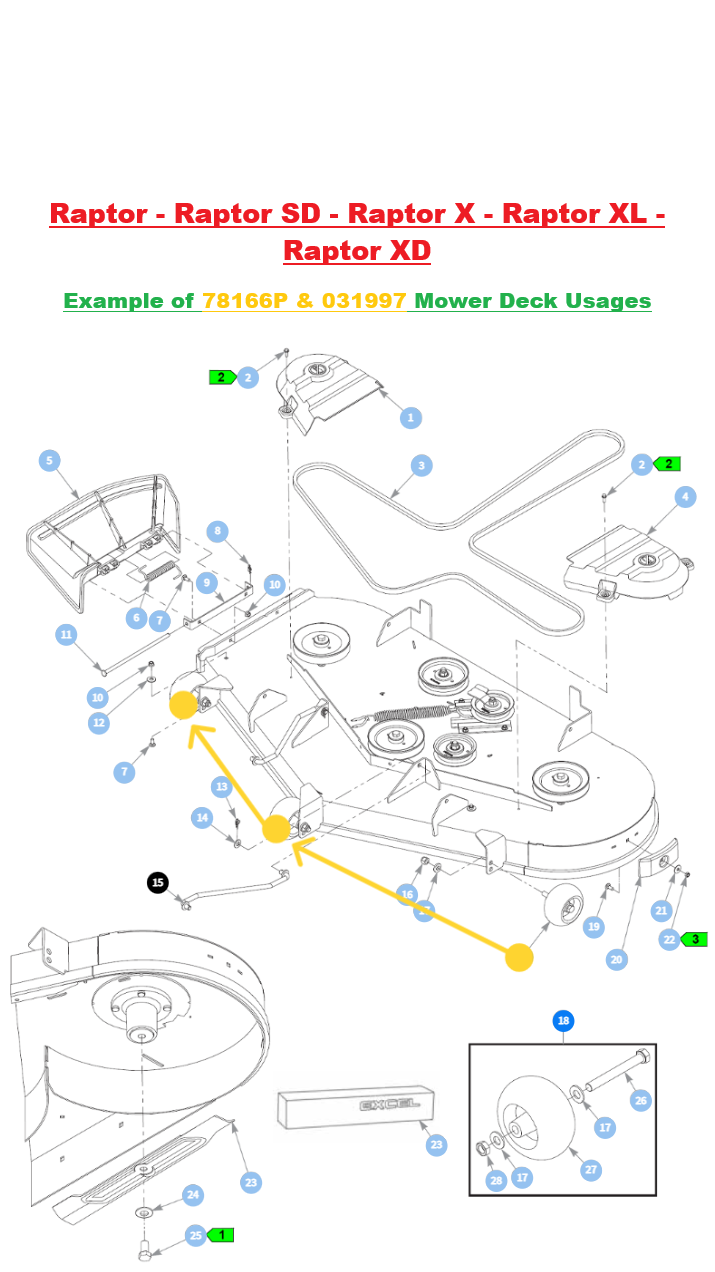

Raptor - Raptor SD - Raptor SDX (2018 & Prior) - Raptor X - Raptor XL - Raptor XD - Raptor Flip-Up (Excluding Rear Mower Deck Anti-Scalp Wheels on Select Flip-Up Models)

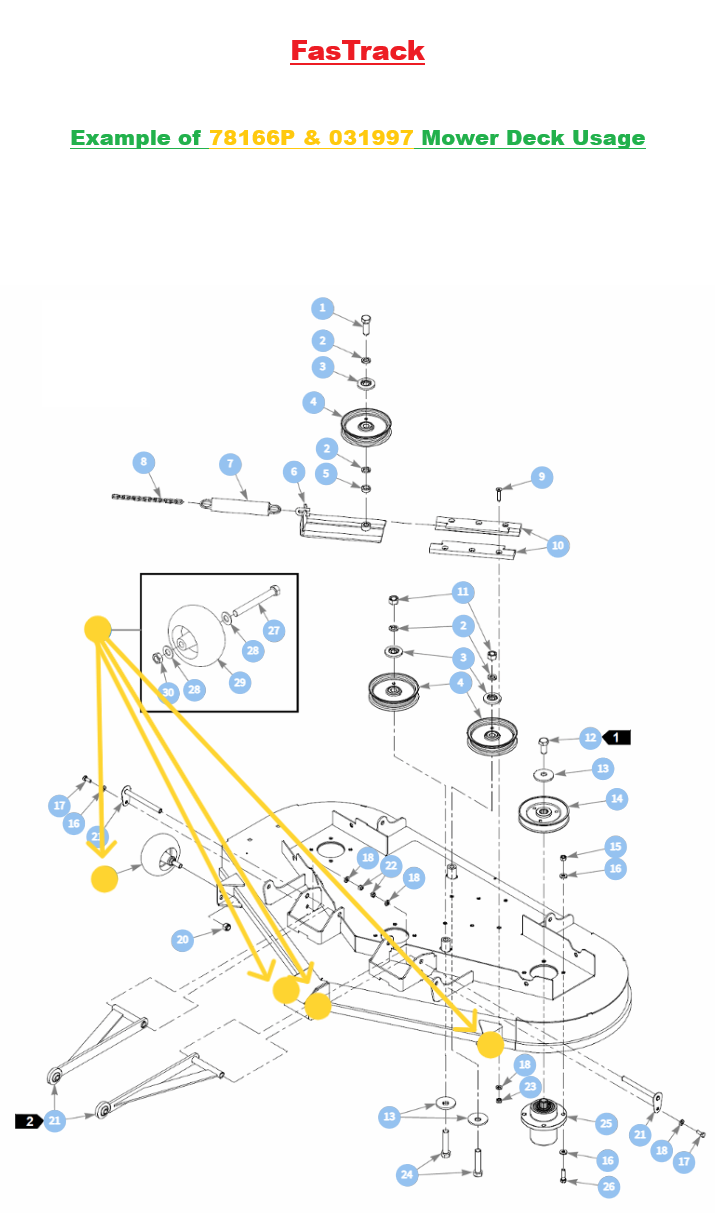

FastTrack (2014 & Prior)

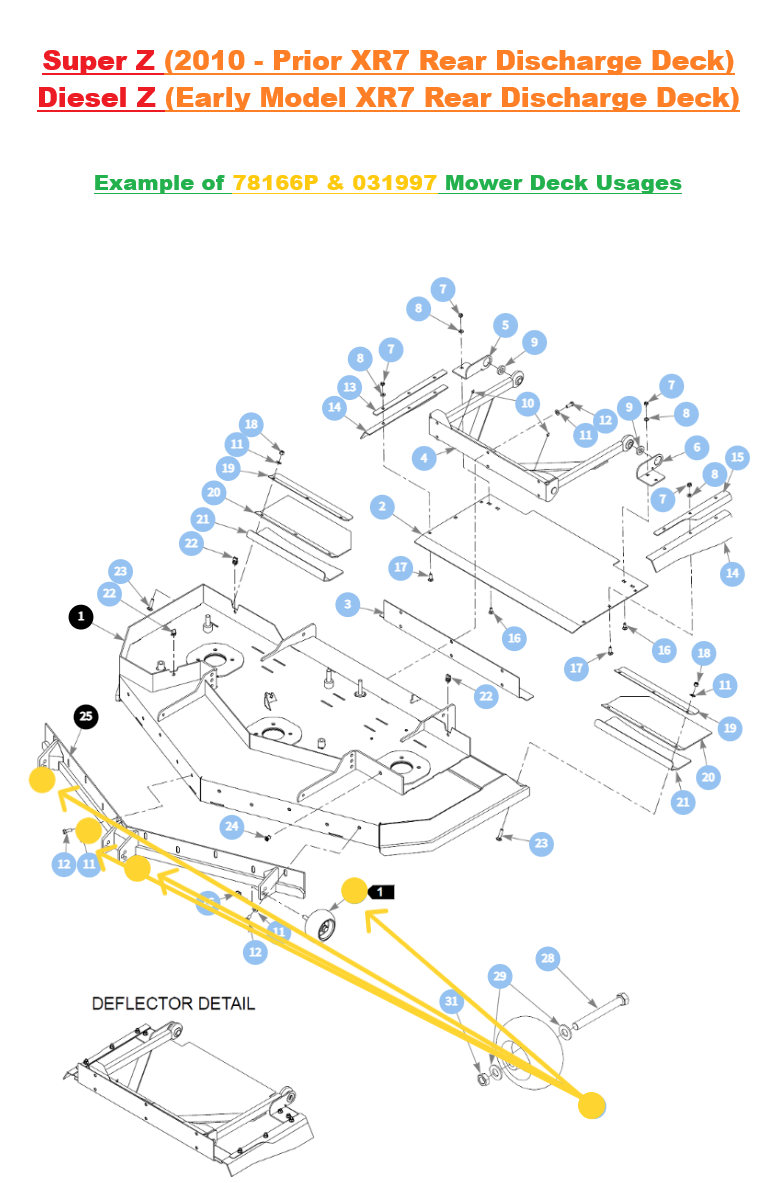

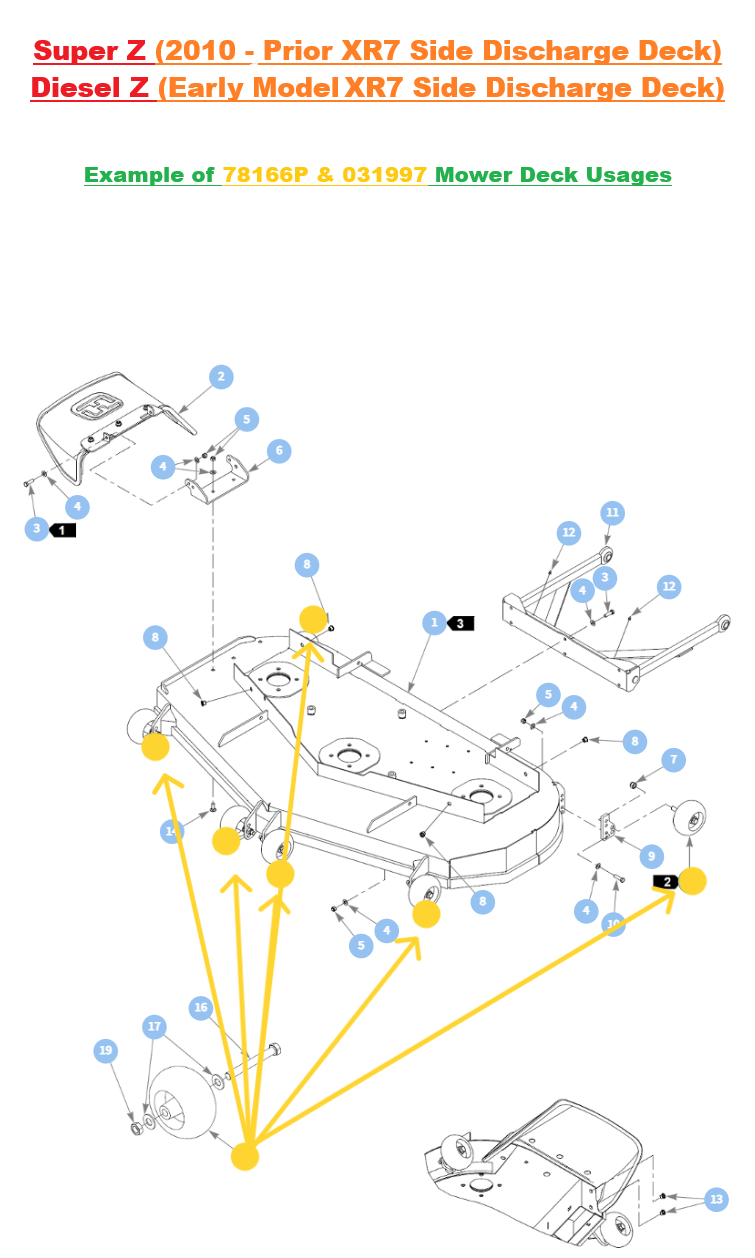

Super Z (2010 - Prior (XR7) Side & Rear Discharge)

Diesel Z & Super Z CAT (2017 - Prior (XR7) Side & Rear Discharge)

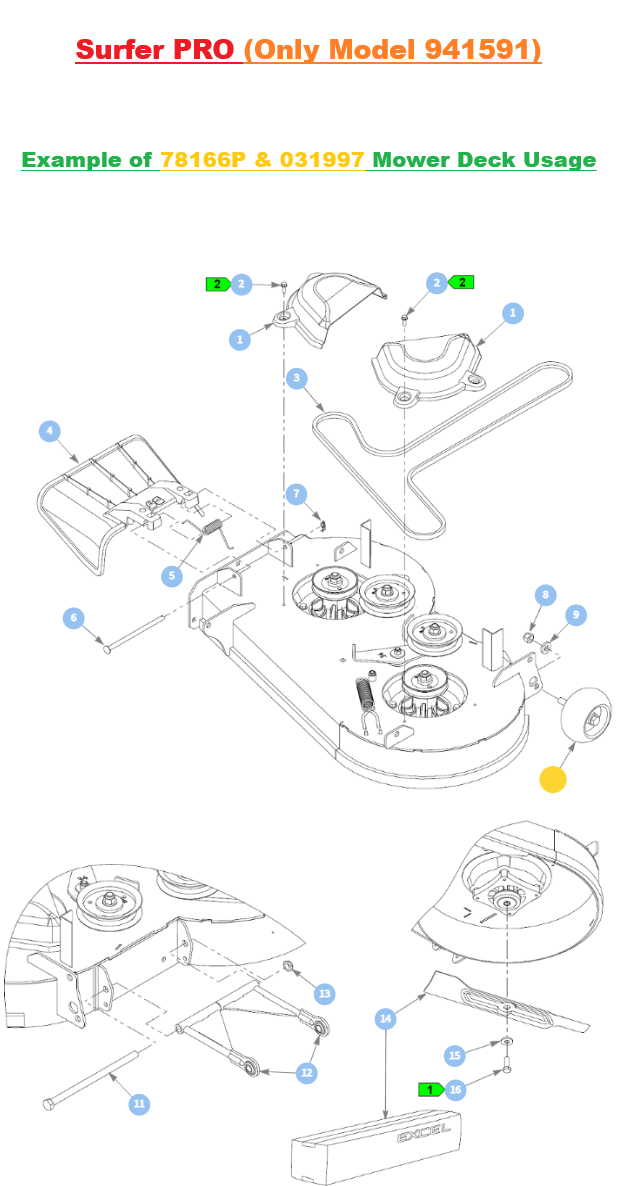

Surfer PRO (Only Models 941591)

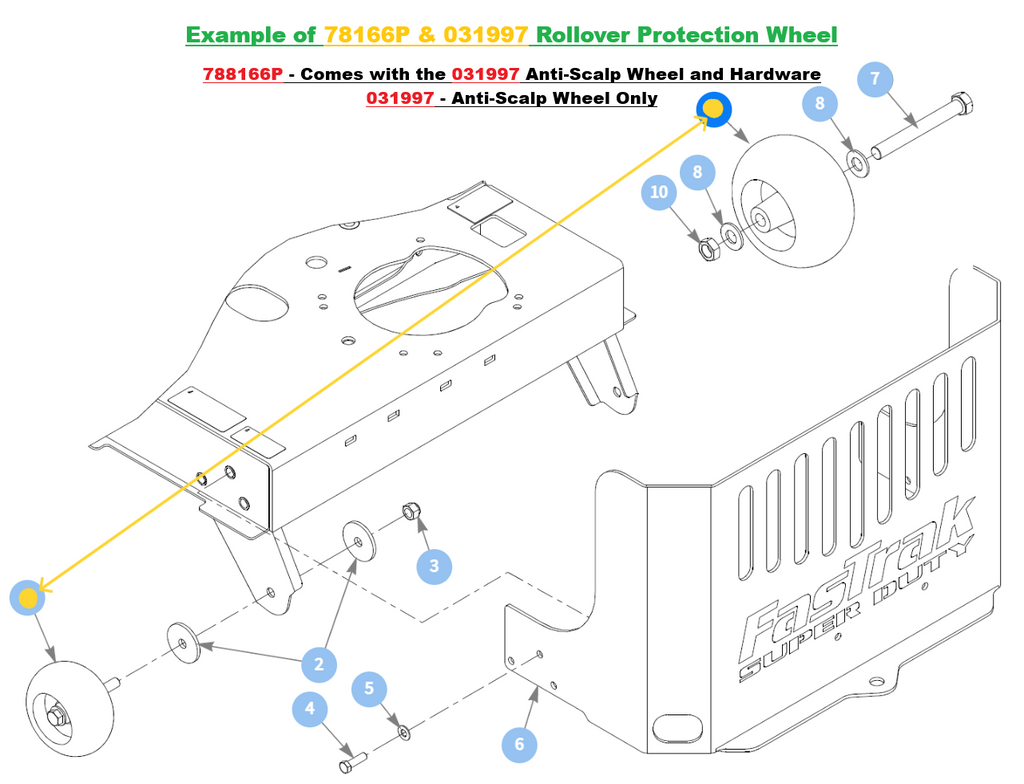

Anti-Roll Over Protection Wheels



FasTrack (All Models)

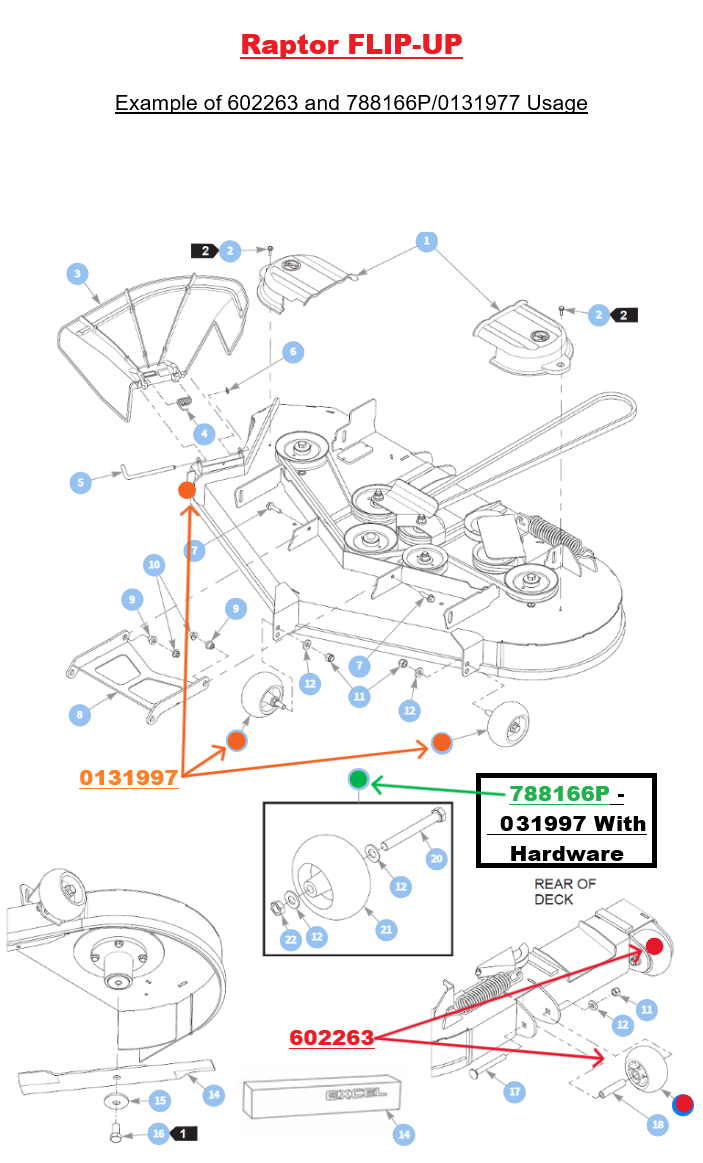

Note 1: Select Raptor Flip-up Models will Use a Different Anti Scalp Wheel (Other Than 788166P or 031997) on the Back of the Mower Deck allowing it to Be more Stabilized these Models will Require the Anti-Scalp Wheel that is Equal Dual Factory Molded Flanges on Both Side of the Anti-Scalp Wheel Allowing the Anti-Scalp Wheel to fit Between to Mower Deck Weldment Ears and without the side of the Wheel Rubbing Against the Weldment Bracket for these Ant-Scalp Wheels Refer to Part Number 602263.





NOTE 2: Some Families/Series Might Overlap with Two Different MOWER DECK Anti-Scalp Wheel Part Numbers. There are a Couple easy ways to verify which Part Number is correct for your Unit. One, is to Compare the Webbing on the Molded Spacer Side of the Anti-Scalp Wheel with the images Above. Second, Determine Whether the Plastic Molded Anti-Scalp Wheel Spacer/Flange Contains Equal Length on Both Side of the Anti-Scalp Wheel or if the One Side is Longer than the Other. Older Part Number 788166P or 031997 will have a One-Sided Anti-Scalp Wheel Spacer/Flange (This is to Enable it to be Fasten to the Side of a Single Anti-Scalp Weldment Ears). Whereas Newer Anti-Scalp Wheel 602263 and 604780 will have an Equal Dual Length Anti-Scalp Wheel Spacer/Flange molded on both Sides (This is to Enable it to Fit Between Two Anti-Scalp Weldment Ears on the Mower Deck). 602263 (Will Also have bigger whole for a Center Spacer) and 604780 (Smaller Hole and Uses Only a Bolt - No Center Spacer) and be used and is Used primarily on Current Models/Series. Thirdly, Any Models that require a Different (longer) center Anti-Scalp Wheel from the outside edge Anti-Scalp Wheels will require Part Number 602263 or 604780. Click on Part Number 602263 or 604780 to be Redirected. For an Example Review the Images Below and Always Verify your Model Number is Listed in the Model Fit Chart before Purchasing. 604780 Fits More Recent to Current Select Trimstar, Raptor SDX/XDX & FasTrack Models Model - 602263 Fits Raptor Flip-Up Models More Recent to Current Super Z & Diesel Z Models with XR & XR 4 Mower Decks.







INDIVIDUAL ANTI-SCALP WHEEL PARTS REFERENCE FOR 031997 ANTI-SCALP WHEEL

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



• 781708 - Anti-Scalp Wheel Bolt
• 767962 - Anti-Scalp Wheel Washer
• 781567 - Anti-Scalp Wheel Nut
• 788166P - Ant-Scalp Wheel * Sold With 031997 Ant-Scalp Wheel and Hardware.







Specification

Product Number:	0131997
Brand:	Hustler
Length:	4.80 IN.
Width:	4.80 IN.
Height:	3.00 IN.
Weight:	1.080 LBS.





Model Fit:





Trimstar (2019 & Prior)



Models are Currently Not Listed Will Be Eventually



Dash XD (Select Models)



940767



Raptor - Raptor SD - Raptor SDX - Raptor X - Raptor XL - Raptor XD (Select Early Models)



Models are Currently Not Listed Will Be Eventually



Raptor FLIP-UP Models (Select Models)

Used on the Front Middle & Ends of the Mower Deck



Models are Currently Not Listed Will Be Eventually



FasTrack (2014 & Prior)



Models are Currently Not Listed Will Be Eventually
