Description

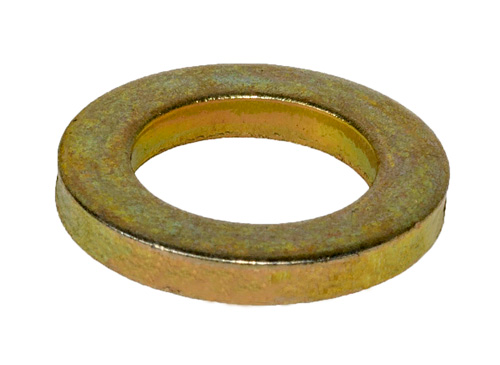

028118 Spacer Washer

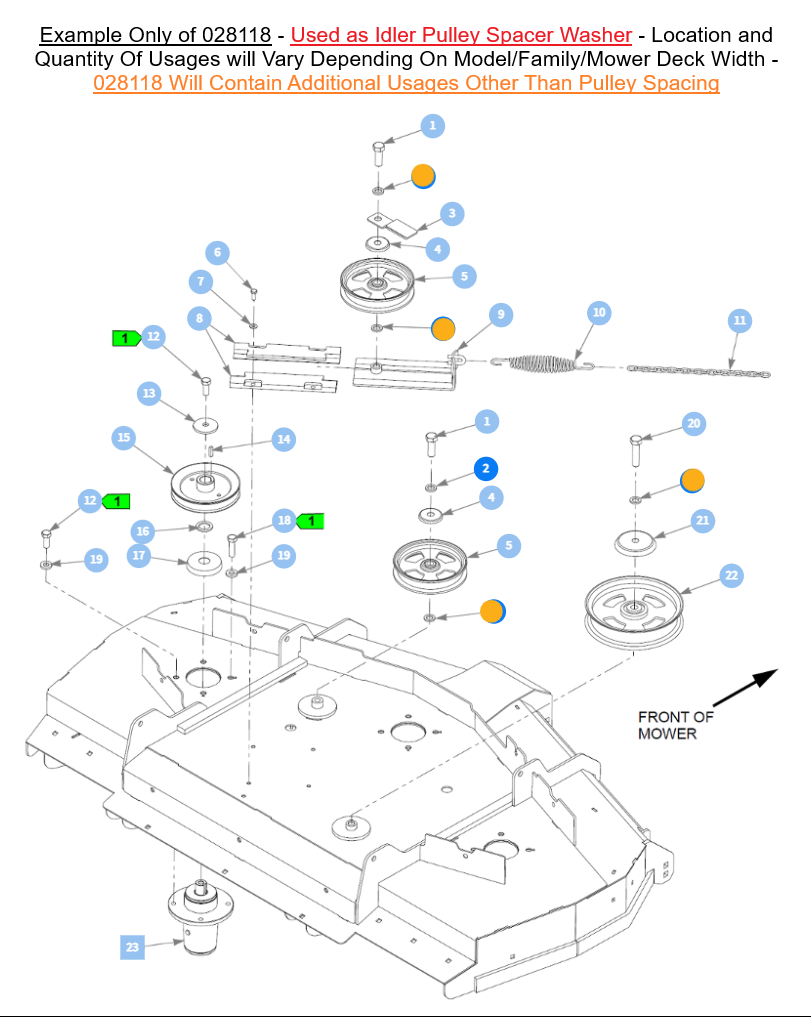

- Application: A Wide Range of Usages in A Wide Range of Models - Although it is Most Commonly Used Between the Pulley & the Mower Deck Fastening Weldments and/or the Pulley and the Pulley Dust Shield It Also May Contain Additional Usages. 028118 Is Machined to the Correct Size to fit Only on the Inner Bearing Race (Allowing the Fastener Pressure to Be Directed at the Same Location) and Allow the Bearing to Be Properly Spaced Away from a Flat Surface which Enables it to Freely Rotate. Location of Usage will Vary Depending on Model/Family - However one Definite Remains - if you Tighten Your Idler Pulley Down without Proper Idler Spacing Between the Idler and Flat Surface or You are Having Idler Pulley Mis-Alignment Issues more Chances than Not You are Missing an Idler Spacer Washer - If this Happens and You are Unsure - First Method - Check the Idler Pulley Diagrams (Personalized By Families On Hilly Ridge Website Contains The Correct Idler Pulley Part Number Combinations By Family/Mower Deck Type/ Mower Deck Size/Model Differences) and This Can Be Found By Entering as Exampled in Hilly Ridge Website Search Tab (Idler Pulley for Hustler Model 9429?? - Whatever Your Correct Model Is), Select the First Suggested Idler Pulley that Comes up, verify your Model is Listed in the Model Fit Chart, Scroll Down and Find the Correct Diagram with Part Number Listing to Your Units Family Category. Second Method - Feel Free to Contact Us and We would Be more than Happy to Check Via Model/Serial Number if the Required Pulley is Indeed Missing an Idler Spacer Washer.
- Size: (5/8 X 1 x 0.13) Fits 5/8" Bolt Threads
Common Idler Pulley Usages
Below is a List of Idler Pulleys that Use 028118 Click on the Part Number to Be Redirected - Remember to Review the Model Fit Chart to Verify Your Model Number Is Listed and from there Utilize the Categorized Parts Diagrams (028118 May Not Be Part Number but Will Be the Only Idler Pulley Spacer Washer in the Images)
- 602672 - V-Idler
- 603785 - V-Idler
- 788364 - V-Idler
- 796714 - V-Idler
- 602821 - Flat Idler
- 602838 - Flat Idler
- 604795 - Flat Idler
- 607448 - Flat Idler
- 607525 - Flat Idler
- 781856 - Flat Idler
Model Fit Chart
Below is a List of Models Categorized by Families/Models - There May Be Additional Model Usages that Won't Be Listed - However Known Common Model Usages Will Be Listed.
Raptor Flip-Up Models (Hydro Idler Pulley/Arm & Mower Deck Usage)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
FasTrack (Hydro & Mower Deck Idler Pulleys)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
X-ONE - (Side & Rear Discharge Mower Deck Idler's & Lift Linkage)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
X-RIDE - (Side & Rear Discharge Mower Deck Idler's & Lift Linkage)
944074, 944868
Super Z - (Side & Rear Discharge Mower Deck Idler's & Lift Linkage)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive - (Side & Rear Discharge Mower Deck Idler's & Lift Linkage)
(Models 2013 and Later are Listed - Models Listed Prior To 2013 May Not Be Listed If Applicable)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934315, 934307, 934323, 934349, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Diesel Z - (Side & Rear Discharge Idler's & Mower/Engine Redirect Idler's)
Models are Currently Not Listed Will Be Eventually
Super ATZ (Side & Rear Discharge Mower Deck Idler's & Lift Linkage)
No Listed Model Numbers
Super 104 (Mower Deck Idler's & Lift Linkage)
Models are Currently Not Listed Will Be Eventually
Trimstar (Hydro Idler's)
(Models 2013 and Later are Listed - Models Listed Prior To 2013 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
Super S (Mower Deck Idler's & Lift Linkage)
Models are Currently Not Listed Will Be Eventually
Super SF (Mower Deck Idler's & Lift Linkage)
Models are Currently Not Listed Will Be Eventually
Super 88 (Mower Deck Idler's, Lift Linkage & Anti-Scalp Rollers)
936617, 939546
Surfer Pro (Non-Pulley Usage - Frame)
941591, 941617
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
