Description

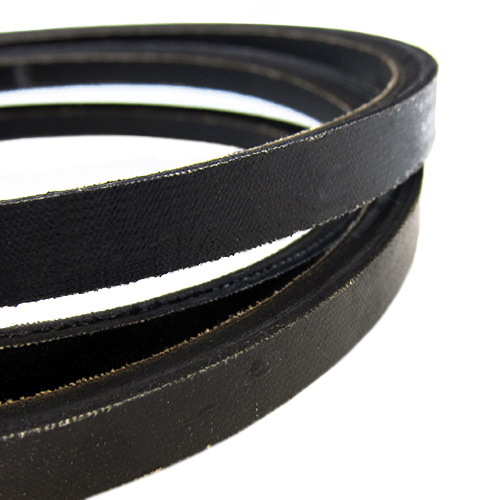

Hustler OEM 027284 Secondary Mower Deck Belt is Crafted only from the Finest of Materials and Rigorously and Extensively Tested to verify it withstands the toughest of Operating Conditions. Expertly crafted from premium Aramids and/or Kevlar materials, the Hustler OEM 027284 Is made to Fit Hustler 2011 - Current 60" Rear Discharge Super Z, Super Z HD Super ATZ Models (Rear Discharge VX4 & XR7 Mower Deck - * REFER PART REFERENCE CHART) - Early Model Out-Front Mower Deck Quad Cycler Models. 027284 Serves as the Secondary Belt, Travels Between the Mower Deck Pulleys and is a One of a Two Mower Deck Belt System - For Reference to the Correct Primary Belt that Travels to Select Deck Pullies and Back to the Engine/Pto Pulley Refer to the Belt Reference Chart Below. Don't settle for imitations or substitutes when you can have - worry-free, designed to fit options, knowing that your Hustler Mower Deck Belts are built, tested, and designed specifically to OEM Standards and Expectations. Please refer to the Images above; Product Specifications, Special Notes, Associated Parts and the Model Fit guide below to ensure proper fit.

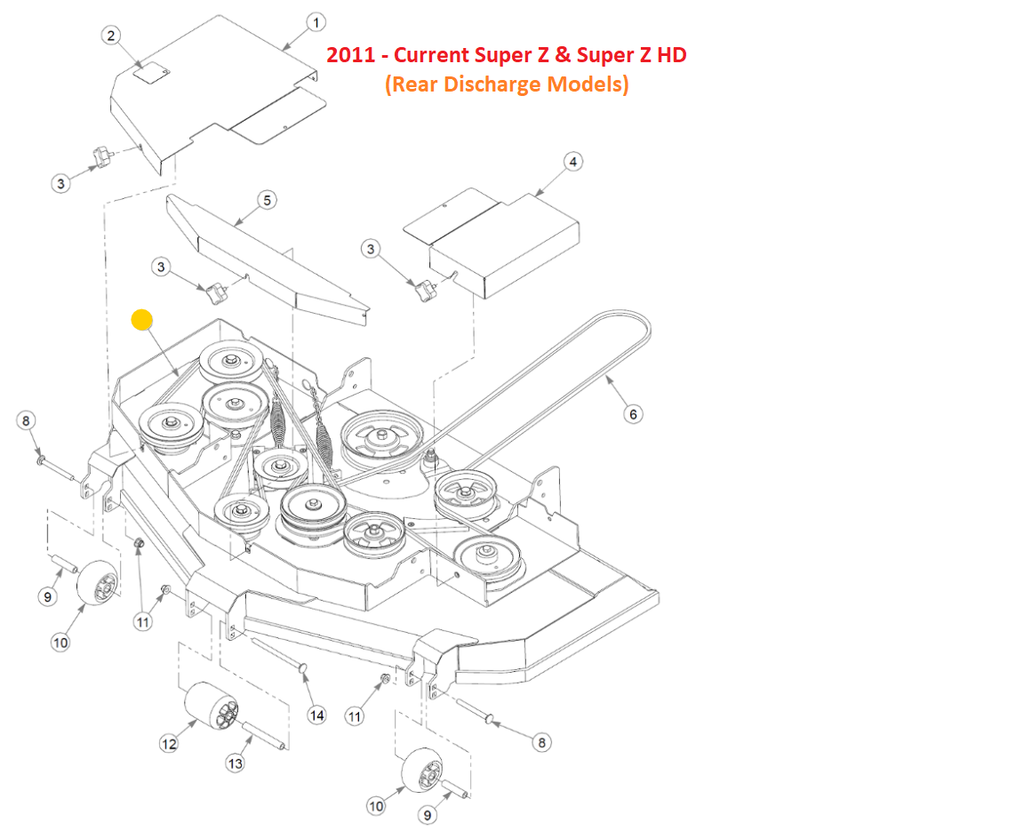

60" Super Z & Super Z HD (REAR DISCHARGE MODELS)
MOWER DECK BELT ASSOCIATED PART NUMBER REFERENCE
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
Note 1: Super Z and Super Z HD 60" Rear Discharge Models Require Two Mower Deck Belts. The Primary Belt Travels from the Engine to the Mower Deck and Around Select Pulleys - Whereas the Secondary Mower Deck Belt is used only on the Mower Deck Itself between Mower Deck Pulleys.
Note 2: Below the Individual Part Numbers Under Each Family Type is a Belt Fit Chart that will List the Mower Deck Belt Part Number Combination that is Correct for each Select Model Number. Using the Mower Deck Belt Chart Click on anyone of the Associated Part Numbers to be Redirected as Needed.
- 606877 - 60" Super Z & Super Z HD (2018 - Current) Primary Belt
- 777185 - 60" Super Z & Super Z HD (2013 - 2017) Primary Belt
- 789388 - 60" Super Z (2011- 2012) Primary Belt
- 027284 - Secondary Mower Deck Belt For all Listed Models
Specification
|
Product Number: |
027284 |
|
Brand: |
Hustler |
|
Length: |
NA |
|
Width: |
NA |
|
Height: |
5/8” |
|
Weight: |
1.750 LB |
Model Fit:
60" Rear Discharge Super Z and Super Z HD (2011 – Current XR7 & VX4 Mower Deck)
Model Numbers: 930024, 932053, 932178, 934216, 934307, 934935, 935023, 936914, 937011, 940031, 941195, 941245, 941559, 942862, 943035, 943910, 944025
2011 - Late 60" Rear Discharge Model - Super ATZ Mower Models

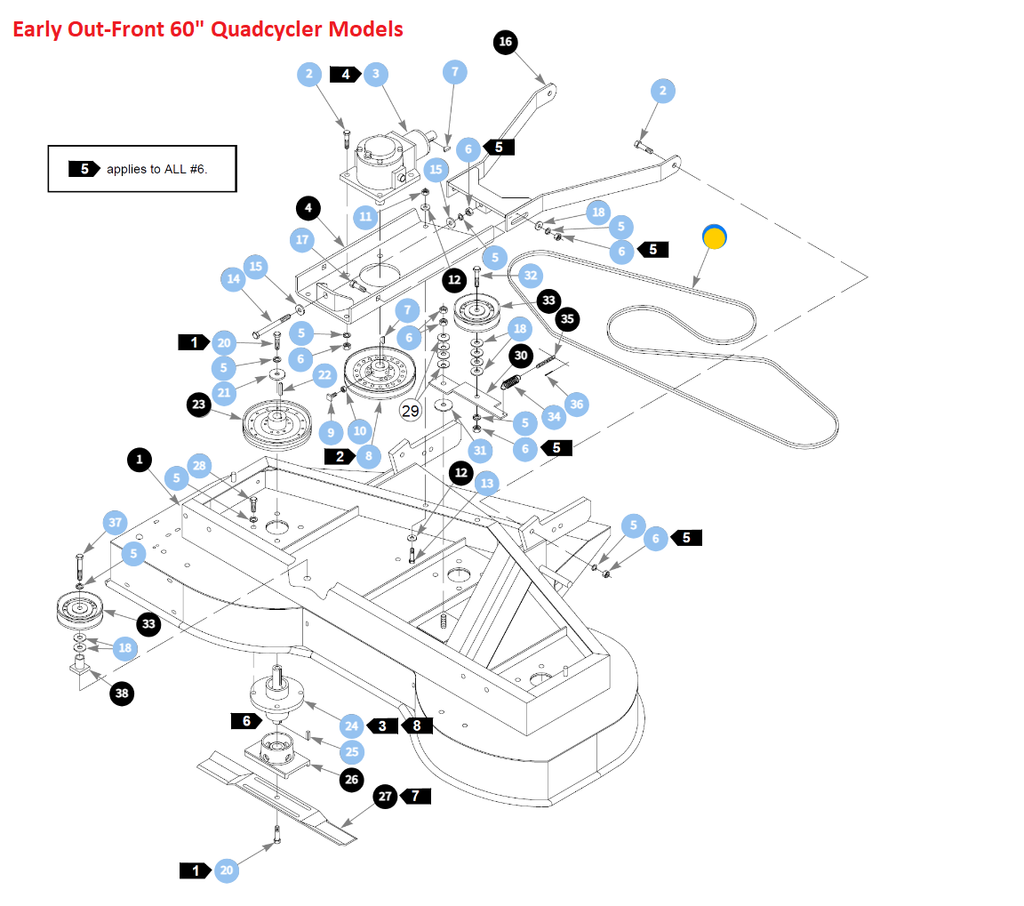

Early 60" Out front Quadcycler Model
