Description

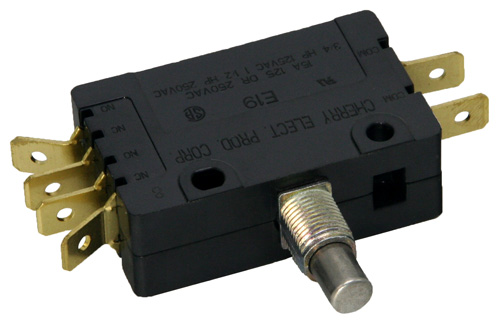

The Hustler OEM 023002 Double Pole Safety Switch is used Primarily on the Hustler Trimstar Models as a brake Safety Switch. This Special Safety Switch communicate to each of the operator handle to determine if the Operator is present when the Brake is Disengaged. Hustler OEM 023002 is used in other applications on Hustler Older Hydro Walk Behinds, 3400 AWD, 320, 340, 400DIS, 440DIS, 4500, 4600 Models Images and Examples are not Listed on these Models. Refer to Images Above, Model Fit Chart and the Special Notes Below to verify a Correct Fit.

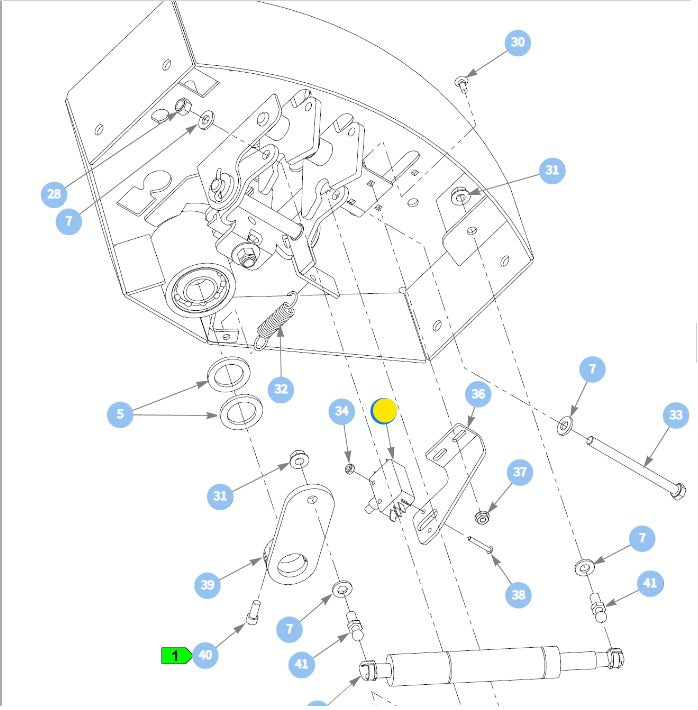

NOTE: Not all Trimstars will use a Hustler Double Pole Brake Safety Switch 023002. Select Models Require a Snap-Plunger Style Safety Brake Safety Switch 792374. Discover the Distinct Visual Variations Between the Two Styles by Referring to the Images Provided. To be Redirected Hustler OEM Snap-Plunger Style Brake Safety Switch 792374 Click on the Part Number.
Specification
|
Product Number: |
023002 |
|
Brand: |
Hustler |
|
Length: |
1.95 IN |
|
Width: |
1.95 IN |
|
Height: |
0.65 IN. |
|
Weight: |
0.075 LB |
Model Fit:
929240, 929265, 929273, 930412, 939496, 939504, 939512, 939538, 942268, 942276
